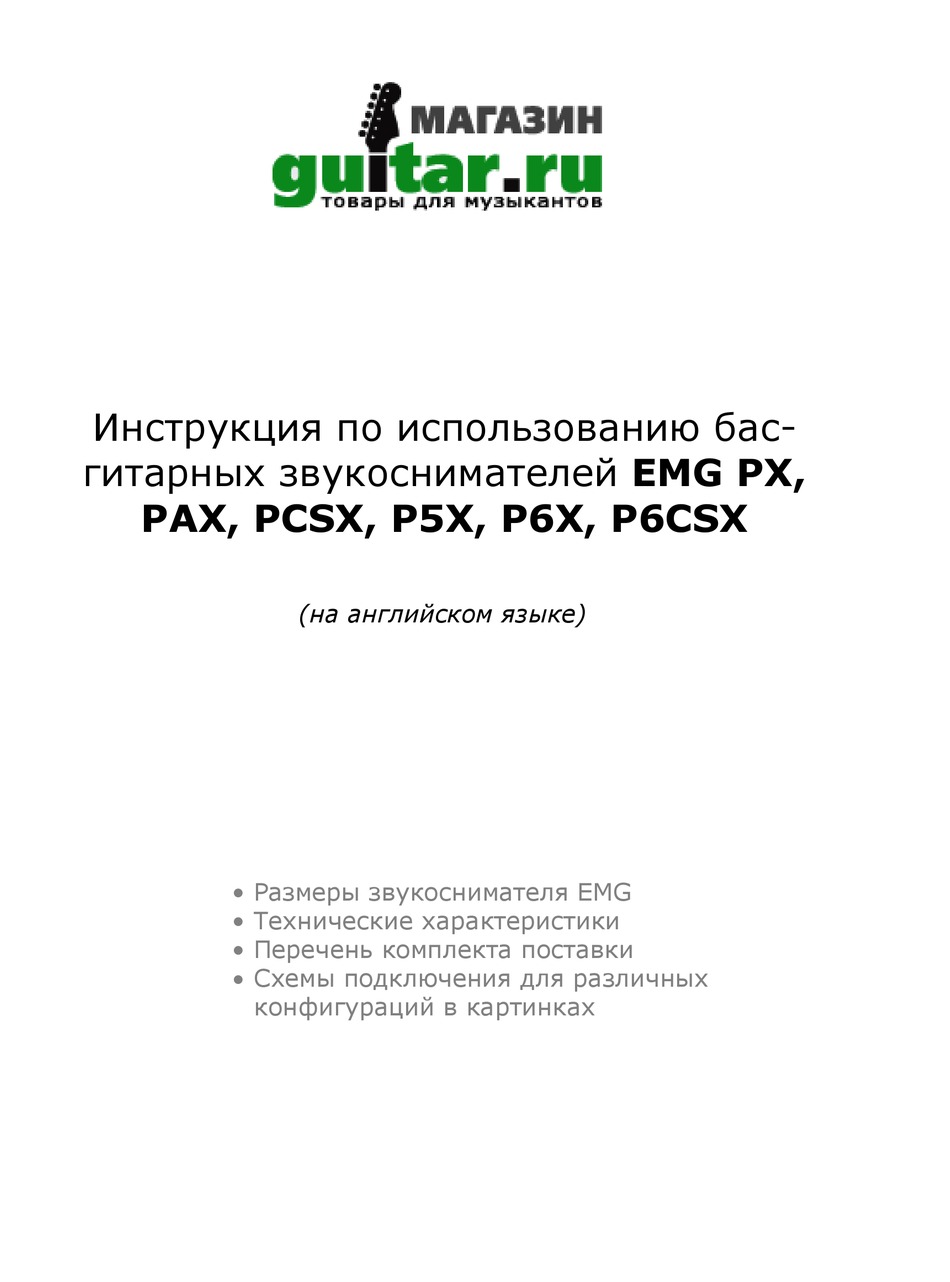

Инструкция по использованию бас- гитарных звукоснимателей EMG PX, PAX, PCSX, P5X, P6X, P6CSX (на английском языке) • Размеры звукоснимателя EMG • Технические характеристики • Перечень комплекта поставки • Схемы подключения для различных конфигураций в картинках...
Warranty All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This warranty covers only those pickups and accessories sold by authorized EMG Dealers.
2) Power Supply tips are on page 4. If your instrument has a battery holder, you are installing this pickup with an older EMG, or you want to supply your instrument with +18 Volts, see page 4 for tips to avoid soldering.
Page 4
(remember the order and function of each control) Control. 4) Install the EMG Volume and Tone Controls and tighten them in. 4) Install the EMG Volume and Tone Controls and tighten them in. 4) Plug a coax cable from the Bridge Volume control the VLPF Master Tone control.
Page 5
Soldering to the battery buss: If your instrument has a long Panel Jack like the one below If your instrument has an older EMG Pickup you can solder the you will have to solder the output cable as shown. pickup RED wire to the buss. Simply use some needle nose pliers,...
