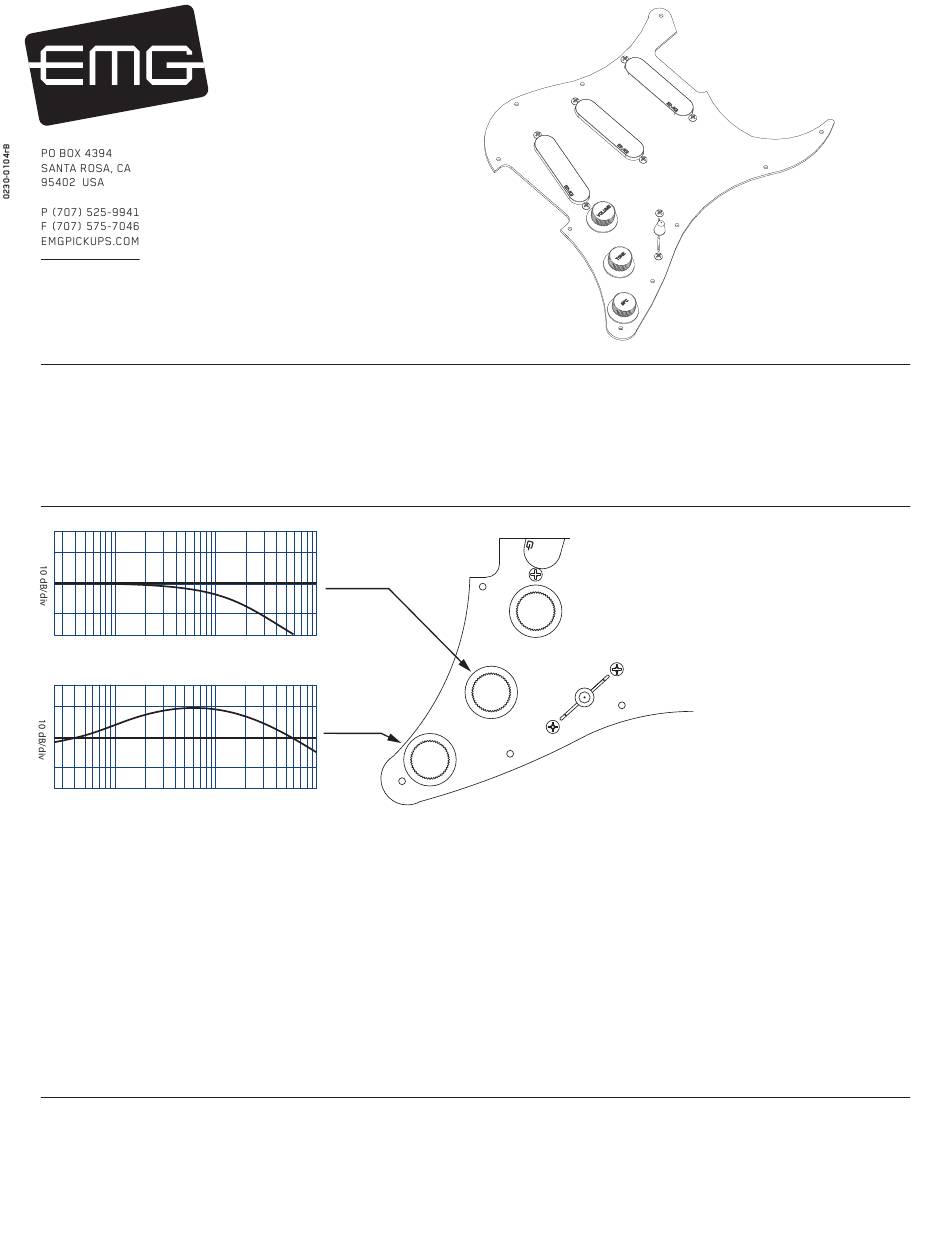

INSTALLATION INFORMATION
EMG MODEL: VG-20
(PRO-SERIES ASSEMBLY)
General INFORMATION:
The VG-20 is a pre-wired pickguard assembly that has been used by Vince Gill since 1996. It has 3 of our EMG-S Pickups installed and features
a 5 position selection switch, standard passive tone control (High-End rolloff) as well as our SPC Accessory circuit. The S Pickups feature a
Ceramic Bar magnet for bright tone and amazing sustain. The SPC Control adds the feature of a mid-boost designed to recreate the sound of
a dual-coil pickup. The SPC control is effective when turned clockwise, and fully bypassed when it is turned counter-clockwise.
0.025
LOG FREQ (kHz)
0.025
LOG FREQ (kHz)
SPECIFICATIONS:
Logo Color
Magnet Type
Resonant Frequency (KHz)
Output Voltage (String)
Output Voltage (Strum)
Output Noise (60 Hz)
Output Impedance (Ohm/System)
Current @9V (Microamps/Complete System)
Battery Life (Hours)
Supply (Volts DC)
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2014 Copyright EMG INC. All Rights Reserved.
VG-20 Page 1
10
TONE
SPC
10
MODEL:
S Pickup
Silver
Ceramic
4.35
1.00
1.50
-91
2000
858
300
9
VOLUME
