GROUND
NECK P/U
OUTPUT
BRIDGE P/U

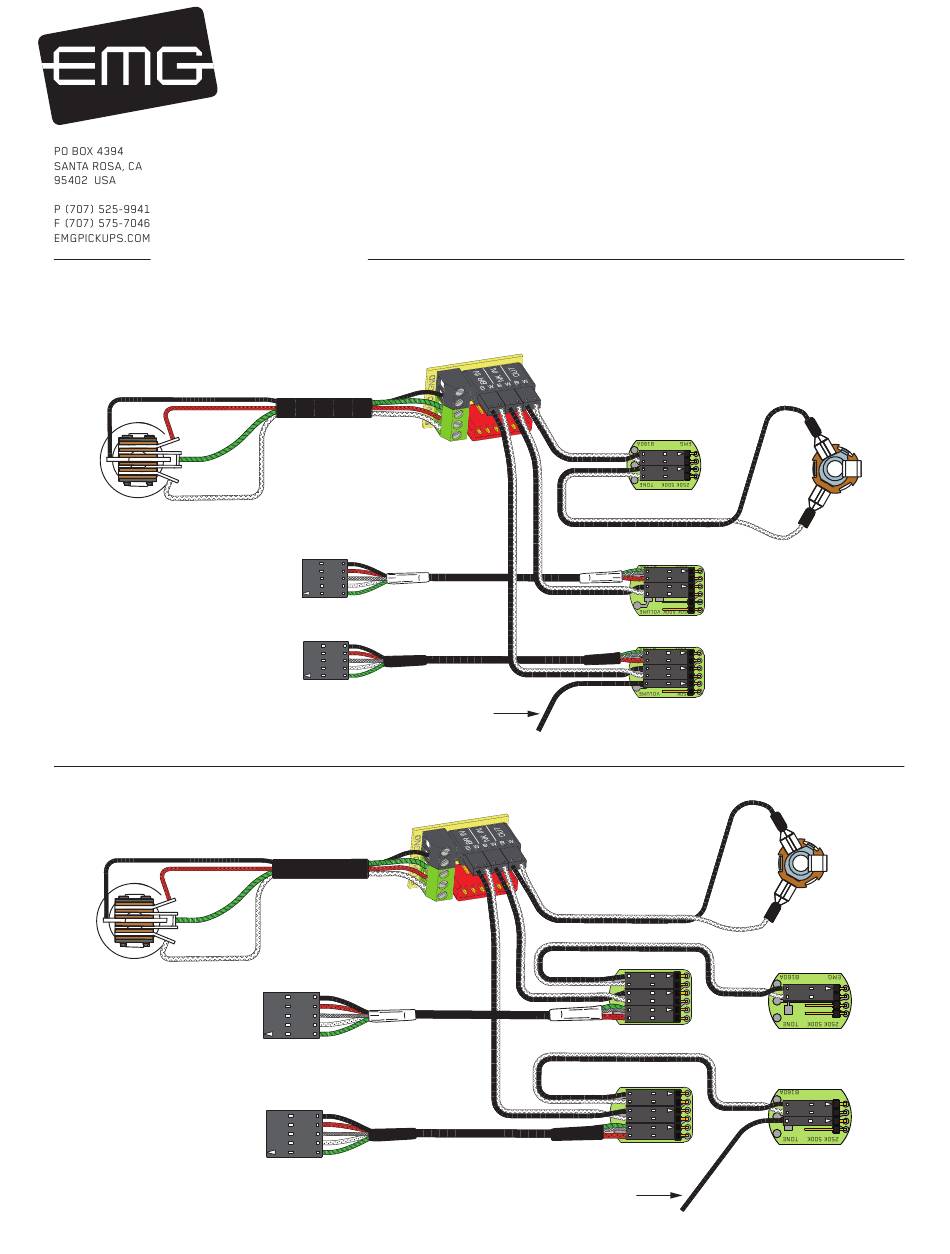

Diagram #1
2 Pickups
Toggle Style Switch
2 Volumes (Dependent)
Master Tone
GROUND
NECK P/U
OUTPUT
BRIDGE P/U
Diagram #2
2 Pickups
Toggle Style Switch
2 Volumes (Dependent)
2 Tones
© 2021 Copyright EMG INC. All Rights Reserved.
SEE PAGE 2 FOR WIRING WITH EMG SOLDERLESS TOGGLE SWITCHES
SEE PAGE 2 FOR WIRING WITH EMG SOLDERLESS TOGGLE SWITCHES
OR HARDWIRED 3-POSITION BLADE SWITCHES
OR HARDWIRED 3-POSITION BLADE SWITCHES
FROM NECK PICKUP
FROM BRIDGE PICKUP
TO STRING GROUND
SEE DIAGRAM #3
FROM NECK PICKUP
FROM BRIDGE PICKUP
INSTALLATION INFORMATION
EMG MODELS: PASSIVE / PASSIVE
MASTER
TONE
OUTPUT CABLE
NK VOLUME
BR VOLUME
OUTPUT CABLE
NK VOLUME
BR VOLUME
TO STRING GROUND
SEE DIAGRAM #3
OUTPUT
S
T
OUTPUT
S
T
NK TONE
BR TONE
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for EMG PASSIVE
Summary of Contents for EMG PASSIVE
- Page 1 INSTALLATION INFORMATION EMG MODELS: PASSIVE / PASSIVE SEE PAGE 2 FOR WIRING WITH EMG SOLDERLESS TOGGLE SWITCHES SEE PAGE 2 FOR WIRING WITH EMG SOLDERLESS TOGGLE SWITCHES OR HARDWIRED 3-POSITION BLADE SWITCHES OR HARDWIRED 3-POSITION BLADE SWITCHES GROUND MASTER NECK P/U...
- Page 2 (GND) of the volume control as shown in the diagram. This will ground the strings to the system. B289 and B348 Toggle Switches All EMG Solderless Toggle Switches use the same “BNOG” wiring scheme: B348 B= Bridge Pickup input (White wire)
