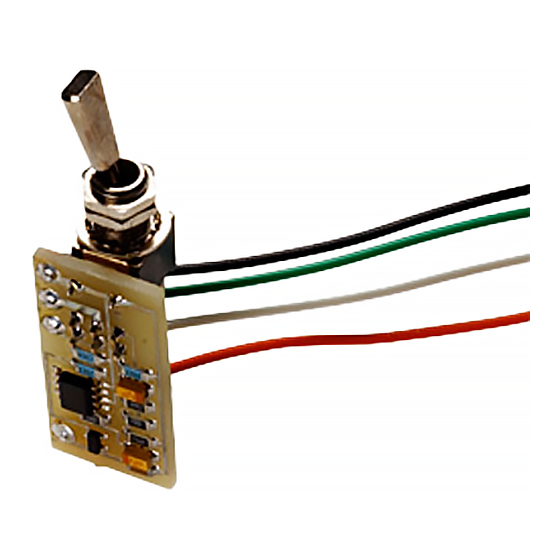

- Page 1 Инструкция по использованию гитарного переключателя фазы EMG Pi2 (на английском языке)
- Page 2 The Pi2 is a phase reversal switch that electronically reverses the phase of the pickup. You must have two pickups on the instrument in order for the Pi2 to work. Reversing the phase of one of the pickups results in a tone that is typically very thin sounding and dependent upon the type of pickups, the distance between them, and their frequency reponse.
- Page 3 EMG Model: Pi2 Phase Inverter Note: Reversed connector! Pins 1 and 2 are reversed. The Pi2 is installed on guitars with two or three pickups. It is shown installed Make sure the connectors are plugged on as shown. directly at the output of either one of the pickups. The first few diagrams show installations for two pickup guitars.
- Page 4 Installation Instructions: EMG Model: Pi2 Phase Inverter Diagram #4 - 9V + 2 Pickups, Pi2, Active Tone BATTERY Toggle Style Switch NEG (-) Volume each Pickup (Volumes are independent) GROUND NOTE: REVERSED CONNECTOR NECK P/U OUTPUT SPC or RPC OUTPUT...
