EMG SPC Manual

INSTALLATION INFORMATION
EMG MODELS: SPC / RPC
(ACTIVE/PASSIVE PICKUP INPUTS)
SPECIFICATIONS
Input Impedance (Ohms)
Input Referred Noise
Output Impedance (Ohms)
Current @ 9V (Microamps)
Battery Life (Hours)
Maximum Supply (Volts DC)
GENERAL OPERATION:

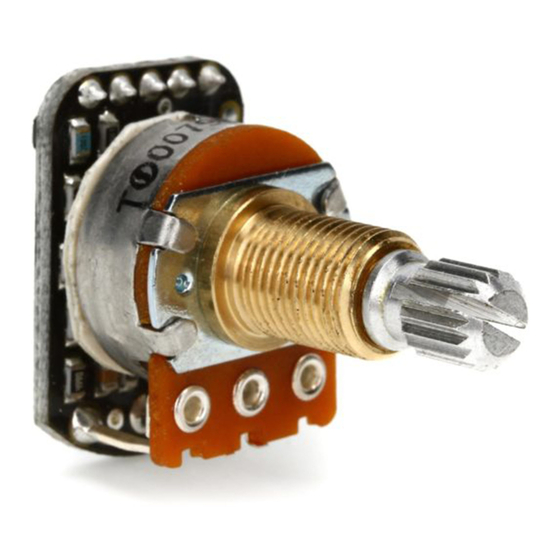

The SPC and RPC are active EQ circuits for guitar. The SPC is a mid-range boost. The RPC is a low cut/high boost.
The graphs below illustrate the effects of the controls. The thick black line displays the effect with the control all the way up (clockwise).
The flat black line illustrates the effect with the control all the way down (counter-clockwise) in the bypass mode. The controls are continuously
variable from flat to maximum effect. The SPC and RPC are wired in series with the signal path, so there is an input and output.
Both controls feature buffered inputs and can be used with passive pickups.

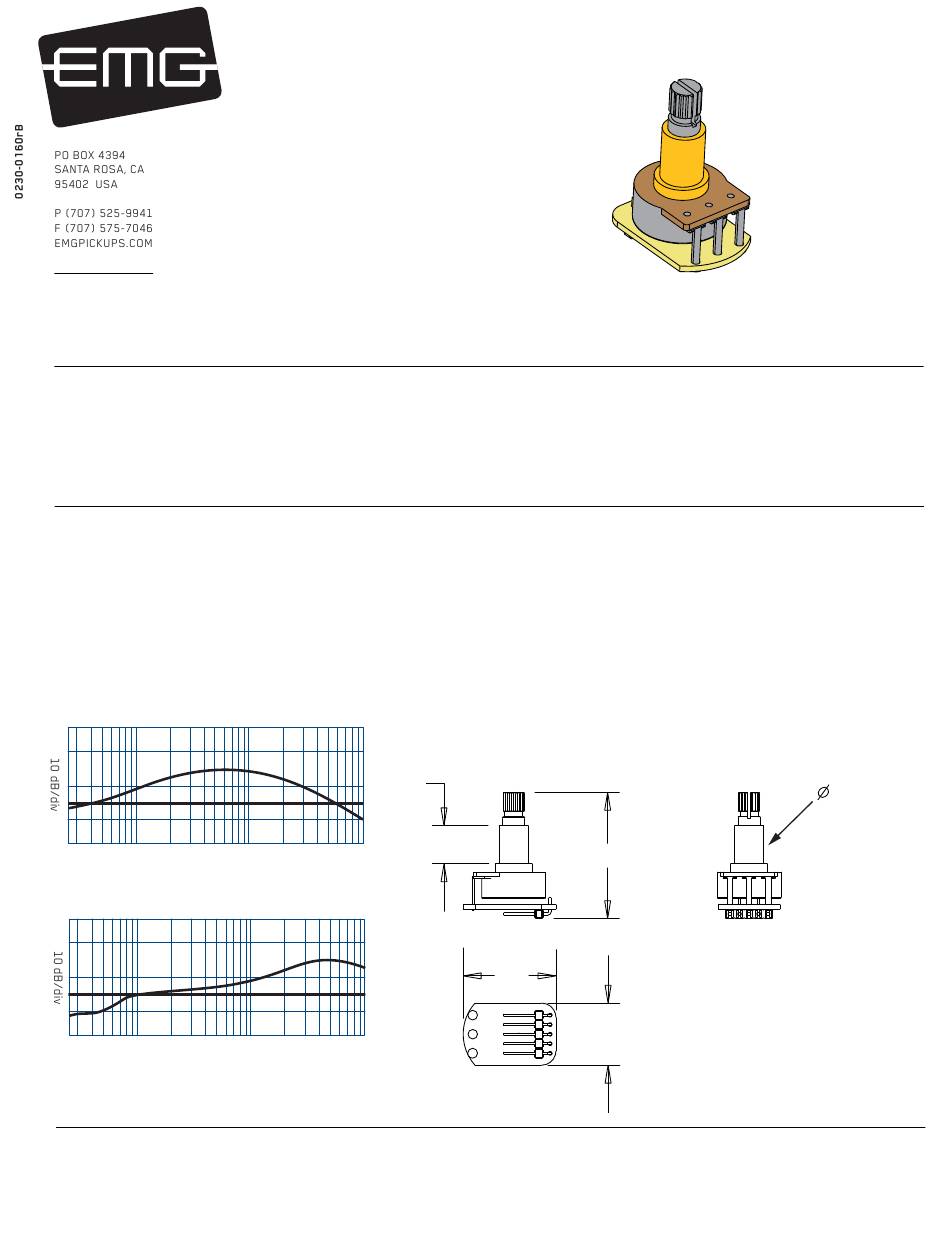

Frequency Response:
EMG-SPC
0.025 LOG FREQ (kHz)
EMG-RPC
0.025 LOG FREQ (kHz)
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2014 Copyright EMG INC. All Rights Reserved.
250K
-130dbV
2K
980
250
18
Dimensions:
.400
10
.975
INPUT
GROUND
GROUND
OUTPUT
10
V++
SPC / RPC
INCLUDED:
1 SPC or RPC Control
1 Battery Clip with Buss Connector
1 Stereo Output Jack (Battery Switching)
2 Interconnect cables
1.325
1 2 3 4 5
Connector for EMG Active Tone controls
and accessories.
1
2
Pin 1
.650
3
4
Pin 2
5
Pin 3
Pin 4
Pin 5
.309 (8mm P .75)
Input
Ground for Input
Ground for Output
Output
V+ Supply
