EMG B136RE Installation Information

EMG B136RE Installation Information

Push-pull pot for emg-89 and active emg-tw pickups

Advertisement

Quick Links

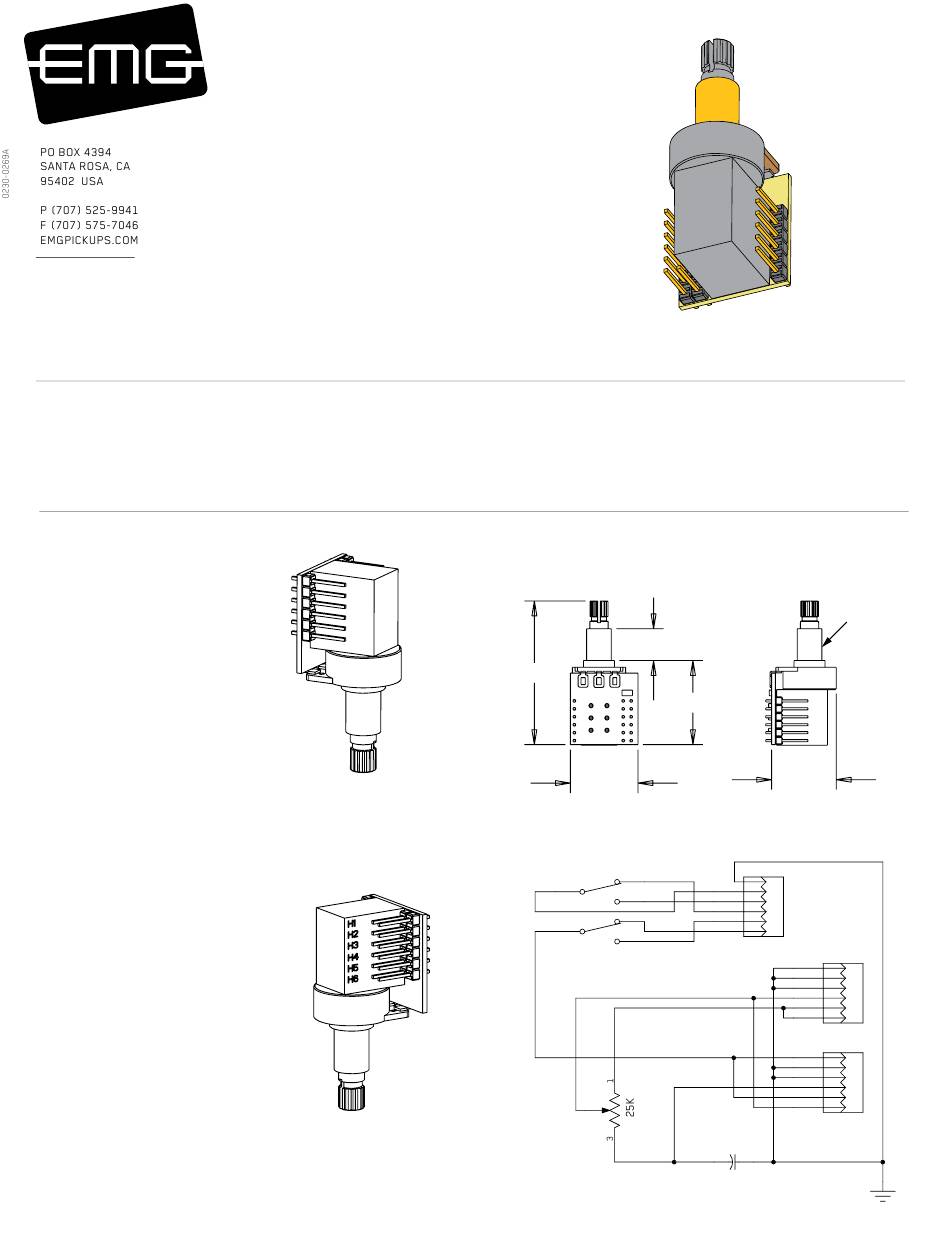

INSTALLATION INFORMATION
EMG MODEL:B136RE PUSH-PULL POT FOR
EMG-89 AND ACTIVE EMG-TW PICKUPS
General INFORMATION:

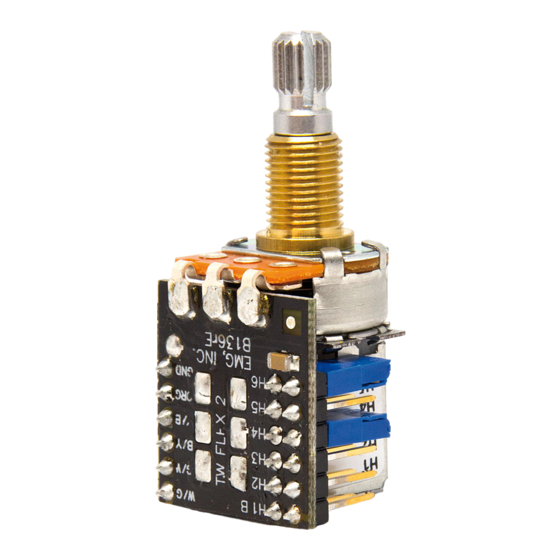

The EMG B136rE is a Push-Pull Switch (DPDT) combined with a 25K Pot onto a split shaft control. The Push-Pull switch provides a convenient way
to choose either Single-Coil or Dual-Coil sounds from Active EMG-TW Style Pickups. The 25K Pot can be used as a Volume or Tone Control for the
pickup, or it can be used as a Master Volume or Master Tone Control for the instrument. The B136 uses EMG's standard solderless installation
system. The B136 version described in this data sheet is thE "E" Version that allows daisy-chaining of volume controls without any extra
connnectors.
The B136 has 2 Sections.
Section 1) Push-Pull Switch:
This is the single in-line 6 pin header.
This header is for the pickup input.
Section 2) 25K Audio Taper pot:
The dual-header labeled H1 thru H6 directs how the pot functions.
The Pot can be used in 4 different ways:
1) Volume Control for the pickup only
2) Tone Control for the pickup only
3) Master Volume Control for the entire instrument
4) Master Tone Control for the entire instrument
Using the B136 with EMG-X Series Pickups:
The Tone Control for the B136 is passive. It is not suitable for EMG-X
Series Pickups. If you are using the B136 with EMG X-Series Pickups
it should be used as a Volume Control only, either for the Pickup or as a
Master Volume.
© 2012 Copyright EMG INC. All Rights Reserved.
Dimensions:
B136rE Push-Pull Pot
.400
1.800
1.060
.850
B136E SCHEMATIC
S1
DPDT
1
2
3
4
5
6
OUTPUT
2
VR1
8mm Dia.
P.75
.813
1
2
PICKUP
3
J1
INPUT
4
5
6
1
2
3
J2
4
5
6
1
2
3
J3
4
5
6
104
C1

Advertisement

loading
Need help?

Need help?

Do you have a question about the B136RE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EMG B136RE

  • Page 1 General INFORMATION: The EMG B136rE is a Push-Pull Switch (DPDT) combined with a 25K Pot onto a split shaft control. The Push-Pull switch provides a convenient way to choose either Single-Coil or Dual-Coil sounds from Active EMG-TW Style Pickups. The 25K Pot can be used as a Volume or Tone Control for the pickup, or it can be used as a Master Volume or Master Tone Control for the instrument.
  • Page 2 Installation Instructions: EMG B136rE Using the Push-Pull Switch Section (DPDT) Refer to Diagrams #1 and #2 Diagram #7 The push-pull switch section (DPDT) lets you choose between the Insert the plug onto the 7 pin header single-coil sound and a dual-coil sound by pulling or pushing the pot shaft of the pickup as shown above.
  • Page 3 Tone control. H1 and H2 positions are interchangeable. Position H5, the output of the pickup, would typically go to a selection switch PICKUP OUTPUT TO or a pan-pot. VOLUME CONTROL, SELECTION SWITCH, EMG ACCESSORY, OR... 89 INSTRUCTIONS Page 3...
  • Page 4 NEG (-) GROUND NECK P/U MASTER TONE OUTPUT OUTPUT BRIDGE P/U Diagram #9 2 Pickups (1 EMG + 1-89) MASTER Toggle Style Select Switch FROM NECK PICKUP VOLUME Push-Pull Pot as Master Volume with a Master Tone (Passive) FROM 89 PICKUP...
