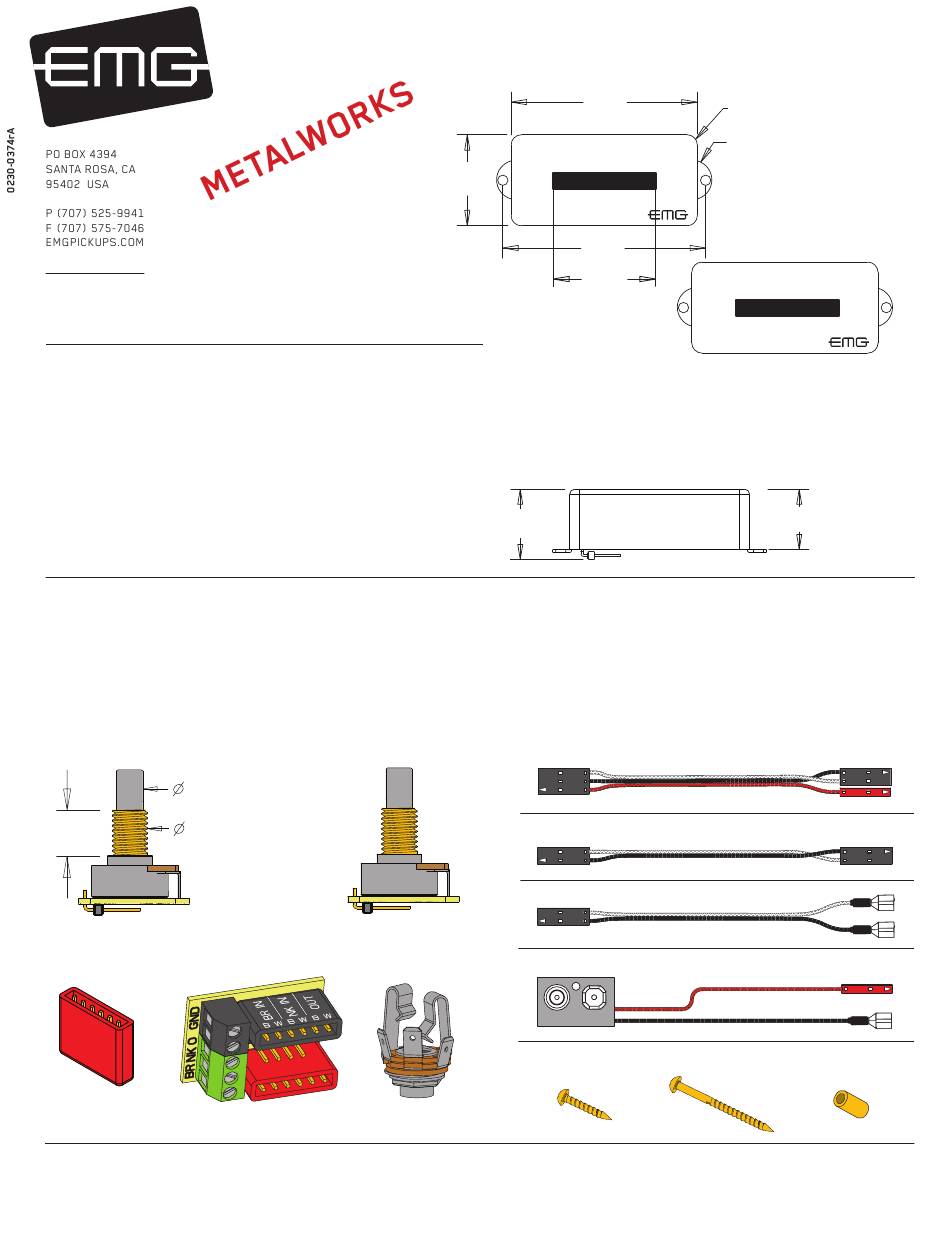

EMG LES CLAYPOOL Installation Information

INSTALLATION INFORMATION

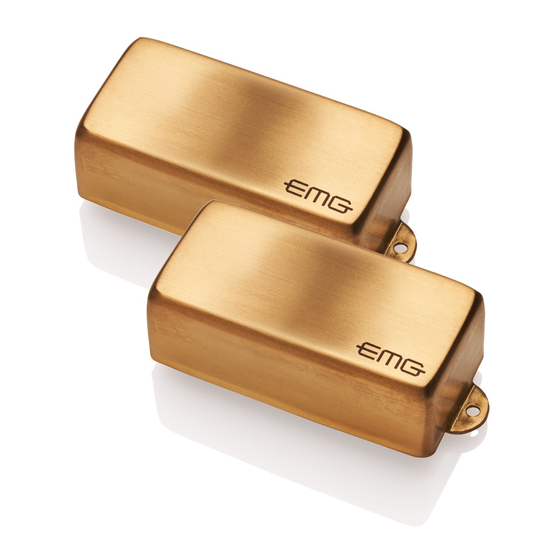

EMG MODELS: LC-PA (LES CLAYPOOL MODEL)
SPECIFICATIONS:
Logo Color
Magnet Type
Resonant Frequency (KHz)
Output Voltage (Finger, Thumb)
Output Voltage (Thump)
Output Noise (60 Hz)
Output Impedance (Kohm)
Current @9V (Microamps)
Battery Life (Hours)
Maximum Supply (Volts DC)
Installation notes:
All EMG Active Pickups are compatible with each other. EMG Accessories, the VLPF, EXG, SPC or RPC Controls can be added to any EMG system
without requiring an extra battery. DO NOT reconnect the bridge ground wire, as EMG Active Pickups do not require string grounding. Use the
25K Ohm controls that are included for best results. If your output jack is a long panel style you will need to solder a stereo jack, like the
SwitchCraft 152B or similar. Adjust the pickup level to the strings, and experiment with a distance that works for you.
Alternate wiring diagrams are available at: emgpickups.com.
Included with each pickup:
1 VOLUME CONTROL (25K)
.235 (6)
SOLID
.390
.310 (8)
(10)
BATTERY 2 PICKUP IN/ OUT
BATTERY BUSS
BUSS
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2021 Copyright EMG INC. All Rights Reserved.
1.100 1.100
(27.94) (27.94)
MODEL:
LC-PA
Gold
Alnico 5
2.61
2.00
8.0
-101
3
380
1000
27
1 TONE CONTROL (25K)
STEREO OUTPUT
JACK
2.250 2.250
(57.15) (57.15)
2.450 2.450
(62.23) (62.23)
1.200 1.200
(30.48) (30.48)
NOTE: EMG Metal Works Pickups may be direct mounted NOTE: EMG Metal Works Pickups may be direct mounted
with either short or long adjustment screws, depending with either short or long adjustment screws, depending
on what works best for your instrument. on what works best for your instrument.
See Diagram #9 on page 4 for instructions on using the See Diagram #9 on page 4 for instructions on using the
included mounting standoffs with long screws. included mounting standoffs with long screws.
.875 .875
(22.22) (22.22)
PICKUP CABLE 13.5" (34cm)
3 CONNECT CABLES 5.5" (14cm)
OUTPUT CABLE 6" (15cm)
BATTERY CABLE 7" (18cm)
- 9V +
SHORT ADJUSTMENT
SCREWS (4)
R .125 R .125
(3.17) TYP (3.17) TYP
R .234 R .234
(5.94) TYP (5.94) TYP
1.200 1.200
(30.48) (30.48)
.750 .750
(19) (19)
LONG ADJUSTMENT
MOUNTING
SCREWS (4) STANDOFFS (4)
