EMG P Installation Information

INSTALLATION INFORMATION

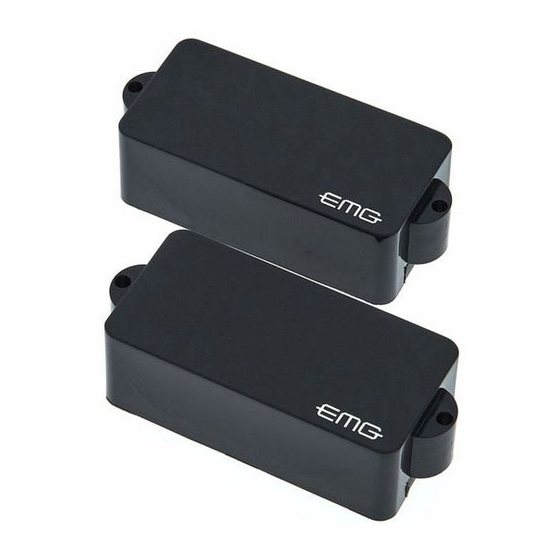

EMG MODELS: P, PA, P-CS (4-STRING)
P5 (5-STRING)
P6, P6-CS (6-STRING)
SPECIFICATIONS:
Logo Color
Magnet Type *
Resonant Frequency (KHz)
Output Voltage (Finger, Thumb)
Output Voltage (Thump)
Output Noise (60 Hz)
Output Impedance (Kohm)
Current @9V (Microamps)
Battery Life (Hours)
Maximum Supply (Volts DC)
*Note: Magnet Type: A (Alnico) C (Ceramic) C/S (Ceramic and Steel)
PICKUP AND MAGNET DIMENSIONS:
All EMG-P Models (P, P5, and P6) have the same housing dimensions (shown above).
The differences in each of the models are in the magnet width only. Models EMG-P and EMG-PA are direct replacements for the 4-string
Fender Precision Bass. The P5, P6, and P6-CS models are intended for guitars that are custom or that will be modified to fit the pickups.
The drawings below show the magnet placement for all versions, 4, 5, and 6-string. Be sure to align the magnet with the strings
in order to assure even pickup from the strings.
EMG-P, PA
E/A SIDE
1.200
1.200
D/G SIDE
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2009 Copyright EMG INC. All Rights Reserved.
MODEL:
P, P5, P6 PA
Silver Gold
C A
3.20 2.61
2.00 2.00
4.50 4.50
-106 -101
10 10
80 80
3000 3000
27 27
EMG-P5
E/A SIDE
1.200
2.250 2.250
1.100 1.100
2.450 2.450
#4 PHILLIPS RH WOOD SCREWS
FOR MOUNTING
.875 .875
P-CS, P6-CS
Silver
C/S
2.61
2.00
4.50
-101
10
80
3000
27
EMG-P6, P6-CS
1.650
D/G/C SIDE
R .125 TYP R .125 TYP
R .234 TYP R .234 TYP
.750 .750
B/E/A SIDE
1.650
1.650
D/G/C SIDE
