3 PCB Layout Design
Unit: mm
: Clearance Area
Max 2 Min15
Base board

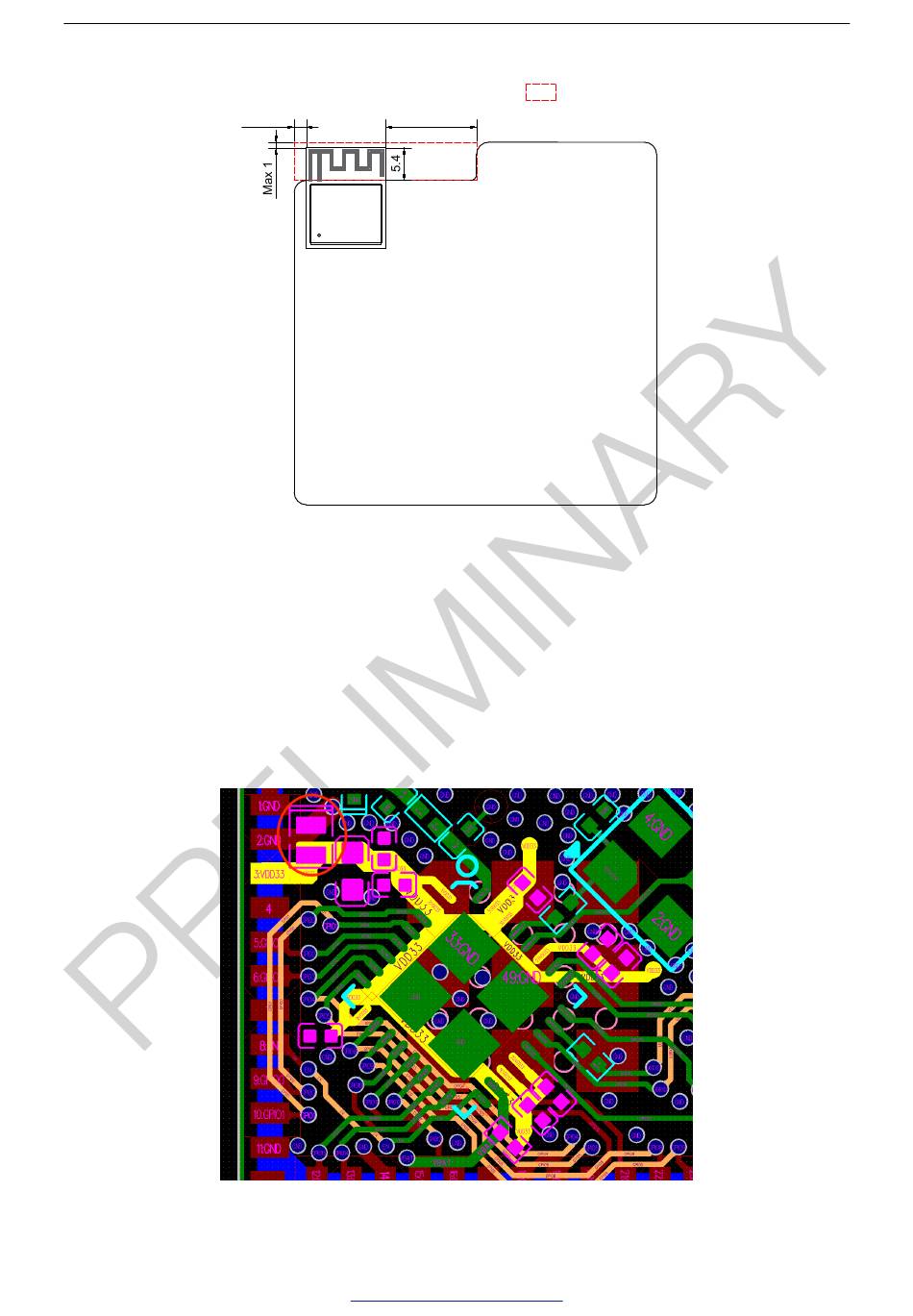

Figure 13: Keepout Zone for ESP32-H2 Module's Antenna on the Base Board
When designing an end product, attention should be paid to the interference caused by the housing of the
antenna and it is recommended to carry out RF verification.
As a conclusion, please be noted it is necessary to test the throughput and communication signal range of the
whole product to ensure the product's actual RF performance.

3.3 Power Supply

Figure 14: ESP32-H2 Power Traces in a Four-layer PCB Design
