Uart - Espressif Systems ESP32-H2 Series Hardware Design Manuallines

2 Schematic Checklist
VDD33

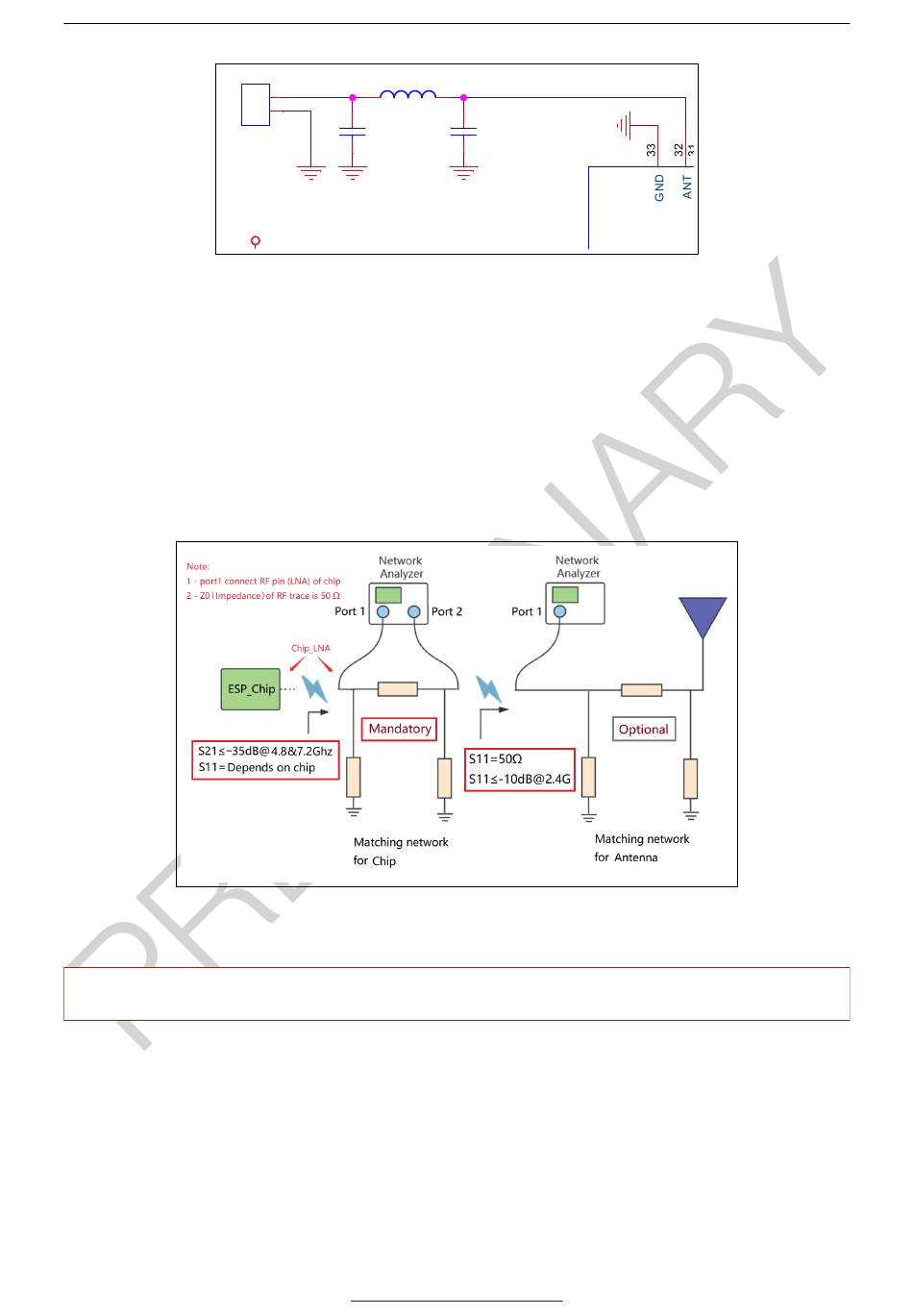

Figure 8 shows the general process of RF tuning. Please be noted the matching parameters are subject to the
RF tuning of PCB board, which depends greatly on the antenna and PCB layout. For ESP32-H2 series of chips,
it is recommended to set the S11 parameter in the figure below to 35+j5 Ω and the center frequency is 2442
MHz.
If the RF function is not required, the RF pin can be left floating.
If the application or production environment is susceptible to electrostatic discharge, it is recommended to
reserve an ESD protection diode near the antenna side.
5
Notice:
The matching parameters vary with board, so the ones used in our modules could not be applied directly.

2.6 UART

It is recommended to connect a 499 Ω series resistor to the U0TXD line in order to suppress the 80 MHz
harmonics.
Usually UART0 is used as the serial port for download and log printing, and UART0 pins (U0TXD and U0RXD) are
fixed. For instructions on download over UART0, please refer to Section 4.3.
