This section is used to define the general parameters of Wi-Fi. It is possible to defined the type of Wi-Fi communication:
Access Point;
Client.
The means of the fields for Access Point configuration are:
In the field "IP Address" the IP address of the converter is defined;
In the field "Subnet Mask" the SubNet Mask of the converter is defined;
In the field "GATEWAY" the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used
for going out of the net;
In the field "DNS" the DNS address is defined. This field is required if the
server address is define by URL and not IP Address.
In the field "Port" the port used for MQTT communication is defined;
In the field "SSID" the name of the Wi-Fi network to create is defined;
In the field "Password" the password used for Wi-Fi connection is defined;
In the field "Type" the type of security protocol used by the Wi-Fi network is
defined;
If the field "Enable DHCP" is checked, the converter acts as DHCP Server for
the Clients connected. If the option is enabled, in the fields
Address" and

"DHCP SUBNET

is defined. In the field
renewing of the IP Address assigned to the Client is defined;
In the field "Max Client" the maximum number of Wi-Fi Clients accepted is
defined;
In the field "Channel" the channel for Wi-Fi communication is defined.
ADFweb.com S.r.l.
Mask" the IP Addresses range used for DHCP
"Lease Time (seconds)" the required time for the
User Manual M-Bus / M-Bus Wireless / MQTT
Document code: MN67931_ENG
"DHCP First IP

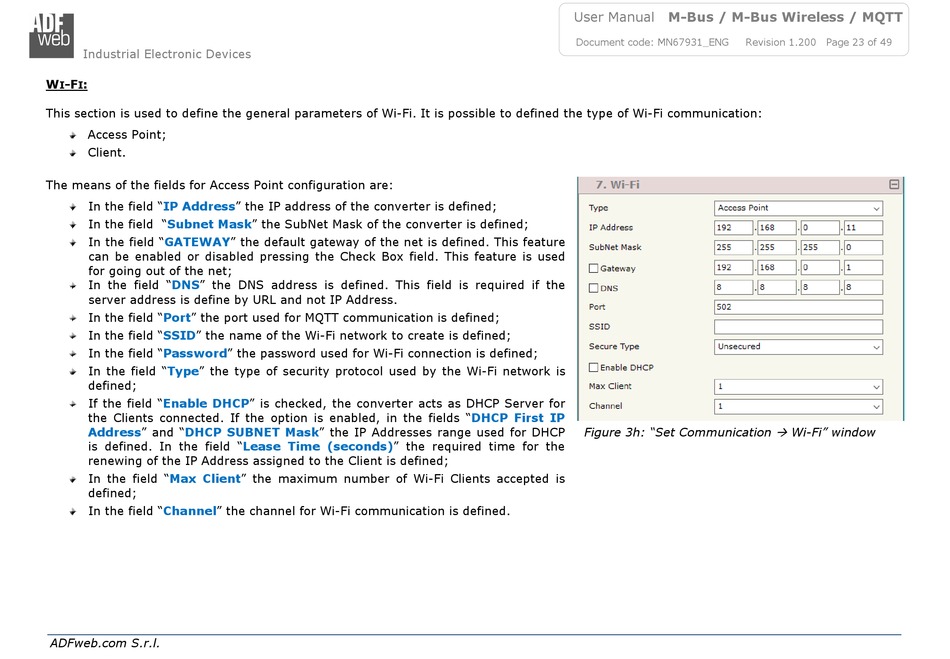

Figure 3h: "Set Communication
