Industrial Electronic Devices
User Manual
Revision 1.000
English
NMEA 0183 / MQTT - Converter
(Order Code: HD67948-2-A1, HD67948-5-A1)
For Website information:
www.adfweb.com?Product=HD67948
For Price information:
www.adfweb.com?Price=HD67948-2-A1
www.adfweb.com?Price=HD67948-5-A1
Benefits and Main Features:
Very easy to configure
Triple Electrical isolation
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual NMEA 1083 / MQTT
Document code: MN67948_ENG
For other NMEA 0183 products see also the following link:
Converter NMEA 0183 to
www.adfweb.com?Product=HD67B20
www.adfweb.com?Product=HD67B43
www.adfweb.com?Product=HD67C58
www.adfweb.com?Product=HD67C72
www.adfweb.com?Product=HD67C73
www.adfweb.com?Product=HD67D28
www.adfweb.com?Product=HD67E18
www.adfweb.com?Product=HD67615
www.adfweb.com?Product=HD67616
www.adfweb.com?Product=HD67617
www.adfweb.com?Product=HD67748
www.adfweb.com?Product=HD67775
www.adfweb.com?Product=HD67874
www.adfweb.com?Product=HD67979
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 30
(OPC UA Client)
(OPC UA Server)
(EnOcean)
(EnOcean)
(EnOcean)
(LoRaWAN)
(EtherCAT)
(PROINET)
(Modbus Slave)
(Modbus TCP Slave)
(IEC 61850 Server)
(IEC 61850 Client)
(IO-Link Master)
(IO-Link Slave)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67948-2-A1
Summary of Contents for ADF Web HD67948-2-A1

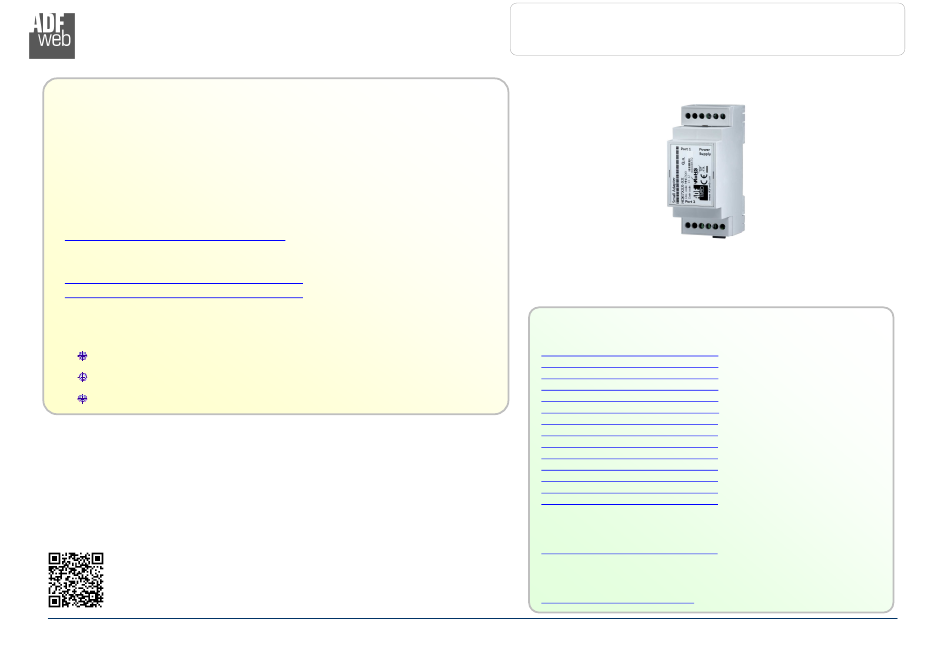

- Page 1 Page 1 of 30 Industrial Electronic Devices User Manual Revision 1.000 English NMEA 0183 / MQTT - Converter (Order Code: HD67948-2-A1, HD67948-5-A1) For Website information: www.adfweb.com?Product=HD67948 For Price information: www.adfweb.com?Price=HD67948-2-A1 www.adfweb.com?Price=HD67948-5-A1 For other NMEA 0183 products see also the following link:...
-
Page 2: Table Of Contents
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 2 of 30 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that INDEX you need to check that the following document is: UPDATED DOCUMENTATION Updated REVISION LIST... -
Page 3: Security Alert
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 3 of 30 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 4 of 30 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 5 of 30 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67948-2-A1 ADFweb.com S.r.l. - Page 6 User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 6 of 30 Industrial Electronic Devices Figure 1b: Connection scheme for HD67948-5-A1 ADFweb.com S.r.l.
-
Page 7: Characteristics
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 7 of 30 Industrial Electronic Devices CHARACTERISTICS: The HD67948-x-A1 are NMEA 0183 / MQTT - Converters. It allows for the following characteristics: Isolation between NMEA 0183 – MQTT – Power Supply; Two-directional information between NMEA 0183 bus and MQTT bus;... -
Page 8: Power Supply
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 8 of 30 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax... -
Page 9: Function Modes
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 9 of 30 Industrial Electronic Devices FUNCTION MODES: The device has got two function modes depending on the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 10: Leds
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 10 of 30 Industrial Electronic Devices LEDS: The device has got seven LEDs that are used to give information about the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 11: Rs232
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 11 of 30 Industrial Electronic Devices RS232: The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a NULL MODEM cable (a serial cable where the pins 2 and 3 are crossed). -
Page 12: Rs485
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 12 of 30 Industrial Electronic Devices RS485: For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet). Here some codes of cables: Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;... -
Page 13: Ethernet
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 13 of 30 Industrial Electronic Devices ETHERNET: The Ethernet port is used for programming the device and for MQTT communication. Ethernet connection and the updating of the converter must be made using Connector9 and/or Connector10 of the HD67948-x-A1 with at least a Category 5E cable. -
Page 14: Use Of Compositor Sw67948
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 14 of 30 Industrial Electronic Devices USE OF COMPOSITOR SW67948: To configure the Converter, use the available software that runs with Windows called SW67948. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 15: New Configuration / Open Configuration
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 15 of 30 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “NMEA 0183 / MQTT - Converter”... -
Page 16: Software Options
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 16 of 30 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 17 User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 17 of 30 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 18: Set Communication
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 18 of 30 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, NMEA 0183 and MQTT. By Pressing the “Set Communication” button from the main window for SW67948 (Fig. - Page 19 User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 19 of 30 Industrial Electronic Devices This section is used to define the main parameters of MQTT line. The means of the fields are: In the field “Server URL”...
- Page 20 User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 20 of 30 Industrial Electronic Devices ERIAL This section is used to define the parameters of Serial line. The means of the fields are: In the field “Baudrate” the baudrate for the serial line is defined; In the field “Parity”...
- Page 21 User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 21 of 30 Industrial Electronic Devices THERNET This section is used to define the general parameters of Ethernet. The means of the fields are: In the field “Ip Address”...
-
Page 22: Nmea 0183 Access
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 22 of 30 Industrial Electronic Devices NMEA 0183 ACCESS: By pressing the “NMEA 0183 Access” button from the main window for SW67948 (Fig. 2) the “Definition of NMEA 0183 Sentences” window appears (Fig. -
Page 23: Mqtt Set Topic
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 23 of 30 Industrial Electronic Devices MQTT SET TOPIC: By Pressing the “MQTT Set Topic” button from the main window for SW67948 (Fig. 2) the window “Set MQTT Topics” appears (Fig. 5). This section is used to define the MQTT topics where the converter will publish the data from NMEA 0183. -
Page 24: Update Device
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 24 of 30 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 25 User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 25 of 30 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67948 device. Warning: If Fig.
-
Page 26: Template String: Definition Of Mqtt Payload
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 26 of 30 Industrial Electronic Devices TEMPLATE STRING: DEFINITION OF MQTT PAYLOAD In the section “Set Communication” of the SW67948, it is possible to define a Template string for the MQTT messages. The template is necessary in order to define the structure of the payload of the MQTT message and the info contained. -
Page 27: Mechanical Dimensions
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 27 of 30 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 8: Mechanical dimensions scheme for HD67948-x-A1 ADFweb.com S.r.l. -
Page 28: Ordering Informations
Serial port: 2: RS232 5: RS485 Device Family HD67948: NMEA 0183 / MQTT - Converter Order Code: HD67948-2-A1 NMEA 0183 / MQTT – Converter (NMEA 0183: RS232) Order Code: HD67948-5-A1 NMEA 0183 / MQTT – Converter (NMEA 0183: RS485) ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 29: Disclaimer
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 29 of 30 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 30: Warranties And Technical Support
User Manual NMEA 1083 / MQTT Document code: MN67948_ENG Revision 1.000 Page 30 of 30 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
