Bradley Terreon Classic WF2500 Series Installation Manual

Hide thumbs Also See for Terreon Classic WF2500 Series:

Advertisement

Quick Links

Download this manual
WF2605
WF3203
Make sure that all water supply lines have been flushed and then completely turned off before beginning
isntallation. Debris in the supply lines can cause valves to malfunction.
Turn OFF electrical supply to the unit before installation.
Main water supply to the unit should be "ON" at all times.
Read this installation manual completely to ensure proper installation, then file it with the owner or
maintenance department. Compliance and conformity to drain requirements and other local codes and
ordinances is the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
Product warranties and parts information may also be found under "Products" on our web site at bradleycorp.com.
215-1833-10 Rev. A; ECN 17-00-006B
© 2017 Bradley
Page 1 of 2
11/21/2017
Installation

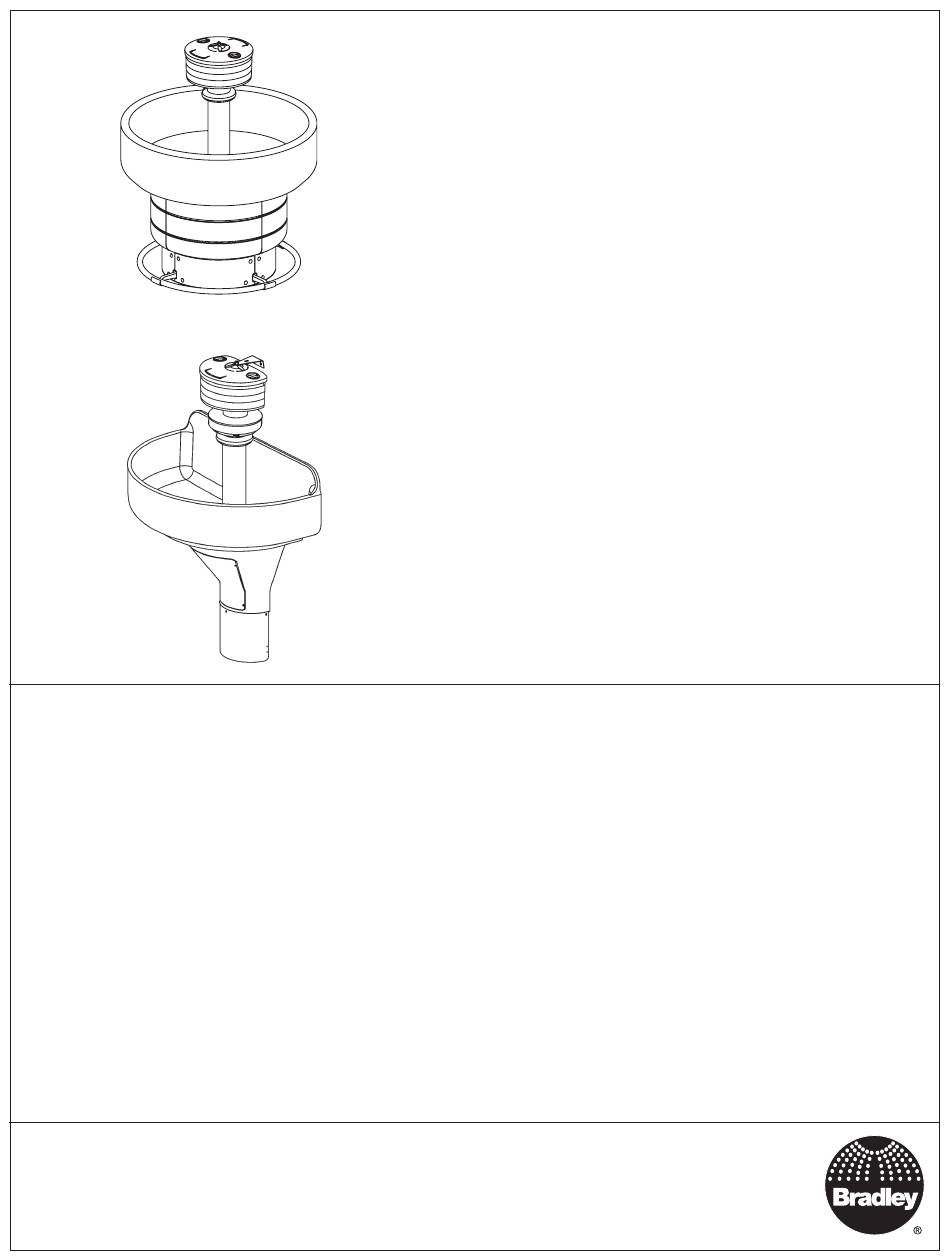

WF2500 Series Terreon Classic
WF2600 Series Terrazzo
WF2700 Series Stainless Steel
WF2800 Series Bradstone
WF3200 Series Terreon Deep Bowl
TDB3100 Series Terreon Deep Bowl
WARNING
NOTICE
IMPORTANT
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
bradleycorp.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Terreon Classic WF2500 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley Terreon Classic WF2500 Series

Summary of Contents for Bradley Terreon Classic WF2500 Series

  • Page 1 Product warranties and parts information may also be found under ”Products” on our web site at bradleycorp.com. P.O. Box 309 Menomonee Falls, WI 53052 USA 215-1833-10 Rev. A; ECN 17-00-006B 800 BRADLEY (800 272 3539) © 2017 Bradley +1 262 251 6000 Page 1 of 2 11/21/2017 bradleycorp.com...
  • Page 2 Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terreon ® Material Description: Terreon is a densified solid surface material composed of bio based resin and is resistant to chemicals, stains, burns and impact.
  • Page 3 Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terrazzo Material Description: Terrazzo is a mosaic-looking natural stone and concrete material polished to a high gloss and sealed with clear polyurethane resin for long lasting beauty.
  • Page 4 Bowl and Pedestal Assembly (Terrazzo) WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com This document describes installation of washfountain bowl and pedestal only. Some optional equipment and accessories are shown for clarity. For activation, optional equipment and accessory installation, see installation documents included with those parts.
  • Page 5 Bowl and Pedestal Assembly (Terrazzo) WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Circular Washfountain Dimensions (mm) Adjust to Towel Dispenser Mounting Holes 6" (152) Approximate Dimensions Inches 29-1/4...

  • Page 6: Rough-In Specifications

    Bowl and Pedestal Assembly (Terrazzo) WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Rough-In Specifications Type A Type O Off-line vent with supplies from below Off-line vent with supplies from above 12-3/4"...
  • Page 7 Bowl and Pedestal Assembly (Terrazzo) WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Rough-In Specifications Type B Type O Centrally rising vent with supplies from above Centrally rising vent with supplies from below 18-1/2"...

  • Page 8: Installing The Drain

    Bowl and Pedestal Assembly (Terrazzo) WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Installing the Drain All piping shown in dotted lines Rough in supply and drain piping as to be supplied by installer.
  • Page 9 Bowl and Pedestal Assembly (Terrazzo) WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assembling the Pedestal (with Foot Control) Assemble the legs and scuff base Add the foot levers and operating cross panels with the 5/16"...
  • Page 10 Bowl and Pedestal Assembly (Terrazzo) WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Bowl Assembly and Mounting NOTICE! The pedestal must be level when secured to floor for proper drainage.
  • Page 11 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Sectional Sprayhead Sectional Sprayhead (Circular Shown - S34-038, Semi-Circular Similar - S34-037) Connector 1/4" NPT x 1/4" Tube (169-974) 1/4"...
  • Page 12 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Non-Sectional Sprayhead Repair kit does not include sprayhead grommet. Order as a separate item.
  • Page 13 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Sprayhead Troubleshooting Problem Cause Solution Water splashes over Foreign matter has reduced the size of Clean the sprayhead: the rim of the bowl.

  • Page 14: Pre-Installation Information

    Infrared Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Supplies Required by Installer • 110 VAC GFI power source for 120VAC/12VDC plug in adapter.
  • Page 15 Infrared Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Accu-Zone Infrared Assembly – A and O Drain Units (A Shown) Install hemmed end (not sharp end) of support tube with gasket onto bowl.
  • Page 16 Infrared Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Accu-Zone Infrared Assembly – A and O Units (Cont...) Place the infrared module assembly on top Unit with "O"...
  • Page 17 Infrared Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Accu-Zone Infrared Assembly – B and H Units (B Shown) Install hemmed end (not sharp end) Type "H"...
  • Page 18 Infrared Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Accu-Zone Infrared Assembly – B and H Units (Cont...) Unit with "H" Drain and Infrared Module Shown, Also Available Insert the 1-1/2"...
  • Page 19 Infrared Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Connect Valve and Tubing for Non-Sectional Accu-Zone Infrared Control Connect 1/2" OD Flush supply lines before...
  • Page 20 Infrared Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Connect Valve and Tubing for Non-Sectional Accu-Zone Infrared Control (Cont...) Attach gang valve mounting bracket to...

  • Page 21: Make Electrical Connections

    Infrared Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Make Electrical Connections WARNING! The Accu-Zone Infrared activation must be connected with a 12V DC plug in adaptor.
  • Page 22 Infrared Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Turn on Water and Electricity, Test and Adjust Unit Turn on power to plug-in adapter. The solenoid Turn on water supply and check for leaks.
  • Page 23 Accu-Zone Infrared Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Accu-Zone Infrared Module Components Item Qty. Part No. Description S51-004 Shell Assembly 160-197 Screw, 10-32 x 3/8"...
