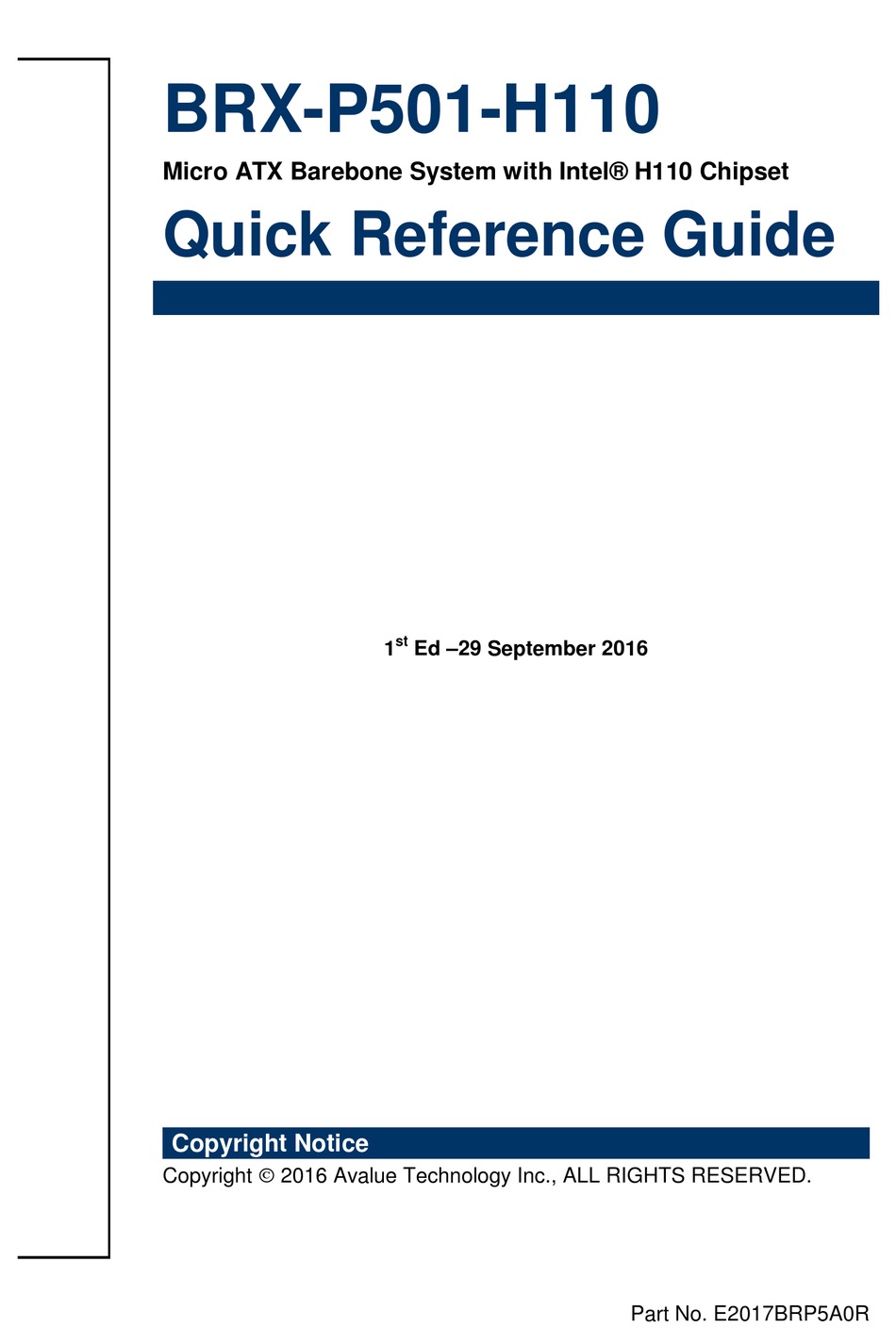

- Page 1 BRX-P501-H110 Micro ATX Barebone System with Intel® H110 Chipset Quick Reference Guide Ed –29 September 2016 Copyright Notice Copyright 2016 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017BRP5A0R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
-
Page 3: Table Of Contents
System Overview ....................8 1.4.1 Front/Rear View ........................... 8 System Dimensions ....................9 Hardware Configuration ................... 10 BRX-P501-H110 connector mapping ..............11 2.1.1 Serial port 1~6 connector (COM1~6) ..................11 2.1.2 VGA connector (VGA) ........................ 11 BRX-P501-H110 Quick Reference Guide... -
Page 4: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x BRX-P501-H110 Micro ATX Barebone System with Intel® H110 Chipset Other major components include the followings: ... -
Page 5: System Specifications
334 x 96 x 370 mm (H x W x D) Dimension 13.1" x 3.8" x 14.6" Weight 22lbs / 10 kg Color Black Reliability EMI Test CE/FCC Class B Safety UL/CB design compatible BRX-P501-H110 Quick Reference Guide... - Page 6 System condition : operation (running burn in test program ) Packing Drop Reference ISTA 2A, Method : IEC-60068-2-32 Test:Ed Test Ea : Drop Test Drop Test Test phase : One corner, three edges, six face 6 BRX-P501-H110 Quick Reference Guide...
- Page 7 (w/HDD), ambient w/ air flow, 0°C ~ 40°C (32°F ~ 104°F) Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F) Note: Specifications are subject to change without notice. BRX-P501-H110 Quick Reference Guide...
-
Page 8: System Overview
Line-in audio jack LAN1/2 RJ-45 Ethernet 1/2 4 x USB2.0 connector 4 x USB3.0 connector COM1~3 Serial port 1~3 connector DP connector HDMI HDMI connector PS/2 keyboard & mouse connector PS/2 COMBO JACK VGA connector 8 BRX-P501-H110 Quick Reference Guide... -
Page 9: System Dimensions
Quick Reference Guide 1.5 System Dimensions (Unit: mm) BRX-P501-H110 Quick Reference Guide... -
Page 10: Hardware Configuration
BRX-P501-H110 2. Hardware Configuration For advanced information, please refer to: 1- ERX-H110P User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw 10 BRX-P501-H110 Quick Reference Guide... -
Page 11: Brx-P501-H110 Connector Mapping
2.1 BRX-P501-H110 connector mapping 2.1.1 Serial port 1~6 connector (COM1~6) Signal PIN PIN Signal NDCDA# NDSRA# NRXDA NRTSA# NTXDA NCTSA# NDTRA# JNRIA# 2.1.2 VGA connector (VGA) Signal PIN Signal PIN Signal GREEN DDCDAT BLUE HSYNC VSYNS DDCCLK BRX-P501-H110 Quick Reference Guide 11...
