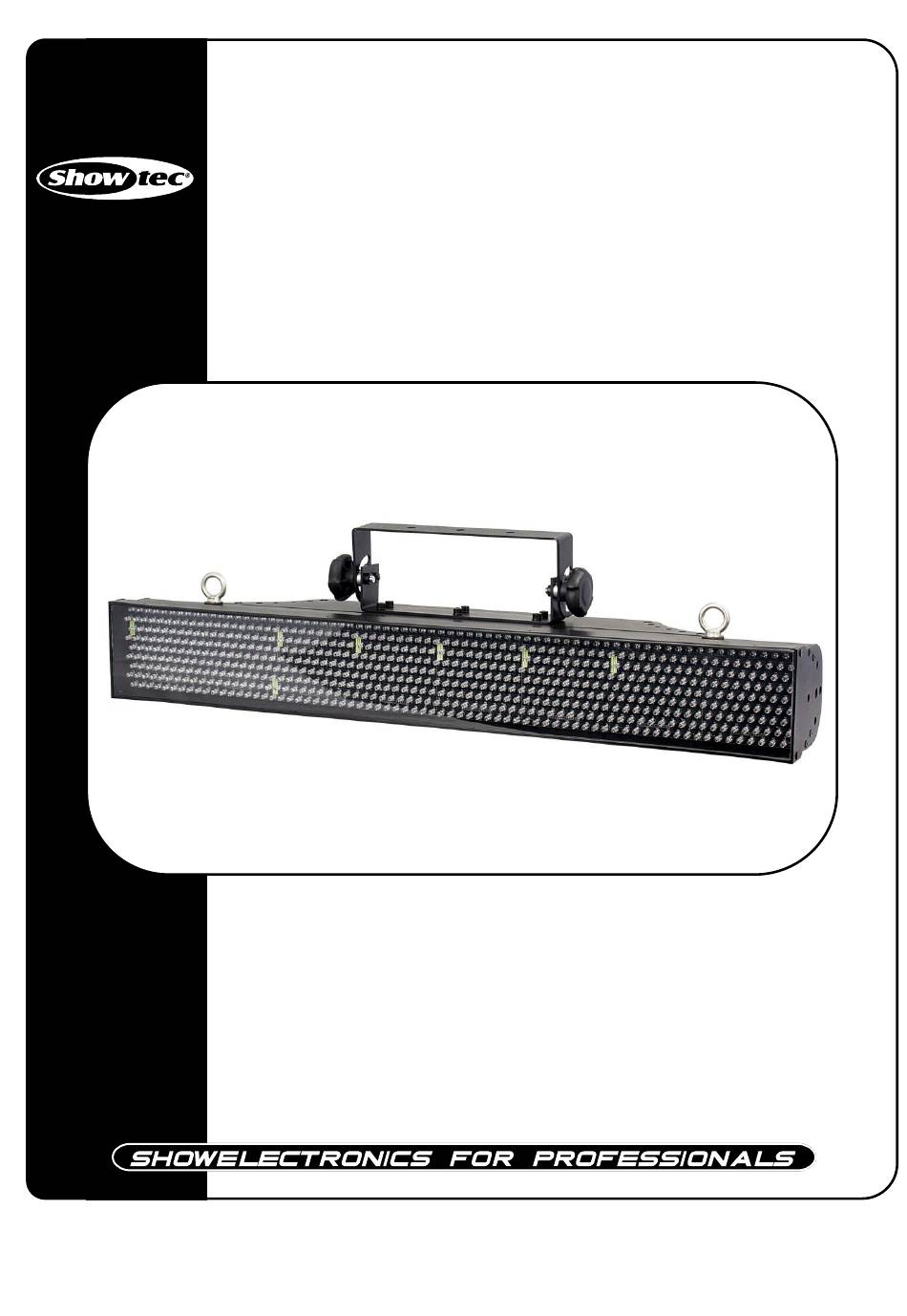

- Page 1 LED Pixel Track ORDERCODE 42200...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec LED Pixel Track Product Guide ™ Warning.................…...……………..…………………………….………… Safety-instructions……………………………………………………………………………………………………… Operating Determinations.…………………………………………………………………………………………... Rigging.………………………………………………………………………………………………………………….. Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description................…...………………………………………….……….. Features and Overview ………………………………...….……………….………….……….……….…………… Backside………………………………………………………………………………………………………………….. Installation................…...…………………………………………………..… Set Up and Operation............................Panel Functions……..……………………………………………………………………………….………………...… - Mode…..........…………......……………………..………………..….. - F / S…................…..…………..…………….……………….. Stand-Alone…………………………..…………………………………………………………….………………...….. Sound-Active……..…………………..…………………………………………………………….………………...….. Operation…………..…………..…………………………………………………………….………………...….. - DMX Modes..….......…………......……………………..………………………. -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec LED Pixel Track with IEC powercable 1,5m • User manual LED Expected Lifespan LEDs gradually decline in brightness over time. -
Page 5: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the LED Pixel Track is lowered from the ceiling or high joists, professional trussing systems have to be used. -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description
Description of the device Features LED Pixel Track is a LED system from Showtec. • Sound-controlled via built-in microphone • 3 Modes: Stand-alone, DMX-controlled or Sound-controlled NOTE: Knowledge of DMX is required to fully utilize this unit. Overview Fig. 1... -
Page 9: Installation
Installation Remove all packing materials from the LED Pixel Track. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 10: Mode
Stand-alone Operation Refer to the four buttons on the front panel of the LED Pixel Track: Mode F / S Down Press the MODE button to view the Chase menu: Select Chases 1-9 using the UP and DOWN buttons. Chases 1-8 run according to the Fade and Speed values. Chase 9 is sound-active. -
Page 11: Dmx Operation
DMX Operation Press the MODE button to view the DMX address setting rnenu: Select the DMX starting address for the Pixel Drive 8 using the UP and DOWN buttons. The DMX Channel functions are: Channel 1: Rainbow Channel 2: Red (0-255) Channel 3: Green (0-255) Channel 4:... -
Page 12: Dmx Modes
DMX Modes Press the MODE button to view the DMX mode selection menu. Use the UP and DOWN buttons to select the DMX mode. DMX Mode 1 : 48-channel operation (Control each LED Pixel Track LED cluster separately) DMX Mode 2 : 24-channel operation (Control 4 sets of 2 LED Pixel Track LED clusters) DMX Mode 4 : 12-channel operation (Control 2 sets of 4 LED Pixel Track LED clusters) -
Page 13: Maintenance
3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem, do not open the LED Pixel Track, as this may damage the unit and the warranty will become void. 5. Return the device to your Showtec dealer. -
Page 14: Product Specifications
Product Specification Model: Showtec LED Pixel Track Voltage : AC 230V-50Hz (CE) Power: 115W Fuse: 250V / T1,5A Audio trigger: Built-in Mic DMX Input : 3-pin XLR Male connector DMX Output : 3-pin XLR Female connector Dimensions : 811 x 173 x 160 mm (LxWxH) Weight : 8,2 kg Design and product specifications are subject to change without prior notice.
