Summary of Contents for SHOWTEC LED Powerbar 12

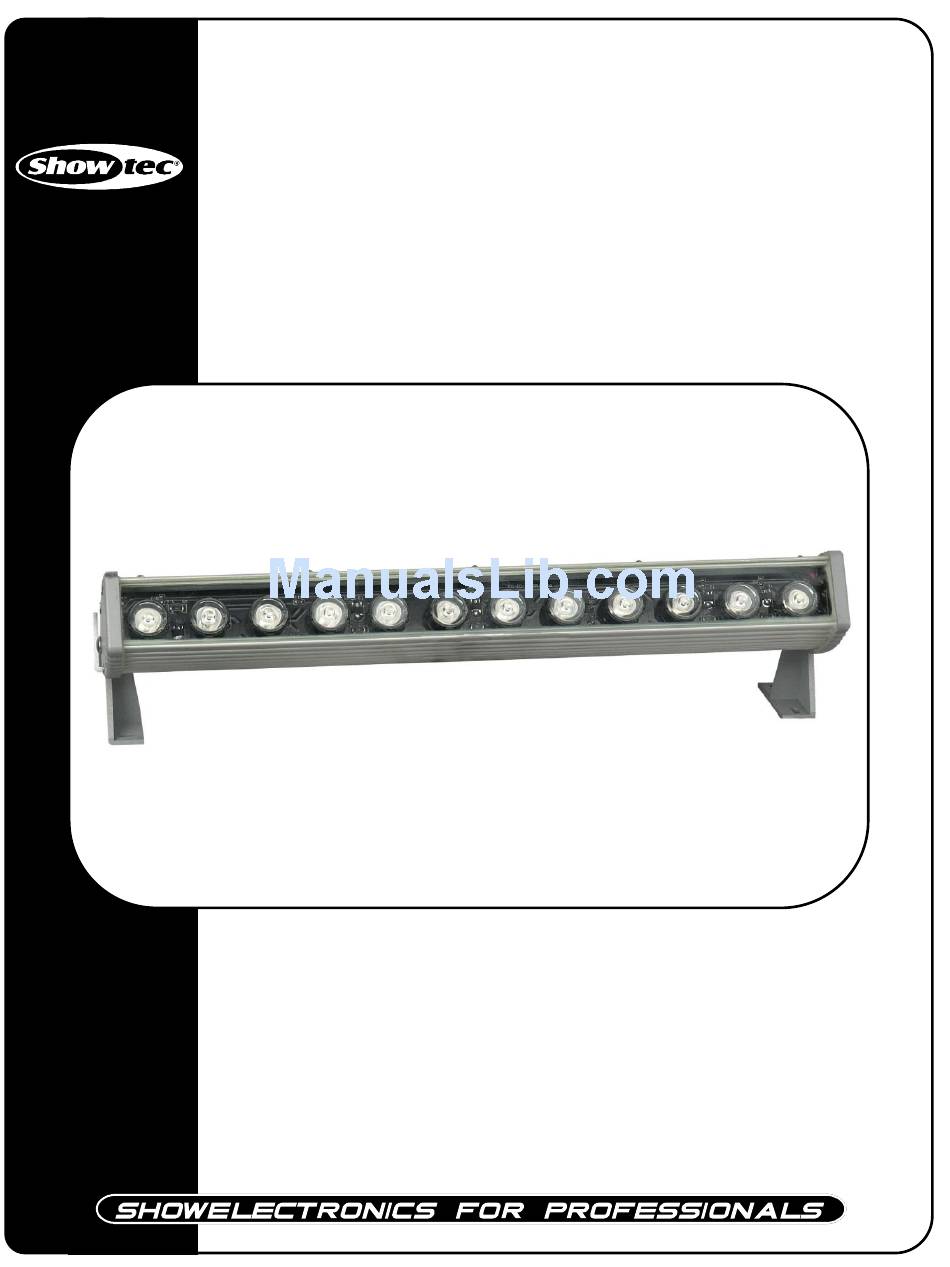

- Page 1 LED Powerbar 12 ORDERCODE 41330...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec LED Powerbar 12 Product Guide ™ Warning..…...................……………………………………………………….. Safety-instructions………………………………………………………………………………………………………… Operating Determinations…….………………………………………………………………………………………… Rigging…………………………….………………………………………………………………………………………… Description..…................……….…………………………………………….. Features and Overview …………..……………………...….……………….………….……….……….……………. Backside……………………………….…………………...…...….……………….…………………...………………… Installation................…...………………………………………….………..…. Set Up and Operation..............……..……………………………………………… Connection……….……..…………..…………………………………………………………….……....…… Operation…………..…………..…………………………………………………………….……....…… DMX Addressing……..…………..………………………………………………………………………………………... Light Output……..…………..…………………………………………………………….………………….…………… Set Up Example….…..……………………………………………………………….…….…..……………………….….… Maintenance...................………..………….…….………………………….. Troubleshooting................………………….………………….………………... Product Specifications..............……………….…….………………………………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
When rigging, derigging or servicing the LED Powerbar 12, always make sure, that the area below the installation place is blocked and staying in the area is forbidden. The LED Powerbar 12 can be placed on a flat stage floor or mounted to any kind of truss by a clamp. Connection with the mains Connect the device to the mains with the power-plug. -
Page 6: Description
Description of the device Features LED Powerbar is a LED system from Showtec. • 2 Modes: Stand-alone, DMX-controlled • 3 Channels (R, G, B) • IP-Rating: IP-65 • Color range: 16,000,000 colors. • Light source: High Power LED • 12 High power LEDs (4 Red, 4 Green, 4 Blue) •... -
Page 7: Installation
Installation Remove all packing materials from the LED Powerbar 12. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 8: Dmx Operation
DMX Operation Press the Up/Down button to change the DMX address setting rnenu: The DMX Channel functions when using the entire device as one: Channel 1: Red (0-255) Channel 2: Green (0-255) Channel 3: Blue (0-255) The LED Powerbar’s built-in controller will automatically detect the presence of a DMX signal. In order to receive a DMX signal, the built-in controller must be attached to a DMX controller by a 3-pin DMX cable and the DMX controller must be turned on. -
Page 9: Light Output
Light Output Light Output Measurement (for 28º beam angle) -
Page 10: Set Up Example
SET UP Example Fig. 4... -
Page 11: Maintenance
3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem, do not open the LED Powerbar 12, as this may damage the unit and the warranty will become void. -
Page 12: Product Specifications
Product Specification Model: Showtec LED Powerbar 12 Operating voltage: AC90-264V Operating current: Max.5.4A Power consumption: 64.8 W Beam Angle: 25º Light Source: 12 High power LEDs (4 Red, 4 Green, 4 Blue) Max Projecting distance: 30m. Colors: RGB Protection Rating: IP65 Weight: 1,44 kg Design and product specifications are subject to change without prior notice.
