Summary of Contents for SHOWTEC PowerBlinder 8

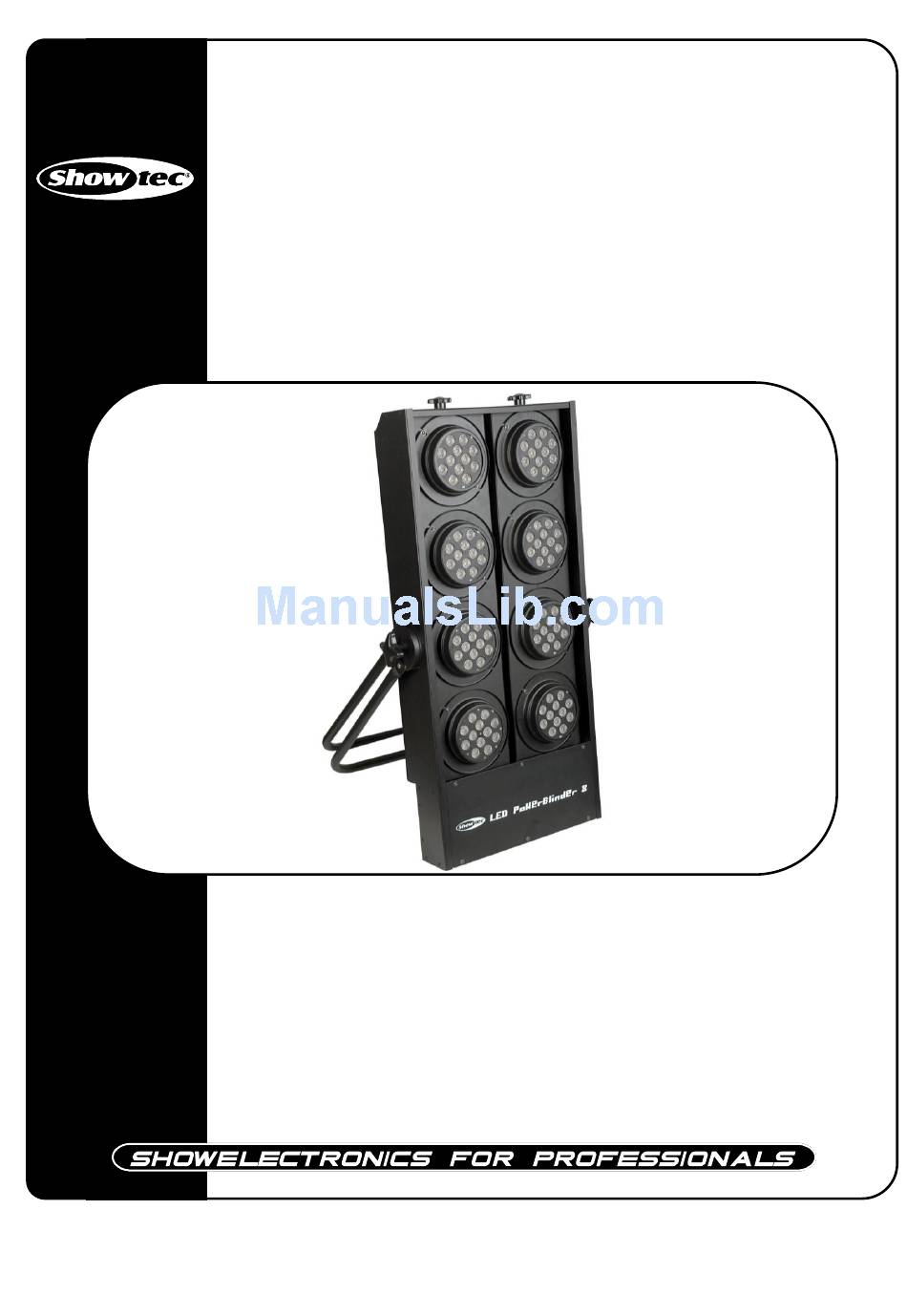

- Page 1 LED PowerBlinder 8 ORDERCODE 41324...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec LED PowerBlinder Product Guide ™ Warning.................…...……………..…………………………….………..… Safety-instructions……………………………………………………………………………………………………….. Operating Determinations.……………………………………………………………………………………………. Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description..…................……….……………………………….…....Features…….……………………………………………………………………………………….……..…....Overview………………………………………………………………………………………………………....Backside…………………………………………………...…...….……………….…………………...……………...…. Installation................…...……………………………………..…....Set Up and Operation..............……..…………………………….…....Stand-alone …….…………………………………………………….………………………….…….………………… Mode……………..…………..…………………………………………………………….……...……………… Mode 1 - 16 Channels..…………………………………………………………….……...…………………….. Mode 2 - 10 Channels..…………………………………………………………….……...…………………….. Mode 3 - 7 Channels..…………………………………………………………….……...………………………. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Connection With The Mains
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the LED PowerBlinder is lowered from the ceiling or high joists, professional trussing systems have to be used. -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device
Description of the device Features LED PowerBlinder is a LED system from Showtec. • Ultra bright LED • 96X 1W High Power LED's (32x Red, 32x green and 32x Blue) • Reflected beam angle 25° • LED Lifetime 100.000 hours •... -
Page 9: Backside
Backside Fig. 2 1) LCD Display 2) Functions: Mode, Menu, Up, Down 3) 3-pin DMX signal connector (OUT) 4) 3-pin DMX signal connector (IN) 5) Microphone 6) Audio Sensitivity 7) ) IEC Connector 8) Fuse 2A 9) Earth 10) ON / OFF When the display shows the Powerblinder is in auto Mode. -
Page 10: Stand-Alone
FUNCTIONS: There are 2 options for using the LED PowerBlinder: Stand-alone DMX Mode Stand-alone In Stand-alone mode, you can use the menu button on the back of the device to scroll through the options. Strobe Programs Open Strobe 1-20 Hz Strobe effect 1 (Rainbow + Slow Fade-in Strobe) Strobe effect 2 (Rainbow + Mid-speed Fade-in Strobe) Strobe effect 3 (Rainbow + Fast Fade-in Strobe) -
Page 11: Dmx Mode
DMX Mode Spot Sections The LED Powerblinder will automatically detect the presence of a DMX signal. If a DMX signal is present, the DMX LED will blink. In order to receive a DMX signal, the controller must be attached to a DMX controller by a 3-pin DMX cable and the DMX controller must be turned on. - Page 12 Channel 5 – Red Dimmer Spot 1 0-255 Dimmer, from closed to open (0-100%) Channel 6 – Green Dimmer Spot 1 0-255 Dimmer, from closed to open (0-100%) Channel 7 – Blue Dimmer Spot 1 0-255 Dimmer, from closed to open (0-100%) Channel 8 –...
-
Page 13: Mode 2 - 10 Channels
Mode 2 - 10 Channels (Channel 1 must be set to 50-99) Channel 2 – No Function Channel 3 – Strobe 0-15 Open 16-141 Strobe 1-20 Hz 142-150 Strobe effect 1 (Rainbow + Slow Fade-in Strobe) 151-160 Strobe effect 2 (Rainbow + Mid-speed Fade-in Strobe) 161-170 Strobe effect 3 (Rainbow + Fast Fade-in Strobe) 171-180... -
Page 14: Mode 3 - 7 Channels
Mode 3 - 7 Channels (Channel 1 must be set to 100-149) Channel 2 – No Function Channel 3 – Strobe 0-15 Open 16-141 Strobe 1-20 Hz 142-150 Strobe effect 1 (Rainbow + Slow Fade-in Strobe) 151-160 Strobe effect 2 (Rainbow + Mid-speed Fade-in Strobe) 161-170 Strobe effect 3 (Rainbow + Fast Fade-in Strobe) 171-180... -
Page 15: Mode 4 Built-In Programs
Mode 4 Built-in Programs (Channel 1 must be set to 150-199) Channel 2 – Colors 0-22 RGB rolling 23-45 RGBW flowing 46-68 WRGB flow recycle 69-91 WRGB chase 92-114 Each two spot-section has a WRGB chase 115-137 Red (all spots) 138-160 Green (all spots) 161-183... -
Page 16: Mode 5 Sound-Active
Mode 5 Sound-active (Channel 1 must be set to 200-255) Channel 2 – Colors 0-22 RGB rolling 23-45 RGBW flowing 46-68 WRGB flow recycle 69-91 WRGB chase 92-114 Each two spot-section has a WRGB chase 115-137 Red (all spots) 138-160 Green (all spots) 161-183 Blue (all spots) -
Page 17: Maintenance
3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem, do not open the LED PowerBlinder, as this may damage the unit and the warranty will become void. 5. Return the device to your Showtec dealer. -
Page 18: Product Specification
Product Specification Model: Showtec LED PowerBlinder 96pcs 1W Power LED's Power Supply 230V Ac/50Hz Power Input 0.33A at 230V Fuse: 2A 96 LEDs (32 Red, 32 Green, 32 Blue) Beam angle: 25° LED Lifetime: 100.000 hours Colour mixing system RGB...
