Issue 4
SEL 4 - Headphones selector
SEL 5 - Routing panel analogue meters selector
SEL 6 - Upstand analogue meter selector
Small Loudspeaker 1 uses the same selector as the control room selector.
Once called to the SEL path the AFU can be used to route the selector output to physical ports
using the I/O section as previously described. The AFU balance control can also be used to set
the left/right speaker balance. The AFU fader must be left at 0dB for the monitoring system to
work correctly.
PFL
The PFL switch in the selector area is used to allow PFL to over-ride the control room monitor
selection. The switch LED is green when PFL over-ride is enabled and red when a PFL has been
activated somewhere on the console and is routed to the main control room monitors.

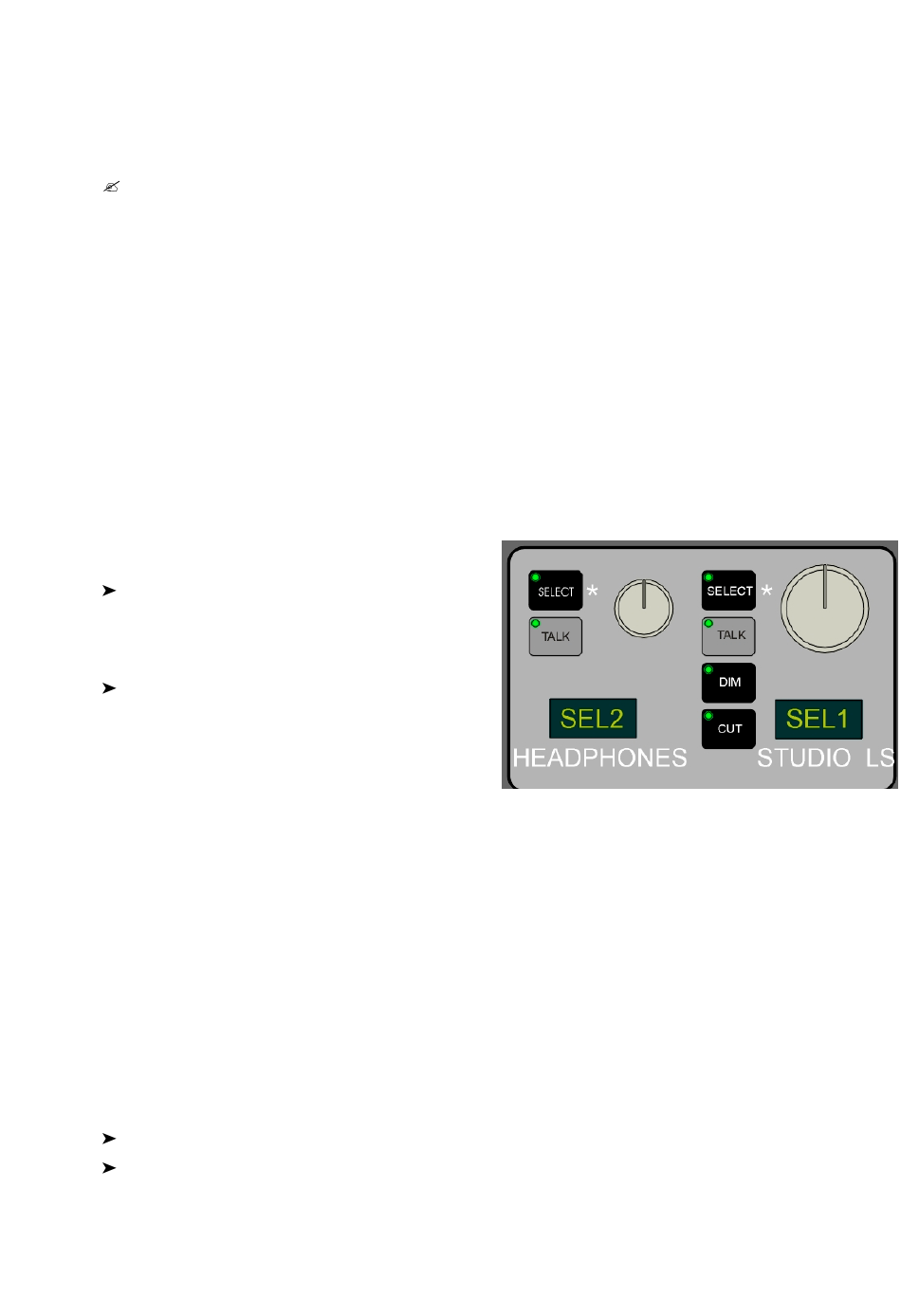

HEADPHONES and STUDIO LS Panel

Used to control the output to the headphone socket and the studio loudspeakers.
To select the output ports for the
HEADPHONES and STUDIO LS outputs
Use the "OTHERS" page of the I/O PATCH
utility in ENCORE to select the headphone
(SEL 4) and Studio LS (SEL 2) output ports.
or
Hold down the STUDIO LS SELECT switch
and press the AFU fader's ACCESS switch to
step through the available selectors:
SEL 1 - Control room selector
SEL 2 - Studio Loudspeaker selector
SEL 3 - Small Loudspeaker 2 Selector
SEL 4 - Headphones selector
SEL 5 - Routing panel analogue meters selector
SEL 6 - Upstand analogue meter selector
This calls the path to the AFU, so that the output parts can be routed from the I/O section of the
AFU panel in the normal way.
The volume controls are analogue and the output ports are normally connected to them as part of
the system installation.
To select a source for the HEADPHONES or STUDIO LS outputs
Press and hold down the appropriate SELECT key.
Use the selector panel to select the source, e.g. press AUX and then 2 in order to select
AUX2.
The selected source is displayed in the associated alpha display.
