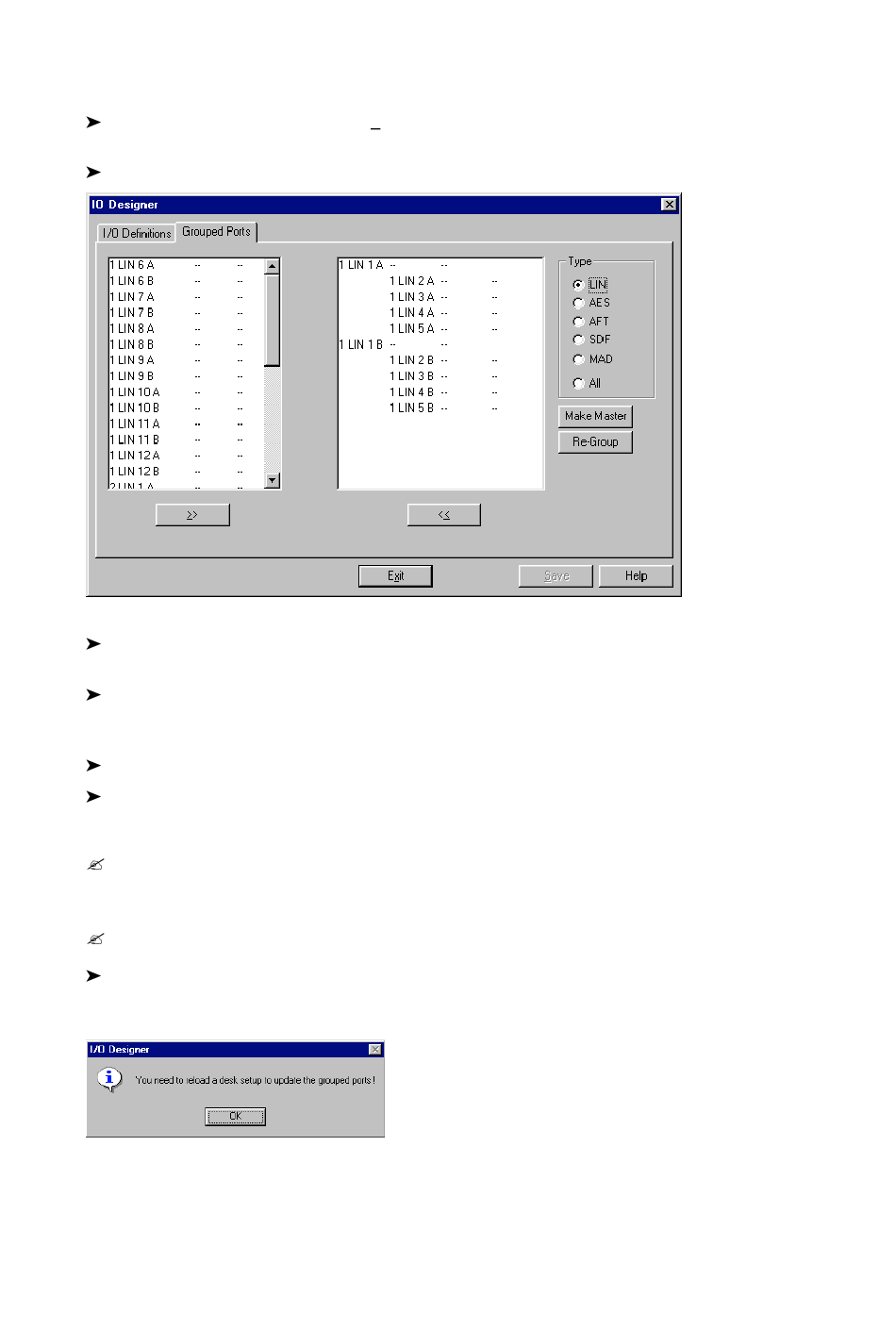

To change the Port Grouping
Launch I/O Designer using the Edit (I/O Designer) button. This is a password-protected
application as changes will affect all subsequent console users.
Select the Grouped Ports tab.
Select the type of ports to be ganged on the right of the screen, then select the individual
ports to be ganged using the >> button to move them to the right hand side list.
Highlight a group of up to 6 ports using the left hand mouse button when holding down the
SHIFT key on the keyboard (for a contiguous block of ports in the list) or when holding down
the CONTROL key (for non-contiguous ports).
Click the Re-Group button to form the ports into a group.
Highlight a port to be the master (i.e. the port to which a path is routed to when routing to the
group) and click on Make Master. (1LIN1A and 1LIN1B in the example above).
The ports must all be on the same Quad MADI board, e.g. using MADI ports 1-4, or MADI
ports 5-8.
The left-hand ports of stereo pairs should be in one group and the right hand ports in another.
Click Exit to complete.
A reminder will be displayed that the Grouping will not take effect until the Desk configuration is
re-loaded:
