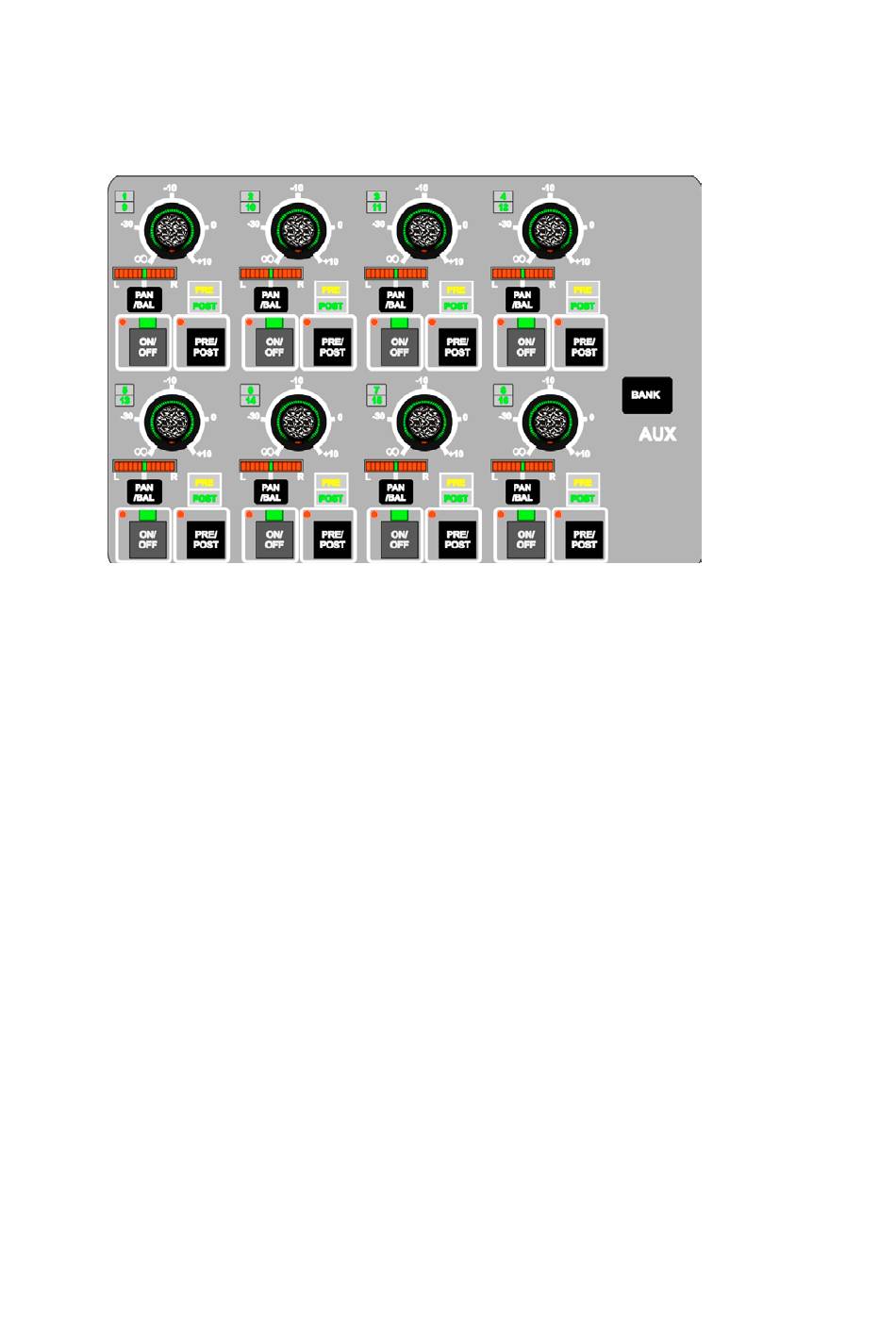

AUX Panel
The AUX panel in the AFU is used to control auxiliary contributions from the currently accessed
path.
Each Auxiliary contribution has the following controls:
•
A Logicator that is switched between Level control and Pan/Balance control by the PAN/BAL
key. The bargraph above the PAN/BAL key shows the amount of Pan/Balance.
•
A PRE/POST key which selects the signal pick-off point to be pre or post fader. The
PRE/POST indicator above the key shows the current setting.
•
An ON/OFF key which turns the contribution on and off. The green LED above the key
illuminates when the contribution is on.
The BANK key switches the eight sets of controls between Auxes 1 to 8 and Auxes 9 to 16. The
number indicators next to the Logicators illuminate to show the available Auxes.
