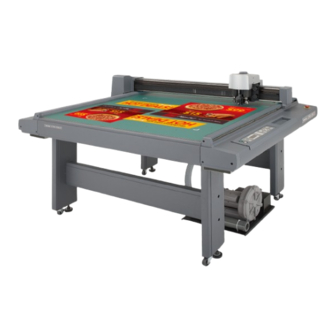

MIMAKI CF2 Series Operation Manual

Reciprocal flat bed cutting plotter
Hide thumbs Also See for CF2 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
RECIPROCAL FLAT BED CUTTING PLOTTER
CF2 / DC Series
CF2-0912, 1215, 1218
RC model
RT model
OPERATION MANUAL
•
Prior to using this device, be sure to read this Operation manual and become fully
familiar with its operation method and usage cautions.
•
While the plotter is operating (while it is moving or its blades are vibrating), abso-
lutely never bring any part of your body (face, hands), clothes, or other objects near
the flat bed (cutting panel), as serious injury may result.
Particularly when lifting the head and operating the device without a work piece in
order to check data, one's hand can enter under the head safety cover. As this may
cause serious injury, proceed with great care.
•
The head units (A, B, C) move at high speed. When checking work results or adjust-
ing work slippage or floating, be sure to stop the device and perform these actions in
either the local mode or with the power switched off.
•
When attaching tools (reciprocal cutter, etc.), be sure to power off the device before-
hand.
Attempting to change tools while the power is on presents the risk of unexpected
injuries due to erroneous panel operation, etc.
MIMAKI ENGINEERING CO., LTD.
URL: http://mimaki.com/
D201402-16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CF2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for MIMAKI CF2 Series

Summary of Contents for MIMAKI CF2 Series

  • Page 1 When attaching tools (reciprocal cutter, etc.), be sure to power off the device before- hand. Attempting to change tools while the power is on presents the risk of unexpected injuries due to erroneous panel operation, etc. MIMAKI ENGINEERING CO., LTD. URL: http://mimaki.com/ D201402-16...
  • Page 3 Correct handling procedure shall be followed according to this Operation manual. In the case where MIMAKI-designated cable is not used for the connection of this device, limits provided by VCCI rules can be exceeded. To prevent this, use of MIMAKI-designated cable is essential for the connection of this device.

  • Page 4: Foreward

    Congratulations on your purchase of a “CF2 Series” of reciprocal flat bed cutting plotter. This Operation manual is intended for RC model and RT model under the “CF2 Series.”Any function for which no head name is designated is common to all models.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS FOREWARD..........................i ABOUT MODEL NAME ...................... vii Restriction in use ........................viii FOR SAFE OPERATION....................... ix Position of the warning label....................xiii HOW TO READ THIS OPERATION MANUAL ............... xvi Structure of this operation manual ..................xvii FEATURES OF THE DEVICE ..................
  • Page 6 CHAPTER2 BASIC OPERATION BASIC OPERATION ON THE LOCAL MENU ....................2-2 LOCAL menu ................................2-2 MODE SET menu ..............................2-2 Basic operation on the LOCAL menu......................2-4 BASIC OPERATION FLOW CHART........................2-6 MOVING THE HEAD..............................2-7 Moving the head by “VIEW” function ......................2-7 Moving the head by the jog keys ........................2-8 FIXING A WORK................................2-9 Fixing a work that is comparatively light in weight ................2-9 Fixing heavy-weight packing etc.........................
  • Page 7 Register Mark not detected [TOOL Adjust] > [LIGHT POINTER]..........3-4 TOOLS ARE NOT ALIGNED TO EACH OTHER [TOOL SELECT] ............3-6 Flowchart of checking and adjusting procedures..................3-6 General explanation of the adjustment of tools ..................3-6 Adjustment of the cutter.............................3-7 Adjustment of the offset.............................3-9 Adjustment of the roller ..........................
  • Page 8 SETTING OF REGISTER MARK DETECT OPERATION................5-10 Precautions on register mark detection...................... 5-10 How to display the register mark setting on LCD ................. 5-10 Settings for detection of marks........................5-11 Settings for detect.............................. 5-12 CONTINUOUS CUT WITH REGISTER MARK....................5-15 INITIALIZE THE REGISTER MARK SCALE ADJUSTMENT [SC.CLR]...........

  • Page 9: About Model Name

    ABOUT MODEL NAME The structure of model name is as follows. Head type - Presence of Mark sensor Model name - Size Model Name: CF2 Size 0912 1200 x 900mm 1215 1500 x 1200mm 1218 1800 x 1200mm Head type Reciprocal cutter unit 2mm Creasing unit Reciprocal cutter unit 5mm Creasing...

  • Page 10: For Safe Operation

    FOR SAFE OPERATION Prior to using this device, be sure to read this Operation manual and become fully familiar with its operation method and usage cautions. Pictorial signs Pictorial signs are used in this Operation manual for safe operation of and in prevention of damages to the device.
  • Page 11 MIMAKI office for repair. Never repair your device by yourself since it is very dangerous for you to do Power supply and voltage Leave maintenance to a serviceman •...
  • Page 12 For safe operation CAUTION Use the following electrical specifications Do not dress baggy suits and accessories • Be sure to connect the power cable • Do not work with dressing baggy to a power outlet with the following suits and any accessories, and also electrical specifications.
  • Page 13 Precautions in installation CAUTION A place exposed to direct sunlight A place that vibrates • Do not install the device at a place • The device will fail to give correct where the temperature of the cut results if installed in a place that panel surface exceeds 60°C.

  • Page 14: How To Read This Operation Manual

    HOW TO READ THIS OPERATION MANUAL Name of function shown on LCD List of values that can be set Gives the Number of step description of of operating operating procedure. procedure Indication on LCD is bracketed as [INTERFACE]. LCD display Indicates the key to be used to select a function from...

  • Page 15: Structure Of This Operation Manual

    Structure of this operation manual Chapter 1 Set-up This chapter describes the procedures to be taken after the unpacking to specify functions that are required for the connection of this device to your computer. Chapter 2 Basic operation This chapter describes normal operation of the device such as the replacing/attaching of tools or works. Chapter 3 When abnormal conditions are encountered This chapter describes how to correct troubles after the occurrence of an abnormal condition on the device.

  • Page 16: Features Of The Device

    FEATURES OF THE DEVICE The device is capable of cutting thick materials and flexible materials The device can cut thick materials of up to 20 mm thick by moving the cutter up and down at high speed. It can cut a variety of materials such as sponge and fiberboard, which cannot be cut by conventional cutting plot- ters.
  • Page 17 With its most-advanced functions, high-quality finish is promised ■Start/end point correction In the case of processing heavy-weight works, works can be easily cut out by correcting the start and end posi- tions for cutting. ■Pressure correction In the case of cutting heavy-weight works, works can be fully cut with no portion remained uncut by correct- ing the pressure employed to lower the tool.
  • Page 19 CHAPTER 1 SET-UP This chapter describes the procedure to be taken after the unpacking to specify functionsthat are required for the connection of this device to your computer. Table of Contents ...............................1-2 INSTALLATION SITE ............................1-4 EFFECTIVE CUTTING AREA ..........................1-5 CHECKING THE ACCESSORIES ........................1-6 CONFIGURATION AND FUNCTION ...........................

  • Page 20: Installation Site

    INSTALLATION SITE Install the device at a place where the below-stated installation area is provided. • Place nothing within an installation area. If a thing is placed, the risk of tripping over will be caused. • Place this device in a well ventilated area. If this device is used in a closed space, the blower exhaust and the reciprocal exhaust may cause the operator to feel unwell.

  • Page 21: Blower Installation Area

    INSTALLATION SITE Installation area (CF2-1218) 1000mm 1000mm 1000mm 3895mm 1000mm 4357mm Blower installation area Set the blower under the main unit. • The exhaust temperature reaches high levels. Do not place easily flammable materials in the direction of the exhaust. •...

  • Page 22: Effective Cutting Area

    EFFECTIVE CUTTING AREA The maximum effective cutting areas by the models of devices are given below. The maximum cutting area does not change by the models of heads (RC-head and RT-head) Maximum effective Y axis cutting area X axis Model name X axis (mm) Y axis (mm) Mark...

  • Page 23: Checking The Accessories

    CHECKING THE ACCESSORIES Accessories differs with the models of heads and applications. Check the accessories referring to the accompanying “Accessory list.” If you find any missing accessory or damaged one, contact your local dealer or MIMAKI office.

  • Page 24: Configuration And Function

    CONFIGURATION AND FUNCTION Main unit Name Function Y bar Moves the head in Y direction Head Tools are attached to the head. Tools that can be set to the head dif- fers with the models of heads. EMERGENCY switch To be pressed at the time of emergency. Pressing this switch force- fully turns the power off to make the device to stop performance.
  • Page 25 CONFIGURATION AND FUNCTION Right-hand side face of the electrical box Name Function Power connector To be connected to the power cable of the plotter. Main power switch Used to turn on/off the main power of this device. Normally set it to the on state.

  • Page 26: Head

    Head Front face Name Function Head securing screw Used to fix the head on the Y bar. Loosen it when adjusting the height of the head or removing the head. Unit C Attach a creasing roller or cutter holder P. 7-2 In the case of the RC head model, a cutting pressure of 1 kg to 5 kg is output.

  • Page 27: Operation Panel

    CONFIGURATION AND FUNCTION Left-hand side face Name Function Height adjusting knob Used to adjust the height of the head. Height adjusting bar Used to adjust the height of the head in accordance with the thickness of a work to be used. Head safety cover Protects the operator from the blades.
  • Page 28 LCD indicates states of the device and ［LOCAL］ １ ／ ４ specified menus on its 16-column and 4- TOOL SELECT ――― ＞ line cells. CONDITION ――― ＞ In the case where an indication on LCD is TEST CUT ――― ＞ referred to in the text, it is shown with bracketed as [TOOL SELECT].

  • Page 29: Connecting The Cables

    Connecting the interface cable The device is equipped as standard with an interface conforming to RS-232C. Use a MIMAKI-recommended interface cable or a cable that matches your computer. Turn off the power to the plotter and that to the personal computer.

  • Page 30: Connecting The Power Cable

    Insert one end of the interface cable into the con- nector on the electrical box. Fix the connector with screws. Screws Insert the other end of the interface cable into the connector of the computer. Fix the connector with screws. Connecting the power cable Two power cables are provided, one for the main unit and the other for the blower unit.
  • Page 31 CONNECTING THE CABLES Insert the other end of the power cable into the 3P receptacle. • In the case where a 2-pole receptacle is used, additionally use the installation adapter supplied with the unit as an acces- sory. Properly ground the earth cable (green one), then insert the power cable to the receptacle.

  • Page 32: Turning The Power On/Off

    TURNING THE POWER ON/OFF The device is provided with separate switches for turning the power on and off. Turn on/off the power to the device following the procedure described below. • Do not place any thing other than a work on the cutting panel when turning the power on. Turning the power on causes the head to travel to the retracted point located at the lower right of the cutting panel.

  • Page 33: Emergency Stop

    EMERGENCY STOP In an emergency, the device can be stopped at once. How to stop the device in an emergency Press the EMERGENCY button. This causes the device to stop its operation and turns the power off. 1-15...

  • Page 34: How To Reset The Emergency Stop

    How to reset the emergency stop Turn the EMERGENCY button clockwise for unlocking. Press the POWER ON switch The device will start up. • To recover from an emergency stop, do so after powering off the device and waiting for 30 seconds.

  • Page 35: Local/Remote Modes

    LOCAL/REMOTE MODES The operation mode is changed over alternately between the LOCAL mode and the REMOTE mode every time the key is pressed. LOCAL mode and the indication on the LCD Under LOCAL mode, the head travels, functions of the device are set, and data from the personal computer are received.

  • Page 36: Remote Mode And The Indications On The Lcd

    REMOTE mode and the indications on the LCD Under the REMOTE mode, cutting or plotting can be carried out in accordance with data received. The LCD indicates cutting (plotting) conditions and the capacity of data received. Capacity of data decreases as you proceeds with cutting (plotting). The POWER ON key, the POWER OFF key, the key and the...

  • Page 37: Matching The Functions Of The Device To The Specifications Of The Computer

    Matching the functions of the device to the specifications of the computer The following explains how to set the functions required to connect the device to your personal computer. Setting communication conditions [INTERFACE] Communication conditions for the communication between the device and the computer to which the device is con- nected by way of RS232C.

  • Page 38: Rendering The Set Values On The Personal Computer Effective [Mode Set] > [Cmd Sw]

    Set the [HANDSHAKE] to one of the following. ＜ INTERFACE ＞ ２ ／ ２ Hardware, X code, E/A, software*1 PARITY ODD ＞ STOP BITS ∗ 2 ＞ *1: [ENQ-ACK] and [SOFTWARE] can be selected when HANDSHAKE *HARD ＞ MGL-IIC3 command has been selected through command setting for the operation mode.

  • Page 39: Setting The Response Value With Respect To The Valid Area [Mode Set]> [Oh Unit]

    Matching the functions of the device to the specifications of the computer Enter the input values. ＜ MODE SET ＞ ３ ／ ６ ROTATE ∗ + ９ ０ ° ＞ Press the key to enter the input key to enter the input val- COMMAND Ｍ...

  • Page 40: Setting The Command Origin [Mode Set] > [Origin]

    Setting the command origin [MODE SET] > [ORIGIN] Adjust the position of the command origin of the device to the origin of the command origin of your CAD. Refer to the Operation manual for your CAD for the position of the command origin supported by the CAD. Set values LOWER LEFT: The command origin is set to the lower left of the maximum effective cutting area.

  • Page 41: Setting The Resolution (Gdp) [Mode Set] > [Gdp]

    Matching the functions of the device to the specifications of the computer Setting the resolution (GDP) [MODE SET] > [GDP] Set the resolution of the device to that of your CAD. Refer to the operation manual for your CAD for the resolution supported by the CAD.

  • Page 42: Matching The Specifications On The Plotter's Side

    Matching the specifications on the plotter’s side The command for using this device is MGL-IIc3. Set the command of the CAD connected to the device to MGL-IIc3. • The only command in the operation mode is MGL-IIc3. Switching commands on the plotter side is not possible.

  • Page 43: Setting For Automatic Head Retract [Auto View]

    Setting for automatic head retract [AUTO VIEW] A period of time required to cause the head to start to travel to its retracted position after the completion of cutting (plotting). If the blower is powered on, it switches off after the head has automatically retracted. Retracted position Set values OFF: Automatic head retract is not performed.
  • Page 44 Enter the input values. ＜ MODE SET ＞ ２ ／ ６ Press the key to enter the input values. AUTO VIEW １ ｓ ＞ If you do not enter the input data, press the key. DUMMY CUT ∗ ON ＞ ONE STROKE ∗...

  • Page 45: Auto-Off Feature Of The Vacuum

    AUTO-OFF FEATURE OF THE VACUUM The validity of the Auto-OFF feature can be set up. When the automatic head retraction function is set to 1s or 3s, the vacuum will turn off automatically after the head retracts. When the automatic head retraction function is off, the vacuum will not turn off automatically. While operating copy function, number cut function, or completing continuous register mark copy, will turn the vac- uum off automatically, regardless of the automatic head retraction function.

  • Page 47: Chapter2 Basic Operation

    CHAPTER 2 BASIC OPERATION In Chapter 2, normal operation of the device such as the attaching of tools or works. Table of Contents .......................2-2 BASIC OPERATION ON THE LOCAL MENU ..........................2-6 BASIC OPERATION FLOW CHART ...............................2-7 MOVING THE HEAD ................................2-9 FIXING A WORK ......................

  • Page 48: Basic Operation On The Local Menu

    BASIC OPERATION ON THE LOCAL MENU LOCAL menu Various kinds of data and functions required for the connection with your personal computer are set. Function Description Reference page TOOL SELECTION Head and tool to be used are selected. P. 2-22 CONDITIONS Conditions for the tool selected using the [TOOL SELECTION] func- P.
  • Page 49 BASIC OPERATION ON THE LOCAL MENU ORIGIN A command origin is established that matches your CAD. P. 1-22 Z STROKE The height of the tool, in its lifted position, from the surface of a work P. 4-10 to the bottom of tool is specified. OH UNIT A value that is transmitted to the computer in return to the command P.

  • Page 50: Basic Operation On The Local Menu

    Basic operation on the LOCAL menu The following describes basic operating procedure to be followed to set the LOCAL menu. Sub menu for [CONDITION] ［LOCAL］ １ ／ ４ < CUTTER 1 > １ ／ ４ TOOL SELECT ――― ＞ SPEED ＊...
  • Page 51 BASIC OPERATION ON THE LOCAL MENU Set the device in the LOCAL mode. Check first that no data received remain, and press the key to set the device in the LOCAL mode. Advance the LOCAL menu pages. Each press on the key will advance the page one by one.

  • Page 52: Basic Operation Flow Chart

    BASIC OPERATION FLOW CHART The following is the basic operation flow chart. Refer to the page to be referred to for detailed explanation of each operation. Fixing the work （ P. 2-9） Attach a work in position. Attaching tools （ P.

  • Page 53: Moving The Head

    MOVING THE HEAD It is possible to move the head for easier operation when attaching a tool or a work on the device or executing test cut. The head can be moved in the following two different procedures: • Moving the head by “VIEW” function •...

  • Page 54: Moving The Head By The Jog Keys

    Moving the head by the jog keys Follow this procedure when attaching a tool or executing test cut or sample cut. Press a jog key to select the jog mode, and the following two functions can be carried out to move the head to a desired position with accuracy.

  • Page 55: Fixing A Work

    FIXING A WORK A work can be fixed on the device following one of the two procedures described below. • Fixing the work with vacuum • Fixing the work with adhesive tape • Thickness of works that can be attached on this device should not exceed 20mm. Four area marker labels are attached to the cutting panel under the felt mat.

  • Page 56: Fixing Heavy-Weight Packing Etc

    • By aliging the mdia edge to the media guide, work can be set straight. Be sure to set the work within the Maximum effective cutting area. Work Guide • When EXPAND is set to ON with a sensor model or No sensor model, work guide may interrupt the maxi- mum cutting area.

  • Page 57: Adjusting The Blade And The Pen

    High-speed steel blade 30° ..For light-weight and soft works such as coated board and corrugated fiberboard. • Special blades and holders for tangential cutters are prepared in accordance with works. Please contact your local dealer or MIMAKI office for details. Loosen the dial stopper. Dial stopper Loosen the dial stopper counterclockwise to loosen it.

  • Page 58: Cutter Holder 2N (For Unit B)

    Cutter holder 2N (for unit B) Cutter holder 2N is a tangential cutter used for the unit B. The unit B (reciprocal head) is used for non-reciprocal operation.( P. 2-23)Works of up to 2 mm thick can be cut. • The carbide blades (SPB-0045, 0046) and high-speed steel blades (SPB-0043,0044) are the tools that can be used.

  • Page 59: Swivel Cutter

    Follow the procedure described below when projecting the blade tip of the swivel cutter. • Special blades for the optional swivel cutters are prepared in accordance with works. Please contact your local dealer or MIMAKI office for details. Loosen the locknut. Locknut Loosen the locknut counterclockwise to loosen it.

  • Page 60: Attaching The Tools

    ATTACHING THE TOOLS The tools attached to each unit are as follows. • Attaching tools is a dangerous procedure. Switch off the power before starting the tool attachment procedure. • After opening the head cover and attaching the tool, close the cover. Model name RC model RTmodel...

  • Page 61: Attaching The Pen And The Swivel Blade

    ATTACHING THE TOOLS Attaching the pen and the swivel blade If the head is in the lower position and a tool cannot be installed, lift the head. （ P. 2-19） Loosen the screw in head unit A. Turn the screw A counterclockwise to loosen it. Open the holder right and left.

  • Page 62: Attaching The Tangential Cutter

    Attaching the tangential cutter If the head is in the lower position and a tangential cutter cannot be installed, lift the head. (“Adjusting the height of the head ” P. 2-19) Loosen the stopper screw in the tangential cutter. Turn the stopper screw counterclockwise to loosen it. Stopper screw Insert the pin of unit C into the tangential cutter while fitting the pin in the groove on the cutter.

  • Page 63: Attaching The Reciprocal Cutter (Cutter Holder)

    ATTACHING THE TOOLS Attaching the reciprocal cutter (cutter holder) Install the reciprocal cutter holder to unit B. Press the local mode jog key and move the fixing screw of unit B to the front. Switch off the power. Loosen the fixing screw of unit B. To loosen the fixing screw, turn it counterclockwise.
  • Page 64 Installing the crease roller This part is used for the RC head model. If the head is in the lower position and the crease roller cannot be installed, lift the head. (“Adjusting the height of the head ” P. 2-19 ) Loosen the stopper screw in the crease roller.

  • Page 65: Adjusting The Height Of The Head

    ADJUSTING THE HEIGHT OF THE HEAD Once the work and tool have been attached, adjust the head height according to the tool that is used and the thickness of the work. • Be sure to use the felt mat placed on top of an insulated cutting mat. If cutting is performed using unit B without using a felt mat, incomplete cutting will occur.
  • Page 66 Tight the both fixing screws on the head alter- nately. Turn the fixing screws clockwise to tighten them. Fixing screw 2-20...

  • Page 67: Attaching The Work Holder

    ATTACHING THE WORK HOLDER The work holder prevents the work from moving up after it is cut. Work holder • The work holder can be used for works of up to 10 mm thick. The work holder does not support thickness greater than 10 mm. •...

  • Page 68: Selecting A Tool [Tool Select]

    SELECTING A TOOL [TOOL SELECT] Now, select a head and a tool to be used in the cases described below. • In the case where the pen number cannot be specified on the CAD. • In the case where [TEST CUT] function or [SELF TEST] function is executed on the device itself •...

  • Page 69: Setting Cutting Conditions [Condition]

    SETTING CUTTING CONDITIONS [CONDITION] Cutting conditions are set for the tool that has been selected in the [TOOL SELECT]. Setting items Cutting condition setting items differ with the tools. • In the case Approximate Type is set to “Arc” on the FineCut plotter settting, excesive pressure may applied and damage the cutter depend on the media type.
  • Page 70 Tangential Crease Swivel Setting item Description cutter roller blade Up angle The minimum angle required by the raised tool to change ○ ○ ○ the direction of cutting (marking). This reduces the degree by which the tool pries the work. Ring distance If minute line segments continue, a rounding distance (R) is ○...

  • Page 71: Set Values

    SETTING CUTTING CONDITIONS [CONDITION] Tangential Crease Swivel Setting item Description cutter roller blade VIBRATION Vibration speed can be set to 5 levels. Normally, set the ○ vibration speed to 4 or 5. Works that are easily affected by heat should be cut using a lower vibration speed. When using cutter holder 2N, set the vibration to “OFF.”...
  • Page 72 Press correction: 0 to 1000 (in increments of 100 g) Press (Y): –5000 to 5000 (in increments of 100 g) Cutting conditions for the swivel blade The following gives set values for cutting conditions for the swivel blade (optional). Set values Speed: 0.2, 0.5, 1, 2, 5, 10, 15, 20, 25, 30 (cm/s) Pressure:...

  • Page 73: Setting Cutting Conditions

    SETTING CUTTING CONDITIONS [CONDITION] Setting cutting conditions The following describes how to establish cutting conditions for cutter 2 (tangential cutter) as an example. Once you have set cutting conditions, execute the [TEST CUT] function to check whether or not the cutting condi- tions are proper.
  • Page 74 Set the RING DISTANCE and PRESS CORRECTION < CUTTER 2 > ３ ／ ４ to adequate value. RING DIS ∗ ０ ． 3 ０ ｍｍ ＞ PRESS COR ∗ 0 g > ..Input a ring distance. VIBRATION ∗ OFF > ..

  • Page 75: Checking Cutting Conditions [Test Cut]

    CHECKING CUTTING CONDITIONS [TEST CUT] Whenever you have changed cutting conditions or the tool(s) to be used, execute the “test cut” function to check the following items. Refer to “Checking the status of tools” ( P. 2-31) (1) Whether or not the cutting (plotting) conditions are proper Whether or not a work is properly cut or the finished plot has thin spots.
  • Page 76 Execute the [TEST CUT]. < TEST CUT > １ ／ １ Press the key, and the test cut will be executed. END KEY to START To cancel the [TEST CUT] press the key. This restores the CE KEY to CANCEL step of procedure 2 on the screen.

  • Page 77: Checking The Status Of Tools

    CHECKING CUTTING CONDITIONS [TEST CUT] Checking the status of tools Execute the [TEST CUT] function with the tools specified using the tool selecting function. Items to be checked for the tools are shown in the tables below. Point A  Point B  Point C  Point D ...
  • Page 78 Check point Cause Corrective measure Reference page Cutting depth at C is excessive. The set value for the Set a smaller value for the P. 2-25 [START CORRECTION] is [START CORRECTION]. too large. The cutter is off-center. Conduct the “adjustment of P.
  • Page 79 CHECKING CUTTING CONDITIONS [TEST CUT] Checking the status of tools Check the relation between the tools (th pen and the tangential cutter, and the pen and the crease roller) using the TEST CUT function. For this purpose, perform plotting first using the pen, then execute the test cut function using the tangential cutter or the crease roller at the same position to check the relation between the tools.
  • Page 80 Sample D The point at which the cutter finishes cutting goes beyond (or does not reach) the predetermined end position. Corrective measure Adjust the set value for the [END CORRECTION] in [CUTTING CONDITIONS] using the cutting condition setting func- tions.( P.
  • Page 81 CHECKING CUTTING CONDITIONS [TEST CUT] Sample H The point from which the cutter starts is this side (or far side) of the predetermined start position, and the tangential cutter shifts to the right (or left) from the correct position. Corrective measure Refer to the corrective measures for the samples C and E.

  • Page 82: Setting The Cutting Area [Cut Area]

    SETTING THE CUTTING AREA [CUT AREA] The cutting area is maximized when turning on the power to the device. The cutting area can be adjusted to the size of works placed on the device or set to a desired size. To specify a new cutting area, determine the lower left point (LL;...
  • Page 83 SETTING THE CUTTING AREA [CUT AREA] Align the tip of the tool to the lower left point of the desired cutting area. < AREA LL > [ｍｍ] Move the tool using the jog keys until the tip of the tool meets the 　...
  • Page 84 Align the tip of the tool to the upper right point of the desired cutting area. < AREA UR > [ｍｍ] Move the tool using the jog keys until the tip of the tool meets the 　 ― ６ ０ ０ ． ０ 　 　 ― ４ ５ ０ ．０ upper right point (UR) of the cutting area.

  • Page 85: Setting The Origin (Origin For Plotting)

    SETTING THE ORIGIN (ORIGIN FOR PLOTTING) The origin is the reference point that is used for plotting, cutting and creasing. The plotting position can be moved by changing the location of the origin. Coordinate of the origin are always (0,0). If the head is moved using the jog keys, the coordinates of the head as from the origin are indicated on the LCD.

  • Page 86: Interruption Of Processing (Plotting, Cutting Or Creasing)

    INTERRUPTION OF PROCESSING (PLOTTING, CUTTING OR CREASING) Under the REMOTE mode, processing can be interrupted due to some reason. The following explains how to interrupt the process and the function that enables the settings to be changed after the interruption. How to interrupt/resume the process LOCAL key while the device is in opera- Press the...
  • Page 87 INTERRUPTION OF PROCESSING (PLOTTING, CUTTING OR CREASING) Press the key several times until the LCD indicates page 2 ［LOCAL］ ２ ／ ４ DATA CLEAR ――― ＞ of the LOCAL MENU. COPY ――― ＞ VIEW ――― ＞ Select the [DATA CLEAR]. ［LOCAL］...
  • Page 89 CHAPTER 3 WHEN ABNORMAL CONDITIONS ARE ENCOUNTERED This chapter describes how to correct troubles in the event that desired cutting results are not obtained or a failure has occurred. Table of Contents .............3-2 IF ANY OF THE BELOW-STATED PHENOMENA TAKES PLACE Tangent line Tangent lineCorrugated board is cut out at flutes though creasing is performed .............................3-4 [CONDITION] >...

  • Page 90: If Any Of The Below-Stated Phenomena Takes Place

    IF ANY OF THE BELOW-STATED PHENOMENA TAKES PLACE Cutting depth is insufficient [CONDITION] > [PRESS CORRECT] If the cutter is lowered, the work may not be thoroughly cut out though the projecting amount of the blade tip is larger than the thickness of the work. In this case, the work can be cut out without fail by increasing the pressure applied to the descending cutter.
  • Page 91 IF ANY OF THE BELOW-STATED PHENOMENA TAKES PLACE How to adjust: Conduct the adjustment as given in the table below: Pattern Tangent line  Tangent line  How to Set a correction angle to Set a correction Set a correction angle to the negative side. adjust angle to the positive side.

  • Page 92: Tangent Line Tangent Linecorrugated Board Is Cut Out At Flutes Though Creasing Is Performed [Condition] > [Press (Y)]

    Tangent line Tangent lineCorrugated board is cut out at flutes though creasing is performed [CONDITION] > [PRESS (Y)] When marking corrugated board along with flutes of the corrugated board, the pressure specified in [CUTTING CONDITIONS] can be so high as to break the board. How to adjust: Follow the adjusting procedure described below.
  • Page 93 Tangent line Tangent lineCorrugated board is cut out at flutes though creasing is performed [CONDITION] > Select [TEST PATTERN] < POINTER OFS > １ ／ １ Line length of 10mm cross-shape pattern is plotted. POINTER X 　 ＋ ０ ． ０ ｍｍ ＞ POINTER Y 　...

  • Page 94: Tools Are Not Aligned To Each Other [Tool Select]

    TOOLS ARE NOT ALIGNED TO EACH OTHER [TOOL SELECT] If a plotting tool and a cutter or a plotting tool and a creasing roller fail to finish patterns that lack in overlapping, the deviation between the tools has to be adjusted. To adjust the alignment of each tool, use “adjustment of the cutter”...

  • Page 95: Adjustment Of The Cutter

    TOOLS ARE NOT ALIGNED TO EACH OTHER [TOOL SELECT] Adjustment of the cutter The cutter is adjusted in three different ways as described below. (1) “Adjustment of the eccentricity” to adjust the eccentricity of the blade tip and tools (2) “Adjustment of θ angle” to adjust the rotating angle of the cutter (3) “Adjustment of the offset”...
  • Page 96 In pattern B, the tool is installed with tilted. Pattern B has to be adjusted so that horizontal lines and vertical lines are arranged in a straight line respectively along X- and Y-axes. Pattern B Sample pattern Input a positive value as “B” that corre- Input a negative value as “B”...

  • Page 97: Adjustment Of The Offset

    TOOLS ARE NOT ALIGNED TO EACH OTHER [TOOL SELECT] Adjustment of the offset Offset amount of the cut pattern as from the plotted pattern is adjusted in terms of the X- and Y-aes. One pattern is used for adjustment. The illustration below indicates the size of the patterns and the cutting order. : Point from which cutting starts : Direction of cutting : Pen ...

  • Page 98: Adjustment Of The Roller

    Adjustment of the roller The roller is adjusted in three different ways as described below. (1) “Adjustment of the eccentricity” to adjust the eccentricity of the tools (2) “Adjustment of the q angle” to adjust the rotating angle of the roller (3) “Adjustment of the offset”...
  • Page 99 TOOLS ARE NOT ALIGNED TO EACH OTHER [TOOL SELECT] Adjustment of the θ angle The rotating angle of the roller is adjusted. Eliminate the difference in rotating angle between the plotted pattern and the marked pattern. One pattern is used for adjustment. The illustration below gives the size of the pattern and the cutting order.

  • Page 100: How To Adjust The Tools

    How to adjust: Follow the adjusting procedure given below. Sample pattern If the roller deviates to the right, increase If the roller deviates to the left, decrease the X How to adjust the X value for the roller. value for the roller. Sample pattern If the roller deviates upward, increase the If the roller deviates downward, decrease the Y...
  • Page 101 TOOLS ARE NOT ALIGNED TO EACH OTHER [TOOL SELECT] Normal pattern A Normal pattern B : Cutter  Input a value for each pattern. < ADJ > SWIVEL １ ／ ３ [For [A], input an adjustment value for pattern A. A (LNG) ＊＊．...
  • Page 102 To check the amount of deviation, select the [TEST < ADJ > OFFSET ３ ／ ３ PATTERN]. CUTTER X ＊＊． ＊＊＞ CUTTER Y ＊＊． ＊＊＞ Plot the pattern using the pen, then cut the pattern with the tangential TEST PATTERN ―――...

  • Page 103: The Device Not At All Actuates Even When The Power To The Device Is Turned On

    Is the lifting/lowering movement of the pen Turn the power off. Then, move the head A up ― defective? and down. If the head fails to go up and come down normally, please contact your local dealer or MIMAKI office. 3-15...

  • Page 104: Dotted Lines Or Blurred Lines Are Plotted

    Apply a small amount of grease to the axis. P. 7-17 lubricated? Is vibration set to "OFF"? Set vibration to a setting from 1 to 5. If recov- P. 2-24 ery is not achieved, contact the store of pur- chase or a Mimaki sales office. 3-16...

  • Page 105: Troubles For Which Error Messages Are Given On The Lcd

    TROUBLES FOR WHICH ERROR MESSAGES ARE GIVEN ON THE LCD If something is wrong with the device, a corresponding error message is given on the LCD. Causes of and corrective measures against such errors are described below. Errors that can be corrected by users The table below gives the errors that can be corrected by users.
  • Page 106 Confirm the status and the settings described above. If still no registration mark is detected, contact your distributor or a sales office of Mimaki. ERROR 36 MARK DETECT Stop NO registration mark was detected. Stop data send and clear the data.

  • Page 107: Errors That Cannot Be Corrected By Users

    If any of the errors described below has arisen, immediately turn of the power to the device. Wait for a while and re-turn on the power to the device. If the same message appears on the LCD, immediately turn the power off and contact your local dealer or MIMAKI office. Error message...
  • Page 109 CHAPTER 4 APPLICATION FUNCTIONS This chapter describes helpful functions that facilitate operation. Table of Contents ............4-2 ASSIGNMENT OF PEN NUMBERS [MODE SET] > [PEN ASIGN] ........................4-4 RE-CUT OF THE SAME DATA [COPY] .........4-6 SETTING THE NUMBER CUT FUNCTION [MODE SET] > [MULTI-PASS] ..........4-8 SETTING THE ONE-STROKE CUTTING [MODE SET] >...

  • Page 110: Assignment Of Pen Numbers [Mode Set] > [Pen Asign]

    ASSIGNMENT OF PEN NUMBERS [MODE SET] > [PEN ASIGN] Pen numbers included in data are assigned to tools of the device. As many as six pens can be assigned to the tools. Operating procedure is described in this section using the example given below. Pen 1 (Pen number in data to be plotted) →...
  • Page 111 ASSIGNMENT OF PEN NUMBERS [MODE SET] > [PEN ASIGN] [RecCutter 2]. Press the key to set the tool to < PEN ASIGN > ２ ／ ６ PEN 2 RecCutter 1, RecCutter 2 HEAD Ｂ ＞ TOOL RecCutter ２ ＞ Enter the input value. <...

  • Page 112: Re-Cut Of The Same Data [Copy]

    RE-CUT OF THE SAME DATA [COPY] Data that has been already cut can be re-cut in the off-line state. This means that the same data need not be transmit- ted from the computer in repetition. • Be sure to execute the “DATA CLEAR” to clear data from the receiving buffer before trans- mitting data to be copied.
  • Page 113 RE-CUT OF THE SAME DATA [COPY] Execute the [COPY]. < COPY > １ ／ １ Press the key to execute the copy function. END KEY to START If you do not want to copy the object data, press the key. CE KEY to CANCEL If you want to perform cutting again, repeat the aforementioned steps of procedure from step 4.

  • Page 114: Setting The Number Cut Function [Mode Set] > [Multi-Pass]

    SETTING THE NUMBER CUT FUNCTION [MODE SET] > [MULTI-PASS] The same data can be cut as many as five times by changing the pressure values. This allows the device to efficiently cut a work that cannot be thoroughly cut out by performing cutting once. However, the number cut function is disabled in unit B.
  • Page 115 SETTING THE NUMBER CUT FUNCTION [MODE SET] > [MULTI-PASS] Specify cutting pressure values for the third and fourth < MULTI–PASS > ２ ／ ２ and fifth cutting operations. PRESS ３ ∗ OFF ＞ PRESS ４ ∗ OFF ＞ PRESS ５ ∗...

  • Page 116: Setting The One-Stroke Cutting [Mode Set] > [One Stroke]

    SETTING THE ONE-STROKE CUTTING [MODE SET] > [ONE STROKE] Received data on non-connected line segments illustrated below can be cut in such a manner as a one-stroke brush. Set values off : Single-stroke cutting is not performed. on : Single-stroke cutting is executed. sort : Single-stroke cutting is executed while taking a position that is situated closest to the tool as a start point.

  • Page 117: Setting The Direction Of Rotation For The Coordinate Axis [Mode Set] > [Rotate]

    SETTING THE DIRECTION OF ROTATION FOR THE COORDINATE AXIS [MODE SET] > [ROTATE] In the case where the command origin is established at the lower left of the cutting area, it is necessary to specify the direction of rotation for the coordinate axis in accordance with your CAD. Set values +90°: Lower right of the maximum effective cutting area –90°: Upper left of the maximum effective cutting area...

  • Page 118: Setting The Cutter Stroke [Mode Set] > [Z Stroke]

    SETTING THE CUTTER STROKE [MODE SET] > [Z STROKE] For data on a pattern that needs frequent lifting/lowering of the tangential cutter and the marking roller, the lifting amount of the tool should be shortened. This will reduce the total period of time required for cutting. Set values 7 mm: The tool goes up 7 mm above the surface of a work.

  • Page 119: Setting The Unit To Be Used For Indication [Mode Set] > [Unit]

    SETTING THE UNIT TO BE USED FOR INDICATION [MODE SET] > [UNIT] The unit to be used when indicating numerics on the LCD is specified. Set values mm: Numerics are indicated in millimeters. inch: Numerics are indicated in inches. Press the key several times until the LCD indicates ［LOCAL］...

  • Page 120: Setting The Dummy Cut Operation Of The Swivel Blade [Mode Set] > [Dummy Cut]

    SETTING THE DUMMY CUT OPERATION OF THE SWIVEL BLADE [MODE SET] > [DUMMY CUT] In the case where the swivel cutter is selected for the tool, a cutting operation is performed outside the effective cut- ting area so as to orient the blade tip of the swivel cutter to the advancing direction. Set values on: Dummy cut is not performed.

  • Page 121: Alignment Of Mechanical Axes To Ruled Lines Printed [Axis Align]

    ALIGNMENT OF MECHANICAL AXES TO RULED LINES PRINTED [AXIS ALIGN] If ruled lines such as scales are printed on a work, mechanical axes (X-axis, Y-axis) of the device need to be aligned to them. To set the mechanical axes, firstly establish an origin at the leftmost ruled line printed on the work in terms of the X- axis direction.
  • Page 122 Align the tip of the tool to point A. Operate the jog keys to align the tip of the tool to the rightmost one < AXIS ALIGN > [ｍｍ] of the ruled lines on the work. 　 　 ０ ０ ． ０ ０ 　 　 ０ ０ ． ０ ０ Increase/decrease the speed and lift/lower the tip of the tool when SPEED FAST ＞...

  • Page 123: Expand The Cutting Area [Expands]

    EXPAND THE CUTTING AREA [EXPANDS] The Expand function expands the cutting area. In case of Seneor equipped model, and not using Mark detect function, able to expand the cutting area 30mm. This function only supports S (sensor equipped) model. • To use the register mark detect function with the sensor equipped model, set to OFF.
  • Page 124 Press the key to start origin initialize operation. ＊＊＊！ Ｗ ａ ｒ ｎ ｉ ｎ ｇ ＊＊＊ • Every time change the EXPAND set ting, origin 　 H EA D w i ll m o v e initialize operation executed. 　...
  • Page 125 CHAPTER 5 REGISTER MARK DETECT FUNCTION This chapter describes “register mark detect” function. Register mark detect function only supports S (sensor equipped) model. Table of Contents ......................5-2 SETTING OF REGISTER MARK DETECT ...............5-3 PRECAUTIONS IN PREPARING DATA WITH REGISTER MARK ................

  • Page 126: Setting Of Register Mark Detect

    SETTING OF REGISTER MARK DETECT This function detects a register mark automatically. Use this function to correct the inclination of the sheet loaded, the position of plotting origin, and the distance between register marks and then cut the contour of printed image. If the firmware version is older than 2.50, the register mark is circular.

  • Page 127: Precautions In Preparing Data With Register Mark

    PRECAUTIONS IN PREPARING DATA WITH REGISTER MARK There are some limitations on preparing data with register marks.In order to make full use of this function, read the following instruction carefully and prepare data with register mark. • The register mark described here is intended to detect the sheet inclination and the lengths along the X and Y axes.

  • Page 128: Size Of The Register Mark

    Size of the register mark Each side of the single register mark must be 5 - 30mm. Each side of the double register mark must be 10 - 30mm. The line width of mark shall be equal to or more than 0.2 mm and equal to or less than 0.5 mm. Refer to [The size of, and the distance between, register marks]( P.

  • Page 129: The Area Where Register Marks And Designs Can Be Arranged

    PRECAUTIONS IN PREPARING DATA WITH REGISTER MARK The area where register marks and designs can be arranged The TP1 starting position must be 10mm or more away from the work left edge, and 30 mm or more away from the Available cutting area.

  • Page 130: No-Plotting Area Around The Register Marks

    No-plotting area around the register marks There must be no data or stain arround the register mark; otherwise a wrong origin may be detected or a mark read error can occur. • If a wrong mark origin is detected, the cutting will be performed in a wrong area. 10mm Square mark size (5 to 30mm) ...
  • Page 131 PRECAUTIONS IN PREPARING DATA WITH REGISTER MARK Example of cause of wrong detection1: Layer of the offset printingis misaligned . • When printing with offset, square mark is printed in one color. Detected mark origin  Mark origin  Example of cause of wrong detection2: The diarnce between square marks (TP3 of pattern A and TP1 of pattern C, or TP2 of pattern A and TP1 of patternB) is less than 10mm.

  • Page 132: The Size Of, And The Distance Between, Square Marks

    Example of cause of wrong detection3: The distance between register marks(TP2&TP1, TP4&TP2) is smaller than the mark lengt. No plotting area Space larger than the mark length No plotting area Space larger than the mark length The size of, and the distance between, square marks The size (B) of a register mark suited for the distance (A) between the mark is as shown below.

  • Page 133: Color Of Register Mark

    PRECAUTIONS IN PREPARING DATA WITH REGISTER MARK Color of Register mark Black or white is recommended for the register mark color. Other corlors can be detected. However make sure to not use the same color as media(work). It is recommended to confirm ahead, either register mark is detectable. The register mark will not be deteced correctly if there is a strong glossy, pattern (hair line) on the work, or depending on the media(work) color.

  • Page 134: Setting Of Register Mark Detect Operation

    SETTING OF REGISTER MARK DETECT OPERATION Precautions on register mark detection • To ensure that the distance between register marks is equal to the cutting length, input the distance between the printed marks found by the mark detecting function. ( P.

  • Page 135: Settings For Detection Of Marks

    SETTING OF REGISTER MARK DETECT OPERATION Settings for detection of marks Make the settings of the following fuve functions to detect register mark. Detect Register Mark : The higher the number of detected points, the higher the cutting accuracy. Select “1pt” when using FuneCut.

  • Page 136: Settings For Detect

    X copy Ycopy : Setting Description 1 to 99 Effective when the same pattern is multi-printed at regular intervals. Cuts automatically the preset number of sheets while detecting register marks consecutively based on the first data. When the number of copies can be set on the application software, like on the supplied FineCut, set the value to [1] SCALE : Select “OFF”...
  • Page 137 SETTING OF REGISTER MARK DETECT OPERATION How to detect Register mark Set the work to the plotter. Press the key on the [Local] mode. [LOCAL］ １ ／ ４ Display changes to [DETECT] mark mode TOOL SELECT ――― ＞ CONDITION ――― ＞ TEST CUT ―――...
  • Page 138 key. Press the Plotter return to Local mode. <SCALE SET> 1-2 (X) 400.8> If press the , scale set is invalid. 1-3 (Y) 149.1> • If [SCALE] is set to “BEFORE”, Mark detect starts by pressing key. 5-14...

  • Page 139: Continuous Cut With Register Mark

    CONTINUOUS CUT WITH REGISTER MARK When using a cutting software “FineCut,”, countinuous cut is available. Register mark on a printed data should be only one set. Configure the FineCut setting, and start plot. Select [Single mode] and set the number of Repeat. For more setting detail, refer to the FineCut operation manual.

  • Page 140: Initialize The Register Mark Scale Adjustment [Sc.clr]

    INITIALIZE THE REGISTER MARK SCALE ADJUSTMENT [SC.CLR] When using a cutting software other than “FineCut,” need to initialize the adjustment value after cutting. [SC.CLR] initialize the shaft adjustment value and scale adjustment value. If cut the data where no register mark positioned without initialize the adjustment value, cut may misaligned. key to enter the If it is in the REMOTE mode, press ROCAL mode.

  • Page 141: Chapter6 Self-Test

    CHAPTER 6 SELF-TEST This chapter describes “self-test” function. Table of Contents CONFIRMATION OF CUTTING QUALITY ONLY BY THE SINGLE UNIT OF THE DEVICE [SELF ......................................6-2 TEST] ............................6-5 DUMP TEST [SELF TEST]...

  • Page 142: Confirmation Of Cutting Quality Only By The Single Unit Of The Device [Self Test]

    If cutting quality is poor, change the cutting conditions and adjust tools. If the cutting quality cannot be improved after the aforementioned adjustments, contact your local dealer or MIMAKI office. •...

  • Page 143: Cutting Quality * / Sample *** / Circle Cutting R

    CONFIRMATION OF CUTTING QUALITY ONLY BY THE SINGLE UNIT OF THE DEVICE [SELF Cutting quality * / Sample *** / Circle cutting R = *** The following describes how to execute the self-test functions. When executing the cutting quality test and the sample test, the pen number assigning function will be rendered effec- tive.
  • Page 144 Invoke the sample to be executed on the display. < SELF TEST > １ ／ ５ Self-test screen consists of five pages. PATTEN CUT 1 ――― ＞ PATTEN CUT 2 ――― ＞ Press the key to call a page that contains the sample to be exe- DATA DUMP ―――...

  • Page 145: Dump Test [Self Test]

    DUMP TEST [SELF TEST] Executing the data dump Prepare a pen and a sheet of A3 size or larger paper.If the size of paper is smaller than A3 or smaller, the device will plot a pattern beyond the paper. When this setting is selected, the tool will be automatically changed to a pen. Be sure to install a pen to the head A in prior.
  • Page 146 Execute the [DATA DUMP]. The tool travels to the upper left of the paper. < PATTN CUT 1 > １ ／ １ END KEY to START CE KEY to CANCEL Check the position of the paper. < DATA DUMP > １...

  • Page 147: Execution Of The Parameter Dump

    DUMP TEST [SELF TEST] Execution of the parameter dump Prepare a pen and a sheet of A3 size or larger paper. If the size of paper is smaller than A3 or smaller, the device will plot a pattern beyond the paper. When this setting is selected, the tool will be automatically changed to a pen.

  • Page 149: Chapter7 Appendix

    CHAPTER7 APPENDIX This appendix describes the replacement of blades, menu structure and the patterns. Table of Contents ..........................7-2 A. REPLACING THE BLADE TIPS ..........................7-5 B. LOCAL MENU STRUCTURE ..............................7-11 C. OUTPUT SAMPLES ..............................7-15 D. SPECIFICATIONS ................................ 7-17 E. MAINTENANCE ..........................

  • Page 150: Tangential Cutter Blade

    REPLACING THE BLADE PROTRUSION The following describes how to replace the blade tips of the tangential cutter and swievel cutter. Tangential cutter blade The method to replace a carbide blade 45˚ (SPB-0045) is described below. • Keep your fingers away from the blade tip. Touching the blade tip can injure your fingers. Grind the blade tip and crest of the high-speed steel blade using a hand lapper supplied with the device as an acces- sory.

  • Page 151: Swivel Blade

    Insert the blade tip as illustrated in the sketch on the right. Tighten the cutter stopper. Turn the cutter stopper clockwise to tighten it. Adjsut the projecting amount of the blade tip. Refer to the explanation given in the “Adjusting the blade.” ( P.
  • Page 152 Turning the adjusting knob clockwise, put the holder B in the holder A. Tighten the locknut. Turn the locknut clockwise to tighten it. Refer to the explanation given in the “Adjusting the blade.”( P. 2-11)

  • Page 153: Local Menu Structure

    B. LOCAL MENU STRUCTURE RC-head model TOOL SELECT HEAD A TOOL ------------ PEN, SWIVEL HEAD B TOOL ------------ RECCUTTER1, RECCUTTER2 HEAD C TOOL ------------ ROLLER 1, ROLLER 2, ROLLER 3, ROLLER 4, R. CUTTER 1, R. CUTTER 2 SPEED ----------------------- 2, 5, 10, 15, 20, 25, 30, 35, CONDITION 40, 45, 50 (cm/s) PRESSURE ----------------- 20 ~ 400 (g)
  • Page 154 MODE SET Z STROKE 7, 4 (mm) MULTI-PASS OFF, 5, 15, 30, 45, 60 (sec) PRESS 1st OFF, 1000 ~ 5000 (g) MULTI-PASS PRESS 2nd OFF, 1000 ~ 5000 (g) PRESS 3rd OFF, 1000 ~ 5000 (g) VACUUM Auto OFF, Panel OFF PRESS 4th OFF, 1000 ~ 5000 (g) PRESS 5th...

  • Page 155: Rt-Head Model

    RT-head model TOOL SELECT HEAD A TOOL ------------ PEN, SWIVEL HEAD B TOOL ------------ RECCUTTER1, RECCUTTER2 HEAD C TOOL ------------ θCUTTER 1, θCUTTER 2 CONDITION SPEED ----------------------- 2, 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 (cm/s) SWIVEL PRESSURE ----------------- 20 ~ 400 (g) ACCELE (ACCELERATION) ---- 0.1 ~ 0.5 (g) RECCUTTER 1 ~ 2...
  • Page 156 MULTI-PASS OFF, 5, 15, 30, 45, 60 (Sec) MODE SET Z STROKE 7, 4 (mm) PRESS 1st OFF, 500 ~ 1500 (g) MULTI-PASS PRESS 2nd OFF, 500 ~ 1500 (g) PRESS 3rd OFF, 500 ~ 1500 (g) VACUUM Auto OFF, Panel OFF PRESS 4th OFF, 500 ~ 1500 (g) PRESS 5th...

  • Page 157: R-Head Model

    R-head model TOOL SELECT HEAD TOOL PEN, SWIVEL HEAD TOOL RECCUTTER 1, RECCUTTER 2 CONDITION TOOL SPEED ----------------------- 2, 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 (cm/s) SWIVEL PRESSURE ----------------- 20 ~ 400 (g) ACCELE (ACCELERATION) ---- 0.1 ~ 0.5 (g) RecCutter 1 ~ 2 R5 SPEED ------------------- OFF, 1, 2 (cm/s) R10 SPEED ----------------- OFF, 1, 2, 3, 4, 5 (cm/s)
  • Page 158 MULTI-PASS OFF, 5, 15, 30, 45, 60 (Sec) MODE SET Z STROKE 7, 4 (mm) PRESS 1st OFF, 500 ~ 1500 (g) MULTI-PASS PRESS 2nd OFF, 500 ~ 1500 (g) PRESS 3rd OFF, 500 ~ 1500 (g) VACUUM Auto OFF, Panel OFF PRESS 4th OFF, 500 ~ 1500 (g) PRESS 5th...

  • Page 159: Output Samples

    C. OUTPUT SAMPLES Cutting quality 1 Cutting quality 2 ASCII dump list 7-11...

  • Page 160: Sample (Coated)

    Sample (coated) Sample (E corrugated) 7-12...

  • Page 161: Sample (B Corrugated)

    Sample (B corrugated) Circle cutting R = 3/5/10/20/50/100 R=20 R=10 R=50 R=100 7-13...

  • Page 162: Parameter Dump List

    Parameter dump list 7-14...

  • Page 163: Specifications

    D. SPECIFICATIONS Basic specifications Type CF2-0912 CF2-1215 CF2C-1218 Effective stroke X axis 1200 1500 1800 Y axis 1200 Driving method X, Y, Z, θ 4-axis DC software servo Maximum speed 50 cm/s Maximum acceleration 0.5 G Mechanical resolution X axis : 0.00234375 mm, Y axis : 0.003125 mm, θ axis : 0.05625° Command resolution 0.025 mm / 0.01 mm (switchable on operation panel) Range accuracy...
  • Page 164 Specifications for serial interface Basic specifications Item Specifications Signal level standard Conforms to EIA RS232C Synchronous system Asynchronous system Communication system Full-duplex Logical requirements EIA RS-232C, CCITT V.24, JIS×5101 Electric properties EIA RS-232C, CCITT V.24, JIS×5101 Connector D-SUB25 pin (female) conforming to JIS X 5101 Transmission speed (bps) 1200/2400/4800/9600/19200 Start bit length...

  • Page 165: Maintenance

    E. MAINTENANCE To use the device comfortably for an extended period of time, it is recommended to perform periodical cleaning. • Use neither detergent containing abrasives nor thinner. Such materials can deform the cover and the cutting panel. Cutting panel surface If any of the suction holes on the cutting panel is clogged, be sure to insert a thin wire into the clogged hole.
  • Page 166 Filter unit The media inside the filter unit is removable, and needs to be cleaned at a regular intervals. Remove the filter unit by holding both sides. Separate the filter cover and the media. Vacuum the dust from the media. 7-18...
  • Page 167 Put the media back in place. Make sure the shorter projection comes at the top. 7-19...

  • Page 168: Optional Accessories

    F. OPTIONAL ACCESSORIES Swivel cutter components Name of product Product No. Specifications Remarks Swivel cutter holder SPA-0001 One piece of holder without blade Swivel blade for vinyl sheet SPB-000 Package of three pieces of blades Swivel blade for small letters SPB-0003 Package of three pieces of blades Swivel blade for rubber sheet...
  • Page 169 Creasing roller components Name of product Product No. Specifications Remarks Creasing roller, DN model SPA-0056 For corrugated fiberboard (E corrugated fiberboard) For RC-head Creasing roller, CN model SPA-0057 For coated board For RC-head Creasing roller, PN model SPA-0058 For pleated works RC-head Crease plate EN SPA-0067...
  • Page 170 20 mm blade SPB-0055 A100883 Additionally processed Olfa-made commercially available blade (SK2). For cutting works with a thickness of up to 15 mm. SPA-011 use. Carbide blade 17˚ SPB-0065 A101217 For corrugated fiberboard. SPA-0114 use. Carbide blade 2˚ SPB-0064 A101209 For sponge 20 mm.
  • Page 172 D201402-16-19052023 Printed in Japan © 2008 MIMAKI ENGINEERING Co., Ltd. All rights reserved.
