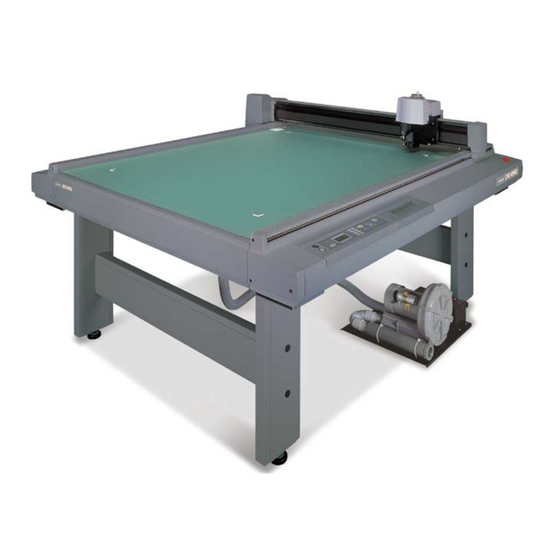

RECIPROCAL FLAT BED CUTTING PLOTTER

CF2 Series

CF2-0912 CF2-1215 CF2-1218

RC model

RT model

OPERATION MANUAL

CAUTION

1. Prior to using this device, be sure to read this Operation manual and become fully familiar

with its operation method and usage cautions.

2. While the plotter is operating (while it is moving or its blades are vibrating), absolutely

never bring any part of your body (face, hands), clothes, or other objects near the flat bed

(cutting panel), as serious injury may result.

Particularly when lifting the head and operating the device without a work piece in order

to check data, one's hand can enter under the head safety cover. As this may cause

serious injury, proceed with great care.

3. The head units (A, B, C) move at high speed. When checking work results or adjusting

work slippage or floating, be sure to stop the device and perform these actions in either

the local mode or with the power switched off.

4. When attaching tools (reciprocal cutter, etc.), be sure to power off the device beforehand.

Attempting to change tools while the power is on presents the risk of unexpected injuries

due to erroneous panel operation, etc.

TKB Gotenyama Building, Kitashinagawa, Shinagawa-ku, Tokyo 141-0001, Japan

MIMAKI ENGINEERING CO., LTD.

Phone: +81-3-5420-8671

URL: http: // www. mimaki. co. jp

Fax: +81-3-5420-8687

D201402-13

Table of Contents

Need help?

Do you have a question about the CF2 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MIMAKI CF2 Series

Page 1 Attempting to change tools while the power is on presents the risk of unexpected injuries due to erroneous panel operation, etc. MIMAKI ENGINEERING CO., LTD. TKB Gotenyama Building, Kitashinagawa, Shinagawa-ku, Tokyo 141-0001, Japan Phone: +81-3-5420-8671 Fax: +81-3-5420-8687 URL: http: // www. mimaki. co. jp D201402-13...
Page 2 Correct handling procedure shall be followed according to this Operation manual. In the case where MIMAKI-designated cable is not used for the connection of this device, limits provided by VCCI rules can be exceeded. To prevent this, use of MIMAKI-designated cable is essential for the connection of this device.
Page 3 Congratulations on your purchase of a “CF2 Series” of reciprocal flat bed cutting plotter. This Operation manual is intended for RC model and RT model under the “CF2 Series.” Any function for which no head name is designated is common to all models.
Page 4 TABLE OF CONTENTS Foreward ........................i About model name ....................vi For safe operation ....................vii For safe operation .................... ix Precautions in installation ................x How to read this operation manual ..............xi Structure of this operation manual ..............xii Features of the device ..................xiii CHAPTER 1 SET-UP Installation site ......................
Page 5 CHAPTER 2 BASIC OPERATION ........2.1 Basic operation on the LOCAL menu ............2.2 LOCAL menu ....................2.2 MODE SET menu ..................2.3 Basic operation on the LOCAL menu ............2.4 Basic operation flow chart ................. 2.6 Moving the head ....................2.7 Moving the head by “VIEW”...
Page 6 Corrugated board is cut out at flutes though creasing is performed [CONDI- TION] > [PRESS (Y)] .................. 3.4 Register Mark not detected [TOOL Adjust] > [LIGHT POINTER] .... 3.5 Tools are not aligned to each other [TOOL SELECT] ........3.7 Flowchart of checking and adjusting procedures ..........
Page 7 Setting of register mark detect operation ............5.11 Precautions on register mark detection ............5.11 How to display the register mark setting on LCD ........5.11 Settings for detect ..................5.14 Continuous cut with Register mark ..............5.17 Initialize the register mark scale adjustment [SC.CLR] ......... 5.18 CHAPTER 6 SELF-TEST Confirmation of cutting quality only by the single unit of the device...
Page 8 ABOUT MODEL NAME The structure of model name is as follows. Head type Presence of Mark sensor Model name - Size Model Name: CF2 Size 0912 1200 x 900mm 1215 1500 x 1200mm 1218 1800 x 1200mm Head type Reciprocal cutter unit 2mm Creasing unit Reciprocal cutter unit 5mm Creasing unit...
Page 9 FOR SAFE OPERATION Prior to using this device, be sure to read this Operation manual and become fully familiar with its operation method and usage cautions. Pictorial signs Pictorial signs are used in this Operation manual for safe operation of and in prevention of damages to the device.
Page 10 * Leave maintenance works to a ser- your district or MIMAKI office for viceman whenever the device has repair. Never repair your device by broken. Never conduct maintenance...
Page 11 For safe operation CAUTION Use the following electrical specifications Do not dress baggy suits and accessories Be sure to connect the power cable to Do not work with dressing baggy suits a power outlet with the following and any accessories, and also tie any electrical specifications.
Page 12 Precautions in installation CAUTION A place exposed to direct sunlight A plate that is not horizontal Do not install the device at a place If the plotter is not leveled, the plotter where the temperature of the cut panel will fail to give correct results. Also surface exceeds 60°C.
Page 13 HOW TO READ THIS OPERATION MANUAL Name of function shown on LCD List of values that can be set Number of step of operating Gives the procedure description of operating procedure. Indication on LCD is bracketed as LCD display [INTERFACE]. Indicates the key to be used to select a function from...
Page 14 Structure of this operation manual Chapter 1 Set-up This chapter describes the procedures to be taken after the unpacking to specify func- tions that are required for the connection of this device to your computer. Chapter 2 Basic operation This chapter describes normal operation of the device such as the replacing/attaching of tools or works.
Page 15 FEATURES OF THE DEVICE The device is capable of cutting thick materials and flexible materials The device can cut thick materials of up to 20 mm thick by moving the cutter up and down at high speed. It can cut a variety of materials such as sponge and fiberboard, which cannot be cut by conventional cutting plotters.
Page 16 The device incorporates a mechanism that securely supports works Air-suction work clamping system has been introduced to the table unit on which works are se- cured. This allows works to be clamped without fail and to be easily placed/removed on/from the device.
Page 17: Table Of Contents
CHAPTER 1 SET-UP This chapter describes the procedure to be taken after the unpacking to specify func- tions that are required for the connection of this device to your computer. Table of Contents Installation Site ....................1.2 Effective cutting area ................... 1.4 Checking the Accessories ................
Page 18: Installation Site
INSTALLATION SITE Install the device at a place where the below-stated installation area is provided. • Place nothing within an installation area. If a thing is placed, the risk of trip- ping over will be caused. • Place this device in a well ventilated area. If this device is used in a closed space, the blower exhaust and the reciprocal exhaust may cause the operator to feel unwell.
Page 19 Installation area (CF2-1215) 1000 mm 1000 mm 4057 mm Installation area (CF2-1218) 1000 mm 1000 mm 4357 mm Blower installation area Set the blower under the main unit. • The exhaust temperature reaches high levels. Do not place eas- ily flammable materials in the direction of the exhaust. •...
Page 20: Effective Cutting Area
EFFECTIVE CUTTING AREA The maximum effective cutting areas by the models of devices are given below. The maximum cutting area does not change by the models of heads (RC-head and RT-head) Maximum effective cutting area X axis Model name X axis (mm) Y axis (mm) Mark sensor CF2-0912...
Page 21: Checking The Accessories
CHECKING THE ACCESSORIES Accessories differs with the models of heads and applications. Check the accessories referring to the accompanying “Accessory list.” If you find any missing accessory or damaged one, contact your local dealer or MIMAKI office. — 1.5 —...
Page 22: Configuration And Function
CONFIGURATION AND FUNCTION Main unit HAZARDOUS MOVING PARTS (Y BAR AND HEAD) KEEP FINGERS AND OTHER BODY PARTS AWAY WARNING Name Function 1 Y bar Moves the head in Y direction 2 Head Tools are attached to the head. Tools that can be set to the head differs with the models of heads.
Page 23 Right-hand side face of the electrical box Name Function Power connector To be connected to the power cable of the plotter. Main power switch Used to turn on/off the main power of this device. Normally set it to the on state.
Page 24: Head
Head Front face Name Function Head securing screw Used to fix the head on the Y bar. Loosen it when adjusting the height of the head or removing the head. Unit C Attach a creasing roller or cutter holder (=> A.19). In the case of the RC head model, a cutting pressure of 1 kg to 5 kg is output.
Page 25 Left-hand side face Name Function Height adjusting knob Used to adjust the height of the head. Height adjusting bar Used to adjust the height of the head in accordance with the thickness of a work to be used. Head safety cover Protects the operator from the blades.
Page 26: Operation Panel
Operation panel PAGE POWER O R I G I N REMOTE VACUUM E N D LOCAL — 1.10 —...
Page 27 Name Representation Function 1 POWER ON switch Used to turn ON the power to the device. 2 POWER lamp Lights up (in green) when the power to the device is turned on. 3 LCD LCD indicates states of the device and [ LOCAL ] 1 / 4 specified menus on its 16-column and...
Page 28: Connecting The Cables
CONNECTING THE CABLES • Be sure to turn off the the power to the device in prior when connecting the signal wire cable for the blower, interface cable. If not, there will be a fear of WARNING the arising of electric shock hazards and damage to the device. Connecting the signal wire cable for the blower •...
Page 29: Connecting The Interface Cable
Connecting the interface cable The device is equipped as standard with an interface conforming to RS-232C. Use a MIMAKI-recommended interface cable or a cable that matches your computer. Turn off the power to the plotter and that to the personal computer.
Page 30: Connecting The Power Cable
Connecting the power cable Two power cables are provided, one for the main unit and the other for the blower unit. Insert the respective power cables into the receptacles of the following specifications. Power cable for the main unit Power cable for the blower 100 VAC ±10% / 220 VAC ±10% Voltage Frequency...
Page 31 Insert the other end of the power cable into the 3P receptacle. In the case where a 2-pole receptacle is used, additionally use the installation adapter supplied with the unit as an ac- cessory. Properly ground the earth cable (green one), then insert the power cable to the receptacle.
Page 32: Turning The Power On/Off
TURNING THE POWER ON/OFF The device is provided with separate switches for turning the power on and off. Turn on/off the power to the device following the procedure described below. • Do not place any thing other than a work on the cutting panel when turning the power on.
Page 33: Turning The Power Off
Turning the power off To turn the power off, check first whether or not there is data received and there remains data that has not yet been output in the device. REMOTE To check for the remaining data, press the key to cause the device to enter the REMOTE LOCAL mode.
Page 34: Emergency Stop
EMERGENCY STOP In an emergency, the device can be stopped at once. How to stop the device in an emergency Press the EMERGENCY button. This causes the device to stop its opera- tion and turns the power off. — 1.18 —...
Page 35: How To Reset The Emergency Stop
How to reset the emergency stop Turn the EMERGENCY button clock- wise for unlocking. Press the POWER ON switch The device will start up. • To recover from an emergency stop, do so after powering off the device and waiting for 30 seconds. Failure to do so will result in malfunction. —...
Page 36: Local/Remote Modes
LOCAL/REMOTE MODES The operation mode is changed over alternately between the LOCAL mode and the REMOTE REMOTE mode every time the key is pressed. LOCAL LOCAL mode and the indication on the LCD Under LOCAL mode, the head travels, functions of the device are set, and data from the personal computer are received.
Page 37: Remote Mode And The Indications On The Lcd
REMOTE mode and the indications on the LCD Under the REMOTE mode, cutting or plotting can be carried out in accordance with data received. The LCD indicates cutting (plotting) conditions and the capacity of data received. Capacity of data decreases as you proceeds with cutting (plotting). The POWER ON key, the POWER OFF key, the...
Page 38: Matching The Functions Of The Device To The Specifications Of The Computer
MATCHING THE FUNCTIONS OF THE DEVICE TO THE SPECIFICATIONS OF THE COMPUTER The following explains how to set the functions required to connect the device to your personal computer. Setting communication conditions [INTERFACE] Communication conditions for the communication between the device and the computer to which the device is connected by way of RS232C.
Page 39 Press the key until the LCD PAGE < INTERFACE > 1 / 2 PAGE RESERVE indicates page 2 of the [INTERFACE]. BAUD RATE 19200 > DATA BITS 7 > Set the [PARITY] to one of the follow- < INTERFACE > 2 / 2 PARITY ∗NON >...
Page 40: Rendering The Set Values On The Personal Computer Effective [Mode Set] > [Cmd Sw]
Rendering the set values on the personal computer effective [MODE SET] > [CMD SW] The set values (commands) that are rendered effective are specified either those set on the opera- tion panel or those set on the CAD. Set values VALID: If items that are set on the operation panel of this device can also be set on the CAD, the latest command specified is given priority.
Page 41 Setting the response value with respect to the valid area [MODE SET] > [OH UNIT] The response value that is to be transmitted to the CAD in response to a valid area coordinate output command for the device is selected between the following. Set values INITIAL VALUE: The value of the max.
Page 42 Setting the command origin [MODE SET] > [ORIGIN] Adjust the position of the command origin of the device to the origin of the command origin of your CAD. Refer to the Operation manual for your CAD for the position of the command origin supported by the CAD.
Page 43 Setting the resolution (GDP) [MODE SET] > [GDP] Set the resolution of the device to that of your CAD. Refer to the operation manual for your CAD for the resolution supported by the CAD. GDP: Graphic Display Pitch Set values 0.025 mm : The resolution is set to 0.025 mm.
Page 44 Matching the specifications on the plotter’s side The command for using this device is MGL-IIc3. Set the command of the CAD connected to the device to MGL-IIc3. • The only command in the operation mode is MGL-IIc3. Switching commands on the plotter side is not possible. —...
Page 45 Setting for automatic head retract [AUTO VIEW] A period of time required to cause the head to start to travel to its retracted position after the completion of cutting (plotting). If the blower is powered on, it switches off after the head has automatically retracted. Retracted position Set values OFF: Automatic head retract is not performed.
Page 46 Enter the input values. Press the key to enter the input < MODE SET > 2 / 6 AUTO VIEW 1s > values. DUMMY CUT ∗ON > If you do not enter the input data, press ONE STROKE ∗OFF > key.
Page 47 AUTO-OFF FEATURE OF THE VACUUM The validity of the Auto-OFF feature can be set up. When the automatic head retraction function is set to 1s or 3s, the vacuum will turn off automati- cally after the head retracts. When the automatic head retraction function is off, the vacuum will not turn off automatically. While operating copy function, number cut function, or completing continuous register mark copy, will turn the vacuum off automatically, regardless of the automatic head retraction function.
Page 48 — 1.32 —...
Page 49 CHAPTER 2 BASIC OPERATION In Chapter 2, normal operation of the device such as the attaching of tools or works. Table of Contents Basic operation on the LOCAL menu ............. 2.2 Basic operation flow chart................2.6 Moving the head ................... 2.7 Fixing a work ....................
Page 50 BASIC OPERATION ON THE LOCAL MENU LOCAL menu Various kinds of data and functions required for the connection with your personal computer are set. Function Description Reference page TOOL SELECTION Head and tool to be used are selected. P. 2.20 CONDITIONS Conditions for the tool selected using the [TOOL P.
Page 51 MODE SET menu The following explains functions of the [MODE SET] in the LOCAL menu. Function Description Reference page COMMAND Commands are set to the MGL-IIc3. Switching P. 1.24 commands on the plotter side is not possible. (For the CF2, only MGL-IIC3 is available) UNIT The unit to be used when indicating numerics on the P.
Page 52 Basic operation on the LOCAL menu The following describes basic operating procedure to be followed to set the LOCAL menu. Sub menu for [CONDITION] [ LOCAL ] 1 / 4 < CUTTER 1 > 1 / 4 TOOL SELECT ———> SPEED ∗50 cm / S >...
Page 53 (1) Set the device in the LOCAL mode. Check first that no data received remain, and press the key to set the device in the R E M O T E L O C A L LOCAL mode. (2) Advance the LOCAL menu pages. Each press on the key will advance the page one by one.
Page 54: Basic Operation On The Local Menu
BASIC OPERATION FLOW CHART The following is the basic operation flow chart. Refer to the page to be referred to for detailed explanation of each operation. Attach a work in position. Fixing the work (Refer to P. 2.10) Attach tools in position. Attaching tools (Refer to P.
Page 55: Moving The Head
MOVING THE HEAD It is possible to move the head for easier operation when attaching a tool or a work on the device or executing test cut. The head can be moved in the following two different procedures: * Moving the head by “VIEW” function * Moving the head by the jog keys Moving the head by “VIEW”...
Page 56 Select a point to which the head is < VIEW > 1 / 1 LOWER LEFT ——— > moved to. LOWER RIGHT ——— > Press the key to move the head to the lower right of the cutting area. Press the key to move the head to the retract point at the upper right of [ LOCAL ]...
Page 57 Moving the head by the jog keys Follow this procedure when attaching a tool or executing test cut or sample cut. Press a jog key to select the jog mode, and the following two functions can be carried out to move the head to a desired position with accuracy.
Page 58: Fixing A Work
FIXING A WORK A work can be fixed on the device following one of the two procedures described below. • Fixing the work with vacuum • Fixing the work with adhesive tape • Thickness of works that can be attached on this device should not exceed 20 Four area marker labels are attached to the cutting panel under the felt mat.
Page 59 • By aliging the mdia edge to the media guide, work can be set straight. Be sure to set the work Work Guide within the Maximum effective cutting area • When EXPAND is set to ON with a sensor model or No sen- sor model, work guide may in- terrupt the maximum cutting area.
Page 60: Adjusting The Blade And The Pen
High-speed steel blade 30° ..For light-weight and soft works such as coated board and corrugated fiberboard. • Special blades and holders for tangential cutters are prepared in accordance with works. Please contact your local dealer or MIMAKI office for details. Loosen the dial stopper. Dial...
Page 61 Pressing the dial in the direction of the arrow, tighten the dial stopper. • The dial has a play. To elimi- nate an error in the projecting amount of the blade tip, tighten the dial stopper while keeping the dial held pushed in the di- rection of the arrow.
Page 62 Cutter holder 2N (for unit B) Cutter holder 2N is a tangential cutter used for the unit B. The unit B (reciprocal head) is used for non-reciprocal operation. (For the cutting conditions, refer to page 2-28.) Works of up to 2 mm thick can be cut. •...
Page 63 Reciprocal cutter holder (for unit B) The reciprocal cutter holder is a cutter used for the unit B. The reciprocal cutter holder comes in two types, according to the type of application. For RC head unit B For RT head unit B Name: Cutter holder 07 Name: Cutter holder 06 Applicable blade: Carbide blade 17 (SPB-0065)
Page 64 Follow the procedure described below when projecting the blade tip of the swivel cutter. • Special blades for the optional swivel cutters are prepared in accordance with works. Please contact your local dealer or MIMAKI office for details. Loosen the locknut.
Page 65: Attaching The Tools
ATTACHING THE TOOLS The tools attached to each unit are as follows. • Attaching tools is a dangerous procedure. Switch off the power before starting the tool attachment procedure. • After opening the head cover and attaching the tool, close the cover. Model name RC model RT model...
Page 66 Attaching the pen and the swivel blade If the head is in the lower position and a tool cannot be installed, lift the head. (“Adjusting the height of the tool” See page 2.18.) Loosen the screw in head unit A. Turn the screw A counterclockwise to loosen it.
Page 67 Attaching the tangential cutter If the head is in the lower position and a tangential cutter cannot be installed, lift the head. (“Ad- justing the height of the tool” See page 2.22.) Loosen the stopper screw in the tan- gential cutter. Turn the stopper screw counterclockwise to loosen it.
Page 68 Attaching the reciprocal cutter (cutter holder) Install the reciprocal cutter holder to unit B. Press the local mode jog key and move the fixing screw of unit B to the front. Switch off the power. Loosen the fixing screw of unit B. To loosen the fixing screw, turn it coun- terclockwise.
Page 69 Installing the crease roller This part is used for the RC head model. If the head is in the lower position and the crease roller cannot be installed, lift the head. (“Adjust- ing the height of the head” See page 2.22.) Loosen the stopper screw in the crease roller.
Page 70: Adjusting The Height Of The Head
ADJUSTING THE HEIGHT OF THE HEAD Once the work and tool have been attached, adjust the head height according to the tool that is used and the thickness of the work. • Be sure to use the felt mat placed on top of an insulated cutting mat. If cutting is performed using unit B without using a felt mat, incomplete cutting will occur.
Page 71 Pressing down the height adjusting bar, turn the height adjusting handle to lower the head. Lower the head until the bottom end of the adjusting bar comes in contact with the top surface of the work. Tight the both fixing screws on the head alternately.
Page 72: Attaching The Work Holder
ATTACHING THE WORK HOLDER The work holder prevents the work from moving up after it is cut. Work holder • The work holder can be used for works of up to 10 mm thick. The work holder does not support thickness greater than 10 mm. •...
Page 73 Set the work holder to unit B and tighten the screw. Set the work holder by aligning its hole with the screw hole on unit B. — 2.25 —...
Page 74: Selecting A Tool [Tool Select]
SELECTING A TOOL [TOOL SELECT] Now, select a head and a tool to be used in the cases described below. • In the case where the pen number cannot be specified on the CAD. • In the case where [TEST CUT] function or [SELF TEST] function is executed on the device itself •...
Page 75 Select the tool to be used. < TOOL SELECT > 1 / 1 HEAD B > RecCutter 1 TOOL RecCutter 1 > RecCutter 2 E N D Enter the input values. < TOOL SELECT > 1 / 1 Press the key to enter the input HEAD B >...
Page 76: Setting Cutting Conditions [Condition]
SETTING CUTTING CONDITIONS [CONDITION] Cutting conditions are set for the tool that has been selected in the [TOOL SELECT]. Setting items Cutting condition setting items differ with the tools. • In the case Approximate Type is set to “Arc” on the FineCut plotter settting, excesive pressure may applied and damage the cutter depend on the media type.
Page 77 Tangential Crease Swivel Setting item Description cutter roller blade End offset The amount of correction of the position at which cutting ends when the tool goes up. For heavy-weight materials, the amount of correction should be increased. This will cause the cutter to finish cutting at a position that goes beyond the predetermined cutting end position, thereby allowing easy cut-out of the work.
Page 78 Tangential Crease Swivel Setting item Description cutter roller blade R5 speed The speed that is employed when cutting an arc that is 5 mm or less in radius. If [OFF] is selected, the arc is cut at the previously specified speed. R10 speed The speed that is employed when cutting an arc that is less than 5 mm or more and 10 mm or less in radius.
Page 79 Set values Plotting conditions for pens Set values for plotting conditions are given below. Set values Speed: 0.2, 0.5, 1, 2, 5, 10, 15, 20, 25, 30 (cm/s) Pressure: 20 to 100 (in increments of 5 g) 100 to 400 (n increments of 10 g) Acceleration: 0.1 to 0.3 (in increments of 0.1 G) R5 speed:...
Page 80 Marking conditions for the crease roller The following gives set values for crease conditions for the crease roller. Set values Speed: 0.2, 0.5, 1, 2, 5, 10, 15, 20, 25, 30 (cm/s) Pressure: 1000 to 5000 (in increments of 100 g) Acceleration: 0.1 to 0.3 (in increments of 0.1 G) Up angle:...
Page 81 Setting cutting conditions The following describes how to establish cutting conditions for cutter 2 (tangential cutter) as an example. Once you have set cutting conditions, execute the [TEST CUT] function to check whether or not the cutting conditions are proper. (See page 2.35.) Select the head and the tool in the [TOOL SELECT].
Page 82 Invoke the 3rd page of the CUTTING < CUTTER 2 > 2 / 4 PAGE F OFFSET 1.00 mm > CONDITIONS screen for cutter 2. E OFFSET 1.00 mm > UP ANGLE 15° > Set the RING DISTANCE and PRESS <...
Page 83: Checking Cutting Conditions [Test Cut]
CHECKING CUTTING CONDITIONS [TEST CUT] Whenever you have changed cutting conditions or the tool(s) to be used, execute the “test cut” function to check the following items. Refer to “Checking the status of tools” (see page 2.37). (1) Whether or not the cutting (plotting) conditions are proper Whether or not a work is properly cut or the finished plot has thin spots (2) Whether or not the tool is off-center If the tool is off-center, inaccuracy in cutting will result.
Page 84 Exit from the MOVE mode. < MOVE > [ mm ] Press the key or key to exit 00.00 00.00 from the MOVE mode. SPEED FAST > The LOCAL MENU will appear on the UP > screen. If the 1st page of the LOCAL MENU does not appear, press the PAGE key to invoke the 1st page on the screen.
Page 85 Checking the status of tools Execute the [TEST CUT] function with the tools specified using the tool selecting function. Items to be checked for the tools are shown in the tables below. Point A Point B Point C Point D Point D’...
Page 86 Checkpoint Cause Corrective measure Reference page D and D’ are different in size. The cutter is off-center. Conduct the “adjustment of See page 3.6. the eccenticity” that is one of the tool adjustig functions. Cutting depth at C is The set value for the [START Set a smaller value for the See page 2.28.
Page 87 Checking the status of tools Check the relation between the tools (th pen and the tangential cutter, and the pen and the crease roller) using the TEST CUT function. For this purpose, perform plotting first using the pen, then execute the test cut function using the tangential cutter or the crease roller at the same position to check the relation between the tools.
Page 88 Sample C The point from which the cutter starts is this side (or far side) of the predetermined start position. Corrective measure Adjust the set value for the [START CORRECTION] in [CUTTING CON- DITIONS] using the cutting condition setting functions. (See page 2.28.) Adjust the pattern A for the “adjustment of the eccentricity”...
Page 89 Sample F The cutter rotates clockwise (or counterclockwise) and the point from which the cutter starts is this side (or far side) of the predetermined start position. Corrective measure Refer to the corrective measures for the samples B and C. Sample G The pattern is finished with rotated clockwise (or counterclockwise) and the tangential cutter shifts to the right (or left) from the correct position.
Page 90 Sample I The point at which the cutter finishes cutting goes beyond (or does not reach) the predetermined end position, and the tangential cutter shifts to the right (or left) from the correct position. Corrective measure Refer to the corrective measures for the samples D and E.
Page 91: Setting The Cutting Area [Cut Area]
SETTING THE CUTTING AREA [CUT AREA] The cutting area is maximized when turning on the power to the device. The cutting area can be adjusted to the size of works placed on the device or set to a desired size. To specify a new cutting area, determine the lower left point (LL;...
Page 92 Align the tip of the tool to the lower left point of the desired cutting area. < AREA LL > [ mm ] Move the tool using the jog keys until –600.0 –450.0 SPEED FAST > the tip of the tool meets the lower left CUTTER UP >...
Page 93 Align the tip of the tool to the upper right point of the desired cutting area. < AREA UR > [ mm ] Move the tool using the jog keys until –600.0 –450.0 SPEED FAST > the tip of the tool meets the upper right CUTTER UP >...
Page 94: Setting The Origin (Origin For Plotting)
SETTING THE ORIGIN (ORIGIN FOR PLOTTING) The origin is the reference point that is used for plotting, cutting and marking. The plotting position can be moved by changing the location of the origin. Coordinate of the origin are always (0,0). If the head is moved using the jog keys, the coordinates of the head as from the origin are indicated on the LCD.
Page 95: Interruption Of Processing (Plotting, Cutting Or Creasing)
INTERRUPTION OF PROCESSING (PLOTTING, CUTTING OR CREASING) Under the REMOTE mode, processing can be interrupted due to some reason. The following explains how to interrupt the process and the function that enables the settings to be changed after the interruption. How to interrupt/resume the process Press the REMOTE...
Page 96 Interruption of processing [DATA CLEAR] Received data is cleared from the data receiving buffer. Date described below can be cleared. Processing has been interrupted. But, it is desired to abort the processing. It is desired to clear data that has been already received but not yet processed. In prior to the receipt of data to be copied using the copy function.
Page 97 CHAPTER 3 WHEN ABNORMAL CONDITIONS ARE ENCOUNTERED This chapter describes how to correct troubles in the event that desired cutting results are not obtained or a failure has occurred. Table of Contents If any of the below-stated phenomena takes place ........ 3.2 Cutting depth is insufficient [CONDITION] >...
Page 98: If Any Of The Below-Stated Phenomena Takes Place
IF ANY OF THE BELOW-STATED PHENOMENA TAKES PLACE Cutting depth is insufficient [CONDITION] > [PRESS CORRECT] If the cutter is lowered, the work may not be thoroughly cut out though the projecting amount of the blade tip is larger than the thickness of the work. In this case, the work can be cut out without fail by increasing the pressure applied to the descend- ing cutter.
Page 99: [Tool Adjust] > [Circle Q-Adjust]
[TOOL ADJUST] > [CIRCLE θ θ θ θ θ -ADJUST] The end of a cut circle may not meet the start of the circle with respect to thickness and hardness of a work. A close-to- normal circle can be cut by correcting the deviation. Since the deviation varies depending on the size of a circle, this function is used to correct the deviation in terms of circles in five different radius.
Page 100: [Condition] > [Press
Corrugated board is cut out at flutes though creasing is performed [CONDITION] > [PRESS (Y)] When marking corrugated board along with flutes of the corrugated board, the pressure specified in [CUTTING CONDITIONS] can be so high as to break the board. How to adjust: Follow the adjusting procedure described below.
Page 101 Register Mark not detected [TOOL Adjust] > [LIGHT POINTER] If a plotter fails to detect any registration mark properly, the possible cause is an error in the posi- tional relationship between the mark sensor and the light pointer, or error in the setting of register mark detect.
Page 102 Press key or Jog key, and <POINTER OFS> 1 / 1 POINTER X 1.5mm> the light pointer move to the center of POINTER Y 0.5mm> − pattern. TEST PATTERN —> - 99.9mm to + 99.9mm (0.1mm pitch) Press key to register the adjusted <POINTER OFS>...
Page 103: Tools Are Not Aligned To Each Other [Tool Select]
TOOLS ARE NOT ALIGNED TO EACH OTHER [TOOL SELECT] If a plotting tool and a cutter or a plotting tool and a creasing roller fail to finish patterns that lack in overlapping, the deviation between the tools has to be adjusted. To adjust the alignment of each tool, use “adjustment of the cutter”...
Page 104: General Explanation Of The Adjustment Of Tools
General explanation of the adjustment of tools Tools are adjusted with respect to the below-stated three items. (1) “Adjustment of the cutter” to adjust the low-pressure tangential cutter. (2) “Adjustment of the roller” to adjust the rollers and “adjustment of the cutter” for the high- pressure tangential cutter (3) “Adjustment of the circle θ”...
Page 105 How to adjust: Follow the adjusting procedure given below. In pattern A, the center position is adjusted by checking and adjusting the relationship between the blade tip and the center of the cutter according to the target. Normally, adjustment is performed so that the blade does not stick out too much and there is no gap.
Page 106 Adjustment of the θ θ θ θ θ angle The rotating angle of the tangential cutter is adjusted. Eliminate the difference in rotating angle between the plotted pattern and the cut pattern. Two different patterns are used for adjustment. They are different only in size. The illustration below indicates the size of the patterns and the cutting order.
Page 107 Adjustment of the offset Offset amount of the cut pattern as from the plotted pattern is adjusted in terms of the X- and Y-aes. One pattern is used for adjustment. The illustration below indicates the size of the patterns and the cutting order.
Page 108: Adjustment Of The Roller
Adjustment of the roller The roller is adjusted in three different ways as described below. “Adjustment of the eccentricity” to adjust the eccentricity of the tools “Adjustment of the q angle” to adjust the rotating angle of the roller “Adjustment of the offset” to eliminate the deviation between the roller and the pen Adjustment of the eccentricity The tool may be off-center when it is replaced.
Page 109 In pattern B, the tool is installed with tilted. Pattern B has to be adjusted so that horizontal lines and vertical lines are arranged in a straight line respectively along X- and Y-axes. Pattern B Sample pattern How to adjust Input a positive value as “B”...
Page 110 How to adjust: Follow the adjusting procedure given below. Sample pattern How to adjust If the cut pattern rotates clockwise If the cut pattern rotates counter as compared with the plotted clockwise as compared with the pattern, decrease the θ θ θ θ θ value for the plotted pattern, increase the θ...
Page 111 How to adjust: Follow the adjusting procedure given below. Sample pattern How to adjust If the roller deviates to the right, If the roller deviates to the left, increase the X value for the roller. decrease the X value for the roller. Sample pattern How to adjust If the roller deviates upward,...
Page 112: How To Adjust The Tools
How to adjust the tools “TOOL SELECT” consists of two categories; i.e., the “adjustment of the cutter”, the “adjustment of the roller” and “circle q adjust”. The tool adjusting procedure is described below taking the “adjustment of the cutter 1” as an example.
Page 113 Input a value for each pattern. < ADJ > SWIVEL 1 / 3 A (LNG) ∗∗.∗∗ > For [A], input an adjustment value for ∗∗.∗∗ > pattern A. TEST PATTERN ———> For [B], input an adjustment value for pattern B. Carry out steps of procedure 4 and 5 in repetition.
Page 114 Carry out steps of procedure 9 and 10 in repetition. Repeat these steps of procedure until a normal pattern is obtained. Invoke the 3rd page of the ADJUST- < ADJUST > θ 2 / 3 PAGE MENT menu. CUTTER θ ∗∗.∗∗...
Page 115: If There Is A Sign Of Failure
IF THERE IS A SIGN OF FAILURE Corrective measures against troubles in the case where no error message is given on the LCD are described in this section. Refer to the description given in “Troubles for which error messages are given on the LCD” in Chapter 3 for a trouble that is not covered in this section and accompanied by the indication of an error message on the LCD.
Page 116: There Is No Reciprocal Vibration
P. 16 lubricated? Is vibration set to "OFF"? Set vibration to a setting from 1 to 5. If recov- P. 2-28 to 30 ery is not achieved, contact the store of pur- chase or a Mimaki sales office. — 3.20 —...
Page 117: Troubles For Which Error Messages Are Given On The Lcd
TROUBLES FOR WHICH ERROR MESSAGES ARE GIVEN ON THE LCD If something is wrong with the device, a corresponding error message is given on the LCD. Causes of and corrective measures against such errors are described below. Errors that can be corrected by users The table below gives the errors that can be corrected by users.
Page 118 Confirm the status and the settings described above. If still no registration mark is detected, contact your distributor or a sales office of Mimaki. ERROR 36 MARK DETECT NO registration mark was Stop data send and clear the data. Stop Data send &...
Page 119: Errors That Cannot Be Corrected By Users
If any of the errors described below has arisen, immediately turn of the power to the device. Wait for a while and re-turn on the power to the device. If the same message appears on the LCD, immediately turn the power off and contact your local dealer or MIMAKI office. Error message...
Page 120 — 3.24 —...
Page 121 CHAPTER 4 APPLICATION FUNCTIONS This chapter describes helpful functions that facilitate operation. Table of Contents Assignment of pen numbers [MODE SET] > [PEN ASIGN] ....4.2 Setting the number cut function [MODE SET] > [MULTI-PASS] ..4.6 Setting the ONE-stroke cutting [MODE SET] > [ONE STROKE] ..4.8 Setting the direction of rotation for the coordinate axis [MODE SET] >...
Page 122 ASSIGNMENT OF PEN NUMBERS [MODE SET] > [PEN ASIGN] Pen numbers included in data are assigned to tools of the device. As many as six pens can be assigned to the tools. Operating procedure is described in this section using the example given below. Pen 1 (Pen number in data to be plotted) →...
Page 123 Invoke the [PEN 2] setting menu. < PEN ASIGN > 1 / 6 PAGE PEN 1 HEAD A > TOOL ∗PEN > Change the head from [A] to [B]. < PEN ASIGN > 2 / 6 PEN 2 A, B HEAD ∗A >...
Page 124 RE-CUT OF THE SAME DATA [COPY] Data that has been already cut can be re-cut in the off-line state. This means that the same data need not be transmitted from the computer in repetition. • Be sure to execute the “DATA CLEAR” to clear data from the receiving buffer before transmitting data to be copied.
Page 125 Invoke the 2nd page of the LOCAL [ LOCAL ] 1 / 4 PAGE TOOL SELECT ———> menu on the screen. CONDITION ———> TEST CUT ———> Select the [COPY]. [ LOCAL ] 2 / 4 DATA CLEAR ———> COPY ———> VIEW ———>...
Page 126 SETTING THE NUMBER CUT FUNCTION [MODE SET] > [MULTI-PASS] The same data can be cut as many as five times by changing the pressure values. This allows the device to efficiently cut a work that cannot be thoroughly cut out by performing cutting once. However, the number cut function is disabled in unit B.
Page 127 Specify cutting pressure values for the < MULTI–PASS > 1 / 2 JUDGMNT TIME 15 > first and second cutting operations. PRESS 1 500 g > PRESS 2 500 g > Press the key several times to PAGE < MULTI–PASS > 1 / 2 PAGE JUDGMNT TIME...
Page 128 SETTING THE ONE-STROKE CUTTING [MODE SET] > [ONE STROKE] Received data on non-connected line segments illustrated below can be cut in such a manner as a one-stroke brush. Set values off : Single-stroke cutting is not performed. on : Single-stroke cutting is executed. sort : Single-stroke cutting is executed while taking a position that is situated closest to the tool as a start point.
Page 129: Setting The Direction Of Rotation For The Coordinate Axis [Mode Set] > [Rotate]
SETTING THE DIRECTION OF ROTATION FOR THE COORDINATE AXIS [MODE SET] > [ROTATE] In the case where the command origin is established at the lower left of the cutting area, it is necessary to specify the direction of rotation for the coordinate axis in accordance with your CAD. Set values +90°: Lower right of the maximum effective cutting area –90°: Upper left of the maximum effective cutting area...
Page 130: Setting The Cutter Stroke [Mode Set] > [Z Stroke]
SETTING THE CUTTER STROKE [MODE SET] > [Z STROKE] For data on a pattern that needs frequent lifting/lowering of the tangential cutter and the marking roller, the lifting amount of the tool should be shortened. This will reduce the total period of time required for cutting.
Page 131: Setting The Unit To Be Used For Indication [Mode Set] > [Unit]
SETTING THE UNIT TO BE USED FOR INDICATION [MODE SET] > [UNIT] The unit to be used when indicating numerics on the LCD is specified. Set values mm: Numerics are indicated in millimeters. inch: Numerics are indicated in inches. Press the key several times [ LOCAL ] 1 / 4...
Page 132: Setting The Dummy Cut Operation Of The Swivel Blade
SETTING THE DUMMY CUT OPERATION OF THE SWIVEL BLADE [MODE SET] > [DUMMY CUT] In the case where the swivel cutter is selected for the tool, a cutting operation is performed outside the effective cutting area so as to orient the blade tip of the swivel cutter to the advancing direction. Set values on: Dummy cut is not performed.
Page 133 Select one of the following as a setting < MODE SET > 2 / 5 for the [DUMMY CUT]. AUTO VIEW ∗1 s > DUMMY CUT ON > off, on ONE STROKE ∗OFF > E N D Enter the input values. <...
Page 134: Alignment Of Mechanical Axes To Ruled Lines Printed [Axis Align]
ALIGNMENT OF MECHANICAL AXES TO RULED LINES PRINTED [AXIS ALIGN] If ruled lines such as scales are printed on a work, mechanical axes (X-axis, Y-axis) of the device need to be aligned to them. To set the mechanical axes, firstly establish an origin at the leftmost ruled line printed on the work in terms of the X-axis direction.
Page 135 Select the [AXIS ALIGN]. [ LOCAL ] 4 / 4 CUT AREA ———> AXIS ALIGN ———> TOOL SELECT ———> Align the tip of the tool to point A. Operate the jog keys to align the tip of < AXIS ALIGN > [ mm ] the tool to the rightmost one of the ruled 00.00...
Page 136: Expand The Cutting Area [Expands]
EXPAND THE CUTTING AREA [EXPANDS] The Expand function expands the cutting area. In case of Seneor equipped model, and not using Mark detect function, able to expand the cutting area 30mm. This function only supports S (sensor equipped) model. • To use the register mark detect function with the sensor equipped model, set to OFF.
Page 137 < MODE SET > 6 / 6 Set the [Expand] MARK SENSOR ———> OFF/ON EXPAND OFF—> RESERVE < MODE SET > 6 / 6 Register the value. MARK SENSOR ———> Press the key to enter the value. E N D EXPAND OFF—>...
Page 138 — 4.18 —...
Page 139 CHAPTER 5 REGISTER MARK DETECT FUNCTION This chapter describes “register mark detect” function. Register mark detect function only supports S (sensor equipped) model. Table of Contents Setting of register mark detect ..............5.2 How to display the register mark setting on LCD ........ 5.2 Precautions in preparing data with register mark ........
Page 140: Setting Of Register Mark Detect
SETTING OF REGISTER MARK DETECT This function detects a register mark automatically. Use this function to correct the inclination of the sheet loaded, the position of plotting origin, and the distance between register marks and then cut the contour of printed image. If the firmware version is older than 2.50, the register mark is circular.
Page 141 PRECAUTIONS IN PREPARING DATA WITH REGISTER MARK There are some limitations on preparing data with register marks. In order to make full use of this function, read the following instruction carefully and prepare data with register mark. • The register mark described here is intended to detect the sheet inclination and the lengths along the X and Y axes.
Page 142 Size of the register mark Each side of the single register mark must be 5 - 30mm. Each side of the double register mark must be 10 - 30mm. The line width of mark shall be equal to or more than 0.2 mm and equal to or less than 0.5 mm. Refer to [The size of, and the distance between, register marks] (see page 5.9.) for the relationship between the data and the length of one sided of a register mark.
Page 143 The area where register marks and designs can be arranged The TP1 starting position must be 10mm or more away from the work left edge, and 30 mm or more away from the Available cutting area. Over 30mm needed from Within 20mm needed from plotting permitted area plotting permitted area...
Page 144 No-plotting area around the register marks There must be no data or stain arround the register mark; otherwise a wrong origin may be detected or a mark read error can occur. • If a wrong mark origin is detected, the cutting will be performed in a wrong area.
Page 145 Example of cause of wrong detection1: Layer of the offset printingis misaligned . • When printing with offset, square mark is printed in one color. Detected mark origin Mark origin Example of cause of wrong detection2: The diarnce between square marks (TP3 of pattern A and TP1 of pattern C, or TP2 of pattern A and TP1 of patternB) is less than 10mm.
Page 146 Example of cause of wrong detection3: The distance between register marks(TP2&TP1, TP4&TP2) is smaller than the mark lengt. No plotting area Space larger than the mark length No plotting area Space larger than the mark length — 5.8 —...
Page 147 The size of, and the distance between, square marks The size (B) of a register mark suited for the distance (A) between the mark is as shown below. If the mark size (B) is too small relative to the distance (A), the marks may not be detected correctly. Be sure to prepare the register marks with an appropriate size.
Page 148 Color of Register mark Black or white is recommended for the register mark color. Other corlors can be detected. However make sure to not use the same color as media(work). It is recommended to confirm ahead, either register mark is detectable. The register mark will not be deteced correctly if there is a strong glossy, pattern (hair line) on the work, or depending on the media(work) color.
Page 149: Setting Of Register Mark Detect Operation
SETTING OF REGISTER MARK DETECT OPERATION Precautions on register mark detection • To ensure that the distance between register marks is equal to the cutting length, input the distance between the printed marks found by the mark detecting function. (DIST.REVI see page 5.10.) •...
Page 150 Settings for detection of marks Make the settings of the following fuve functions to detect register mark. Detect Register Mark : The higher the number of detected points, the higher the cutting accuracy. Select “1pt” when using FuneCut. Setting Description Select this setting for cutting a normal sheet, not for cutting the outline.
Page 151 X copy Ycopy : Setting Description 1 to 99 Effective when the same pattern is multi-printed at regular intervals. Cuts automatically the preset number of sheets while detecting register marks consecutively based on the first data. When the number of copies can be set on the application soft- ware, like on the supplied FineCut, set the value to [1]...
Page 152: Settings For Detect
Settings for detect Make sure that work is not curled. When using a cuttting software having no mark function, use a work which has neither stains nor images in the area of TP1 - TP3 and TP1-TP2. Check sheet skew with a light pointer R E M O T E Press key on the jog mode, the light pointer will light up.
Page 153 How to detect Register mark Set the work to the plotter. Press key on the [Local] mode. [ LOCAL ] 1/ 4 TOOL SELECT ———> Display changes to [DETECT] mark CONDITION ———> mode TEST CUT ———> <DETECT SET> Set LED Pointer SPEED AUTO>...
Page 154 <SCALE SET> 1-2 (X) 400.8> After detect the register mark, display 1-3 (Y) 149.1> changes to Scale compensation. If the data and detected length differs, set with key. • If [Scale] is set to OFF, Y=150.0 <SCALE SET> is not dis- played.
Page 155: Continuous Cut With Register Mark
CONTINUOUS CUT WITH REGISTER MARK When using a cutting software “FineCut,”, countinuous cut is available. Register mark on a printed data should be only one set. Configure the FineCut setting, and start plot. Select [Single mode] and set the number of Repeat.
Page 156: Initialize The Register Mark Scale Adjustment [Sc.clr]
INITIALIZE THE REGISTER MARK SCALE ADJUSTMENT [SC.CLR] When using a cutting software other than “FineCut,” need to initialize the adjustment value after cutting. [SC.CLR] initialize the shaft adjustment value and scale adjustment value. If cut the data where no register mark positioned without initialize the adjustment value, cut may misaligned.
Page 157 CHAPTER 6 SELF-TEST This chapter describes “self-test” function. Table of Contents Confirmation of cutting quality only by the single unit of the device [SELF TEST] ....................6.2 Cutting quality * / Sample *** / Circle cutting R = *** ...... 6.3 Dump test [SELF TEST] ................
Page 158 If cutting quality is poor, change the cutting conditions and adjust tools. If the cutting quality cannot be improved after the aforementioned adjustments, contact your local dealer or MIMAKI office. * Refer to Appendix C for sample.
Page 159 Cutting quality * / Sample *** / Circle cutting R = *** The following describes how to execute the self-test functions. When executing the cutting quality test and the sample test, the pen number assigning function will be rendered effective. It is necessary, therefore, to set the related values to the initial ones. Pen No.
Page 160 Invoke the sample to be executed on < SELF TEST > 1 / 5 the display. PATTEN CUT 1 ———> PATTEN CUT 2 ———> Self-test screen consists of five pages. DATA DUMP Press the key to call a page that PAGE contains the sample to be executed on <...
Page 161 DUMP TEST [SELF TEST] Executing the data dump Prepare a pen and a sheet of A3 size or larger paper.If the size of paper is smaller than A3 or smaller, the device will plot a pattern beyond the paper. When this setting is selected, the tool will be automatically changed to a pen. Be sure to install a pen to the head A in prior.
Page 162 Select the [DATA DUMP]. < SELF TEST > 1 / 5 PATTEN CUT 1 ———> PATTEN CUT 2 ———> DATA DUMP E N D Execute the [DATA DUMP]. < PATTN CUT 1 > 1 / 1 The tool travels to the upper left of the END KEY to START paper.
Page 163 Execution of the parameter dump Prepare a pen and a sheet of A3 size or larger paper. If the size of paper is smaller than A3 or smaller, the device will plot a pattern beyond the paper. When this setting is selected, the tool will be automatically changed to a pen. Be sure to install a pen to the head A in prior.
Page 164 Execute the [PARAMETER DUMP]. The head travels to the upper left of the paper to start plotting the parameters. • To abort, press the R E M O T E L O C A L to temporarily interrupt the op- eration, then execute the data clear function.
Page 165 APPENDIX This appendix describes the replacement of blades, menu structure and the patterns. Table of Contents A. Replacing the blade tips ..............A.2 Tangential cutter blade ................. A.2 Swivel blade ..................A.4 B. Local menu structure ................A.6 RC-head model ..................A.6 RT-head model ..................
Page 166 A. REPLACING THE BLADE TIPS The following describes how to replace the blade tips of the tangential cutter and swievel cutter. Tangential cutter blade The method to replace a carbide blade 45˚ (SPB-0045) is described below. • Keep your fingers away from the blade tip. Touching the blade tip can injure your fingers.
Page 167 Loosen the cutter stopper. Cutter stopper Turn the cutter stopper counterclock- wise to loosen it. Replace the blade tip with a new one. Hold the blade tip with a pair of twee- zers supplied with the device as an ac- cessory.
Page 168: Swivel Blade
Swivel blade Follow the procedure given below to replace the blade tip of the swivel cutter. Loosen the locknut. Locknut Turn the locknut counterclockwise to loosen it. Turning the adjusting knob counter- Holder A clockwise, draw out the holder B Holder B from the holder A.
Page 169 Turning the adjusting knob clock- wise, put the holder B in the holder A. Tighten the locknut. Turn the locknut clockwise to tighten it. Refer to the explanation given in the “Adjusting the blade.” See page 2.13. — A.5 —...
Page 170: Rc-Head Model
B. LOCAL MENU STRUCTURE RC-head model TOOL SELECT HEAD A TOOL ------------ PEN, SWIVEL HEAD B TOOL ------------ RECCUTTER1, RECCUTTER2 HEAD C TOOL ------------ ROLLER 1, ROLLER 2, ROLLER 3, ROLLER 4, R. CUTTER 1, R. CUTTER 2 SPEED ----------------------- 2, 5, 10, 15, 20, 25, 30, 35, CONDITION 40, 45, 50 (cm/s) PRESSURE ----------------- 20 ~ 400 (g)
Page 171 MULTI-PASS OFF, 5, 15, 30, 45, 60 (sec) MODE SET Z STROKE 7, 4 (mm) PRESS 1st OFF, 1000 ~ 5000 (g) MULTI-PASS PRESS 2nd OFF, 1000 ~ 5000 (g) PRESS 3rd OFF, 1000 ~ 5000 (g) VACUUM Auto OFF, Panel OFF PRESS 4th OFF, 1000 ~ 5000 (g) PRESS 5th...
Page 172: Rt-Head Model
RT-head model TOOL SELECT HEAD A TOOL ------------ PEN, SWIVEL HEAD B TOOL ------------ RECCUTTER1, RECCUTTER2 HEAD C TOOL ------------ θCUTTER 1, θCUTTER 2 CONDITION SPEED ----------------------- 2, 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 (cm/s) SWIVEL PRESSURE ----------------- 20 ~ 400 (g) ACCELE (ACCELERATION) ---- 0.1 ~ 0.5 (g) RECCUTTER 1 ~ 2...
Page 173 MODE SET Z STROKE 7, 4 (mm) MULTI-PASS OFF, 5, 15, 30, 45, 60 (Sec) PRESS 1st OFF, 500 ~ 1500 (g) MULTI-PASS PRESS 2nd OFF, 500 ~ 1500 (g) PRESS 3rd OFF, 500 ~ 1500 (g) VACUUM Auto OFF, Panel OFF PRESS 4th OFF, 500 ~ 1500 (g) PRESS 5th...
Page 174: R-Head Model
R-head model TOOL SELECT HEAD TOOL PEN, SWIVEL HEAD TOOL RECCUTTER 1, RECCUTTER 2 CONDITION TOOL SPEED ----------------------- 2, 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 (cm/s) SWIVEL PRESSURE ----------------- 20 ~ 400 (g) ACCELE (ACCELERATION) ---- 0.1 ~ 0.5 (g) RecCutter 1 ~ 2 R5 SPEED ------------------- OFF, 1, 2 (cm/s) R10 SPEED ----------------- OFF, 1, 2, 3, 4, 5 (cm/s)
Page 175 MODE SET Z STROKE 7, 4 (mm) MULTI-PASS OFF, 5, 15, 30, 45, 60 (Sec) PRESS 1st OFF, 500 ~ 1500 (g) MULTI-PASS PRESS 2nd OFF, 500 ~ 1500 (g) PRESS 3rd OFF, 500 ~ 1500 (g) VACUUM Auto OFF, Panel OFF PRESS 4th OFF, 500 ~ 1500 (g) PRESS 5th...
Page 176: Output Samples
C. OUTPUT SAMPLES Cutting quality 1 Cutting quality 2 — A.12 —...
Page 177: Ascii Dump List
ASCII dump list Sample (coated) — A.13 —...
Page 178: Sample (E Corrugated)
Sample (E corrugated) Sample (B corrugated) — A.14 —...
Page 179: Parameter Dump List
Circle cutting R = 3/5/10/20/50/100 R=3 R=5 R=10 R=20 R=50 R=100 Parameter dump list — A.15 —...
Page 180: Specifications
D. SPECIFICATIONS Basic specifications Type CF2-0912 CF2-1215 CF2-1218 Effective stroke X axis 1200 1500 1800 Y axis 1200 Driving method X, Y, Z, θ 4-axis DC software servo Maximum speed 50 cm/s Maximum acceleration 0.5 G Mechanical resolution X axis : 0.00234375 mm, Y axis : 0.003125 mm, θ axis : 0.05625° Command resolution 0.025 mm / 0.01 mm (switchable on operation panel) ±0.1 mm or ±0.1% of travel distance, whichever is largest...
Page 181: Specifications For Interface Specifications
Specifications for interface specifications [ Basic specifications ] Item Specifications Signal level standard Conforms to EIA RS232C Synchronous system Asynchronous system Communication system Full-duplex Logical requirements EIA RS-232C, CCITT V.24, JIS x 5101 Electric properties EIA RS-232C, CCITT V.24, JIS x 5101 Connector D-SUB25 pin (female) conforming to JIS X 5101 Transmission speed (bps)
Page 182: Maintenance
E. MAINTENANCE To use the device comfortably for an extended period of time, it is recommended to perform peri- odical cleaning. • Use neither detergent containing abrasives nor thinner. Such materials can deform the cover and the cutting panel. Cutting panel surface If any of the suction holes on the cutting panel is clogged, be sure to insert a thin wire into the clogged hole.
Page 183: Optional Accessories
F. OPTIONAL ACCESSORIES Swivel cutter components Name of product Product No. Specifications Remarks Swivel cutter holder SPA-0001 One piece of holder without blade Swivel blade for vinyl sheet SPB-0001 Package of three pieces of blades Common blade for swivel cutter Swivel blade for small letters SPB-0003 Package of three pieces of blades...
Page 184 Name of product Product No. Type Remarks Filter OPT-C0164 A100839 For OPT-C0193, OPT-C0194, OPT-C0195 Filter OPT-C0165 A100840 For OPT-C0129, OPT-C0130, OPT-C0131 Commercially available pen holder SPA-0073 A100563 Supports specific commercially available ballpoint pens Felt mat Reciprocal cutter blade receiver, 4 types Filter element SPC-0226 A100851...

This manual is also suitable for:

Cf2-0912 Cf2-1215 Cf2-1218

MIMAKI CF2 Series Operation Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MIMAKI CF2 Series

Summary of Contents for MIMAKI CF2 Series

This manual is also suitable for:

Table of Contents
