SGM5200
APPLICATION INFORMATION (continued)
Another option is to add a common ADC driver buffer
between the MXO and AINP pins, see Figure 18. This
relaxes the restriction on source impedance to a large
extent. Refer to Typical Characteristics section for the effect
of source impedance on device performance. The typical
characteristics show that the device has respectable
performance with up to 1kΩ source impedance. This
topology (including a common ADC driver) is useful when
all channel signals are within the acceptable range of the
ADC. In this case the user can save on signal conditioning
circuit for each channel.
When the converter samples an input, the voltage
difference between AINP and AGND is captured on the
internal capacitor array. The (peak) input current through
the analog inputs depends upon a number of factors:
sample rate, input voltage and source impedance. The
current into the SGM5200 charges the internal capacitor
array during the sample period. After this capacitance has
High Input Impedance PGA
(or Non-Inverting Buffer
Such as SGM8604-1)

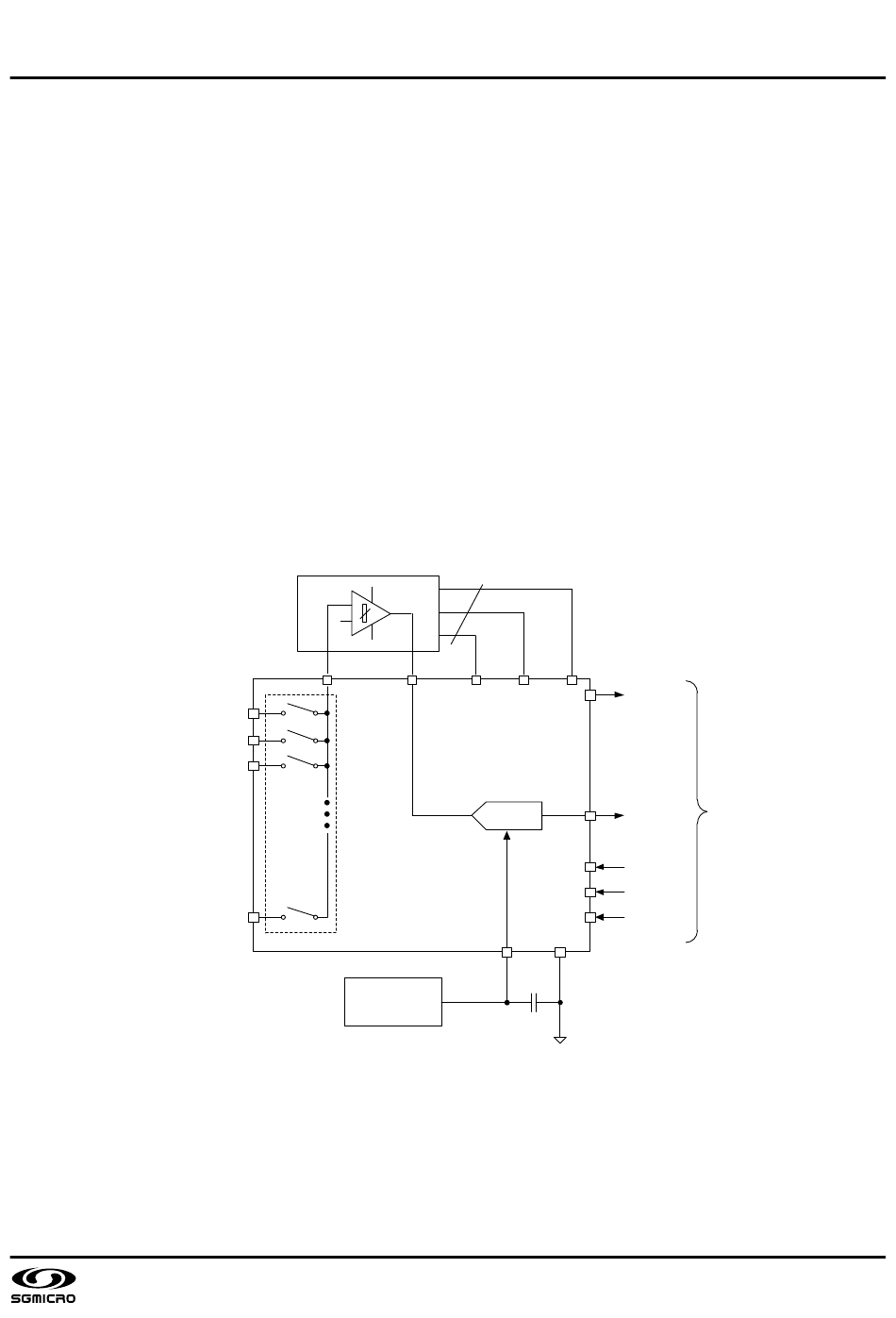

Figure 18. Typical Application Diagram Showing Common Buffer/PGA for All Channels
SG Micro Corp
www.sg-micro.com
MXO
CH0
CH1
CH2
CH15
REF
SGM4029-2.5
12-Bit, 1MSPS, 16 Channels,
Single-Ended, Serial Interface ADC
been fully charged, there is no further input current. When
the converter goes into hold mode, the input impedance is
greater than 1GΩ.
Care must be taken regarding the absolute analog input
voltage. To maintain linearity of the converter, the CH0 -
CH15 and AINP inputs should be within the limits specified.
Outside of these ranges, converter linearity may not meet
specifications.

Power Supply Recommendations

The SGM5200 is designed to operate from an analog
supply voltage (V
supply voltage (V
supplies must be well regulated. The analog supply is
always greater than or equal to the digital supply. A 1µF
ceramic decoupling capacitor is required at each supply pin
and must be placed as close as possible to the device.
PGA Gain Control
AINP
GPIO1 GPIO2 GPIO3
ADC
REFP
REFM
O/P
10μF
) range from 2.7V to 5.25V and a digital
A
) range from 1.7V to 5.25V. Both
BD
GPIO0
High Alarm
Low Alarm
To Host
SDO
SDI
SCLK
nCS
SEPTEMBER 2021
31
