SGM5200
DETAILED DESCRIPTION (continued)
NOTES:
1. The device continues its operation in manual mode channel 0 throughout the programming sequence and outputs valid
conversion results. It is possible to change channel, range, GPIO by inserting extra frames in between two programming blocks.
It is also possible to bypass any programming block if the user does not intend to use that feature.
2. It is possible to reprogram the device at any time during operation, regardless of what mode the device is in. During
programming the device continues its operation in whatever mode it is in and outputs valid data.
SG Micro Corp
www.sg-micro.com
Device operation in manual mode, channel 0;
nCS
SDO invalid in first frame
First Frame
nCS
Auto-1 register program
nCS
Auto-2 register program
nCS
Alarm register program
nCS
GPIO register program
nCS
nCS
Operation in auto-1 mode

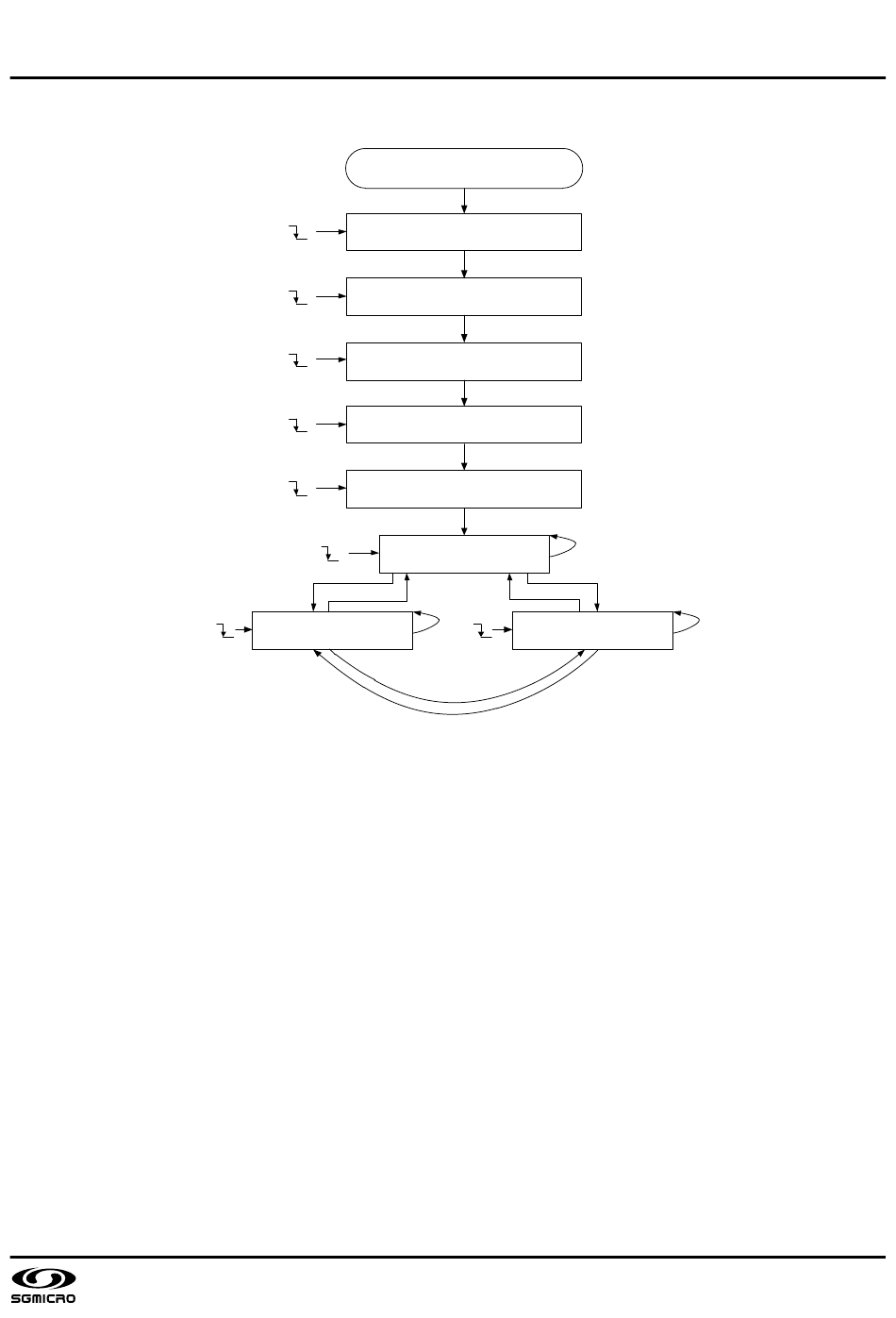

Figure 5. Device Power-Up Sequence
12-Bit, 1MSPS, 16 Channels,
Single-Ended, Serial Interface ADC
Device power-up or reset
(1)
(1)
(1)
(1)
Operation in manual mode
nCS
Operation in auto-2 mode
