xPico 240 Quick Start Guide
®
WHAT'S
IN THE
BOX

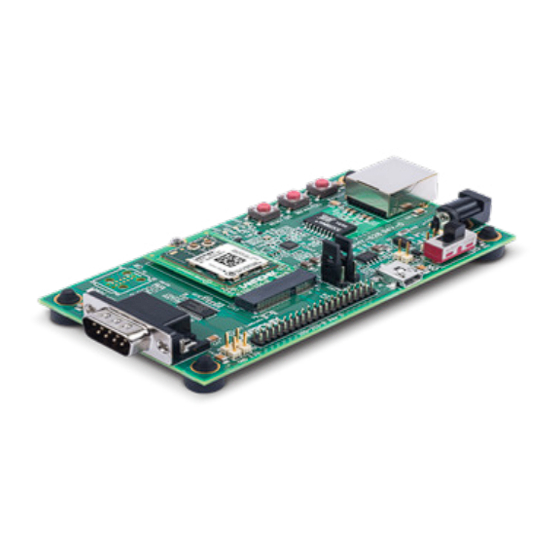

xPico 240
Evaluation Board

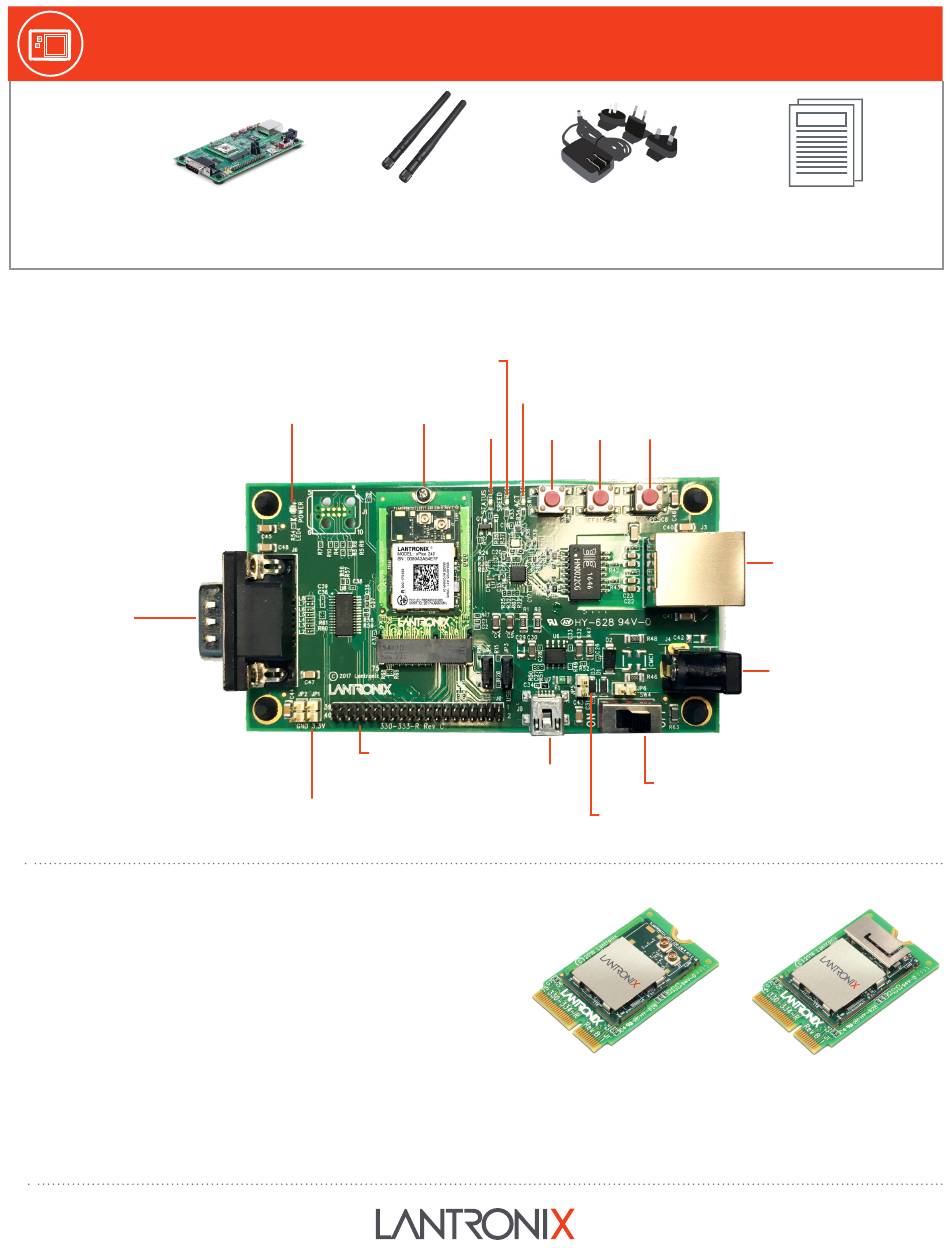

1. HARDWARE OVERVIEW
Model shown: XPC240300EK
DB9 RS232
Serial Port
2. HARDWARE INSTALLATION
2a. Attach the antenna(s) to the evaluation board (XPC240300EK only).
2b. Supply power to the evaluation board by plugging in the included
power adapter to the 5V DC Power Input (shown above).
2c. Move the ON/OFF power switch to ON.
2d. Proceed to the next page for instructions on how to configure the
xPico 240 using the web manager UI.
u.fl to RP-SMA Adapter
Cables and Antennas
(XPC240300EK only)
(cables not shown)
xPico 240
Power LED
Module
Peripheral I/O
Header
3.3V
Header
5V Power Supply with
Regional Adapters
LED 2
Ethernet Speed
LED 3 Ethernet
Activity
LED1
Reset Defaults
Status
USB Port
Host/Device
XPC2403
License Agreement
Wake
10/100
Ethernet
RJ 45
5V DC
Power Input
Power
On/Off
Install
for USB Host
Firmware &
XPC2404
