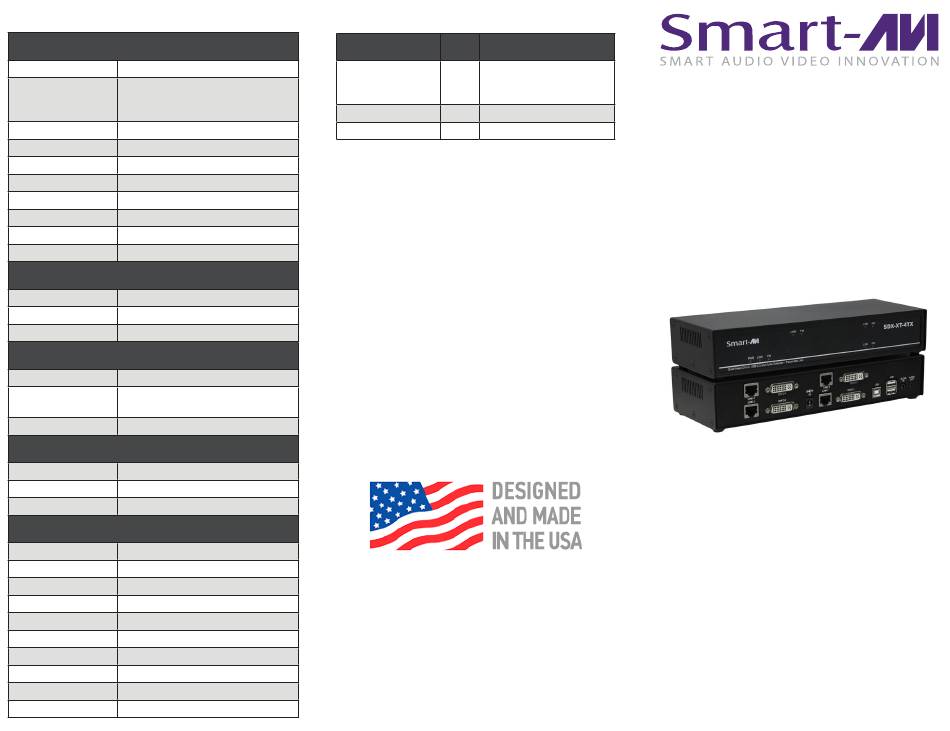

SMART-AVI SDX-XT-4P Quick Start Manual

TECHNICAL SPECIFICATION
VIDEO
Format DVI-D (HDMI-ready with adapter)
High resolution 1920x1200;
Video Resolution 24-bit color depth;
Less than 1 ms of latency
Video Bandwidth Single-link 340 MHz (10.2 Gbps)
Input Interface (TX) (4) DVI-I 29-pin
Output Interface (RX) (4) DVI-I 29-pin
Max Output Distance Up to 1920x1200 @ 60Hz
Equalization Automatic
Input TMDS Signal 1.2 Volts [peak-to-peak]
Input DDC Signal 5 Volts [peak-to-peak, TTL]
Data Rate 1.65 Gbps per color
AUDIO
Format Stereo
Input Interface 3.5 mm Jack Socket (female)
Output Interface 3.5 mm Jack Socket (female)
USB
Input Interface (TX) (1) USB Type B
(2) USB 1.1 Type A for KM Devices;
Output Interface (RX)
(2) USB 2.0 Type A Transparent
Keyboard and mouse Keyboard and mouse emulation
SYSTEM
Interface RJ-45
Cable Requirements CAT5/5e/6
Maximum Length 400 ft
OTHER
Power 100-240 VAC/ 5VDC @ 3A/15W
Dimensions
11.9" W x 1.7" H x 2.9" D
Weight (TX / RX)
1.75 / 1.95 lb
Approvals UL, CE, ROHS Compliant
Operating Temp. +32 to +104°F (0 to +40°C)
Storage Temp. -4 to 140°F (-20 to +60°C)
Humidity Up to 95% (No Condensation)
Compliance EMC FCC (Class A), CE (Class A), ICES-003
Envr. Compliance RoHS2 (CE)
Support Warranty 1-year
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
Quad Head DVI-D,
SDX-XT-4P-S 1 USB 2.0, Audio,
CAT5/5e/6 Extender.
PS5VD3A-WLLMNT 1 PS5VD3A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
SDX-XT-4P
Quad Head DVI-D, USB 2.0 and
Audio KVM CAT5/6 Extender
EXTEND DIGITAL VIDEO
QUAD HEAD DVI-D 1920X1200,
USB 2.0, USB KEYBOARD/
MOUSE AND AUDIO
UP TO 400 FT OVER FOUR
CAT5/6 UNCOMPRESSED
Quick Start Guide
