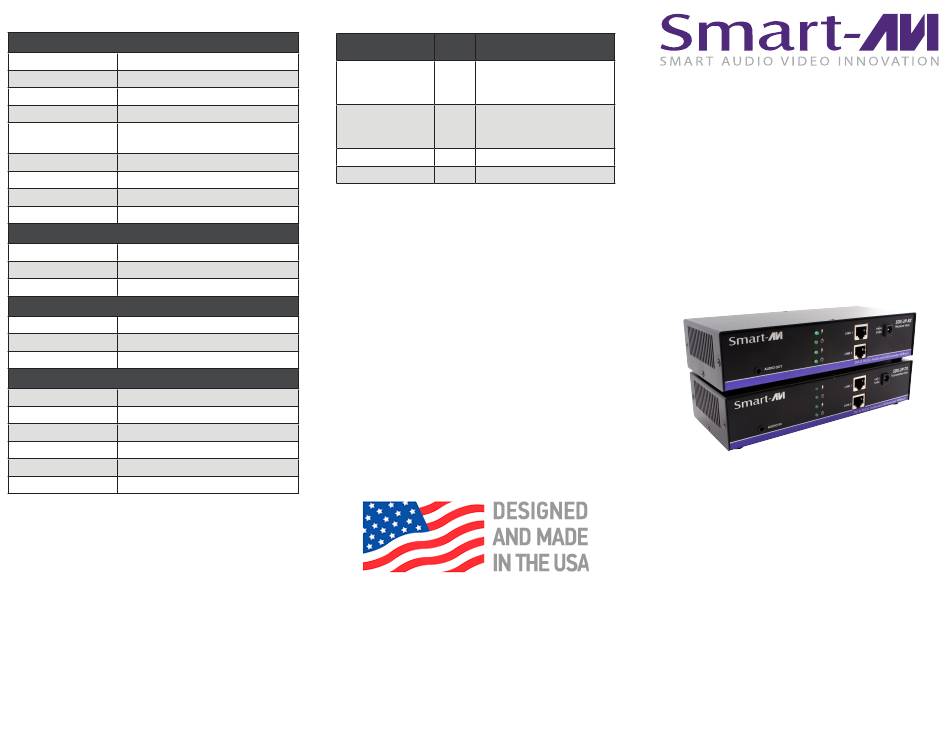

SMART-AVI SDX-2P Series Quick Start Manual

TECHNICAL SPECIFICATION

VIDEO
Format DVI-D Single Line
Maximum pixel clock 165 MHz
Input interface (TX) (2) DVI-D 29-pin female
Output interface (RX) (2) DVI-D 29-pin female
Up to 1920 x 1200 @60Hz
Resolution
Up to 4K/2K (3840x2160) @30Hz
DDC 5 volts p-p (TTL)
Input equalization Automatic
Input cable length Up to 20 ft
Output cable length Up to 20 ft
IR
Input interface (TX) (1) 3.5 mm (Female)
Output interface (RX) (1) 3.5 mm (Female)
Frequency Response 30KHz to 80KHz
RS-232
Input Interface (TX) (2) DB9 (Female)
Output Interface (RX) (2) DB9 (Female)
Speed @ 115 Kbps
OTHER
Power External 100-240 VAC/5VDC4A
Dimensions 5.125 in W x 1 in H x 3.625 in D
Weight 0.5 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
Dual DVI-D, USB 1.1,
SDX-2P-TX 1 Dual RS232, Audio,
CAT5/5e/6 Transmitter
Dual DVI-D, USB 1.1,
SDX-2P-RX 1 Dual RS232, Audio,
CAT5/5e/6 Receiver
PS5VDC4A 2 PS5VD4A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
SDX-2P
Dual Head DVI-D, USB
Keyboard, Mouse and Audio
Extender Over Cat5e/6
EXTEND DUAL DVI-D,
DUAL RS-232, USB AND AUDIO
UP TO 245 FEET OVER
TWO CAT5/5E/6 CABLES
Quick Start Guide
