SMART-AVI SFX Series User Manual

SMART-AVI SFX Series User Manual

Single/dual/quad dvi-d & usb 2.0 fiber extender

Advertisement

Quick Links

Single/dual/quad DVI-D
& USB 2.0 Fiber Extender
USER MANUAL
SFX
DVI-D & USB 2.0 Fiber Extender
SFX-2P
2-Port DVI-D & USB 2.0 Fiber Extender
SFX-4P
4-Port DVI-D & USB 2.0 Fiber Extender
SFX
1-800-284-2131
www.smartavi.com
Advanced XT/XT-2P/XT-4P Extender
series
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMART-AVI SFX Series

  • Page 1 series Single/dual/quad DVI-D & USB 2.0 Fiber Extender USER MANUAL DVI-D & USB 2.0 Fiber Extender SFX-2P 2-Port DVI-D & USB 2.0 Fiber Extender SFX-4P 4-Port DVI-D & USB 2.0 Fiber Extender 1-800-284-2131 www.smartavi.com Advanced XT/XT-2P/XT-4P Extender...
  • Page 2: Table Of Contents

    Table of content TECHNICAL SPECIFICATIONS_____________________________________________________________ 3-4 WHAT’S IN THE BOX?_____________________________________________________________________ 4 FRONT AND REAR________________________________________________________________________ 4 INSTALLATION____________________________________________________________________________ 5-7 LED’s BEHAVIOR__________________________________________________________________________ 8 SYSTEM OPERATION______________________________________________________________________ 9 TROUBLESHOOTING______________________________________________________________________ 9 TECHNICAL SUPPORT_____________________________________________________________________ 9 LIMITED WARRANTY STATEMENT________________________________________________________ 10 Advanced XT/XT-2P/XT-4P Extender...
  • Page 3: Technical Specifications

    Technical Specifications VIDEO Format DVI-D Single Line Maximum pixel clock 165 MHz (1) DVI-D 29-pin female Input Interface (TX) SFX-2P (2) DVI-D 29-pin female SFX-4P (4) DVI-D 29-pin female (1) DVI-D 29-pin female Output Interface (RX) SFX-2P (2) DVI-D 29-pin female SFX-4P (4) DVI-D 29-pin female Resolution...
  • Page 4: What's In The Box

    Technical Specifications (continued) OTHER External 100-240 VAC/5VDC4A @ 20 W Power supply SFX-2P, SFX-4P Internal 100-240 VAC 8.5” W x 1.85” H x 5.4” D Dimensions SFX-2P, SFX-4P 17” W x 1.7” H x 7” D 1.5 lbs Weight SFX-2P, SFX-4P 8 lbs Operating temperature 32-131 °F (0-55 °C)
  • Page 5: Installation

    installation 1. Ensure that power is turned off or disconnected from the unit and the computers. 2. Use a DVI cable to connect the DVI output port from each computer to the corresponding DVI-I IN ports of the unit. 3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respective USB ports of the unit.
  • Page 6 Application diagram SFX-2P The SFX-2P is a Dual Head DVI-D (1920x1200), RS-232 signal, USB 2.0, USB keyboard-mouse and stereo audio extender, sending signals up to 1,500 ft away over three conventional and inexpensive fiber optic cables. Part No. Description Dual DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Extender Up to 1,500 ft. Includes: SFX-2P-M-S [SFX-2P-TX, SFX-2P-RX, 2 x (CCPWR06)] Advanced XT/XT-2P/XT-4P Extender...

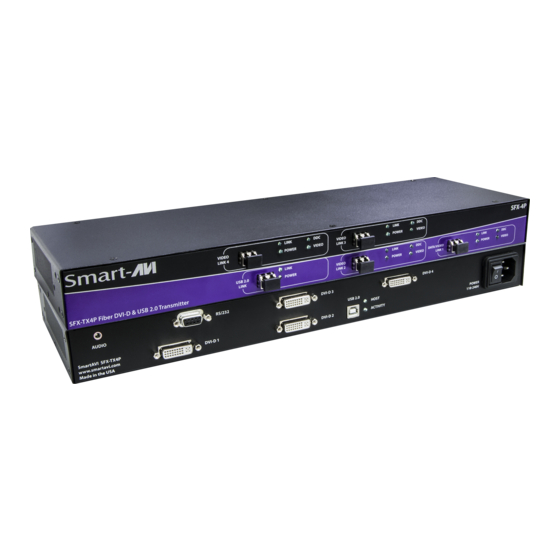

  • Page 7 Application diagram SFX-4P The SFX-4P is a Quad Head DVI-D (1920x1200), RS-232 signal, USB 2.0, USB keyboard-mouse and stereo audio extender, sending signals up to 1,500 ft away over five conventional and inexpensive fiber optic cables. Part No. Description Quad DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Extender Up to 1,500 ft. Includes: SFX-4P-M-S [SFX-4P-TX, SFX-4P-RX, 2 x (CCPWR06)] Advanced XT/XT-2P/XT-4P Extender...
  • Page 8: Led's Behavior

    Led control SDX-XT Solid red LED when power is connected Link Solid green LED when cat5 is connected Blinking green LED when transferring information between unit and computer SDX-XT-2P Solid red LED when power is connected Link Solid green LED when cat5 is connected Blinking green LED when transferring information between unit and computer SDX-XT-4P Solid red LED when power is connected...
  • Page 9: System Operation

    Troubleshooting No Power  Make sure that the power adapter is securely connected to the power connector of the unit.  Check the output voltage of the power supply and make sure that the voltage value is around 12VDC.  Replace the power supply. No Video ...
  • Page 10: Limited Warranty Statement

    Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer.
  • Page 11 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.

This manual is also suitable for:

SfxSfx-2pSfx-4p
