ATF15xx CPLD ISP Software - ATMISP
This tutorial introduces the features and usage of the ATF15xx CPLD In-System
Programming (ISP) Software [ATMISP] v7.x for the ATF15xx family of JTAG ISP
supported Complex Programmable Logic Devices (CPLDs).
process from setting up the JTAG device chain file (.CHN) using ATMISP to executing the
JTAG ISP instructions onto the JTAG device on the target JTAG ISP hardware system. For
this tutorial, the ATF15xx-DK3 CPLD Development/Programmer board will be used along
with the ATDH1150USB USB based ATF15xx JTAG ISP cable. Please refer to the Getting
Started section of the ATMISP Help File for information on how to setup other ISP hardware
platforms.
Step I
: Setup ISP Hardware
For this section of the tutorial, the ATF15xx-DK3 CPLD Development/Programmer board is
used as the target ISP hardware along with the ATDH1150USB cable.
ATF15xx-DK3 and ATDH1150USB for programming, follow the steps below.
1. Connect the USB cable contained in the ATDH1150USB kit to the USB port of the
computer and the USB connector of the ATDH1150USB ISP cable.
2. Connect the 10-wire ribbon cable contained in the kit to the JTAG-A port of the
ATDH1150USB
Development/Programmer board.
NOTE: The selection jumper at JP-TDO on the ATF15xx-DK3 board should be plugged into
the "TO ISP CABLE" side.

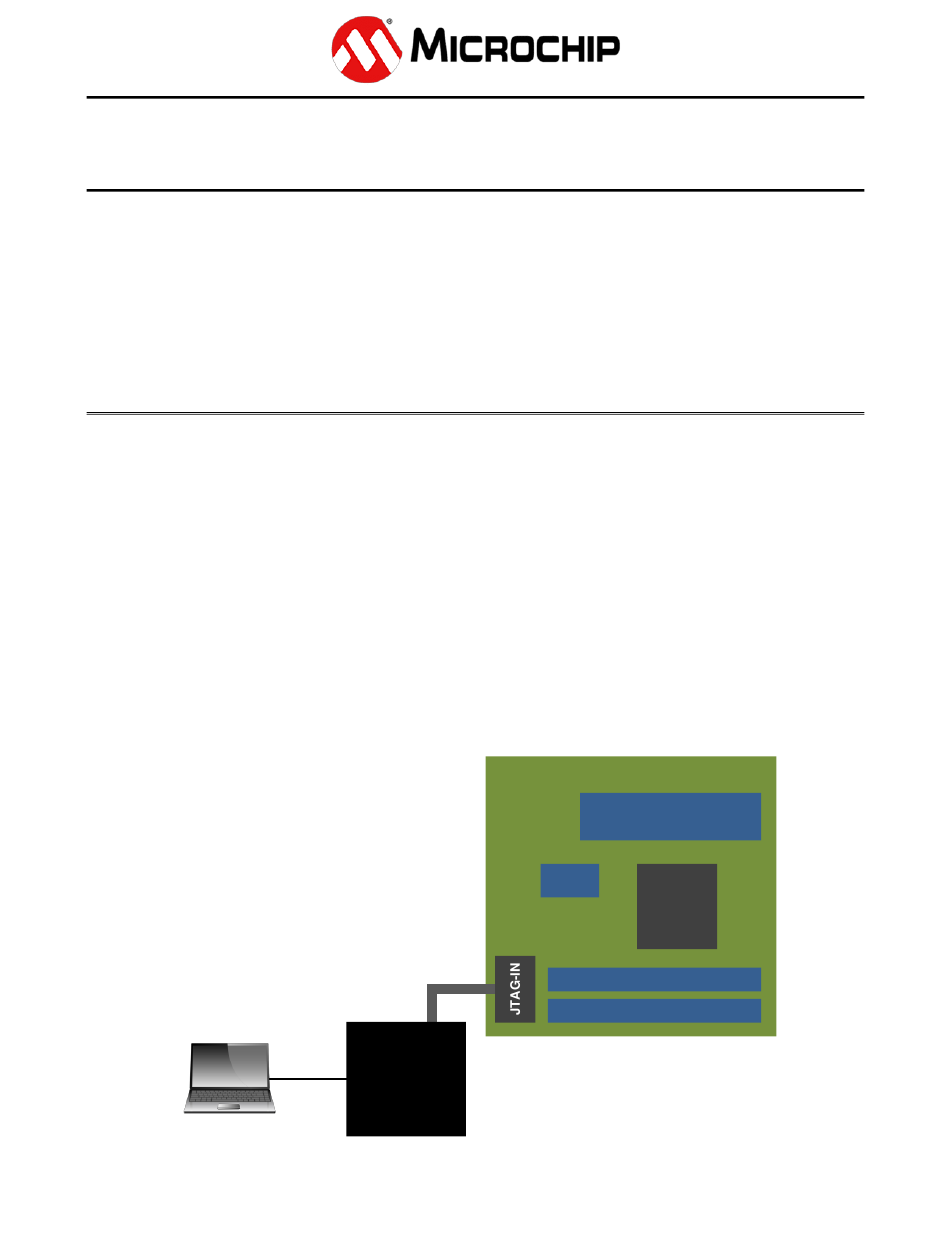

ATF15xx CPLD ISP Software [ATMISP] – Quick Start Tutorial
Quick Start Tutorial
and
to
the
JTAG
JTAG-A
USB
ATDH1150USB
It describes the entire ISP
header
(JTAG-IN)
ATF15xx-DK3
7-segment Displays
OSC
ATF15xx
CPLD
LEDs
Push Button Switches
To setup the
of
the
ATF15xx
P. 1
