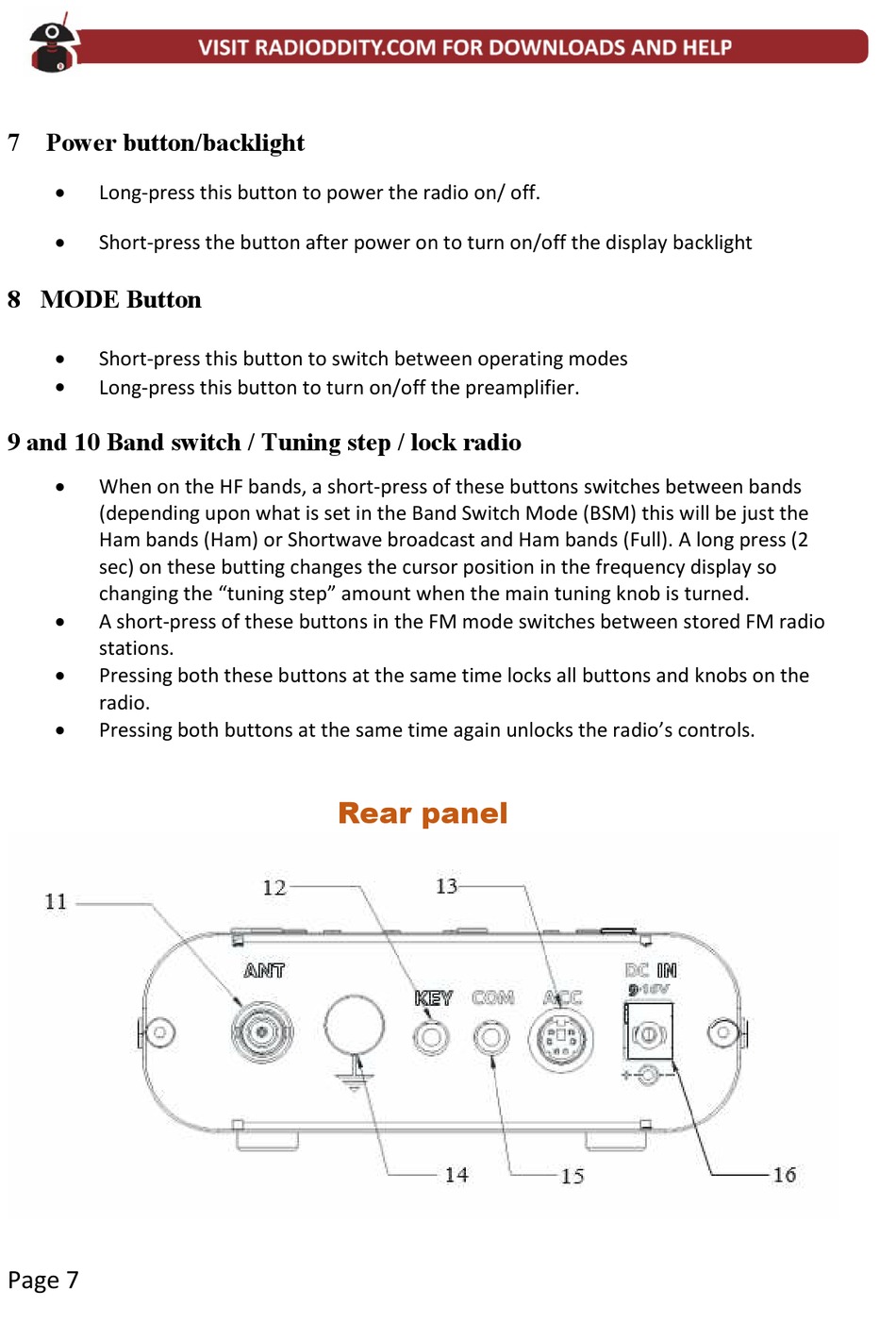

7 Power button/backlight

Long-press this button to power the radio on/ off.

Short-press the button after power on to turn on/off the display backlight
8 MODE Button

Short-press this button to switch between operating modes

Long-press this button to turn on/off the preamplifier.
9 and 10 Band switch / Tuning step / lock radio

When on the HF bands, a short-press of these buttons switches between bands
(depending upon what is set in the Band Switch Mode (BSM) this will be just the
Ham bands (Ham) or Shortwave broadcast and Ham bands (Full). A long press (2
sec) on these butting changes the cursor position in the frequency display so
changing the "tuning step" amount when the main tuning knob is turned.

A short-press of these buttons in the FM mode switches between stored FM radio
stations.

Pressing both these buttons at the same time locks all buttons and knobs on the
radio.

Pressing both buttons at the same time again unlocks the radio's controls.
Page 7

Rear panel
