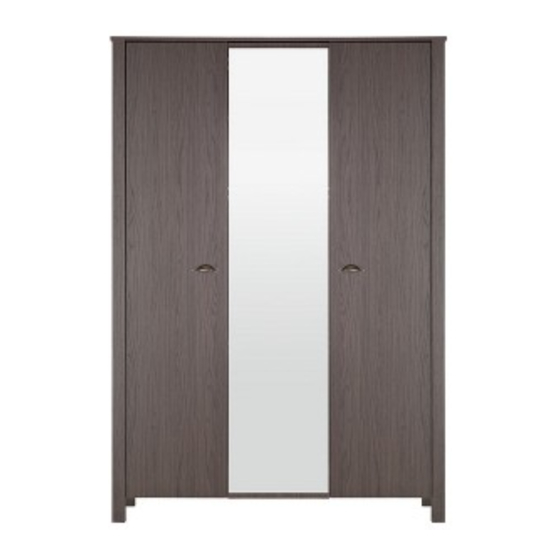

Marlow - 3 Door Mirror Robe
Assembly Instructions -
Dimensions
Width - 130.8cm
Depth - 49.5cm
Height - 191.8cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Please keep for future reference
413/1212
417/4619
418/9563
MADE IN
BRITAIN
Issue 1 - 01/07/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Marlow 413/1212
Summary of Contents for Argos Marlow 413/1212
- Page 1 Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928.
-
Page 2: Care And Maintenance
Take to your local authority waste disposal centre. Components - Panels If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. - Page 3 Components - Panels If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020...
- Page 4 Components - Fittings If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly.
- Page 5 Assembly Instructions Step 1 Fit 2 legs to the left side Screw 2 legs to the left side using 18 screws Note: The top of the legs must be flush with the top of the left side. Step 2 Fit 2 legs to the right side Screw 2 legs to the...
- Page 6 Assembly Instructions Step 3 Prepare the left side Screw 5 metal dowels into the left side Note: Tighten the metal dowels up fully against the panels. Tap 2 wooden dowels into the left side Note: Wooden dowels must not stick out from the edge by more than Front 10mm or they may...
- Page 7 Assembly Instructions Step 5 Prepare the divider Tap 4 wooden dowels into the divider To fit the rail holder screw through the top hole with screw into the mark hole drilled in the divider . Make Finished sure that it is fitted front edge straight, in line with the panel edges and then fit...
- Page 8 Assembly Instructions Step 6 Prepare the base Insert 4 large locking nuts into the base Note: The arrow on the locking nut must point towards the hole in the Finished front edge edge of the panel. Tap 4 wooden dowels into into the base Step 7 Fit the base to the...
- Page 9 Assembly Instructions Step 9 Fit the small shelf Position the small shelf up against the 4 holes in the divider Tap 2 double metal dowels through the Finished divider and into the front edge small shelf until they ‘’bottom out’’. Tap 2 large wooden dowels through the...
- Page 10 Assembly Instructions Step 11 Fit the small rail Position the small rail up against the 2 holes in the divider Tap a double metal dowel through the divider and into the small rail until it Note: Support the ‘’bottoms out’’. small rail until the right side has been Tap a large wooden...
- Page 11 Assembly Instructions Step 13 Prepare the large shelf Insert 4 large locking nuts into the large shelf Finished Tap 2 wooden dowels front edge into large shelf Step 14 Fit the right side Push the large shelf onto the divider Use a screwdriver to tighten the 2 large locking nuts...
- Page 12 Assembly Instructions Step 16 Fit the large rail Push the large rail onto the divider Use a screwdriver to tighten the 2 large locking nuts fitted to the large rail Note: Support the large rail until the left side has been fitted in the next step.
- Page 13 Assembly Instructions Step 18 Prepare the foot Tap a wooden dowel into the foot Step 19 Fit the foot Push the foot onto the base and secure it using screw Step 20 Fit the top Attach the top to the sides and the divider...
- Page 14 Assembly Instructions Step 21 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the 2 back panels Square up the unit by making sure that measurement x:x equals y:y.
- Page 15 Assembly Instructions Step 22 Fit the hanging railS Push the 2 hanging rails into the rail holders...
- Page 16 Assembly Instructions Step 23 Prepare the 2 plain doors Push fit 3 hinges into each of the 2 plain doors Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the edge of the door.
- Page 17 Assembly Instructions Step 25 Fit doors and handles Note: The easiest way to attach each door is to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 18 Assembly Instructions Step 26 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
- Page 19 Assembly Instructions Step 27 Screw Fit the overbalance Washer protector Wall fixing Strap (not supplied) Strap To prevent possible Washer overbalancing we recommend that this unit Screw is secured to a suitable (not supplied) wall by fitting of the overbalance protector kit to the unit, or an alternative fixing method of your choice.
- Page 20 If stated in the instruction leaflet, it is essential that this unit is fixed to a wall. KEEP THESE INSTRUCTIONS FOR FUTURE USE If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928.
