Omnitron Systems Technology FlexSwitch 6540-FK User Manual

FlexSwitch 2Fx+2U Model 6540-FK Replacement Kit
TM

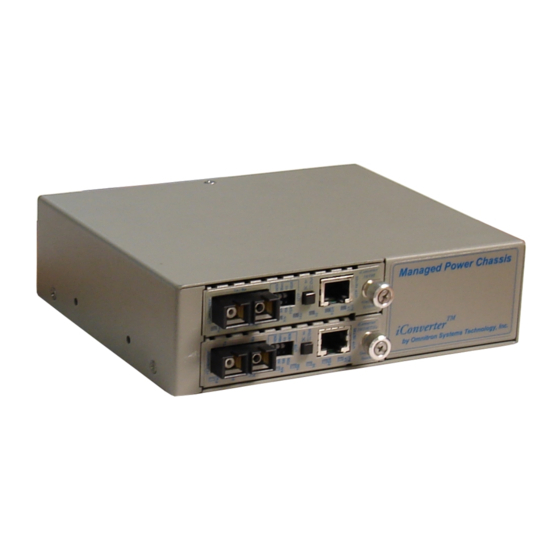

PRODUCT OVERVIEW
The 6540-FK is the direct replacement for the discontinued FlexSwitch Model 600XC 2Fx +
2U. The 6540-FK replacement kit consists of two iConverter 10/100BASE-Tx to 100BASE-
Fx Media Converter Modules installed in a iConverter 2-Module chassis.
The 6540-FK provides two 10/100 auto-negotiating RJ-45 ports with auto-crossover and two
100BASE-Fx fiber ports.
The two 100BASE-Fx fiber ports support half or full duplex operation.
The 6540-FK features front panel accessible DIP-Switches for convenient configuration of the
single RJ-45 and fiber port. On-board DIP-Switches configure the link mode and backplane
operation. The backplane is enabled by default.
Chassis Models
FlexSwitch Replacement Matrix
Disconnected
Connector Type
Part
SC
6540-0 6540-0-FK
6540-2 6540-2-FK
6540-3 6540-3-FK
6541-0 -
6541-2 -
INSTALLATION PROCEDURE
1) Configure DIP-Switches
2) Install Module in Chassis and Connect Cables
3) Installing the Chassis
4) Apply AC Power
5) Verify Operation
User Manual
Replacement Part
Fiber Type
ST
- MM
- SM
- SM
6541-0-FK MM
6541-2-FK SM
Page 1
1) Configure DIP-Switches
Front Panel DIP-Switches
The modules have been pre-configured as illustrated below. Using the front panel DIP-Switch,
the module can be re-configured for customer specific applications.
Fiber Full/Half-Duplex
When in the Fiber Full/Half-Duplex DIP-Switch is in the "FDX" position, the fiber port operates
in Full-Duplex mode. When in the "HDX" position, the fiber port operates in Half-Duplex
mode and its distance is limited by the IEEE 802.3 standard to 412 meters.
UTP Auto/Manual Negotiate
When the UTP "AN/Man" DIP-Switch is in the Auto-Negotiate "AN" position, the converter
Auto-Negotiates and matches the 10/100 speed and duplex mode of a mating Auto-Negotiating
device connected to its RJ-45 port.
When the UTP "AN/Man" DIP-Switch is in the "Man" position, the converter does not auto-
Negotiate and operates in the mode selected by the Full/Half Duplex "FDX/HDX" and "10/100"
DIP-Switches.
UTP 10/100
When the UTP "AN/Man" DIP-Switch is in the "Man" position, the UTP "10/100" DIP-Switch
selects the speed of the RJ-45 port. When in the "100" position (factory default), the RJ-45
port operates at 100 Mbps. When in the "10" position the RJ-45 port operates at 10 Mbps.
UTP Full/Half-Duplex
When the UTP "AN/Man" DIP-Switch is in the "Man" position, the "FDX/HDX" DIP-Switch
selects the duplex mode of the RJ-45 port. When in the "FDX" position, the RJ-45 port operates
in Full-Duplex mode. When in the "HDX" position, the RJ-45 port operates in Half-Duplex.
Set the duplex mode to match the connecting device and check for link status.
Distance
Note: Attaching the Auto-Negotiating RJ-45 port of the 6540-FK to a device with a manual/
5km
forced /hard-coded RJ-45 port may result in an unpredictable port setting with excessive
collisions and poor link performance. When operating in Manual mode, both mating ports
30km
MUST be set manually to the same speed and duplex mode.
60km
On Board DIP-Switches
5km
The modules have on-board DIP-Switches for the configuration of the Link Modes and
30km
Backplane connectivity. For more information on Link Mode, see the
Note. The modules are pre-configured as illustrated below.

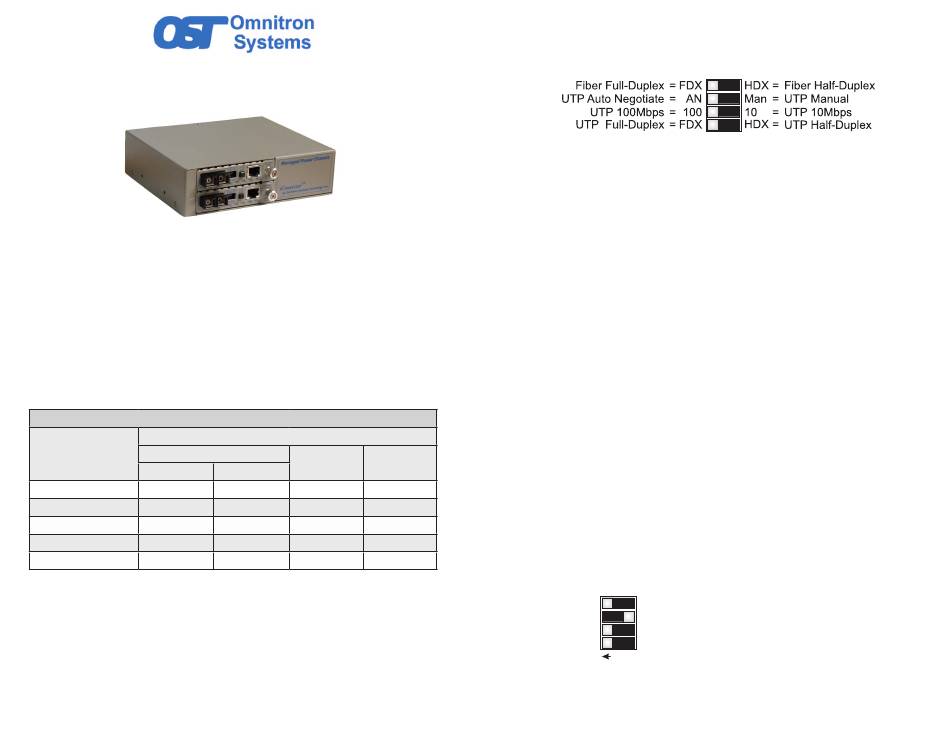

Front Panel DIP-Switches Showing Factory Default Settings
4 RFD = Remote Fault Detect Enable
3 BPOEN = Backplane Enable
2 LP = Link Propagate/Link Segment
1 = Not Used (Factory Set)
Down
On-Board DIP-Switches Showing Factory Default Settings
Page 2
Link Mode Application
