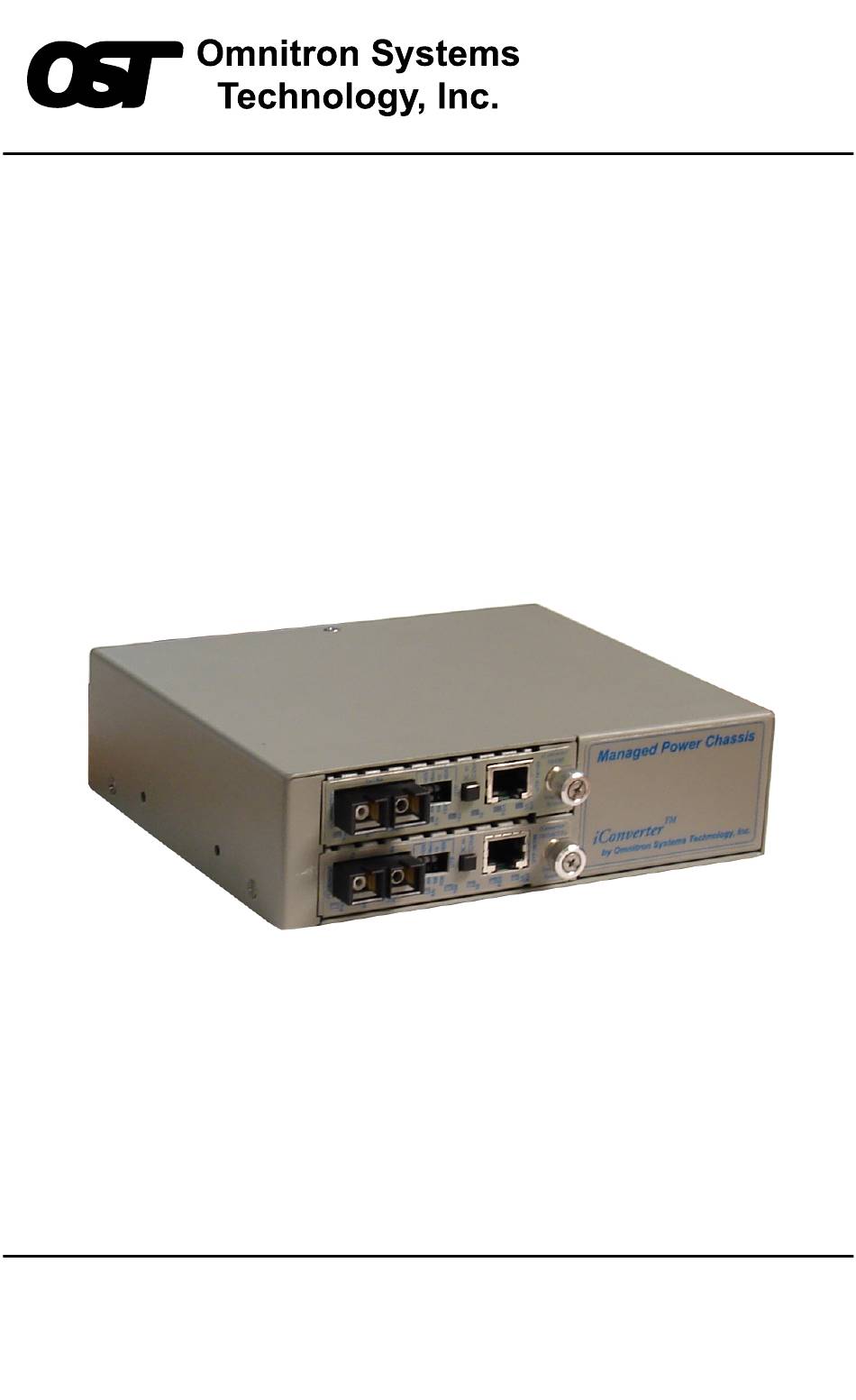

- Page 1 FlexSwitch 2Fx+2U Model 6540-FK Replacement Kit User Manual 140 Technology #500, Irvine, CA 92618 Phone: (949) 250-6510; Fax: (949) 250-6514...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ..............3 General Description ............. 3 Chassis Models ..............3 INSTALLATION ..............4 Chassis Installation .............. 4 Module Installation ............... 4 Fiber Installation..............4 UTP Installation ..............4 CONFIGURATION ..............5 AC Site Preparation .............. 5 AC Powered Chassis Mounting .......... -
Page 3: Introduction

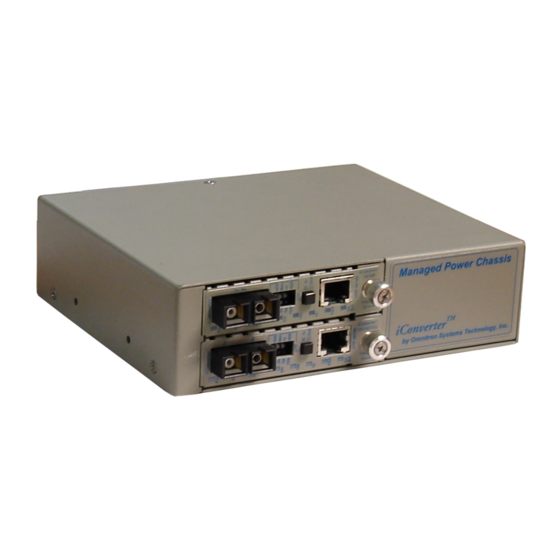

INTRODUCTION General Description The 6540-FK is the direct replacement for the discontinued FlexSwitch Model 600XC 2Fx + 2U. The 6540-FK replacement kit consists of two iConverter 10/100Base-Tx to 100Base-Fx Media Converter Modules installed in a iConverter 2-Module chassis. The 6540-FK provides two 10/100 auto-negotiating UTP ports with auto-crossover and two 100Base-Fx fiber ports. -
Page 4: Installation
INSTALLATION Chassis Installation The 6540-FK is designed to accommodate wall-mounting and tabletop installations. For wall-mounting, the 8249-0 Wall-Mount kit (sold separately) is designed to attach the chassis to a wall, backboard or other flat surfaces. For tabletop installations, place the unit on a flat level surface. Attach the rubber feet to the bottom of the chassis to prevent the unit from sliding. -
Page 5: Configuration
CONFIGURATION AC Site Preparation • Power source should be available within 5 ft. of the chassis and installed per the National Electrical Code ANSI/NFPA-70. • This equipment requires a 100-240VAC, 0.5Amp, 50/60Hz power outlet. Appropriate overloading protection should be provided on the AC power source outlets utilized. -
Page 6: Configuring The Dip-Switches
Configuring the DIP-Switches The 6540-FK has been pre-configured with Auto-Negotiation enabled on all UTP ports for plug and play easy of use. However, the iConverter modules offer additional configuration flexibility. 3.3.1 Media Converter Modules - Front Panel The Media Converter Modules have been pre-configured as illustrated below. Using the front panel DIP-Switch, the module can be re-configured for customer specific applications. -
Page 7: Media Converter Modules - On-Board
Note: Attaching the Auto-Negotiating UTP port of the 6540-FK to a device with a manual/forced /hard-coded UTP port may result in an unpredictable port setting with excessive collisions and poor link performance. When operating in Manual mode, both mating ports MUST be set manually to the same speed and duplex mode. -
Page 8: Led Indicators
LED INDICATORS Media Converter Modules The Media Converter Modules have LED indicators to provide information on how the module is communicating to its link partner. The LED indicators can also be used to troubleshoot problems with the connections. Media Converter Module LED Function Color OFF State... -
Page 9: Specifications
SPECIFICATIONS Description Fast Ethernet Switch with two 10/100 UTP Ports and two 100 Fiber Port Protocols 10Base-T, 100Base-Tx, 100Base-Fx with 1522 bytes max. frame size UTP Cable Type EIA/TIA 568A/B Category 5 and higher Fiber Cable Type Multimode: 50/125, 62.5/125, 100/140um Singlemode: 9/125um UTP Connector Type RJ45... -
Page 10: Link Modes
LINK MODES In order to accommodate different user requirements, the 6540-FK Media Converter Modules support three different link modes: Link Segment (LS) LS mode transmits a link signal independently of any received ‘Link’ at any port. Utilizing this configuration, a loss of a receive link signal will only affect the port detecting the loss of signal. - Page 11 To avoid electrical shock, do not perform any servicing of this unit other than that contained in the operating instructions, unless you are qualified and certified to do so by Omnitron Systems Technology, Inc. Caution All user-required operations can be performed without opening the unit. Never attempt to open or remove the cover or tamper with the unit.
- Page 12 TECHNICAL SUPPORT If you encounter problems with this product, contact Omnitron Technical Support. Phone: 800-675-8410 949-250-6510 Fax: 949-250-6514 Address: Omnitron Systems Technology, Inc. 140 Technology Dr., #500 Irvine, CA 92618 Email: support@omnitron-systems.com URL: http://www.omnitron-systems.com Form: 040-06540-FK1 A 02/07 Page 12...
