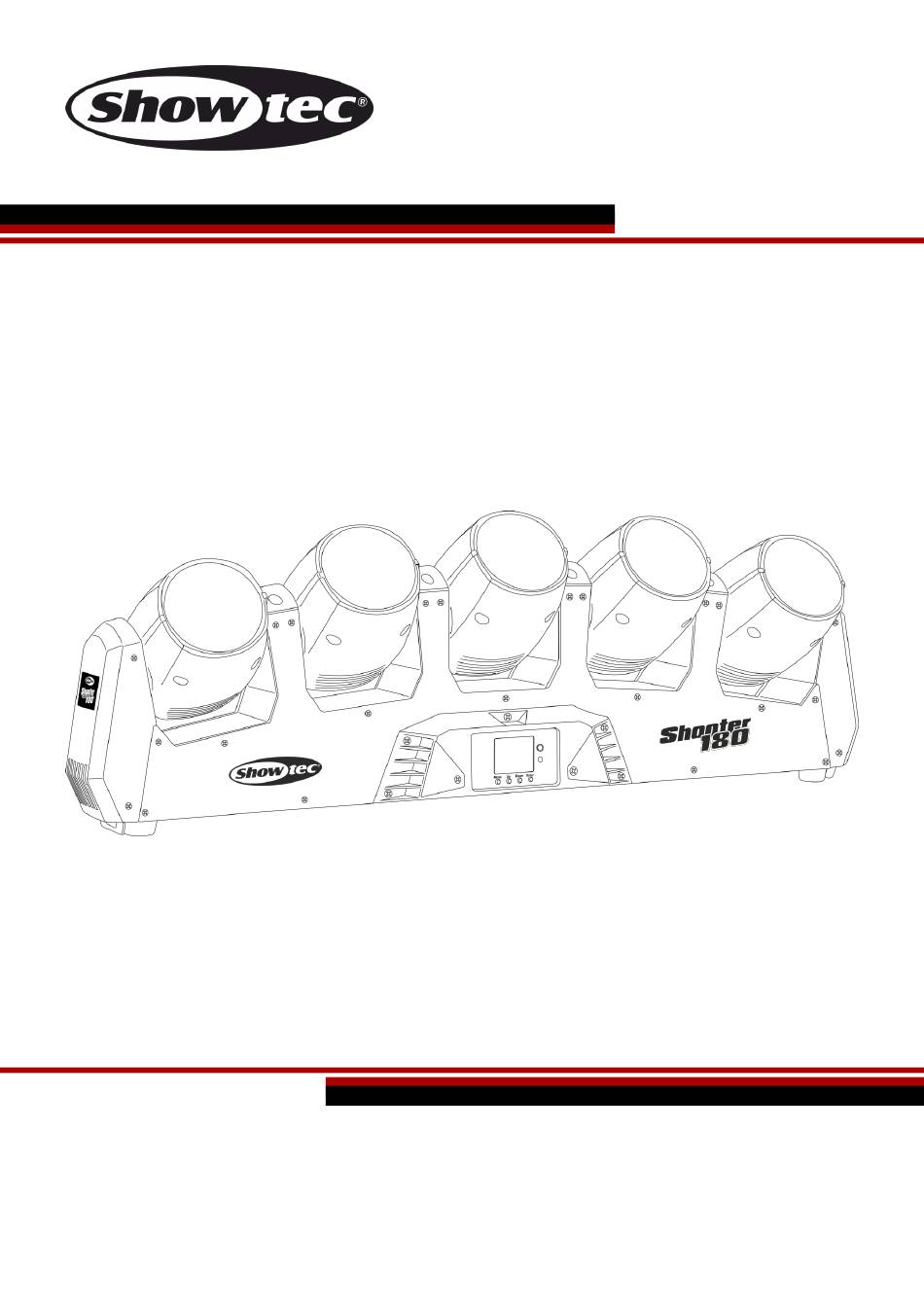

MANUAL
ENGLISH
Shooter 180
V2
Ordercode: 46000
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Shooter 180 V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SHOWTEC Shooter 180 V2

Summary of Contents for SHOWTEC Shooter 180 V2

  • Page 1 MANUAL ENGLISH Shooter 180 Ordercode: 46000 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

  • Page 2: Table Of Contents

    Shooter 180 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Features ..................................7 Frontside..................................

  • Page 3: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes:  Showtec Shooter 180  IEC power cable (1,5 m) ...
  • Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.

  • Page 5: Operating Determinations

    Shooter 180 • The user is responsible for correct positioning and operating of the Shooter. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.

  • Page 6: Connection With The Mains

    Shooter 180 The Shooter can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place.

  • Page 7: Return Procedure

    Shooter 180 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

  • Page 8: Description Of The Device

    Shooter 180 Description of the device Features The Shooter 180 is a light effect with high output and great effects. • Input voltage: 100-240 VAC, 60/50Hz • Power consumption: 115W • Light source: 5 x 12W RGBW LEDs • Color range: 16,7 million additive colors •...

  • Page 9: Backside

    Shooter 180 Backside Fig. 02 03) Fuse F5AL/250V 04) Ground/earth connection 05) IEC 100-240V power connector IN 06) IEC 100-240V power connector OUT 07) 3-pin DMX signal connector IN 08) 3-pin DMX signal connector OUT Installation Remove all packing materials from the Shooter 180. Check if all foam and plastic padding is removed. Connect all cables.

  • Page 10: Control Modes

    Shooter 180 Control Modes There are 4 modes: • Stand-alone (Auto) • Sound-controlled • Master/Slave • DMX-512 (14CH, 34CH) One Shooter (Auto) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141).

  • Page 11: Multiple Shooters (Dmx Control)

    Shooter 180 Multiple Shooters (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Shooters and other devices. 04) Link the units as shown in fig.

  • Page 12: Fixture Linking

    Shooter 180 Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.

  • Page 13: Control Panel

    Shooter 180 Control Panel A) LCD display MODE button C) UP button D) DOWN button ENTER button Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address, next time.) DMX Addressing The control panel on the front side of the base allows you to assign DMX fixture addresses, which is the first...

  • Page 14: Menu Overview

    Shooter 180 Menu Overview Ordercode: 46000...

  • Page 15: Main Menu Options

    Shooter 180 Main Menu Options DMX Addressing DMX-512 mode / Auto / Sound-controlled mode / Master-Slave mode Audio Sensitivity / Tilt/Reverse Tilt / Display / Reverse Display/ Dimmer curve + speed System Info 100. DMX Addressing With this menu, you can set the DMX address of your Shooter 180. 01) Press the MODE button, until the display shows 02) Press the ENTER button to open the menu.

  • Page 16: Dmx-512 Mode

    Shooter 180 2.1. DMX-512 Mode 01) Press the UP/DOWN buttons until the display shows: 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose one of the 2 channel modes: 14-channel mode or 34-channel mode.

  • Page 17: Master/Slave Mode

    Shooter 180 2.4. Master/Slave Mode 01) Press the UP/DOWN buttons until the display shows: 02) Press the ENTER button to activate the mode. 03) If you are operating the device in slave mode, press the UP/DOWN buttons to set the device as the first, second, third or fourth slave device (S1-S4).

  • Page 18: Tilt Reverse

    Shooter 180 3.2. Tilt Reverse 01) Press the UP/DOWN buttons to choose Tilt Reverse. 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose ON or OFF and press the ENTER button to confirm your choice.

  • Page 19: System Information

    Shooter 180 4. System Information With this menu, you view the current parameters of your Shooter 180. 01) Press the MODE button, until the display shows 02) Press the ENTER button to open the menu. The display will show: 03) Now, it is possible to view the following pieces of information about the Shooter 180: ...
  • Page 20 Shooter 180 Channel 6 – Built-in programs (Tilt) 0-47 Not functional 48-55 Program 1 56-63 Program 2 64-71 Program 3 72-79 Program 4 80-87 Program 5 88-95 Program 6 96-103 Program 7 104-111 Program 8 112-119 Program 9 120-127 Program 10 128-135 Program 11 136-143...
  • Page 21 Shooter 180 Channel 9 – Heads Dimmer and shutter must be open Head # 1 Head # 2 Head # 3 Head # 4 Head # 5 8-15 16-23 24-31 32-39 40-47 48-55 56-63 64-71 72-79 80-87 88-95 96-103 104-111 112-119 120-127 128-135...
  • Page 22 Shooter 180 106-110 Program 19 111-115 Program 20 116-120 Program 21 121-125 Program 22 126-130 Program 23 131-135 Program 24 136-140 Program 25 141-145 Program 26 146-150 Program 27 151-155 Program 28 156-160 Program 29 161-165 Program 30 166-170 Program 31 171-175 Program 32 176-180...
  • Page 23 Shooter 180 225-229 Shutter open 230-244 Strobe ON, from fast to slow 245-255 Shutter open Channel 14 – Functions Dimmer and shutter must be open. It takes 10 seconds for the settings to be visible. Not functional 10-14 Tilt blackout 15-19 Cancel tilt blackout 20-24...

  • Page 24: Channels

    Shooter 180 34 Channels Channel 1 – Head 1 – Vertical movement (Tilt) Move the slider up, in order to move head vertically (TILT). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 270° and stopped at any position you wish. Channel 2 –...
  • Page 25 Shooter 180 Channel 7 –Built-in program speed (Tilt) 0-255 Gradual speed adjustment, from fast to slow Channel 8 – Head 1 Red Dimmer and shutter must be open 0-255 Gradual adjustment Red, from dark to brightest Channel 9 – Head 1 Green Dimmer and shutter must be open 0-255 Gradual adjustment Green, from dark to brightest...
  • Page 26 Shooter 180 202-207 Current color, FULL ON 208-229 Counterclockwise color switch, from fast to slow 230-234 Not functional 235-249 Color flow, from fast to slow 250-255 Sound-controlled mode Channel 29 – Heads Dimmer and shutter must be open Head # 1 Head # 2 Head # 3 Head # 4...
  • Page 27 Shooter 180 76-80 Program 13 81-85 Program 14 86-90 Program 15 91-95 Program 16 96-100 Program 17 101-105 Program 18 106-110 Program 19 111-115 Program 20 116-120 Program 21 121-125 Program 22 126-130 Program 23 131-135 Program 24 136-140 Program 25 141-145 Program 26 146-150...
  • Page 28 Shooter 180 165-169 Shutter open 170-184 Strobe ON, from high to low frequency 185-189 Shutter open 190-204 Random strobe ON, from high to low frequency 205-209 Shutter open 210-224 Gradual shutter ON/OFF, from fast to slow 225-229 Shutter open 230-244 Strobe ON, from fast to slow 245-255 Shutter open...

  • Page 29: Maintenance

    Suspect three potential problem areas as: the power supply, the LEDs, the fuse. 01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Shooter to your Showtec dealer. 03) The fuse. Replace the fuse. See page 28 for replacing the fuse.

  • Page 30: No Response To Dmx

    Shooter 180 No Response to DMX Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. Try your DMX control again.

  • Page 31: Product Specifications

    Shooter 180 Product Specifications Model: Showtec Shooter 180 Input voltage: 100-240 VAC, 60/50Hz Power consumption: 115W (full output) DMX linking: 30pcs Power linking @240V: 20pcs Fuse: F5AL/250V Dimensions: 710 x 90 x 246 mm (LxWxH) Weight: 8,2 kg Operating and Programming:...

  • Page 32: Dimensions

    Shooter 180 Dimensions Ordercode: 46000...

  • Page 33: Notes

    Shooter 180 Notes Ordercode: 46000...
  • Page 34 Shooter 180 Ordercode: 46000...
  • Page 35 Shooter 180 Ordercode: 46000...
  • Page 36 ©2016 Showtec...
