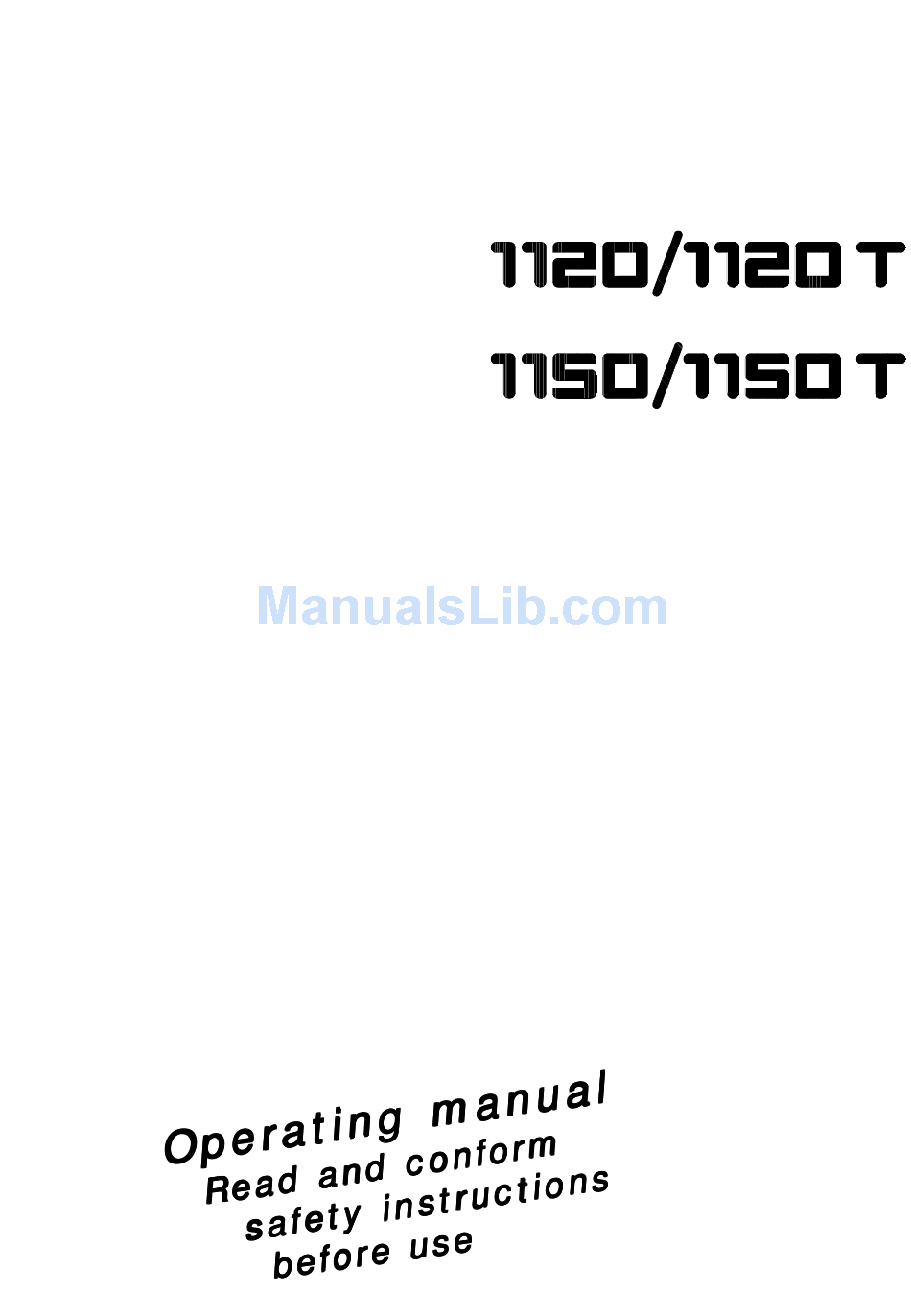

  • Page 1 ( 110-127 V / 60 Hz ( 220-240 V / 50/60 Hz )

  • Page 2: Dear Customer

    Description Description Description Description Description Dear customer We would like to congratulate you on your new high pressure cleaner with integrated undercarriage and integrated hose drum and to thank you for the purchase. To ease your introduction to the use of the cleaner, we have provided the following pages of explanations, tips and hints, which we ask you to read before using for the first time.
  • Page 3 Description Description Water Construction The KRÄNZLE 1120 / 1120 T + 1150 / 1150 T - high pressure cleaners are mobile machines. The design can be seen from the diagram. Item 1 Water inlet connection with filter 6 High pressure injector for...

  • Page 4: Water And Cleaning System

    Description Description Description Description Description Water and Cleaning System Water can be connected at mains pressure to the high pressure pump or it can be sucked directly from a storage tank. The water is then forced under pressure by the high pressure pump to the lance. The high pressure jet is formed by the nozzle at the end of the lance.

  • Page 5: Motor Protection Switch

    Description Description Description Description Description Motor protection switch The motor is protected from overload by a motor protection switch, which automatically cuts out the motor in the event of overload. However should the switch trip frequently, the cause of the malfunction should be located and rectified (see page 6).

  • Page 6: Electrical Connection

    KRÄNZLE 1150 / 1150 T - 220-240 V KRÄNZLE 1150 / 1150 T - 220-240 V 50 Hz 50 Hz KRÄNZLE 1120 / 1120 T - 110-117 V KRÄNZLE 1120 / 1120 T - 110-117 V 60 Hz 60 Hz KRÄNZLE 1120 / 1120 T - 110-117 V...

  • Page 7: Water Connection

    Description Description Description Description Description Water connection: Please check that the high pressure cleaner has available the quantity of water specified on page 2 (techn. specs.) (Litres per minute) . Test: Allow the water supply hose to run for 1 minute into a bucket. The received quantity of water must be at least the quantity given on page 2 !!! Lack of water causes fast wear on seals (no warranty)

  • Page 8: High Pressure Hose And Spray Device

    Description Brief operating instructions When operating your high pressure cleaner pay attention that it is in a horizontal position. 1 . Connect the high pressure hose with spray gun. 2 . Connect to suitable water supply. 3 . Flush the air from the pump (open and close the spray gun several times) 4 .

  • Page 9: Safety Notes

    Safety notes Safety notes Safety notes Safety notes Safety notes As to the recoil - see notice on page 2! Apply the safety catch on the spray gun after each use, in order to prevent unintentional spraying! Always aim the underbody lance.
  • Page 10 Vario - Jet nozzle 3. Spray gun with insulated pistol grip and screw connection 4. KRÄNZLE - High pressure cleaners 1120 T / 1150 T (50/60 HZ) with hose drum and 15 m high pressure hose with steel reinforcement 6. Operating instructions 5.
  • Page 11 How to assemble and furnish your high pressure cleaner Put high pressure cleaner into upright position. Remove the screw from the brass element. Put the crank on the hexagon and fasten with the screw. Receptacle Hose drum for gun with HP-hose Receptacle for lances...

  • Page 12: Preparation For Use

    Preparation for use 1. Put high pressure cleaner into horizontal position! THE HIGH PRESSURE CLEANER IS ONLY TO BE OPERATED IN HORIZONTAL POSITION ! 2. Connect the high pressure lance to the spray gun. Unroll hose without kinks and connect with handgun and pump.
  • Page 13 Preparation for use Preparation for use Preparation for use Preparation for use Preparation for use 4. The machine can be connected to a pressurised water line with 60° ° ° ° ° C hot water (see page 2). Ensure that the water supply is clean when sucking from external sources.

  • Page 14: Adjusting The Pressure

    Preparation for use Preparation for use Preparation for use Preparation for use Preparation for use Adjusting the pressure This is accomplished by turning the handwheel. The default setting is maximum pressure. When using cleansing agents: Unwind HP-hose completely. Place chemical filter no. 5 in the reservoir with the cleansing agent.
  • Page 15 This is prohibited ! This is prohibited ! This is prohibited ! This is prohibited ! This is prohibited ! Never allow children to use the high pressure cleaner ! Never direct the water jet at the machine itself ! Never direct the water jet at a power socket !
  • Page 16 This is prohibited ! Never direct the water jet at people or animals ! Do not damage the power cord or repair it incorrectly ! Never pull the high pressure hose if it has formed kinks or “nooses”! Never pull the hose over sharp edges !
  • Page 17 Additional KRÄNZLE-accessories for ... Additional KRÄNZLE-accessories for ... Additional KRÄNZLE-accessories for ... Additional KRÄNZLE-accessories for ... Additional KRÄNZLE-accessories for ... Rotary scrubbing brush Rotary scrubbing brush Rotary scrubbing brush Rotary scrubbing brush Rotary scrubbing brush Order No. 41.050 1 Drain and pipe cleaning hose Drain and pipe cleaning hose Drain and pipe cleaning hose Drain and pipe cleaning hose...
  • Page 18 ... for further combination possibilities ... for further combination possibilities ... for further combination possibilities ... for further combination possibilities ... for further combination possibilities Car cleaning, glass, caravan, boat etc. rotary washing brush with 40 cm exten- sion and ST 30 nipple M 22 x 1,5 Cleaning pipes, channels and drains: pipe cleaning hose with KN nozzle and ST 30 nipple M 22 x 1,5...
  • Page 19 Small repairs - Do it yourself! Small repairs - Do it yourself! Small repairs - Do it yourself! Small repairs - Do it yourself! Small repairs - Do it yourself! You only get a weak flow of water or no water at all! The pressure gauge shows a 10% higher pressure than the working pressure.

  • Page 20: Small Repairs

    Small repairs - Small repairs - Small repairs - Small repairs - Small repairs - The nozzle is blocked! No water but the gauge shows full pressure ! but if you You should now have a Rinse the hose through only get a few powerful stream of first.

  • Page 21: Do-It-Yourself

    - Do it yourself! - Do it yourself! - Do it yourself! - Do it yourself! - Do it yourself! Nozzle dirty or sticky! Pressure gauge does not show full pressure. The high-pressure Water comes out in spurts. hose vibrates. If you do not use the high-pressure cleaner for some time the valves can stick the gauge...
  • Page 22 Small repairs - Do it yourself! Small repairs - Do it yourself! Small repairs - Do it yourself! Small repairs - Do it yourself! Small repairs - Do it yourself! Stopping leaks from hose or gun After closing the gun the manometer shows full pressure ! The pressure regulator switches on and off contunuously! If the Pull out the...
  • Page 23 Dirtkiller Dirtkiller (special accessory) (special accessory) Dirtkiller Dirtkiller Dirtkiller (special accessory) (special accessory) (special accessory) Description Qty. Ord.-No Sprühkörper 41.520 O-Ring 6,88 x 1,68 41.521 Düsensitz 41.522 Düse 045 41.523 Stabilisator 41.524 O-Ring 40.016 1 Sprühstopfen 41.526 Rohr 400 mm 2x M 12 x 1 41.527 ST 30-Nippel M 22 x 1,5 / M 12 x 1 ISK 13.363...

  • Page 24: Gun With Lance

    Gun with lance Gun with lance Gun with lance Gun with lance Gun with lance...
  • Page 25 KRÄNZLE 1120 - 1150 T KRÄNZLE 1120 - 1150 T KRÄNZLE 1120 - 1150 T KRÄNZLE 1120 - 1150 T KRÄNZLE 1120 - 1150 T 52524...

  • Page 26: Complete Assembly

    Complete assembly Complete assembly Complete assembly Complete assembly Complete assembly...
  • Page 27 KRÄNZLE 1120 - 1150 T KRÄNZLE 1120 - 1150 T KRÄNZLE 1120 - 1150 T KRÄNZLE 1120 - 1150 T KRÄNZLE 1120 - 1150 T Spare parts list KRÄNZLE 1120 - 1150T Complete assembly Description Qty. Ord.-No Fahrgestell 44.502 Frontplatte " K 1150 "...
  • Page 28 Motor...
  • Page 29 43.035 K 1150 / K 1150 T ( 230V ; 50/60Hz ) 18.1 Kondensator 80µF für 43.505 K 1120 / K 1120 T ( 110V ; 50/60Hz ) Netzkabel für 230V / 50/60Hz 41.092 19.1 Netzkabel für 110V / 60Hz 43.512...
  • Page 30 T T T T T ransmission ransmission ransmission ransmission ransmission...
  • Page 31 KRÄNZLE 1120 - 1150 T KRÄNZLE 1120 - 1150 T KRÄNZLE 1120 - 1150 T KRÄNZLE 1120 - 1150 T KRÄNZLE 1120 - 1150 T...
  • Page 32 V V V V V alve housing K 1120 T - K 1150 T alve housing K 1120 T - K 1150 T alve housing K 1120 T - K 1150 T alve housing K 1120 T - K 1150 T...
  • Page 33 KRÄNZLE 1120 T - 1150 T KRÄNZLE 1120 T - 1150 T KRÄNZLE 1120 T - 1150 T KRÄNZLE 1120 T - 1150 T KRÄNZLE 1120 T - 1150 T 3333...
  • Page 34 V V V V V alve housing K 1120 - K 1150 alve housing K 1120 - K 1150 alve housing K 1120 - K 1150 alve housing K 1120 - K 1150 alve housing K 1120 - K 1150...
  • Page 35 KRÄNZLE 1120 - 1150 KRÄNZLE 1120 - 1150 KRÄNZLE 1120 - 1150 KRÄNZLE 1120 - 1150 KRÄNZLE 1120 - 1150...
  • Page 36 Hose drum Hose drum Hose drum Hose drum Hose drum...
  • Page 37 KRÄNZLE 1120 T - 1150 T KRÄNZLE 1120 T - 1150 T KRÄNZLE 1120 T - 1150 T KRÄNZLE 1120 T - 1150 T KRÄNZLE 1120 T - 1150 T...

  • Page 38: Wiring Diagram

    Wiring diagram Wiring diagram Wiring diagram Wiring diagram Wiring diagram Wiring diagram for KRÄNZLE K 1120 - K1150 T braun = brown blau = blue C : 40µF ( 80 µF bei 110V / 60 Hz ) schw = black...

  • Page 39: General Rules

    General rules General rules General rules General rules General rules Inspections The machine must be inspected according to the “Guidelines for Liquid Spray Devices” at least once every 12 months by a qualified person, to ensure that continued safe operation is guarateed. The results of the inspection are to be recorded in writing.
  • Page 40 Hochdruckreiniger High-pressure-cleaners Nettoyeurs À Haute Pression I. Kränzle GmbH Elpke 97 33605 Bielefeld EC declaration of conformity as defined by machinery directive 98/37/EU Annex II A and the EC low-voltage directive 73/23 EEC and the EC-EWV directive 89/336 K1120/ K1120 T; K1150/ K1150 T Herewith we declare that 79/113 EWG 81/1051 EWG...
  • Page 41 Notes Notes Notes Notes Notes...
  • Page 42 Notes Notes Notes Notes Notes...
  • Page 43 Notes Notes Notes Notes Notes...
  • Page 44 Reprint only allowed with the authorization of As date of 17. 05. 2001...
