Section C - Wiring

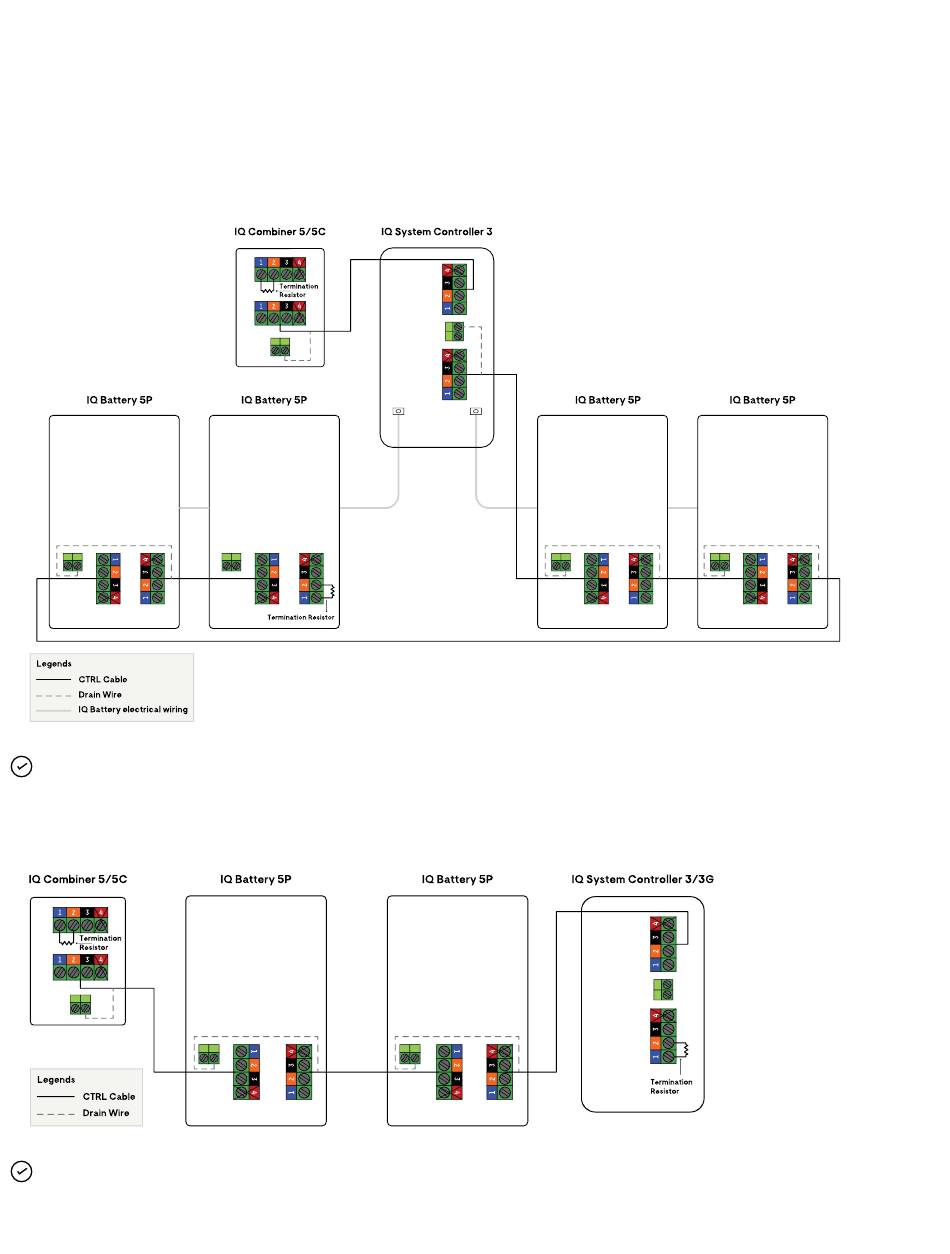

Sequence 1b: IQ Combiner 5/5C → IQ System Controller 3 → IQ Battery(s) 5P
(This is only applicable to IQ System Controller 3 where the third DER port can be
used for additional batteries)
NOTE: Total length of CTRL wiring across the system cannot
exceed 250 feet to ensure the system operates as per specifications.
Sequence 2: IQ Combiner 5/5C → IQ Battery(s) 5P → IQ System Controller 3/3G
NOTE: Total length of CTRL wiring across the system cannot
exceed 250 feet to ensure the system operates as per specifications.
IQ System Controller 3/3G Quick Install Guide
31
