Section C

Wiring

Drill conduits

Drill conduit entry holes as needed and install conduit grounding
lugs for each opening. Be sure to reseal unused conduit entry holes
with sealing plugs.
Main supply conductors may enter the IQ System Controller from
the bottom or the bottom-left side.
Backup load conductors may enter the IQ System Controller from
the bottom or bottom-right side.
IQ Battery, IQ Combiner, and generator conductors may enter from
the bottom, bottom-left, or bottom-right sides.
Size the conductors (line, neutral, and ground) depending on the
service or breaker rating and voltage rise requirements according to
local codes.
Refer to the conductor rating table on the door of the IQ System
Controller.

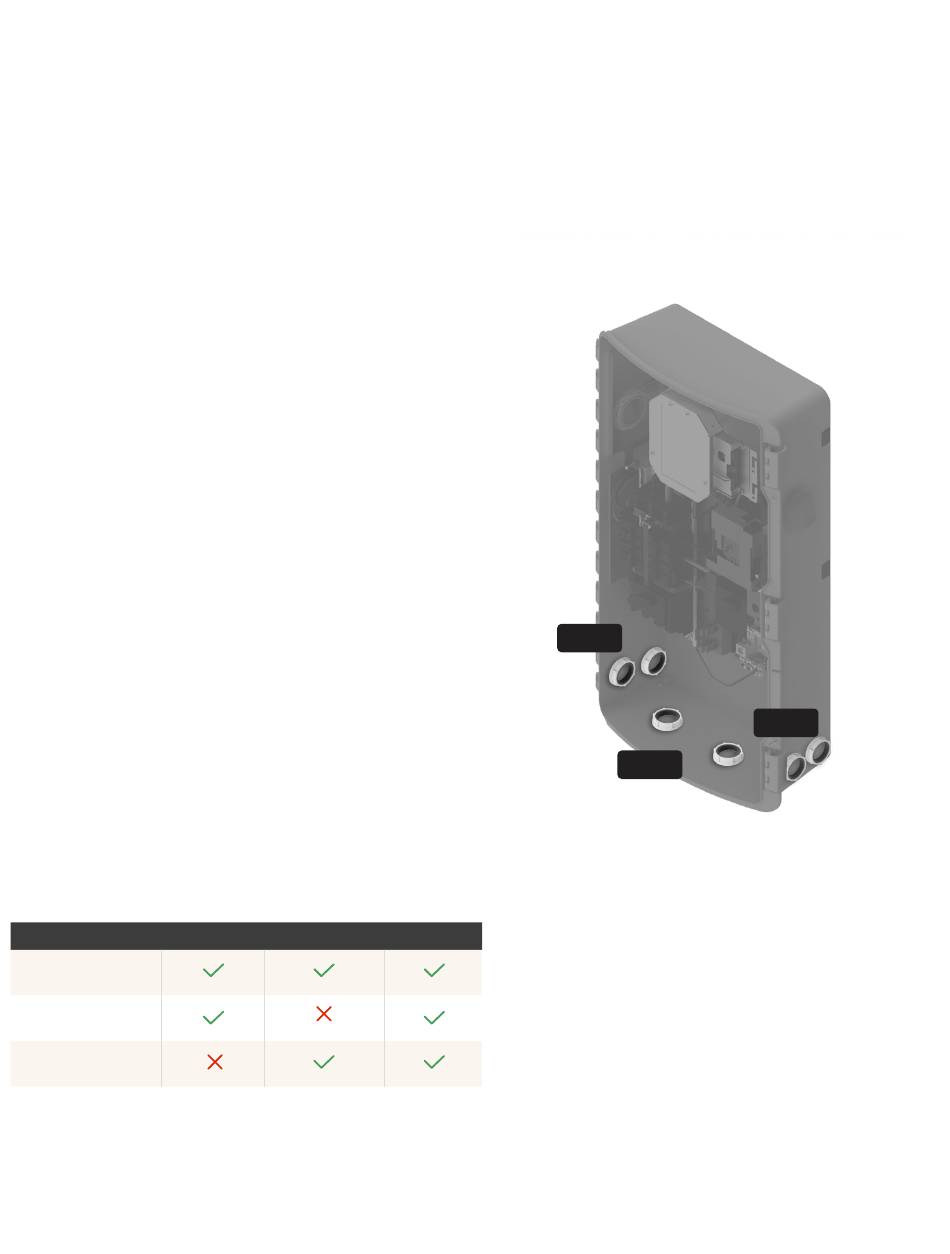

C O N D U I T L O C AT I O N M A I N
Bottom
Left wall
Right wall
IQ System Controller 3/3G Quick Install Guide
B A C K U P L O A D S D E R
Left
Bottom
Right
21
