Scenario 2

Partial Home backup with
IQ System Controller 3
This is the preferred configuration for partial home backup with
PV and IQ Batteries.
The microinverter ranges supported in this configuration are IQ8 or
IQ6/7 or M Series.
Note: The System Shutdown Switch is not used for IQ6, IQ7, and M Series
systems. Refer to the System Shutdown wiring section
6

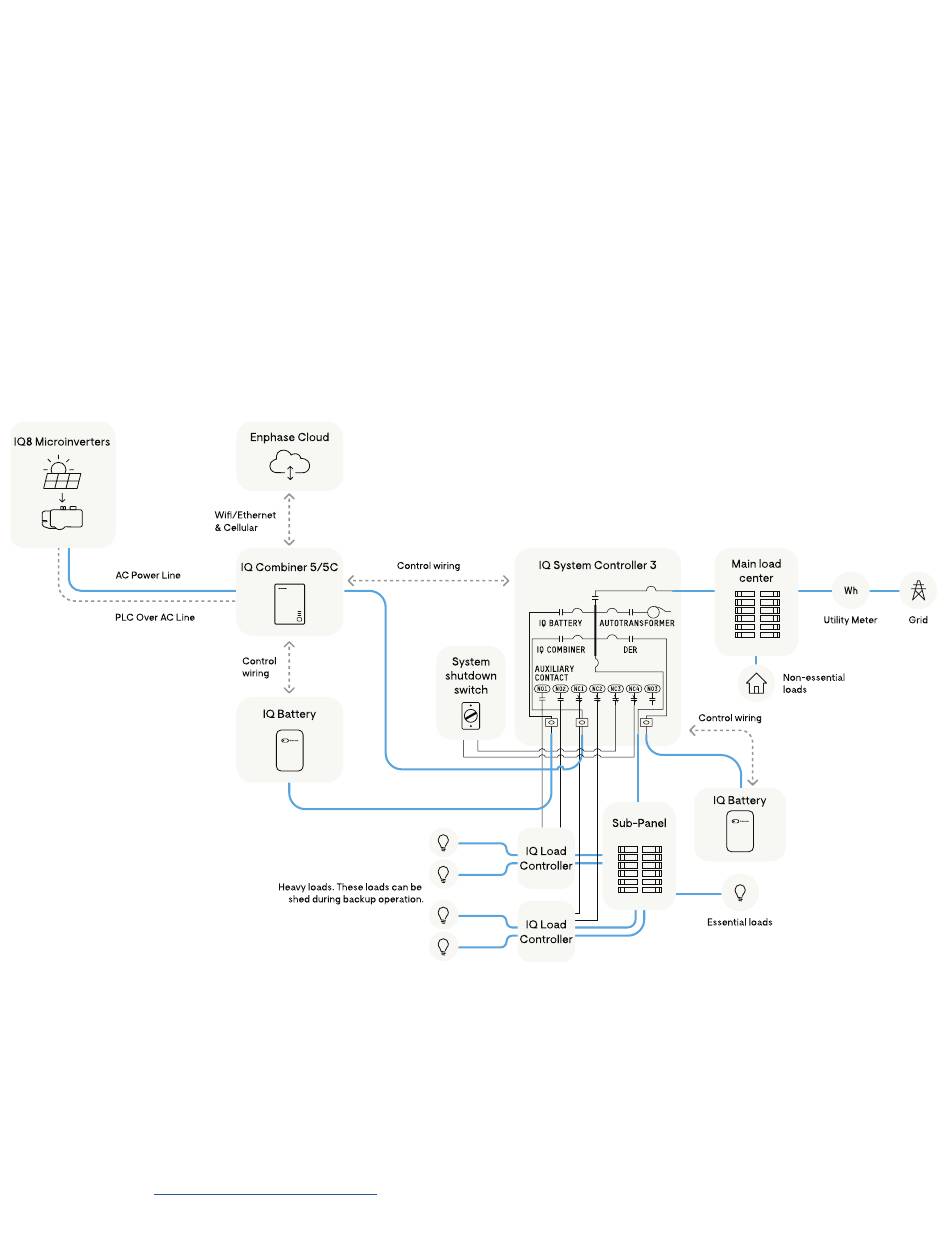

This figure shows the system configuration. For wiring,
for details. follow the details in the wiring section.
IQ System Controller 3/3G Quick Install Guide
