Section C - Wiring

Aux wiring: IQ Load Controller

Up to two IQ Load Controllers, each enabling fine-grained, circuit-

level control for 2x 240 V or 4x 120 V essential load circuits can

be integrated with IQ System Controller. Each 240 V load can be

controlled independently, but the 120 V loads can be controlled in

groups of up to two loads. Sunlight Backup system needs at least

one IQ Load Controller to be installed on the site.

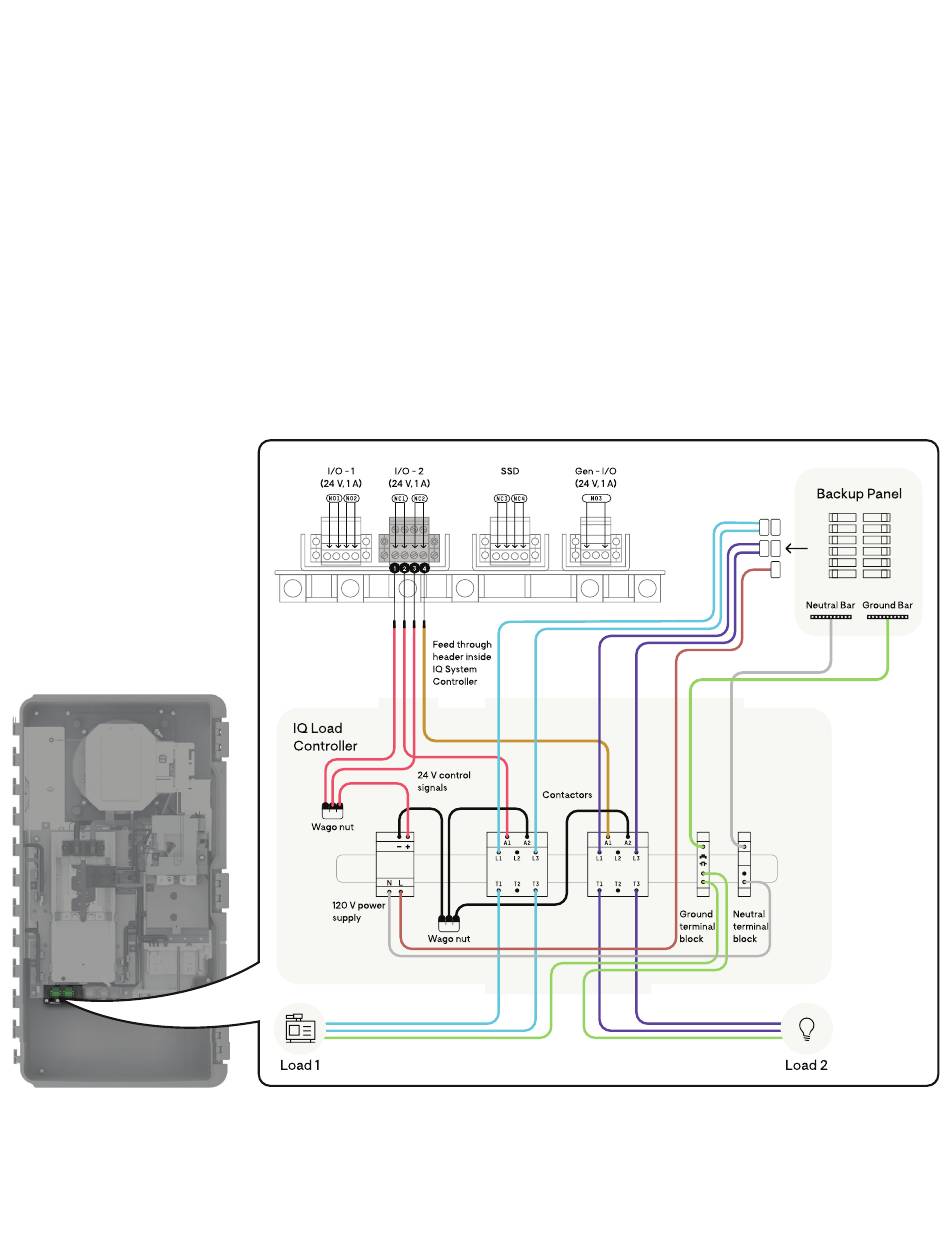

For detailed wiring instructions, refer to the IQ Load Controller QIG.

NOTE: Control lines to headers support 28 AWG and 16 AWG wire gauges.

IQ System Controller 3/3G Quick Install Guide
