Step 2: Install The Mounting Bracket - enphase IQ System Controller 3 Quick Install Manual

Section A - Mounting the product
Step 2:
Install the mounting bracket

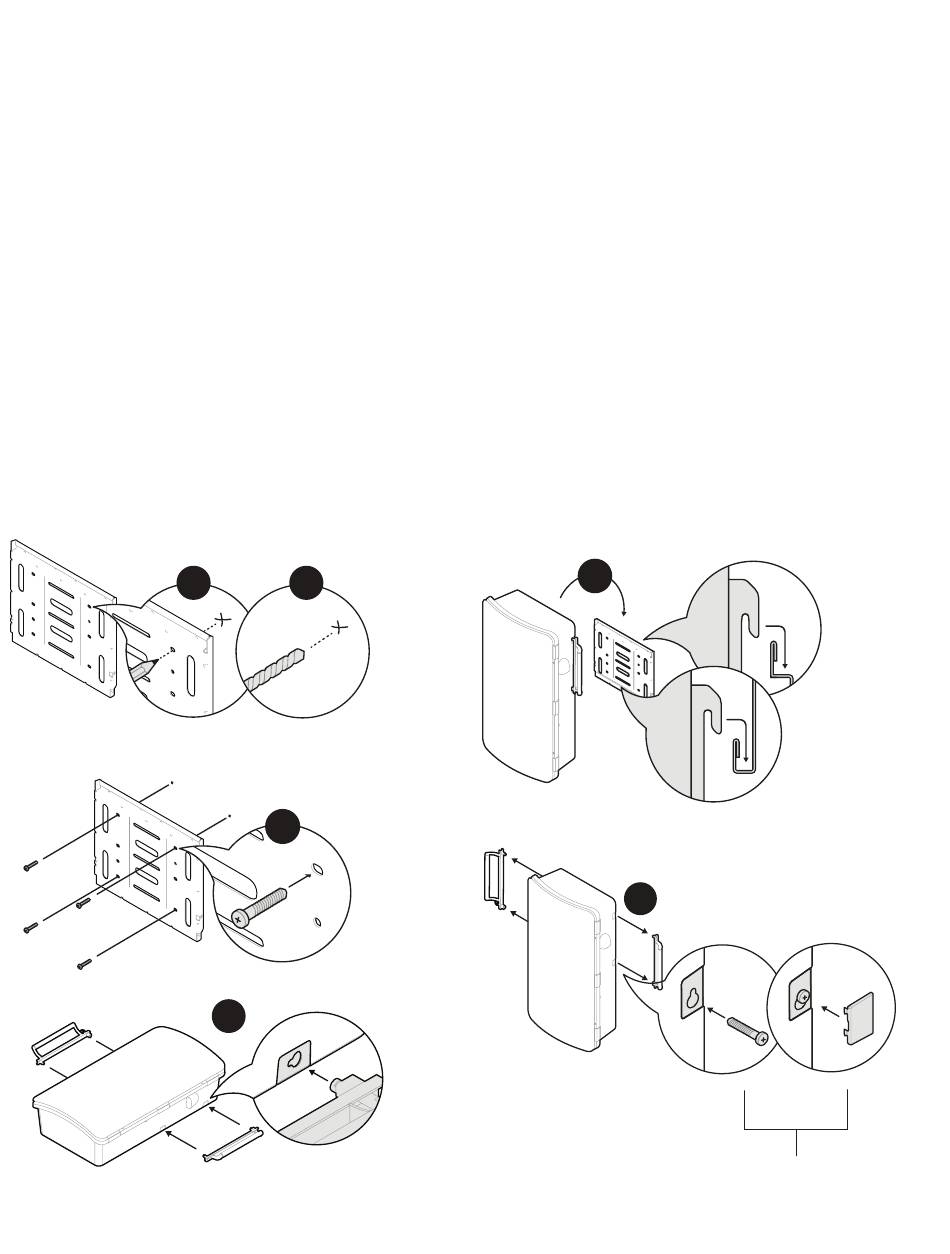

Install the mounting bracket and mount the IQ System Controller
as per the following instructions:
• Use 3" long wood screw #10, 1/4", or 5/16" (depending on
the attachment wall) or masonry attachments if installed in
masonry to attach the IQ System Controller bracket. Use one
screw and washer for each slot. The slot size of the IQ System
Controller wall mount bracket is 8.5 mm.
• Check with a structural engineer and local standards for local
requirements. Use an appropriately sized washer for each of the
screws.
14
1 2
3
4
• The IQ System Controller weighs 39.4 kg (87 lbs) and will
require two people to lift the unit.
• Risk of injury and equipment damage. Avoid dropping the
IQ System Controller. Doing so may create a hazard, cause
serious injury, and/or damage the equipment.
• Risk of injury and equipment damage. Do not release the
IQ System Controller until you ensure that the IQ System
Controller is fully seated in the wall-mount bracket shelf.
5
6
Provided in the accessory kit
IQ System Controller 3/3G Quick Install Guide
