Oriental motor US2 Series Quick Start Manual

Many other useful features are also available
Various settings can be performed when removing the front panel.
When the front panel is removed
Set using these keys
To lock so that the setting does not change
Press and
Locking
ESC
hold for
key
the data 5 seconds
In a locking
Releasing
state
Press and
the lock ESC
hold for
key
5 seconds
You can lock or release only when the display shows the rotation speed.
And others.....
 To display the rotation speed of the gearhead output shaft
 To limit the setting range of the rotation speed
 To start and stop the motor slowly
OPERATING MANUAL
Refer to "6 Convenient functions"
© Copyright ORIENTAL MOTOR CO., LTD. 2015
ESC key FUNCTION key
Lock
The display blinks
several times
Release
The display blinks
several times
ORIENTALMOTOR CO.,LTD.
Speed Control Motor and Controller Package
US2
Series
QUICK START GUIDE
Motor
Operation switch
Input signal terminal
Motor connector
Thank you for purchasing an Oriental Motor product.
Use the product correctly after thoroughly reading the section "Safety precautions" of the operating manual.
For more information about how to use the product, refer to the separate

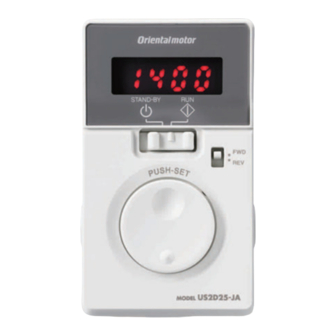

Speed controller
Front side
Display
Rotation
direction switch
Setting dial
Front panel
Rear side
TB1
CN2
Cable fixing part
Power supply
connector
CN1
OPERATING MANUAL
HM-9352
.
