Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.

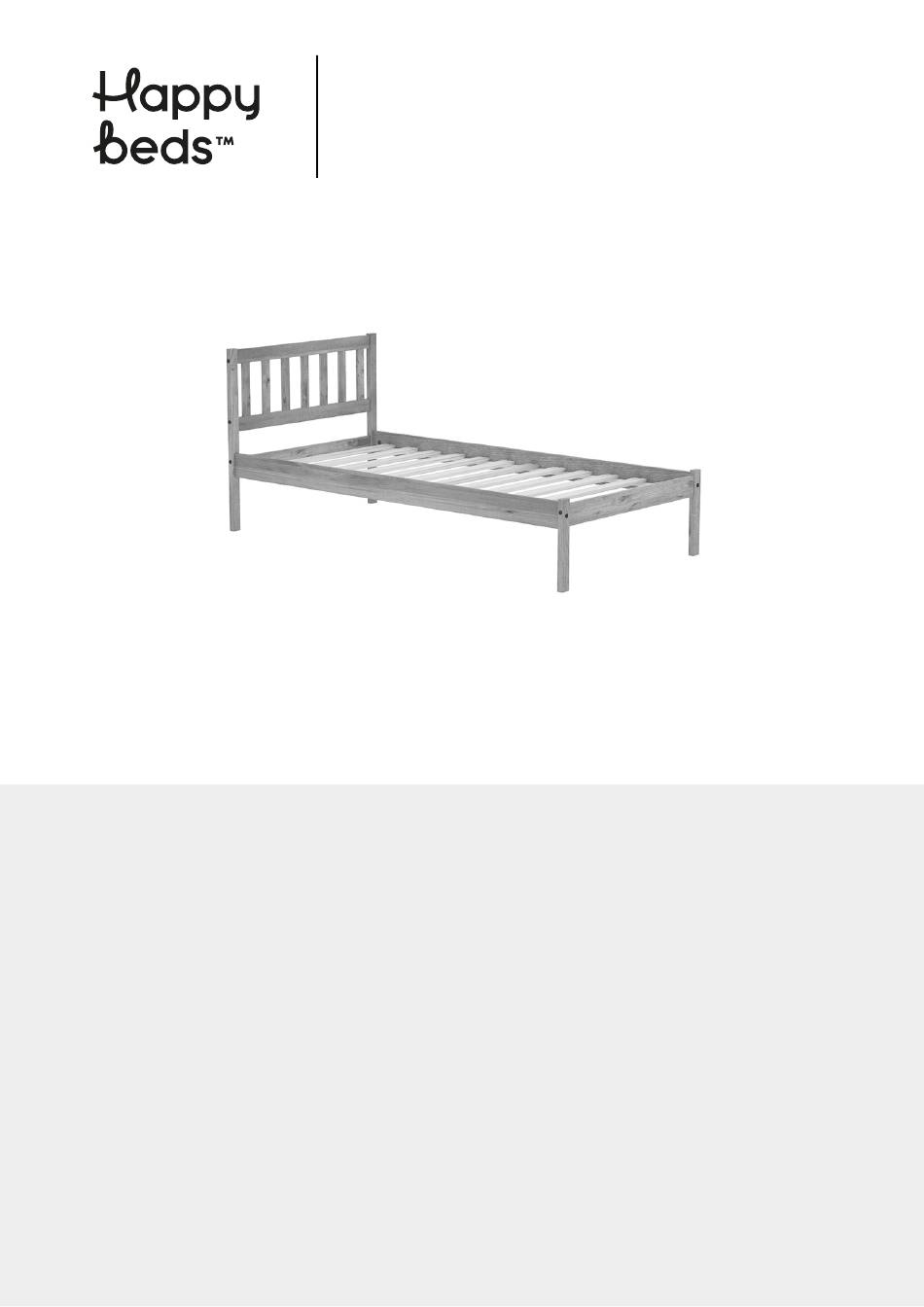

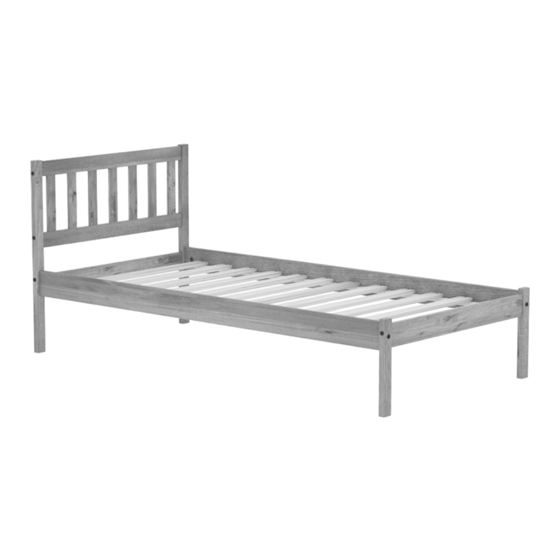

Lisbon Pine Wood Frame -3FT
Assembly Instructions
.
.
www.happybeds.co.uk
Advertisement
Table of Contents
Related Manuals for Happy Beds Lisbon Pine Wood Frame 3FT
Summary of Contents for Happy Beds Lisbon Pine Wood Frame 3FT
- Page 1 Lisbon Pine Wood Frame -3FT Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings. Assemble the product as close to its intended final location/room as possible.
- Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
- Page 3 Code: S000238 1 Headboard post x 2 6 Side rail x (85 x 4.5cm) 2 (190 x 11.2cm) 2 Left footboard post (38 x 4.5cm) Top headboard rail x 2 (88.8 x 6.5cm) 3 Right footboard post (38 x 4.5cm) Bottom headboard rail (88.8 x 6.5cm) Slat x 12...
- Page 4 Step 1: Insert hardware part B to the side rails (6) using a small mallet (not provided). Vendor: S000238 DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Insert hardware part A to the top headend rails (7), bottom headend rail (8) and footend panel (9) using a small mallet (not provided).
- Page 5 Step 4: Attach the headend post (1) to the top headend rails (7) Vendor: S000238 and bottom headend rail (8) using hardware parts D and G. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Attach the left footend post (2) and right footend post (3) to the footend panel (9) using hardware parts D and G.
- Page 6 Step 6: Attach the side rails to the headend posts at the same time using hardware parts E, F and G. Vendor: S000238 DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 7: Fix slats (4) to the side rails using hardware parts C and H with a screwdriver (not provided).
- Page 7 Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. adhered to, it could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes...
