Happy Beds HIGHGATE Assembly Instructions Manual

Happy Beds HIGHGATE Assembly Instructions Manual

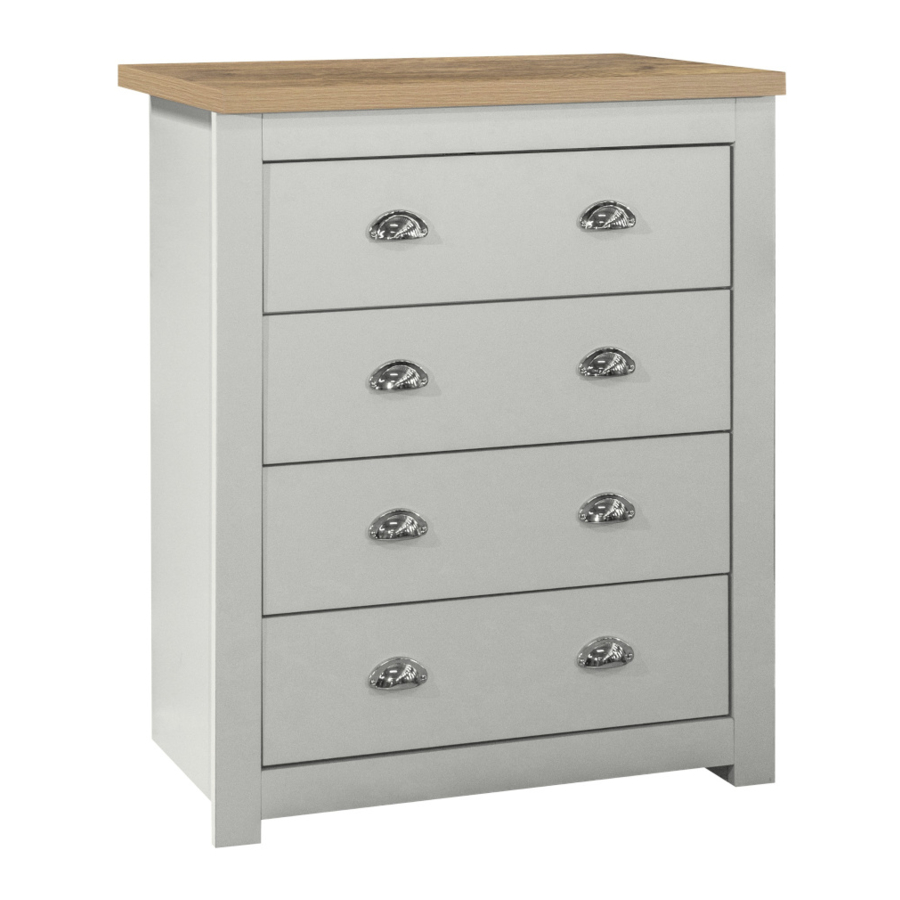

4 drawer chest

Advertisement

Quick Links

IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING
YOUR HIGHGATE 4 DRAWER CHEST.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
HEALTH & SAFETY:
DO NOT use this item if any parts are missing, damaged or worn.
DO NOT use this item unless all fixings are secured.
Please keep small parts out of reach of children.
Always use on a level, even surface.
It is recommended that two people handle and assemble the item.
Birlea advise you use the wall straps provided to further enhance the safety of this product.
CARE & MAINTENANCE:
Assemble in the room of use.
To avoid damages assemble the item on a soft, clean surface
Periodically check all screws & fixings to ensure they are secure.
DO NOT push the item as this will damage the base.
Always lift the item with two people to reposition.
Keep any sharp objects away from the item.
This product is manufactured in pine which is a wood with natural characteristics including knots,
grains, clusters or indentations.
On unpacking the item you may notice an odour due to production processes but this will disappear
after a period of time.
DO NOT place the item next to a radiator or direct sunlight - this item is susceptible to temperature
change. It is recommended an even room temperature be maintained with no sudden fluctuations.
DO NOT place hot or cold items directly onto the surface of the item as marking will occur
For general cleaning use a duster or damp cloth (almost dry) not wet - do not use soap and water,
detergents, aerosol sprays or any polish as use of these materials would invalidate any claims.
DO NOT place the item onto wet or damp flooring as staining may occur to the floor.
ASSEMBLY INSTRUCTIONS
HIGHGATE 4 DRAWER CHEST
www.birlea.com
Vendor: S000398
Page 1 of 8
