Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.

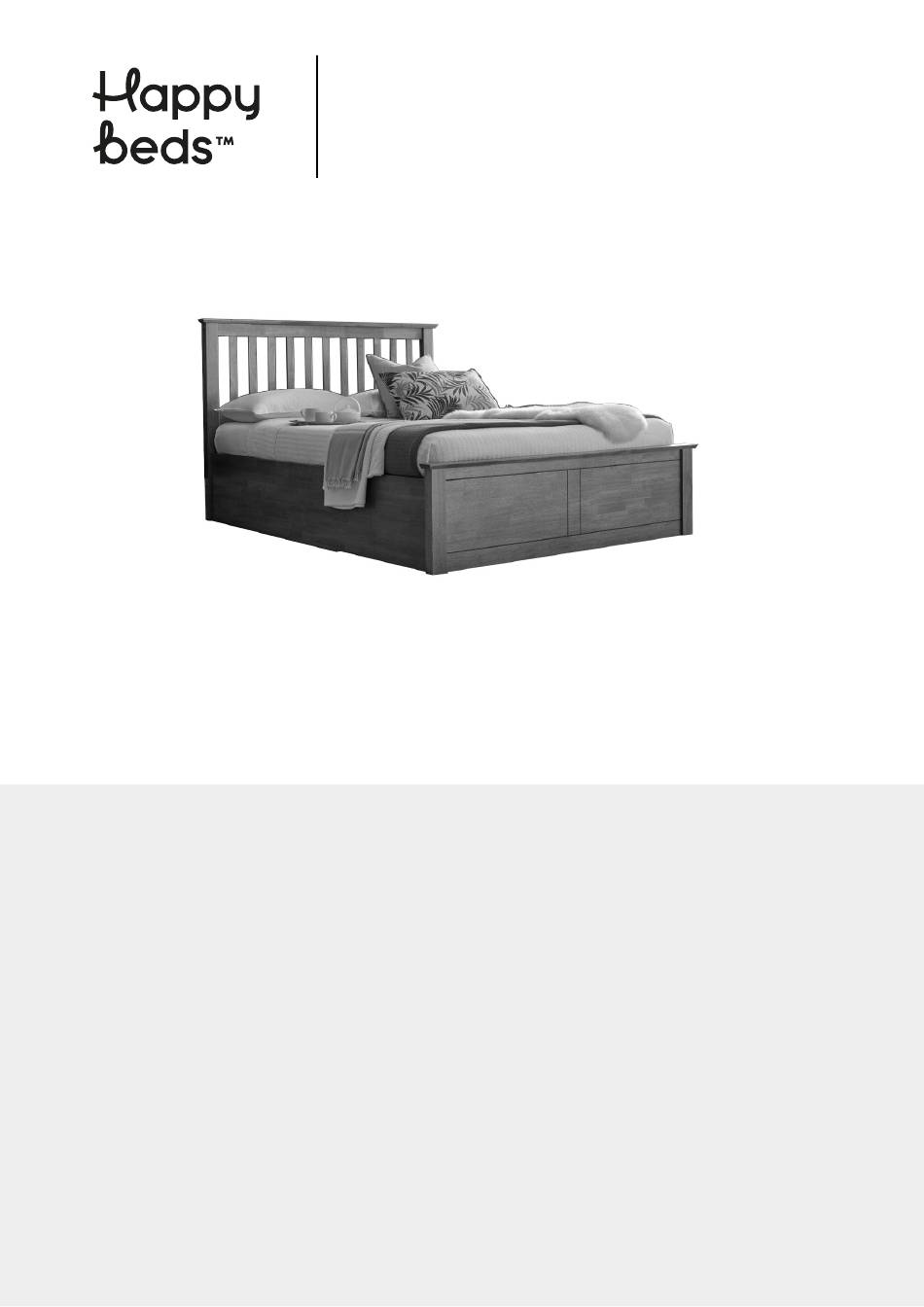

Malmo 4FT Bed Frame
Assembly Instructions
.
.
www.happybeds.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Malmo 4FT Bed Frame and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Happy Beds Malmo 4FT Bed Frame

Summary of Contents for Happy Beds Malmo 4FT Bed Frame

  • Page 1 Malmo 4FT Bed Frame Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
  • Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
  • Page 3 Parts List Parts Description Headboard Frame 1 / 4 Left Wooden Post 2 / 4 Right Wooden Post Footboard 1 / 4 Left Side Rail Right Side Rail Centre Storage Panel 1 4 / 4 Centre Storage Panel 2 Back Storage Panel Hydraulic Arm Spacer Side Metal Bar End Metal Bar (HEADBOARD)
  • Page 4 Hardware List (Found in box #) Parts Description Mini Fix 8 x 30 mm Wooden Dowel Metal Corner Block M6 x 90 mm RBW + Barrel Nut M8 x 25 mm JCBB Bolt RBW M8 x 15 mm JCBB Bolt RBW 3 / 4 M8 x 35 mm JCBB Bolt (BLACK) M6 x 15 mm JCBC Bolt RBW...
  • Page 5 Step 1: Attach the headboard frame (1) and back storage panel (9) to the left wooden post (2) and right wooden post (3). Secure the headboard frame using hardware parts B, D and P, then secure the back storage panel with hardware parts B, H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 6 Step 2: Firstly, Loosen the Hex Nut from the Left & Right Hydraulic Base Support ,then fix the hydraulic pump to each hydraulic base using the same Hex Nut & V. (shown in diagram 2.1. ) Next, fix the left & right hydraulic spacer together with hydraulic base supporter to the both side rails using bolts G and than screw the minifix part A to the both side rails as shown in diagram 2.2.
  • Page 7 Step 3: Join together the left side rail (5) and right side rail (6) with the centre storage panels ① (7) and centre storage panels ② (8) by using hardware parts A and B. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 4: Attach the headboard frame (1) and footboard (4) using hardware part E.
  • Page 8 Step 5: Insert the large base panel (19) and small base panel (20) . DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 6: Fix metal corner block C to the edge of footboard and side rails with bolt F as shown. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 9 Step 7: Join together all the bed base parts (11),(12),(13) and (14) by using hardware parts L,S,T. Important note: Please assemble follow arrow direction. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 8: Attach hardware parts J and K using hardware part L.
  • Page 10 Step 9: Insert the slats (15) to hardware parts N and O then press into the base making sure they are secure. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 10: Assemble the bed base on the right &...
  • Page 11 Step 11: Tighten all bolts and screws now. Top view of assembly bed. DO NOT use any power tools as this may damage the frame and will invalidate any claim. HEADBOARD HEADBOARD FOOTBOARD FOOTBOARD Page 12 of 15...

  • Page 12: Important Note

    IMPORTANT NOTE WHEN THE BED IS BUILT AND THE MATTRESS FRAME IS AT 45 DEGREE ANGLE PLEASE PLACE THE MATTRESS ON THE BED. PLEASE NOTE THAT THE WEIGHT OF THE MATTRESS IS REQUIRED TO HELP CLOSE THE BED. TO LOWER THE SLEEPING PLATFORM STAND AT THE FOOT END OF THE BED AND PUSH SHARPLY DOWNWARDS USING BOTH HANDS.
  • Page 13 CAUTION : PLEASE USE HYDRAULIC PUMP STOPPER FOR SAFETY PURPOSE. HYDRAULIC PUMP STOPPER (LOCK IN) (LOCK OUT) Page 14 of 15...
  • Page 14 Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. adhered to, it could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes...
