Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.

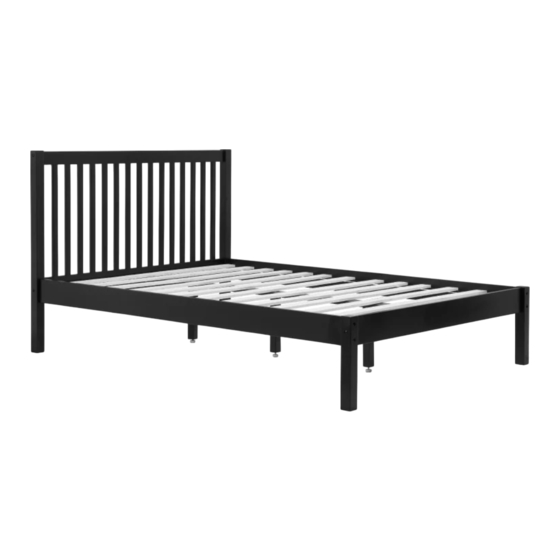

Nova Bed Frame
4ft / 4ft6 / 5ft
Assembly Instructions
.
www.happybeds.co.uk
Advertisement
Related Manuals for Happy Beds Nova Bed Frame 4ft
Summary of Contents for Happy Beds Nova Bed Frame 4ft
- Page 1 Nova Bed Frame 4ft / 4ft6 / 5ft Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings. Assemble the product as close to its intended final location/room as possible.
- Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
- Page 3 Parts List Hardware List(found in box2) Part Description Part Description Headboard Left Post M6×100mm Bolt Headboard Right Post Footboard Right Post φ10×30mm Dowel Footboard Left Post Allen Key Side Rail φ4×30mm Screw Headboard Panel 40×40mm Pad Footboard Panel φ7×50mm Screw Slat Support Leg Centre Rail...
- Page 4 Step 2: Insert hardware part C to the footboard panel (7) using a small mallet (not provided). Attach the footboard left post(4) and footboard right post(3) to the footboard panel(7) using hardware parts A,B,andD. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 5 Step 4: Attach support legs(9) and centre rail (10) to the headboard posts using hardware E with screwdriver(not provided) and G with hardware D. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Fix the slats(8)to the side rails(5)using hardware E with screwdriver(not provided).
-
Page 6: General Care And Maintenance
Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. Periodically check all screw & fixings to ensure they are secure. When moving your product, carefully lift into place. Never drag or push the product across the floor as this will cause damage to the joints.
