Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.

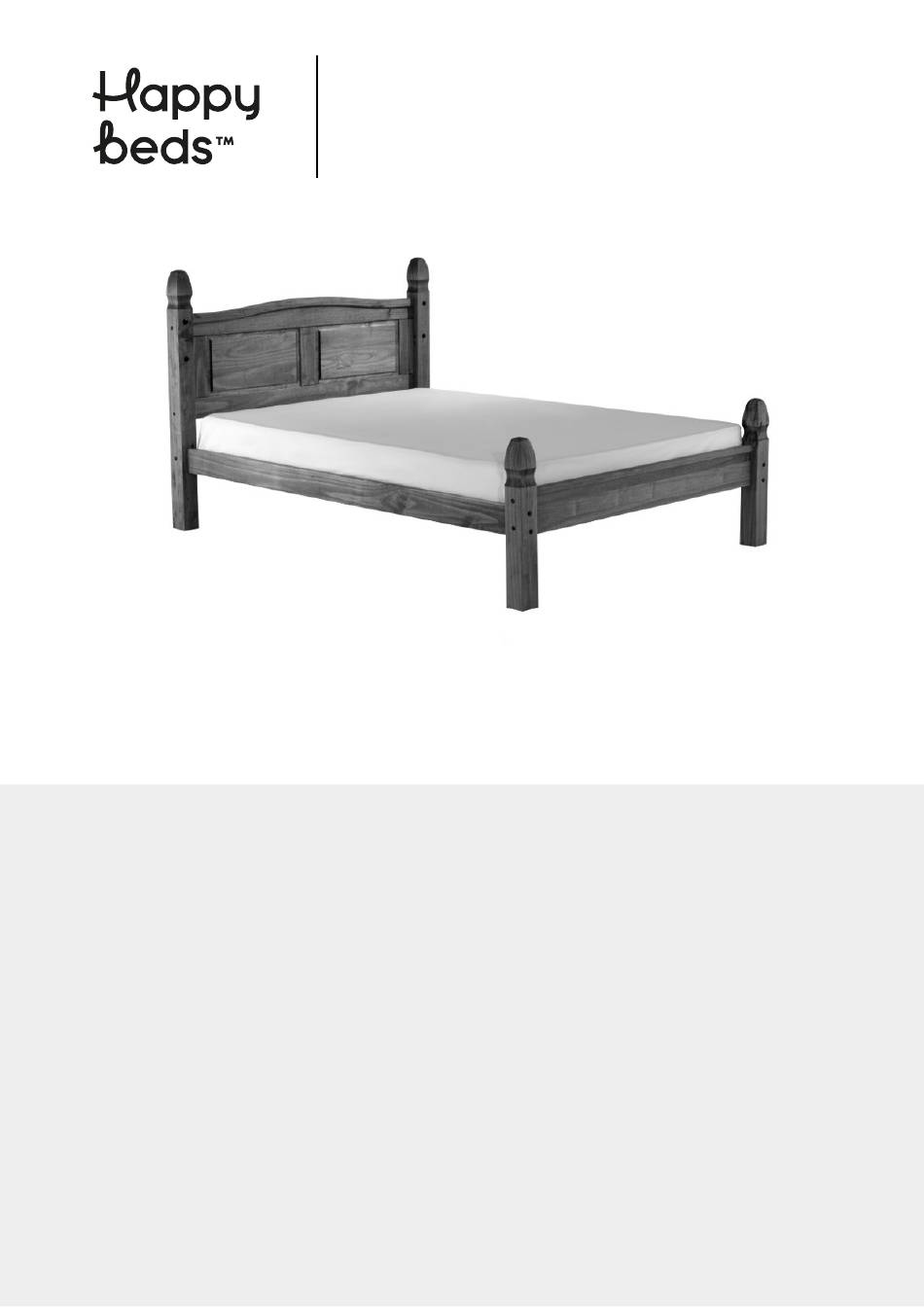

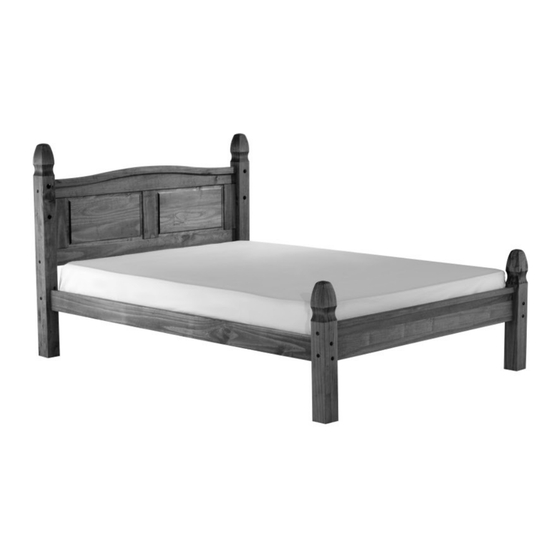

Corona Low End Bed - 3ft
Assembly Instructions
.
.
www.happybeds.co.uk
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Happy Beds Corona
Summary of Contents for Happy Beds Corona
- Page 1 Corona Low End Bed - 3ft Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
- Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
- Page 3 Left headboard post (110 x 8.2cm) - Box 2 Right headboard post (110 x 8.2cm) - Box 2 1 Headboard panel (86 x 49cm) - Box 1 Left footboard post (56 x 8.2cm) - Box 2 2 Headboard rail (86 x 9.2cm) - Box 1 Right footboard post (56 x 8.2cm) - Box 2 3 Footboard panel...
- Page 4 Step 1: Insert hardware part B to the side rails (8) using a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Insert hardware part A to the headend panel (1), footboard panel (3) and Headboard rail (2) using a small mallet (not provided).
- Page 5 Step 3: Attach the left headboard post (4) and right headboard post (5) to the headend panel (1) and headend rail (2) using hardware parts N and H. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 4: Attach the left footend post (6) and right footend post (7) to the footend panel (3) using hardware parts H and D.
- Page 6 Step 5: Attach the side rails (8) to the headboard posts using hardware parts H, E and F. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 6: Attach the footend using hardware parts H, E and F. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 7 Step 7: Fix slats (9) to the side rails (8) using hardware parts J and C with a screwdriver (not provided). Make sure to start from the ends and work towards the middle. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 8: Insert hardware part G using a small mallet (not provided).
-
Page 8: General Care And Maintenance
Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. Periodically check all screw & fixings to ensure they are secure. When moving your product, carefully lift into place. Never drag or push the product across the floor as this will cause damage to the joints.
