3
IMPORTANT: BEFORE STARTING TO ASSEMBLE THE BED - PLEASE READ THESE INSTRUCTIONS CAREFULLY.
An instructional video of the Operation of the Ottoman Lift Up system is available via YouTube using
the following address:

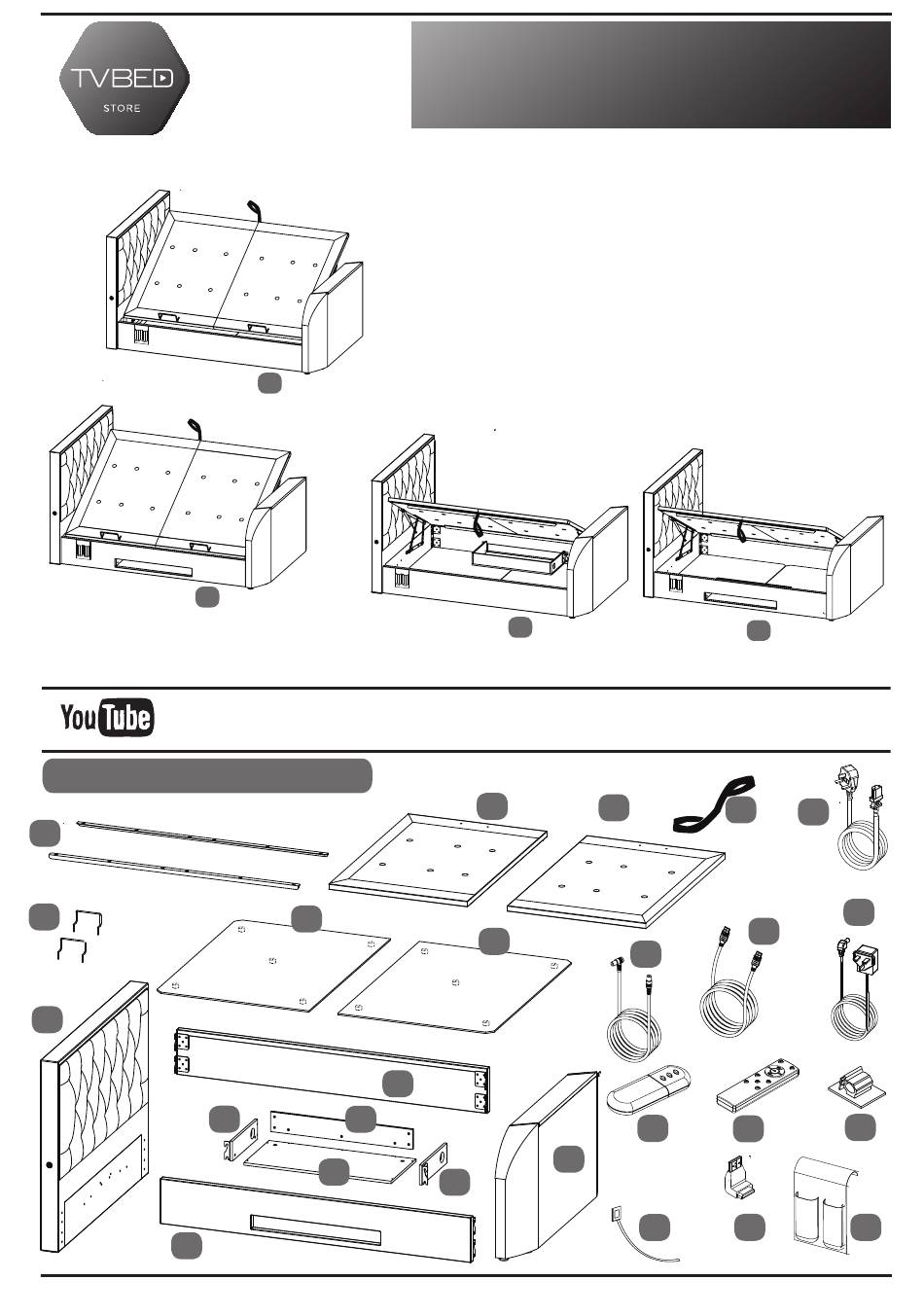

Parts Identification
7
8
1
3
200727
4
13
4
9
11
12
Page 1 of 20
LYON OTTOMAN TV BED
PLEASE READ this sheet prior to assembly to familiarise
yourself with the various stages of construction. Carefully
open the pack supplied and check the contents against the
parts and fittings check list.
Do not destroy any of the packaging until you are certain
that you have all the necessary parts for the assembly.
Please ensure that the packaging is disposed of in
a safe environmentally friendly way.
CAUTION: There are small components used in the
construction of this unit. These loose items should be kept
away from young children during assembly, to avoid the
danger of choking.
3
4
https://youtu.be/hyq4zm7h_yU
5
6
13
2
10
3
14
15
17
16
19
20
22
23
18
21
24
Advertisement
Table of Contents
Related Manuals for Happy Beds LYON
Summary of Contents for Happy Beds LYON
- Page 1 LYON OTTOMAN TV BED PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction. Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
-
Page 2: Parts Checklist
Parts Checklist Description Ref. Description Ref. Headboard Storage Base Boards Footboard Hand Lifting Strap Side Rail - With Media Tray Slot Mains Power Lead - 3 mt Side Rail - Without Media Tray Slot Aerial Lead - 4 mt Mattress Base Board HDMI Leads - 2.8 mt Mattress Base Board USB Power Supply... -
Page 3: Additional Tools Required
HARDWARE NEEDED FOR FITTING MATTRESS BASEBOARDS (PACK D) Ref. Description Ref. Description Bolts (M8x30mm) for Flange Lock-Nuts fitting metal tie rails (7) and (M8) for gas-lift pistons only. gas-lift mechanisms (E) to mattress base boards (5&6). Spanner (for M8 nut) Spring Washers for M8 bolts &... - Page 4 Bed Assembly - Use Pack 'A&B' CHOOSE WHICH SIDE YOU WANT TO LIFT FROM Step LIFT UP FROM LEFT E (a) E (b) CHECK THIS DIAGRAM AND IF ACCESS IS NEEDED FROM LEFT SIDE OF BED, FIT BOTH LIFT MECHANISMS TO RIGHT SIDE OF THE BED. BOLT INTO THE HOLES MARKED (R) WITH BLUE LABELS.
- Page 5 Bed Assembly - Use Pack 'A&B' Step LIFT UP FROM RIGHT E (a) E (b) CHECK THIS DIAGRAM AND IF ACCESS IS NEEDED FROM RIGHT SIDE OF BED, FIT BOTH LIFT MECHANISMS TO LEFT SIDE OF THE BED. BOLT INTO THE HOLES MARKED (L) WITH RED LABELS. THE MECHANISMS ARE LABELED E (a) &...
-
Page 6: Electrical & Cable Connections
Bed Assembly - Use Pack 'B' Step 3or4 1&2 Electrical & Cable Connections Step Connect Main Power Lead (15) to your wall socket - for safety it must have an earthed power supply. Page 6 of 20... - Page 7 Electrical & Cable Connections Step STOP DOWN Press the “UP” button once to raise TV lift to the top. Note: For illustration purposes Step only, TV connections may vary. TIP: TV Power Lead BEFORE FITTING THE TV, supplied with your TV PUSH CABLES THROUGH EACH DUCT FROM THE TOP.
- Page 8 TV Installation - Normal Vesa Fixing IF SCREWS ARE SUPPLIED WITH TV, PLEASE USE THOSE IN PREFERENCE Step Screw-Washer sets Counter-Sunk Counter-Sunk Screws a x2 (M8x25mm). Use (M6x12mm) Screws (M4x12mm) 5mm Allen Key (D) b x2 Allen Key (4mm) Allen Key (2.5mm) Loosen Tighten Page 8 of 20...
- Page 9 TV Installation - Vesa 100x100 Step REMOVE CROSS-BRACKET 100mm AND FIX DIRECTLY TO BACK OF TV IF SCREWS ARE SUPPLIED WITH TV, PLEASE USE THOSE IN PREFERENCE Step Screw-Washer Counter-Sunk Counter-Sunk Screws a x2 sets (M8x25mm) (M6x12mm) Screws (M4x12mm) Use 5mm Allen Key (D) b x2 Allen Key (4mm)
- Page 10 TV Installation Kit - Vesa 100x100 Step Loosen Tighten Page 10 of 20...
- Page 11 Electrical & Cable Connections Note: For illustration purposes Step only, TV connections may vary. REMOVE DUST-CAP OPTICAL TV Power Lead supplied with your TV 90º HDMI ADAPTER IF REQUIRED PLUG IN - KEEP ALL CABLES TIGHT - USE CLIPS & TIES PROVIDED. Keep wires tight - peel off cover from cable clips &...
-
Page 12: Bed Assembly
Electrical & Cable Connections Step TV Power Lead supplied with your TV STOP DOWN Press the “DOWN” button once to lower TV lift to the bottom. Bed Assembly Step IMPORTANT: Be careful to keep the two HDMI Leads (17) on top of the Base Boards． Main power lead (15) and Aerial lead (16) should be kept under the base boards &... - Page 13 Bed Assembly - Use Pack 'B' Step 1&2 3or4 100% WHEN ALL BOLTS HAVE BEEN FITTED AND THE BED IS SQUARED UP AS IN THE DIAGRAM, TIGHTEN 100% Media Tray Assembly- Use Pack 'C' Step Page 13 of 20...
- Page 14 Media Tray Assembly - Use Pack 'C' Step Step Page 14 of 20...
- Page 15 Mattress Base Board Assembly - Use Pack 'D' Step 1 16 & Page 15 of 20...
- Page 16 Mattress Base Board Assembly - Use Pack 'D' Step 1 17 SMALL GAP Page 16 of 20...
- Page 17 Mattress Base Board Assembly - Use Pack 'D' Step Note: Be very careful what you store under the bed -the top of an item, like a suitcase or a box, must not touch the baseboards or they may get damaged. Maximum storage height is 280mm.
-
Page 18: General Information
TV Bed - Safety Information GENERAL INFORMATION It is very important not to place any vessel containing liquids, e.g. drinks or vase of flowers, on top of the TV footboard which may accidentally spill and enter the TV compartment as this could cause damage to the TV and/or the TV lifting equipment. -
Page 19: Troubleshooting
DOWN whichever direction was chosen. ③. Re-connection is now completed. Annecy & Lyon Audio System Occasionally you may find the radio wave connection between Remote Control and Audio System is lost, probably due to atmospheric conditions. In that case please follow these simple instructions: 1. -
Page 20: Button Instructions
Audio System Features and Instructions 1. Follow the instructions in this Assembly Guide for assembling your Audio TV Bed. 2. Once power is connected to bed, system voice shall report “power on”. 3. The default setting is Bluetooth mode. Bluetooth name is “Remo 4.9A or 4.9ASW”. 4.
