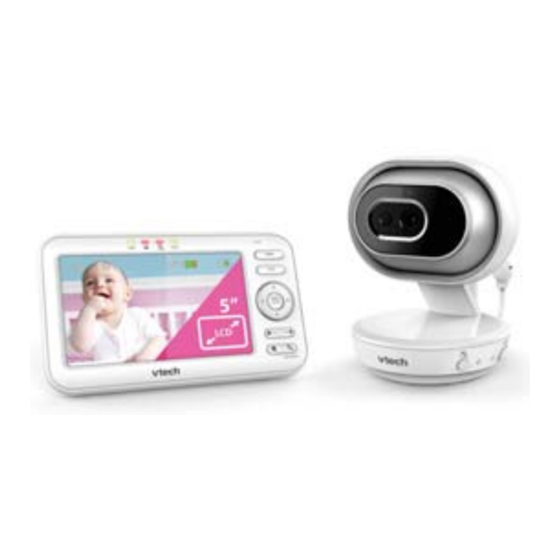

VTech VM5253 - Breathing And Video Monitor Manual
  1. Manuals
  2. Brands
  3. VTech Manuals
  4. Baby Monitor
  5. VM5253
  6. User manual

VTech VM5253 - Breathing And Video Monitor Manual

Advertisement

Table of Contents
Contents
VTech VM5253 - Breathing And Video Monitor Manual

What's in the box

What's in the box

Connect and charge the battery

Install the parent unit battery

The parent unit runs on rechargeable battery or AC power. To continuously monitor your baby, keep the parent unit connected to AC power. With the battery alone, the parent unit can cordlessly run for a short time only.

NOTES

  • Use only the battery supplied with this product.
  • If the parent unit will not be used for a long time, disconnect and remove the battery to prevent possible leakage.
  1. Press down on the battery compartment cover to pull it out.
  2. Make sure the label THIS SIDE UP is facing up while inserting.the battery.

Replace the battery

To replace the battery, press down on the battery compartment cover and pull it out, then follow the steps above to install the battery.

Connect the baby monitor

NOTES

  • Use only the power adapters supplied with this product.
  • Make sure the baby monitor is not connected to an electric outlet that is controlled by a switch.
  • Connect the power adapters in a vertical or floor mount position only. The adapters' prongs are not designed to hold the weight of baby monitor, so do not connect them to any ceiling, under-the-table, or cabinet outlets. Otherwise, the adapters may not properly connect to the outlets.
  • Make sure the parent unit, the baby unit and the power adapter cords are out of reach of children.

Connect the baby monitor

Charge the parent unit battery

When you have connected the parent unit and installed its battery for the first time or after power outage, the parent unit powers on automatically. The battery icon indicates the battery status (see the following table).

Notes

  • The parent unit battery is fully charged after 3 hours of continuous charging.
  • It takes longer to charge the battery when the parent unit is turned on. To shorten the charging time, turn the parent unit off while charging.
  • The standby time varies depending on the sensitivity level you set, your actual use and the age of the battery.
Battery indicators Battery status Action
The battery icon is off and displays . No battery is installed but operates using AC power, or the battery has been installed incorrectly. Install the parent unit battery. Charge without interruption (at least 30 minutes).
The screen displays Battery low at Parent Unit and .
The light flashes. 		The battery has very little charge and may be used for only a short time. Charge without interruption (about 30 minutes).
The battery icon becomes solid . The battery is fully charged. To keep the battery charged, connect it to AC power when not in use.

BEFORE USE

NOTES

  • This baby monitor is intended as an aid and not a medical monitor. It is not a substitute for proper adult supervision, and should not be used as such.
  • The movement breathing sensor is NOT a medical device and is NOT designed to prevent cases of Sudden Infant Death Syndrome (SIDS).

Test your baby monitor

You may test the baby monitor before initial use, and at regular times thereafter.


For hearing protection, make sure the parent unit is more than 3 feet (1 meter) away from the baby unit.
If you hear any high-pitched noise, move the parent unit further until the noise stops.
You can also press on the parent unit to reduce the noise.

  1. Make sure your baby unit and parent unit are on.
  2. The parent unit displays images from the baby unit.
  • Speak towards the microphone of the baby unit. You will hear the sound at the parent unit.

Note

  • When the parent unit displays and then No Link to CAM, and the LINK LED light flashes, move the parent unit closer to the baby unit (observe the minimum distance of 3 feet / 1 meter). You can also check if the baby unit is connected to a live power socket and switched on.

Tip
Increase the speaker volume of the parent unit if you cannot hear the sounds transmitted from the baby unit.

Positioning the baby monitor


Keep the baby unit out of the reach of your baby. Never place or mount the baby unit inside the baby's crib or playpen.

Notes

  • To avoid interference from other electronic devices, place your baby monitor at least 3 feet (1 meter) away from devices such as wireless routers, microwaves, cell phones and computers.
  • A moving object, like fan, may be interpreted by the BMS as a baby's movement. To avoid this, ensure that there is no moving objects in the detection range.
  1. Place the baby unit more than 3 feet (1 meter) away from your baby.
  2. Adjust the angle of the baby unit camera to aim at your baby.
  3. Bend down the temperature sensor so that it stays away from baby unit to avoid deviation of temperature detection.
  4. Place the parent unit more than 3 feet (1 meter) away from the baby unit to avoid screeching noise.


The default volume of your parent unit is level 4, and the maximum volume is level 7.
If you experience high-pitched screeching noise from your baby monitor while positioning:

  • Make sure your baby unit and parent unit are more than 3 feet (1 meter) apart, OR -
  • Lower the volume of your parent unit.

Operating range

The operating range of the baby monitor is up to 1000 feet (300 meters) outdoors or 160 feet (50 meters) indoors. The actual operating range may vary depending on the environmental conditions and other interferences such as walls, doors and other obstructions.

Set the breathing movement sensor (BMS)

With the breathing movement sensor (BMS) preset to on, your baby unit monitors the movements in your baby's room. Make sure the baby unit is able to view your baby's trunk without obstacle such as the crib's structure. Then, set the detection range and optimize the BMS.

Set detection range:

Tips

  • Possible displacement of the crib may in turn change the distance between the baby unit and your baby.
  • Consider the tendency of movements of the baby. If your baby is about 6 feet away from the camera, and your baby tends to be closer to the camera, choose 3-8 feet; on the contrary, choose 5-10 feet if the baby tends to be away from the camera.

The BMS monitors movements within the detection range. Measure the distance between your baby and the baby unit, then choose an appropriate detection range.

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Breathing Movement Sensor, then press SELECT.
  3. Press or to choose Range, then press SELECT.
  4. Press or to choose the desired detection range, then press SELECT.

Optimize the BMS:
Optimization improves the detection accuracy of the BMS.

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Breathing Movement Sensor, then press SELECT.
  3. Press or to choose Optimize, then press SELECT.
  4. Press SELECT to continue.
  5. Check the baby unit's location and angle again to ensure your baby can be clearly seen and is within the selected detection range. Then, press SELECT.
  6. Keep your baby more than 10 feet away from the baby unit temporarily.
  7. Press SELECT to start optimization. Stay away from the baby unit's surrounding during optimization.
  8. A green tick displays when the optimization finishes. The parent unit displays images from the baby unit.
  9. Put your baby back into the camera's view. Make sure your baby is within the selected detection range.

Notes

  • The optimization takes about 3 minutes to process.
  • During optimization, temperature alert tone, low battery tone, sound-activated screen and dim mode are temporarily disabled. They will be turned on again automatically when the optimization is done.
  • Optimize the BMS when you power on the BMS or move your baby unit to a new location.

To turn on or off the BMS:

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Breathing Movement Sensor, then press SELECT.
  3. Press or to choose Power On/Off, then press SELECT.
  4. Press or to choose On or Off, then press SELECT.

Status icons showing breathing or amplitude of movements:
When the BMS is on, the parent unit shows your baby's breathing or amplitude of movements.
indicates large amplitude of fast movements detected.
in green color indicates breathing or movements detected.
in red color indicates the movements are dropping gradually.
in gray color indicates no movement detected.

To reset BMS settings to default:

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Breathing Movement Sensor, then press SELECT.
  3. Press or to choose Reset Default, then press SELECT.

To turn on or off the absence alert:
When the BMS is on, you may turn on the absence alert, so that the parent unit beeps and displays an alert message when no movement is detected. The absence alert is preset to on. Before you carry your baby away from the camera range, you may turn off the absence alert using either the parent unit or the baby unit.

  • Press on the parent unit or the baby unit to turn off the alert. The light on both parent unit and baby unit flashes.
  • Press on the parent unit or the baby unit again to turn on the alert. The light on both parent unit and baby unit turns off.

USING THE BABE MONITOR

Power on or off the baby unit

  • Slide the ON/OFF switch to ON to turn on the baby unit. The ON/OFF LED light turns on.
  • Slide the ON/OFF switch to OFF to turn off the baby unit. The ON/OFF LED light turns off.

Power on or off the parent unit

  • Press and hold POWER to turn on the parent unit. The screen turns on.
  • Press and hold POWER again to turn off the parent unit. The screen turns off.

Turn on or off the parent unit screen
You can turn on or off the parent unit screen without powering off the parent unit. You can still hear sound from the baby unit.

  • Press and hold LCD ON/OFF on the parent unit to turn off the screen.
  • Press any keys on the parent unit to turn on the screen again.

Adjust speaker volume

For parent unit:
Press on the parent unit at any time when viewing images.

For baby unit:
The baby unit speaker volume determines the lullaby volume and talkback volume transmitted from parent unit. It can be adjusted in the parent unit.

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Volume on CAM, then press SELECT.
  3. Press or to choose the desired volume level, Level 1 is the softest while Level 5 is the loudest. Then, press SELECT to confirm your selection.

Zoom

  • Press to zoom in.
  • Press or to move the zoomed image downward or upward.
  • Press or to move the zoomed image leftward or rightward.
  • Press again to zoom out.

Talk

You can use the TALK function of the parent unit to comfort your baby.

  1. Press and hold TALK on the parent unit. The TALK light turns on.
  2. Speak towards the microphone on the parent unit. Your voice is broadcast to the baby unit.
  3. Release the TALK key to stop the broadcast.

Notes

  • The parent unit speaker is muted during voice broadcast. Sound transmission from the baby unit resumes after TALK is released.
  • The baby unit's talkback volume can be adjusted via the parent unit menu.

Lullaby

The baby monitor has five lullabies and four soothing sounds for you to comfort your baby. You can play lullabies or soothing sounds on the baby unit by controlling remotely with the parent unit.

To play lullabies:

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Lullaby on CAM, then press SELECT.
  3. Press or to choose Play Melodies, then press SELECT.
  4. Press or to choose a lullaby, or choose Play All, then press SELECT.
  • If Play All is selected, the five lullabies will be played one after the other, until all of them are played.
  1. When the desired lullaby is selected, press or to choose Play, then press SELECT.

To play soothing sounds:

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Lullaby on CAM, then press SELECT.
  3. Press or to choose Play Soothing Sounds, then press SELECT.
  4. Press or to choose a soothing sound, then press SELECT.
  5. Press or to choose Play, then press SELECT.

Note
The lullaby playback on the baby unit will be paused when receiving talkback from the parent unit.

To stop lullabies or soothing sounds:

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Lullaby on CAM, then press SELECT.
  3. Press or mto choose Stop, then press SELECT.

To set auto timer for lullabies:
While the baby unit is playing a lullaby or soothing sound, the auto timer feature automatically stops the lullaby or soothing sound after playing for 15/30/45/60 minutes. You can set auto timer for lullabies with the parent unit.

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Lullaby on CAM, then press SELECT.
  3. Press or to choose Auto Timer, then press SELECT.
  4. Press or to choose the desired lullabies duration, then press SELECT to confirm your selection.
    After 15/30/45/60 minutes, the lullaby or soothing sound will stop automatically.

Set the language

You can select a language (English, French or Spanish) to be used in all screen displays.

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Language, then press SELECT.
  3. Press or to choose English, Français or Español, then press SELECT to confirm your selection.

Adjust LCD brightness

You can change the brightness of the parent unit screen from Level 1 to Level 5. The LCD brightness is preset to Level 3.

  1. Press MENU when the parent unit is idle.
  2. Press or to choose LCD, then press SELECT.
  3. Press SELECT again to choose Brightness.
  4. Press or to choose the desired level of brightness, then press SELECT to confirm your selection.

Turn on and off the dim mode

The dim mode is preset to on to help you save the parent unit power. Your parent unit display will dim automatically after 10 minutes of inactivity, in which there is neither key pressed nor alert received from the baby unit.

  1. Press MENU when the parent unit is idle.
  2. Press or to choose LCD, then press SELECT.
  3. Press or to choose Dim Mode, then press SELECT.
  4. Press or to choose On or Off, then press SELECT to confirm your selection.

Note
While the screen is dimmed, any keypress or alert message will trigger the screen to return to the preset brightness level. After 10 minutes of inactivity, it will dim again.

Adjust the sound sensitivity of the baby unit

You can choose to hear sounds from the baby unit all the time, or to hear sounds that exceed a certain level. You can use the parent unit to adjust the microphone sensitivity of your baby unit. The higher the sensitivity level, the more sensitive the baby unit is in detecting sounds for transmitting to the parent unit. The VOX sensitivity level is preset to HIGHEST.

VOX Sensitivity level Highest High Medium Low Lowest
Description The parent unit speaker is constantly on, and you will hear all sounds (including background noises) from your baby's room. The parent unit speaker turns on for soft babbling and louder sounds from your baby. It remains quiet when your baby sleeps soundly. The parent unit speaker turns on for loud babbling and louder sounds from your baby. It remains quiet when your baby makes soft sounds. The parent unit speaker turns on for crying and louder sounds from your baby. It remains quiet when your baby makes soft sounds. The parent unit speaker turns on for loud crying or screeching sounds from your baby. It remains quiet when your baby makes soft sounds.
  1. Press MENU when the parent unit is idle.
  2. Press or to choose VOX Sensitivity, then press SELECT.
  3. Press or to choose the desired sensitivity level, then press SELECT to confirm your selection.

Note
As long as the Sound-activated Screen setting is On, the screen will turn on automatically when VOX sensitivity is triggered, despite it was off earlier.

Tips

  • You can adjust the baby unit placement to improve the sound detection.
  • If you want to use a sound machine or white noise machine for natural white noise while using this baby monitor to check on your baby, you can:
    • Lower the volume of your sound machine or white noise machine; or
    • Lower the sensitivity level of your baby monitor to Medium or below. Default level is the highest level.

Turn on or off the sound activation

When sound activation is on, as long as no sound is detected within 50 seconds, the parent unit screen will turn off automatically to save power.

When your baby unit detects a sound, which exceeds the selected sensitivity level, the sound activation triggers the parent unit screen to turn on automatically. When no sound is detected within 50 seconds, the screen will be off again.

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Sound-activated Screen, then press SELECT.
  3. Press or to choose On or Off, then press SELECT to confirm your selection. The screen returns to main menu.

Note
If the sound sensitivity is set to Highest, the parent unit screen may remain on continuously even though sound activation is on. This depends on whether the baby unit detects any sounds.

Set alert tone

Low battery tone
You can set the parent unit to beep when the parent unit operates in low battery condition.

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Alert Tone, then press SELECT.
  3. Press SELECT again to choose Low Battery Tone.
  4. Press or to choose On or Off, then press SELECT to confirm your selection.

No link alert
You can set the parent unit to beep when the link between the parent unit and the baby unit is lost.

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Alert Tone, then press SELECT.
  3. Press or to choose No Link Alert, then press SELECT.
  4. Press or to choose On or Off, then press SELECT to confirm your selection.

Monitor the temperature

Your baby unit monitors the temperature of your baby's room with its built-in temperature sensor. If the detected temperature is out of the preset temperature range, the parent unit will display an alert message.

Set temperature range
You can set the desired room temperature alert range. The minimum temperature can be set between 52 oF (11 oC) and 69 oF (20 oC). The maximum temperature can be set between 70 oF (21 oC) and 86 oF (30 oC).

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Temperature, then press SELECT.
  3. Press or to choose Minimum or Maximum, then press SELECT.
  4. Press or to choose the desired minimum or maximum temperature, then press SELECT to confirm your selection.

Temperature alert tone
You can turn on the temperature alert tone so that the parent unit will emit an alert tone if the detected temperature is out of range.

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Temperature, then press SELECT.
  3. Press or to choose Alert tone, then press SELECT.
  4. Press or to choose On or Off, then press SELECT to confirm your selection.

Temperature format
You can choose to display the temperature in Fahrenheit (oF) or Celsius (oC).

  1. Press MENU when the parent unit is idle.
  2. Press or to choose Temperature, then press SELECT.
  3. Press or to choose Format, then press SELECT.
  4. Press or to choose oF or oC, then press SELECT to confirm your selection.

PARENT UNIT OVERVIEW

PARENT UNIT OVERVIEW

  1. LED lights
    Indicate the different statuses of the parent unit. For details, refer to Parent unit lights.
  2. LCD display
  3. VOL +
  4. - VOL
  5. Zoom
    Press to zoom in or out.
  6. Absence alert pause
    Press to turn on or off the absence alert.
    LCD ON/OFF
    Press and hold to turn off the screen.
  7. Microphone
  8. POWER
  9. TALK
    Press and hold to talk to the baby unit.
  • While in a menu, press to return to the main menu or idle screen.
  • While viewing zoomed image, press and hold to move the zoomed image leftward.
  • While in a menu, press to scroll up.
  • While viewing zoomed image, press and hold to move the zoomed image upward.
  • While in a menu, press to choose an item.
  • While viewing zoomed image, press and hold to move the zoomed image rightward.
  1. MENU/SELECT
  • Press to enter the menu.
  • While in a menu, press to choose an item, or save a setting.
  • While in a menu, press to scroll down.
  • While viewing zoomed image, press and hold to move the zoomed image downward.
  1. Antenna
  2. Stand
  3. Speaker
  4. Power jack
  5. Battery compartment cover

BABY UNIT OVERVIEW

BABY UNIT OVERVIEW

  1. Infrared sensor
  2. Camera
  3. Absence alert pause
    Press to turn on or off the absence alert.
  4. Absence alert status LED light
  • Flashes when the BMS is powered on but the absence alert is turned off. No alert is seen on parent unit.
  • Off when the BMS is powered off; or when both BMS and the absence alert are turned on.
  1. Microphone
  2. ON/OFF switch
    Slide to turn on or off the baby unit.
  3. ON/OFF LED light
  • On when the baby unit is turned on and is paired to the parent unit.
  • Flashes when the baby unit link to the parent unit is lost.
  1. Antenna
  2. Temperature sensor
  3. Speaker
  4. Power jack
  5. Threaded socket
  6. Pair
    Your baby unit and parent unit provided are already paired.

PARENT UNIT LIGHTS

LINK

  • On when the parent unit is linked to the baby unit.
  • Flashes when the link to the baby unit is lost.

  • On when the parent unit is connected to AC power, or the battery is charging.
  • Flashes when the parent unit battery is low and needs charging.
  • Off when the parent unit is disconnected from AC power.

  • Flashes when the BMS is powered on but the absence alert is turned off. No alert is seen on parent unit.
  • Off when the BMS is powered off; or when both BMS and the absence alert are turned on.

TALK

  • On when the parent unit is talking to the baby unit.

PARENT UNIT ICONS

Status icons


Connection status

  • displays when strong signal strength is detected between the baby unit and the parent unit.
  • or displays when moderate or low signal strength is detected between the baby unit and the parent unit.
  • displays when the link between the baby unit and the parent unit is lost.


Lullaby

  • Displays when the baby unit being viewed is playing lullaby.


Breathing or amplitude of movements

  • Both and display when large amplitude of fast movements are detected.
  • (green) displays when breathing or movements are detected.
  • (red) displays when the movements are dropping gradually.
  • (gray) displays when no movement is detected.
  • No icon displays when the BMS is off.


Night vision

  • Displays when the baby unit being viewed has activated the night vision feature.


Zoom

  • Displays when the current image on the parent unit has zoomed in.


Temperature alert tone

  • Displays when the temperature alert tone is on.

oF or oC Real-time temperature

  • Displays the real-time temperature detected by the baby unit in Fahrenheit (oF) or Celsius (oC) (e.g. 57 oF or 14 oC).


Mute alert

  • Displays when the parent unit is talking to the baby unit.


9-level sound indicator


  • (1 to 3 bars) indicates low sound level detected by the baby unit.

  • (4 to 6 bars) indicates moderate sound level detected by the baby unit.

  • (7 to 9 bars) indicates high sound level detected by the baby unit.


Speaker volume

  • Displays the parent unit speaker volume level while adjusting


Battery status


  • animates when the battery is charging.

  • displays solid when the battery is fully charged.

  • displays when the battery is low and needs charging.


AC power without battery

  • Displays when the parent unit is connected to AC power without the battery.


Breathing Movement Sensor

  • You can set the detection range for the BMS.
  • You can optimize the sensor to improve detection accuracy.


Alert Tone
You can set the parent unit to beep when

  • the parent unit operates in low battery condition;
  • the link between the parent unit and the baby unit is lost.


Language

  • You can select a language (English, French or Spanish) to be used in all screen displays.


LCD

  • You can change the brightness of the parent unit screen, or turn on the Dim Mode to save power.


VOX Sensitivity

  • With this feature, you can choose to hear sounds from the baby unit all the time, or to hear sounds that exceed a certain level. You can use the parent unit to adjust the microphone sensitivity of your baby unit. The higher the sensitivity level, the more sensitive the baby unit is in detecting sounds for transmitting to the parent unit.


Sound-activated Screen

  • When the baby unit detects no sound, the parent unit screen stays off to save power. Once a sound is detected, the parent unit screen turns on automatically. It will then turn off again after 50 seconds of no sound detection.


Temperature

  • You can choose to set the maximum/ minimum temperature and turn on the Temperature alert tone, so that the parent unit beeps whenever the room temperature detected by the baby unit falls outside of the desired temperature range.
  • You can choose to display the temperature in Fahrenheit (oF) or Celsius (oC) on your parent unit.


Lullaby on CAM

  • You can choose a lullaby or soothing sound to comfort your baby.


Volume on CAM

  • You can adjust the volume of baby unit which determines the lullaby volume and talkback volume transmitted from parent unit.

Warning icons and messages


No link to CAM
The baby unit is out of range or is turned off.


No movement or breathing detected
The BMS detects no movement


Battery low at Parent Unit
The battery level of the parent unit is very low and needs to be recharged.
Battery empty. Powering off...
The battery is empty and needs to be recharged.


Temperature too high at CAM
or

Temperature too low at CAM
The temperature detected by the baby unit is higher/lower than the desired temperature alert range.


Powering on...
The parent unit is turning on.
The parent unit is searching for the baby unit.


Auto Timer of lullaby is reset
The timer that determines the remaining play time for the lullabies is restarted.
The parent unit has just been connected to AC power.


Alert of movement sensor is enabled
The absence alert is turned on.


Alert of movement sensor is disabled
and

The absence alert is turned off.

Night vision

The baby unit has infrared LEDs that allow you to see your baby clearly at night or in a dark room. When the baby unit being viewed detects low light levels, the infrared LEDs are switched on automatically. The images from the baby unit are in black and white, and appears on the screen.

Notes

  • It is normal if you see a short white glare on your parent unit screen as the baby unit is adapting to the dark environment.
  • When the infrared LEDs are on, the images are in black and white. This is normal.

Tip
Depending on the surroundings and other interfering factors, like lightings, objects, colors and backgrounds, the video quality may vary. Adjust the baby unit's angle or place the baby unit at a higher level to prevent glare and blurry display.

Mount the baby unit (optional)

Your baby monitor comes ready for tabletop use. You can also choose to mount your baby monitor on the wall. See Mount the baby unit (optional) in the Quick Start Guide for the wall mounting instructions.

General product care

To keep this product working well and looking good, follow these guidelines:

  • Avoid putting it near heating appliances and devices that generate electrical noise (for example, motors or fluorescent lamps).
  • DO NOT expose it to direct sunlight or moisture.
  • Avoid dropping the product or treating it roughly.
  • Clean with a soft cloth.
  • DO NOT immerse the parent unit and the baby unit in water and do not clean them under the tap.
  • DO NOT use cleaning spray or liquid cleaners.
  • Make sure the baby unit and parent unit are dry before you connect them to the mains again.

Storage

When you are not going to use the baby monitor for some time, remove the rechargeable battery from the parent unit. Store the parent unit, the baby unit and the adapters in a cool and dry place.

Frequently asked questions

Below are the questions most frequently asked about the baby monitor. If you cannot find the answer to your question, visit our website at www.vtechphones.com, or contact 1 (800) 595-9511 for customer service.

Why does the baby monitor not respond normally? Try the following (in the order listed) for common cure:
  1. Disconnect the power to the baby unit and the parent unit.
  2. Remove the batteries in the parent unit. Then, install the batteries again.
  3. Wait a few seconds before connecting power back to the baby unit and the parent unit.
  4. Turn on the baby unit and the parent unit.
  5. Wait for the parent unit to synchronize with the baby unit. Allow up to one minute for this to take place.
Why don't the power-on light of the baby unit and parent unit go on when I switch on the units?
  • Perhaps the parent unit is not connected to the power. Insert the appliance plug into the parent unit and put the adapter in a wall socket. Then, press and hold POWER to switch on the parent unit and to establish connection with the baby unit.
  • Perhaps the baby unit is not connected to the power. Insert the appliance plug into the baby unit and put the adapter in a wall socket. Then, slide the ON/OFF switch to ON to switch on the baby unit and to establish connection with the parent unit.
Why doesn't my parent unit charge while connected to AC power?
  • Make sure the power is not controlled by a wall switch.
  • Make sure the battery is correctly installed in your parent unit.
  • You may have used the battery for a long time. Replace a new battery.
Why is my screen in black and white? The screen is in black and white during night-time or in a dark room when the night vision feature is activated. This is normal.
Why do I get glare or blurry display on my screen when viewing my baby at night? During night-time or in a dark room, the surroundings and other interfering factors, like lightings, objects, colors and backgrounds may affect the image quality on your parent unit screen. Adjust the baby unit's angle or place the baby unit at a higher level to prevent glare and blurry display.
Why does the baby monitor produce a high-pitched noise? The parent unit and baby unit may be too close to each other.
  • Move the parent unit away from the baby unit until the noise stops; OR
  • Turn down the volume of your parent unit.
Why does the parent unit beep?
  • The baby unit may be out of range. Move the parent unit closer to the baby unit (but not less than 3 feet).
  • The parent unit may not have enough charge for the parent unit to perform normally. Charge the battery in the parent unit for up to 3 hours.
  • The temperature of your baby's room may be too high or too low.
  • Perhaps the baby unit cannot detect any movement in the room. If you carry your baby away from the camera range, you may press to turn off the absence alert.
Why does the parent unit react too quickly to other sounds? The baby unit also picks up other sounds than those of your baby. Adjust the VOX sensitivity level to a lower level or lower the parent unit speaker volume.
Why don't I hear a sound/Why can't I hear my baby cry?
  • The parent unit speaker volume may be too low. Press VOL + to increase the volume.
  • You may have set a low VOX sensitivity level. See Adjust the sound sensitivity of the baby unit to set to a higher level.
Why can't I establish a connection? Why is the connection lost every now and then? Why are there sound interruptions?
  • The baby unit may be out of range. Move the parent unit closer to the baby unit (but not less than 3 feet).
  • Other electronic and wireless products may cause interference with your baby monitor. Try installing your baby monitor as far away from these devices as possible.

Important safety instructions

When using your equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following:

  1. Follow all warnings and instructions marked on the product.
  2. Adult setup is required.
  3. This product is not a substitute for adult supervision of the infant. Supervising the infant is the parent's or caregiver's responsibility. This product could cease operating, and therefore you should not assume it will continue working properly for any given period of time. Further, this is not a medical device and should not be used as such. This product is intended to assist you in supervising your baby.
  4. Do not use this product near water. For example, do not use it next to a bath tub, wash bowl, kitchen sink, laundry tub or swimming pool, or in a wet basement or shower.

  5. Use only the batteries indicated in this manual. There may be a risk of explosion if a wrong type of battery is used for the parent unit. Use only the supplied rechargeable battery or replacement battery pack (BT198555/BT298555) for the parent unit. Do not dispose of batteries in a fire. They may explode. Dispose of used battery according to the information in The RBRC® seal.
  6. Use only the adapters included with this product. Incorrect adapter polarity or voltage can seriously damage the product. Baby unit power adapter: Output: 5V DC 1A; Parent unit power adapter: Output: 5V DC 1A.
  7. The power adapters are intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet.
  8. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.
  9. Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
  10. Unplug the power cords before replacing batteries.
  11. Do not cut off the power adapters to replace them with other plugs, as this causes a hazardous situation.
  12. Do not allow anything to rest on the power cords. Do not install this product where the cords may be walked on or crimped.
  13. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply in your home, consult your dealer or local power company.
  14. Do not overload wall outlets or use an extension cord.
  15. Do not place this product on an unstable table, shelf, stand or other unstable surfaces.
  16. This product should not be placed in any area where proper ventilation is not provided. Slots and openings in the back or bottom of this product are provided for ventilation. To protect them from overheating, these openings must not be blocked by placing the product on a soft surface such as a bed, sofa or rug. This product should never be placed near or over a radiator or heat register.
  17. Never push objects of any kind into this product through the slots because they may touch dangerous voltage points or create a short circuit. Never spill liquid of any kind on the product.
  18. To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility.
    Opening or removing parts of the product other than specified access doors may expose you to dangerous voltages or other risks. Incorrect reassembling can cause electric shock when the product is subsequently used.
  19. You should test the sound reception every time you turn on the units or move one of the components.
  20. Periodically examine all components for damage.
  21. Be aware of possible loss of privacy while using public airwaves. Conversations may be picked up by other nursery monitors, cordless phones, scanners, etc.
  22. Children should be supervised to ensure that they do not play with the product.
  23. The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

SAVE THESE INSTRUCTIONS

  1. Use and store the product at a temperature between 32oF and 104oF.
  2. Do not expose the product to extreme cold, heat or direct sunlight. Do not put the product close to a heating source.
  3. Batteries should not be exposed to excessive heat such as bright sunshine or fire.
  4. Make sure the baby unit(s) and the adapter cord(s) are always out of reach of the baby, at least 3 feet away from the baby or crib, to avoid a possible strangulation hazard.
  5. Never place the baby unit(s) inside the baby's crib or playpen. Never cover the baby unit(s) or parent unit with anything such as a towel or a blanket.
  6. Other electronic products may cause interference with your baby monitor. Try installing your baby monitor as far away from these electronic devices as possible: wireless routers, radios, cellular telephones, intercoms, room monitors, televisions, personal computers, kitchen appliances and cordless telephones.

Precautions for users of implanted cardiac pacemakers
Cardiac pacemakers (applies only to digital cordless devices):
Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the interference between portable wireless devices and implanted cardiac pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to physicians that:

Pacemaker patients

  • Should keep wireless devices at least six inches from the pacemaker.
  • Should NOT place wireless devices directly over the pacemaker, such as in a breast pocket, when it is turned ON.

WTR's evaluation did not identify any risk to bystanders with pacemakers from other persons using wireless devices.

Electromagnetic fields (EMF)
This VTech product complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user's manual, the product is safe to be used based on scientific evidence available today.

The RBRC® seal


The RBRC® seal on the lithium-ion battery indicates that VTech Communications, Inc. is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful lives, when taken out of service within the United States and Canada.

The RBRC® program provides a convenient alternative to placing used lithium-ion batteries into the trash or municipal waste, which may be illegal in your area.

VTech's participation in RBRC® makes it easy for you to drop off the spent battery at local retailers

participating in the RBRC® program or at authorized VTech product service centers. Please call 1 (800) 8 BATTERY® for information on Li-ion battery recycling and disposal bans/restrictions in your area. VTech's involvement in this program is part of its commitment to protecting our environment and conserving natural resources.

RBRC® and 1 (800) 8 BATTERY® are registered trademarks of the Rechargeable Battery Recycling Corporation.

FCC and IC regulations

FCC Part 15
This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.


Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

  1. this device may not cause harmful interference, and
  2. this device must accept any interference received, including interference that may cause undesired operation.

To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can be safely absorbed by a user or bystander according to the intended usage of the product. This product has been tested and found to comply with the FCC criteria. The baby unit shall be installed and used such that parts of all persons' body are maintained at a distance of approximately 8 in (20 cm) or more. The transmitter and antenna of the parent unit shall be held at least 1 in (2.5 cm) from your face.

This Class B digital apparatus complies with Canadian requirement: CAN ICES-3 (B)/NMB-3(B)

Industry Canada
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

  1. This device may not cause interference.
  2. This device must accept any interference, including interference that may cause undesired operation of the device.

The term ''IC:'' before the certification/registration number only signifies that the Industry Canada technical specifications were met.
This product meets the applicable Innovation, Science and Economic Development Canada technical specifications.

RF radiation exposure statement
The baby unit complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The baby unit should be installed and operated with a minimum distance of 8 in (20 cm) between the baby unit and all persons' body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies also with Industry Canada RSS-102 with respect to Canada's Health Code 6 for Exposure of Humans to RF Fields.

California Energy Commission battery charging testing mode
This baby monitor meets the California Energy Commission (CEC) regulations for energy consumption. Your baby monitor is set up to comply with the energy-conserving standards right out of the box. Follow the instructions to install and charge the battery. The CEC battery charging testing mode is activated while charging. Even if the parent unit is paired to baby units, the CEC battery charging testing mode is activated while it is powered off and charging.

Limited warranty

What does this limited warranty cover?
The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase ("Consumer" or "you") that the Product and all accessories provided in the sales package ("Product") are free from defects in material and workmanship, pursuant to the following terms and conditions, when installed and used normally and in accordance with the Product operating instructions. This limited warranty extends only to the Consumer for Products purchased and used in the United States of America and Canada.

What will VTech do if the Product is not free from defects in materials and workmanship during the limited warranty period ("Materially Defective Product")?
During the limited warranty period, VTech's authorized service representative will repair or replace at VTech's option, without charge, a Materially Defective Product. If we repair the Product, we may use new or refurbished replacement parts. If we choose to replace the Product, we may replace it with a new or refurbished Product of the same or similar design. We will retain defective parts, modules, or equipment. Repair or replacement of the Product, at VTech's option, is your exclusive remedy. VTech will return the repaired or replacement Products to you in working condition. You should expect the repair or replacement to take approximately 30 days.

How long is the limited warranty period?
The limited warranty period for the Product extends for ONE (1) YEAR from the date of purchase. If VTech repairs or replaces a Materially Defective Product under the terms of this limited warranty, this limited warranty also applies to the repaired or replacement Product for a period of either

  1. 90 days from the date the repaired or replacement Product is shipped to you or
  2. the time remaining on the original one-year warranty; whichever is longer.

What is not covered by this limited warranty?
This limited warranty does not cover:

  1. Product that has been subjected to misuse, accident, shipping or other physical damage, improper installation, abnormal operation or handling, neglect, inundation, fire, water or other liquid intrusion; or
  2. Product that has been damaged due to repair, alteration or modification by anyone other than an authorized service representative of VTech; or
  3. Product to the extent that the problem experienced is caused by signal conditions, network reliability, or cable or antenna systems; or
  4. Product to the extent that the problem is caused by use with non-VTech accessories; or
  5. Product whose warranty/quality stickers, product serial number plates or electronic serial numbers have been removed, altered or rendered illegible; or
  6. Product purchased, used, serviced, or shipped for repair from outside the United States of America or Canada, or used for commercial or institutional purposes (including but not limited to Products used for rental purposes); or
  7. Product returned without a valid proof of purchase (see item 2 below); or
  8. Charges for installation or set up, adjustment of customer controls, and installation or repair of systems outside the unit.

How do you get warranty service?
To obtain warranty service in the USA, please visit our website at www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.

NOTE:
Before calling for service, please review the user's manual - a check of the Product's controls and features may save you a service call.

Except as provided by applicable law, you assume the risk of loss or damage during transit and transportation and are responsible for delivery or handling charges incurred in the transport of the Product(s) to the service location. VTech will return repaired or replaced Product under this limited warranty. Transportation, delivery or handling charges are prepaid. VTech assumes no risk for damage or loss of the Product in transit. If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty, VTech will notify you and will request that you authorize the cost of repair prior to any further repair activity. You must pay for the cost of repair and return shipping costs for the repair of Products that are not covered by this limited warranty.

What must you return with the Product to get warranty service?

  1. Return the entire original package and contents including the Product to the VTech service location along with a description of the malfunction or difficulty; and
  2. Include a "valid proof of purchase" (sales receipt) identifying the Product purchased (Product model) and the date of purchase or receipt; and
  3. Provide your name, complete and correct mailing address, and telephone number.

Other limitations
This warranty is the complete and exclusive agreement between you and VTech. It supersedes all other written or oral communications related to this Product. VTech provides no other warranties for this Product. The warranty exclusively describes all of VTech's responsibilities regarding the Product. There are no other express warranties. No one is authorized to make modifications to this limited warranty and you should not rely on any such modification. State/Provincial Law Rights: This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state or province to province.

Limitations: Implied warranties, including those of fitness for a particular purpose and merchantability (an unwritten warranty that the Product is fit for ordinary use) are limited to one year from the date of purchase. Some states/provinces do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. In no event shall VTech be liable for any indirect, special, incidental, consequential, or similar damages (including, but not limited to lost profits or revenue, inability to use the Product or other associated equipment, the cost of substitute equipment, and claims by third parties) resulting from the use of this Product. Some states/provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Please retain your original sales receipt as proof of purchase.

Technical specifications

Frequency control Crystal controlled PLL synthesizer
Transmit frequency Baby unit: 2405 - 2475 MHz
Parent unit: 2405 - 2475 MHz
Channels 32
LCD 5" Color LCD
(WQVGA 480x272 pixel)
Nominal effective range Maximum power allowed by FCC and IC. Actual operating range may vary according to environmental conditions at the time of use.
Power requirements Parent unit: 3.7V Li-polymer battery
Baby unit power adapter: Output: 5V DC @ 1A
Parent unit power adapter: Output: 5V DC @ 1A

Credits:
The Background Noise sound file was created by Caroline Ford, and is used under the Creative Commons license.
The Stream Noise sound file was created by Caroline Ford, and is used under the Creative Commons license.
The Crickets At Night sound file was created by Mike Koenig, and is used under the Creative Commons license.
The Heart Beat sound file was created by Zarabadeu, and is used under the Creative Commons license.


Specifications are subject to change without notice.
© 2018 VTech Communications, Inc.
All rights reserved.

Go to www.vtechphones.com VM5253 to register your product for enhance.
For support, shopping, and everything new at VTech, visit our website at www.vtechphones.com.

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download VTech VM5253 - Breathing And Video Monitor Manual

Advertisement

Need help?

Need help?

Do you have a question about the VM5253 and is the answer not in the manual?

Questions and answers

Related Manuals for VTech VM5253

Save Article as PDF

Table of Contents
