Summary of Contents for Gaggenau CX 492

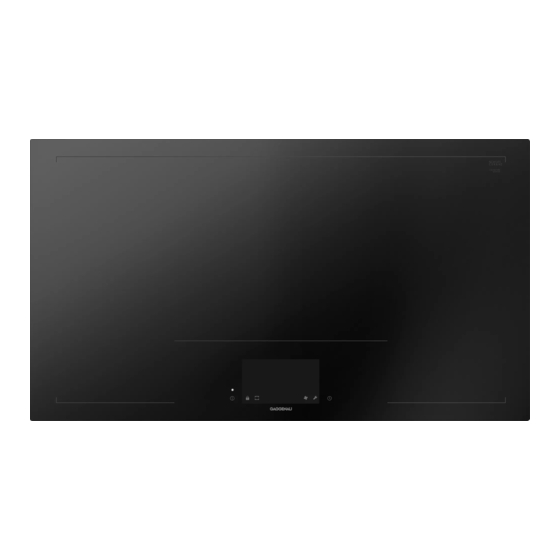

- Page 1 Gaggenau en Information for Use CX 492 Full surface induction cooktop...
-
Page 2: Table Of Contents
en Safety Table of contents ¡ Keep the instructions, the appliance pass and the product information safe for future Safety .............. 2 reference or for the next owner. ¡ Do not connect the appliance if it has been Avoiding material damage........ 4 damaged in transit. -
Page 3: Safety
Safety en The appliance becomes hot during operation. equate experience and/or knowledge, ▶ Allow the appliance to cool down before provided that they are supervised or have been instructed on how to use the appliance cleaning. Metal objects on the hob quickly become very safely and have understood the resulting hot. -
Page 4: Avoiding Material Damage
en Avoiding material damage When cooking in a bain marie, the hob and WARNING ‒ Risk of suffocation! cooking container could shatter due to over- Children may put packaging material over heating. their heads or wrap themselves up in it and ▶ The cooking container in the bain marie suffocate. -
Page 5: Environmental Protection And Saving En- Ergy
Environmental protection and saving energy en ATTENTION! A fan is located on the underside of this hob. If a drawer is located on the underside of the hob, ▶ do not store any small or pointed objects, paper or tea towels in it. These objects may be sucked in and damage the fan or impair the cooling. - Page 6 en Suitable cookware Cookware bases that contain aluminium. These cookware bases reduce the ferromag- netic area, which means that less power is emitted to the cookware. This cookware may not be sufficiently detected or may not be de- tected at all, and therefore does not heat suf- ficiently.
-
Page 7: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Cooking surface Button Function Time menu The entire cooking surface of the hob supplies induc- Timer ¡ tion heating. Place the cookware on any position within ... -
Page 8: Cooking Sensor
en Familiarising yourself with your appliance Function bar Opening the info menu Enables access to certain functions and additional Touch in the function bar. ▶ menus. a The touch field is visible when the function is avail- The following options are shown in the function bar: able. - Page 9 Before using for the first time en Note: The cooking zone displays may show a different Hotplate Status size or shape to the cookware actually being used. No cookware on the cooking zone This is normal and does not affect the functioning of ¡...
- Page 10 en Basic operation QuickStart If you place cookware on the cooking surface be- ▶ fore you switch on the appliance, it is detected when the main switch is pressed and the cooking zone display appears on the touchscreen. Changing the power level and switching off the cooking zone Select the cooking zone.
- Page 11 Dynamic cooking en Boiled potatoes 4.5 - 5.5 15 - 30 Fish, breaded and frozen, e.g. 6 - 7 8 - 15 fish fingers Pasta 6 - 7 6 - 10 Prawns and scampi 7 - 8 4 - 10 Stew 3.5 - 4.5 120 - 180 Sautéing fresh vegetables and 7 - 8 10 - 20 mushrooms Soups...
- Page 12 en Professional cooking Note: If the cookware is not the right size for this func- 8.2 Activating dynamic cooking tion, the symbol lights up on the cooking zone dis- Touch . play. For information, touch . To return to the main Touch ...
- Page 13 Time-setting options en To separate the combined areas again, touch one 9.4 Combining areas of the vertical edges of the area and swipe left or The areas with the preset power levels can be com- right with your finger until the hidden section re- bined to form one large surface with the same power appears.
- Page 14 en Booster for pots Within the next 10 seconds, slide your finger up or 10.3 Runtime down and set the required time. You can set hours, The stopwatch function displays the time that has minutes and seconds. elapsed since activation. Touch to confirm the selected setting. ...
- Page 15 Booster for pans en Note: In certain circumstances, this function may Booster for pots switch off automatically in order to protect the electronics components on the circuit board inside. 12 Booster for pans You can use this function to heat up the cookware 12.1 Recommended applications faster than with power level 9.0.
- Page 16 en Transfer settings 14 Transfer settings You can use this function to transfer the set power level Touch to confirm the transfer of settings. or temperature level and the cooking time when you a The power level is displayed in the new cooking move the cookware on the cooking surface.
- Page 17 Cooking sensor en ¡ To prevent overheating, never align the cooking sensor to any other hot cookware. Chocolate pudding Other 15.3 Switching on Cooking sensor Heating milk 3-10 Requirement: Connect the wireless cooking sensor. Attach the wireless cooking sensor to the cookware. Poaching in water.
- Page 18 You can purchase the wireless cooking sensor from Meat customer service, in our online shop or in a specialist Chicken 15-25 shop www.gaggenau.com. Veal 15-25 Connecting the wireless cooking sensor Vegetables and legumes To connect the wireless cooking sensor to the control...
- Page 19 16.1 Scope of delivery After unpacking all of the parts, check for any transport damage and for completeness of delivery.
- Page 20 en Wireless cooking sensor Insert a new battery, observing the instructions for the battery poles. Only use premium-quality CR2032 batteries. 16.4 Replacing the battery Note: Do not use any metal objects to remove the If the LED on the wireless cooking sensor does not battery.
- Page 21 Dynamic cooking for an item of cookware en ¡ Do not touch the wireless cooking sensor with your fingers; this will soil or scratch it. 16.6 Declaration of Conformity BSH Hausgeräte GmbH hereby declares that the appli- ance with wireless cooking sensor function meets the basic requirements and other relevant provisions of the Directive 2014/53/EU.
- Page 22 en Teppanyaki function 18 Teppanyaki function This mode allows you to split the surface of the teppan- Press . yaki into two halves: A hot area to which a power level is assigned, and an area to which no power level is as- signed.
- Page 23 Pause function en 19.3 Automatic childproof lock Activating and deactivating You can activate the automatic childproof lock in the This function automatically activates the childproof lock basic settings. → Page 23 every time the hob is switched off. Note: To deactivate the automatic childproof lock, press and hold ...
- Page 24 en Power limitation Symbol Settings Description and options Appliance number View information about the appliance. and production date Automatic restore Set how long the appliance saves the most recently used settings after it has been switched off. Presettings You can restore all settings to the factory settings. Childproof lock Disable the hob and prevent children from using it without supervision.
- Page 25 Home Connect en Download the Home Connect app. Open the Home Connect app and scan the follow- ing QR code. Follow the instructions in the Home Connect app. 24.2 Overview of the Home Connect settings You can adjust the settings and network settings for Home Connect by going to your hob's basic settings. The hob displays the setting "Connection"...
- Page 26 en Hob-based hood control Notes 24.7 Data protection ¡ You can continue to use your appliance as normal Please see the information on data protection. while updates are downloading. Depending on your The first time your appliance is registered on a home personal settings in the app, software updates can network connected to the Internet, your appliance will also be set to download automatically.
- Page 27 Remove heavy soiling using a glass scraper. ATTENTION! Clean the hob with a cleaning agent for glass Unsuitable cleaning products may damage the sur- ceramic.
- Page 28 en FAQs 27 FAQs 27.1 Using the appliance Question Answer No image appears on the ¡ The brightness is not set correctly. display panel. Look at the the display from above and set the brightness in the basic settings. You can find additional information about this setting in the section entitled → "Basic settings", Page 23.
- Page 29 FAQs en Question Answer The cookware display on ¡ There are more than 8 items of cookware on the cooking surface. the touch display does not The cookware is too small: We recommend a diameter of 90 to 340 mm. correspond to the size or Use a bigger item of cookware or cookware that is suitable for induction cooking.
- Page 30 en Troubleshooting 27.4 Cleaning Question Answer How can I clean the hob? ¡ You can achieve the best results by using special glass-ceramic cleaning products. Do not use harsh or abrasive cleaning products, dishwater detergent (concentrated) or scouring pads. You can find more information about this under → "Cleaning and servicing", Page 27.
- Page 31 Troubleshooting en Fault Cause and troubleshooting The cooking zone's The hob's total power output has been limited. power level cannot Change the total power under "Maximum power consumption" in the basic settings. ▶ be increased. If a very large item of cookware is being used, this may have an effect on the maximum ▶...
- Page 32 Max. 100 mW ective 2014/53/EU. A detailed RED Declaration of Conformity can be found online at www.gaggenau.com among the additional documents on the product page for your appliance. Hereby, BSH Hausgeräte GmbH declares that the ap- pliance with Home Connect functionality is in compli- ance with relevant statutory requirements.
- Page 33 Customer Service en UK (NI) 5 GHz WLAN (Wi-Fi): For indoor use only. 5 GHz WLAN (Wi-Fi): For indoor use only. 31 Customer Service Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.
- Page 36 BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 München, GERMANY www.gaggenau.com Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom...
