INSTALLATION
TOOLS
• Flathead Screwdriver (for wire terminals)
• Philips Screwdriver (for mounting screws)
INSTALLATION STEPS:
Install your solar array, and cover with opaque material until all wiring is complete.
Wiring should not exceed 25ft from the solar panels to the battery.

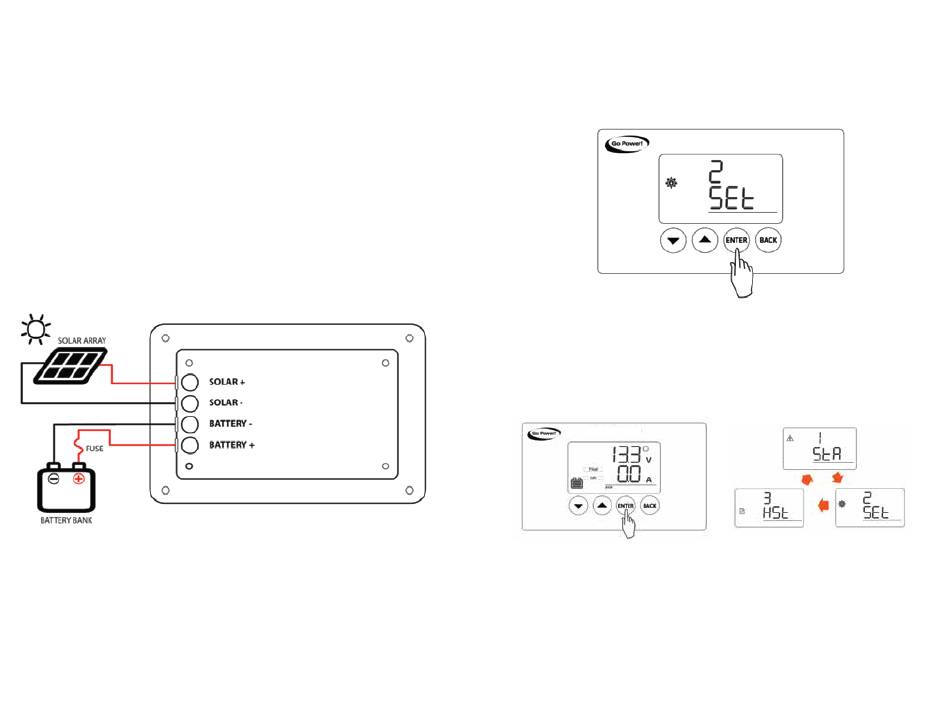

Wire the GP-SB-PWM-30BT according to the wiring diagram below. Be sure to torque
all screws based on the wire gauge after installation, as well as after 30-days.
The GP-SB-PWM-30BT is designed to be mounted flush against a wall, out of the way
but easily visible.
The GP-SB-PWM-30BT should be:
• Mounted as close to the battery bank as possible
• Mounted on a vertical surface to optimize cooling of the unit
• Indoors, protected from the weather
ACCESSING SETTINGS
The GP-SB-PWM-30BT includes an LCD of FSTN type with 4 mechanical buttons
that act as navigation keys to control the display. The GP-
can be accessed by entering menu number 2 as shown below.
30 AMP SOLAR CONTROLLER
VIEWING CONTROLLER DISPLAY
Three menus are implemented in the display: status, settings, and history. At power
up, the controller turns on within the status menu. The different menus can then be
accessed by pressing the Enter key as shown below.
30 AMP SOLAR CONTROLLER
GP-SB-PWM-30-BT
®
BLUETOOTH
FEATURE
A Bluetooth® Low Energy module is integrated in the 30A model only.
For details on the data that can accessible/managed via Bluetooth®, please refer to
the GP-SB-PWM-10/30BT User Manual.
